Description
Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
Features
- 10-point Projected Capacitive Touch
- SuperClear® MVA-type panel technology
- Frameless Design
- Versatile Connectivity
- Durable, Scratch-resistant Screen
10-point Multi-touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
SuperClear MVA Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
Versatile Connectivity

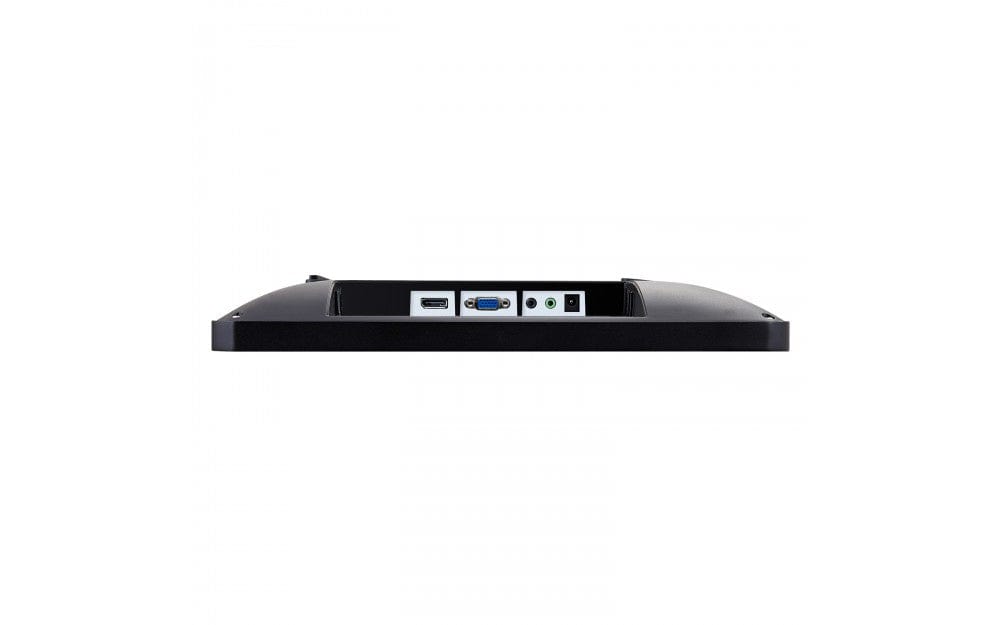

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
Specifications
| Display: | |
| Panel Type: | MVA |
| Colors: | 16.7M |
| Static Contrast Ratio: | 3,000:1 |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Resolution: | 1920 x 1080 |
| Viewable Area (in.): | 23.6 |
| Dynamic Contrast Ratio: | 50,000,000:1 |
| Backlight Life (Hours): | 40,000 |
| Response Time (Typical GTG): | 25ms |
| Light Source: | LED |
| Brightness: | 250 cd/m2 |
| Panel Surface: | 7H Scratch Resistant Surface Hardness |
| Aspect Ratio: | 16:09 |
| Display Size (in.): | 24 |
| Compatibility: | |
| PC Resolution (max): | 1920 x 1080 |
| Touch: | |
| Touch Technology: | Projective Capacitive |
| Touch Points: | 10-Point Touch |

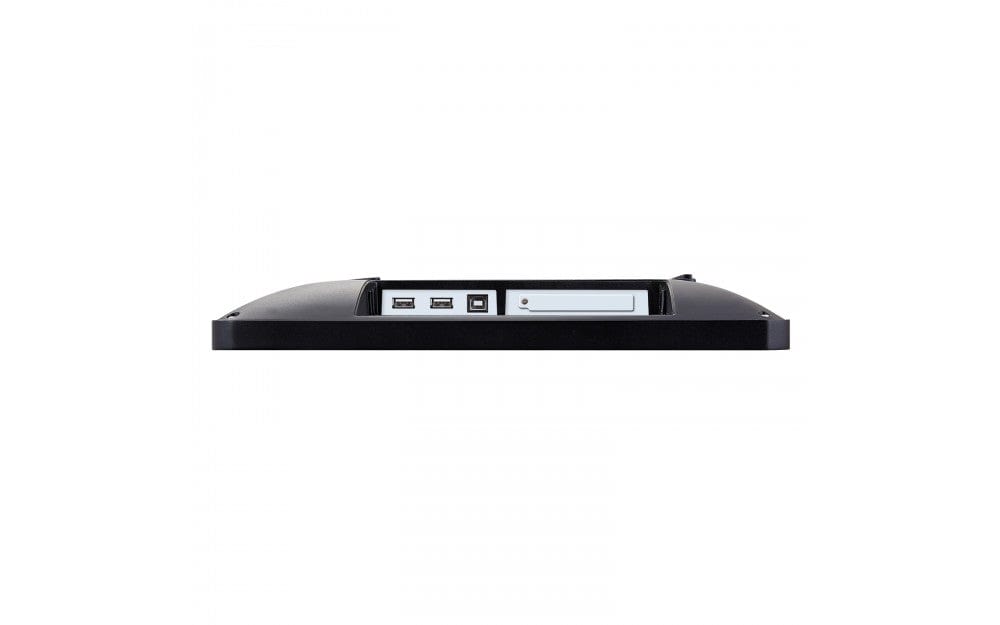

| Connector: | USB 3.0 Type A(2), USB 3.0 Type B(1), VGA(1), HDMI 1.4(1), Display Port(1) |
| Audio: | |
| Internal Speakers: | 2.5W (x2) |
| Video Signal: | |
| Frequency Horizontal: | Analog: 24 ~ 82Hz, Digital: 15 ~ 82Hz |
| Frequency Vertical: | Analog: 50 ~ 75Hz, Digital: 24 ~ 75Hz |
| Analog Sync: | Separate Sync / Composite Sync / Sync on Green, TMDS, PCI-E |
| Power: | |
| Eco Mode (Conserve): | 19W |
| Eco Mode (optimized): | 22W |
| Consumption (typical): | 25W |
| Consumption (max): | 28W |
| Voltage: | AC 100-240V (universal), 50-60Hz |
| Stand-by: | 0.5W |
| Controls: | |
| Physical Controls: | 1, 2, Up, Down, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Humidity (non-condensing): | 20-90% |
| Ergonomics: | |

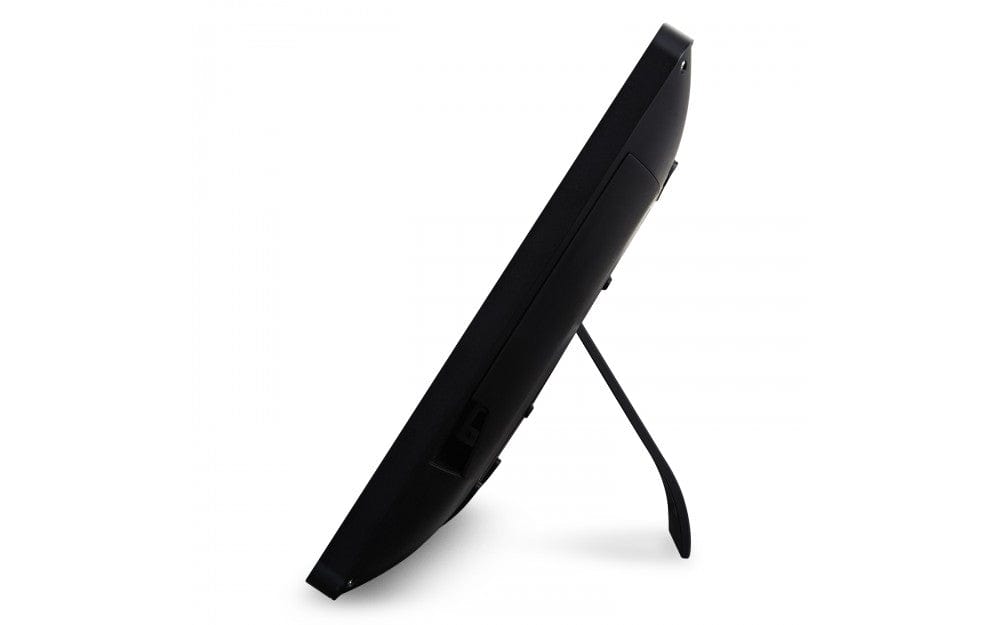

| Tilt (Forward/Back): | 20º - 53º, 90º (Flat) |
| Additional Hardware: | |
| Kensington Lock Slot: | 1 |
| Mount: | |
| VESA Compatible: | 100 x 100 mm |
| Weight (metric): | |
| Gross (kg): | 7.1 |
| Net Without Stand (kg): | 5.5 |
| Weight (imperial): | |
| Net (lbs): | 12.2 |
| Gross (lbs): | 374:24:00 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 643 x 435 x 140 |
| Physical (mm): | 573 x 353 x 47 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 25.3 x 17.1 x 5.5 |
| Physical (in.): | 22.6 x 13.9 x 1.9 |
| General: | |
| Regulations: | cTUVus, FCC-B w/ ICES003, DOE Energy Star 7.0, DOE EPEAT Silver, TUV-MX-CoC, Mexico Energy, NRCan |
| PACKAGE CONTENTS: | LCD Display, AC/DC Adapter, Power Cable , HDMI Cable , USB3.0 Upstream Cable , Audio Cable , Quick Start Guide, ViewSonic Wizard CD-ROM |
| Warranty: | Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes. |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| UPC: | 766907846911 |
| Accessories: | CB-00008948, CB-00009950, CB-00010555, CB-00010684, CB-00010958, LCD-CABLE-001, LCD-WMK-001, TD-EE-24-03, TD-EEEW-24-01, TD-EEEW-24-02, TD-EW-24-01, TD-EW-24-02, TD-EW-24-03, VSPF2360, cb-00011486 |
