Description
The ViewSonic TD2760 27" 16:9 Multi-Touch LCD Monitor is designed for both commercial and consumer applications. Thanks to 10-point multi-touch support, users can write or draw on the display's surface with their fingers or a stylus. Specs-wise, this display is built with an MVA panel featuring a 1920 x 1080 Full HD resolution, a 3000:1 static contrast ratio, a 230 cd/m brightness rating, and support for up to 16.7 million colors. Aside from VGA, HDMI, and DisplayPort inputs, this monitor also has a built-in USB hub, 3.5 mm audio jacks, and an RS232 port. If needed, users can replace the included stand with a separately sold VESA mount, stand, or arm.
Features
- Vertical Alignment (MVA) Panel
- VGA | HDMI | DisplayPort Inputs
- 1920 x 1080 Full HD Resolution
- 3000:1 Static Contrast Ratio
- Dual-Hinge Design
- Control Multiple Devices

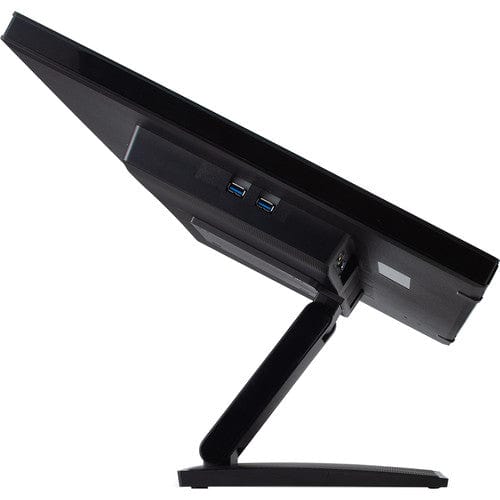

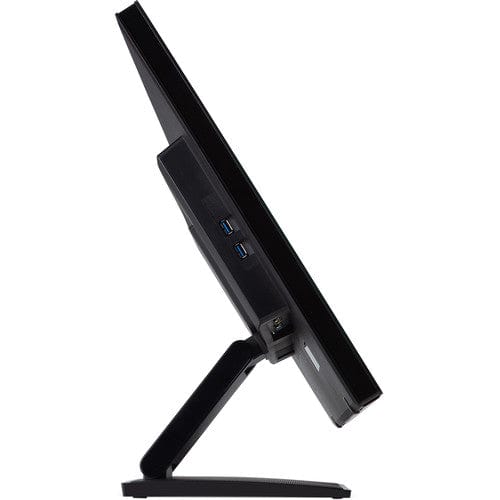

Dual-Hinge Design Aside from standing upright, this monitor can also tilt and rest flat on a table to best fit your needs. Control Multiple Devices A RS232 port offers local control for set-top boxes and other RS232 devices while HDMI CEC functionality lets users control DVD players, sound systems, and other HDMI devices.
Specifications
|
Display
|
|
| Size | 27" |
| Panel Type | VA LCD |
| Touchscreen | Yes |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Pixels Per Inch (ppi) | 81 ppi |
| Finish | Anti-Glare / Matte |
| Hardness Rating | 6H |
| Maximum Brightness | 230 cd/m2 |
| Contrast Ratio | 3000:1 |
| Dynamic Contrast Ratio | 50,000,000:1 |
| Refresh Rate | 60 Hz |
| Variable Refresh Technology | None |
| Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) |
| HDR Compatibility | None |
| Response Time | 12 ms (GtG) |
| 6 ms (Overdrive) | |
| Viewing Angle (H x V) | 178 x 178° |
|
Inputs / Outputs
|
|
| Inputs/Outputs | 1 x VGA |
| 1 x HDMI 1.4 | |
| 1 x DisplayPort | |
| 1 x RS232 | |
| 1 x 3.5 mm Input | |
| 1 x 3.5 mm Output | |
| 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) Output | |
| 1 x USB Type-B (USB 3.1 / USB 3.2 Gen 1) Input | |
| Built-In Speakers | Yes, 2 x 2 W |
|
Power
|
|
| Power Consumption | 19 W (Eco) |
| 22 W (Eco) | |
| 32 W (Typical) | |
| 36 W (Maximum) | |
| 0.3 W (Standby) | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
|
Environmental
|
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 90% |
|
Physical
|
|
| Height Adjustment | None |
| Rotation Adjustment | None |
| Swivel Adjustment | None |
| Tilt Adjustment | -4 to 90° |
| Mounting-Hole Pattern | 100 x 100 mm |
| Lock Slot | Yes, Kensington |
| Dimensions (W x H x D) | 26.0 x 17.5 x 9.4" / 660.4 x 444.5 x 238.8 mm (with Stand) |
| 26.0 x 16.2 x 2.3" / 660.4 x 411.5 x 58.4 mm (without Stand) | |
| Weight | 17.4 lb / 7.89 kg (with Stand) |
| 12.2 lb / 5.53 kg (without Stand) | |
|
Packaging Info
|
|
| Package Weight | 23 lb |
| Box Dimensions (LxWxH) | 29 x 20 x 8" |
