Description

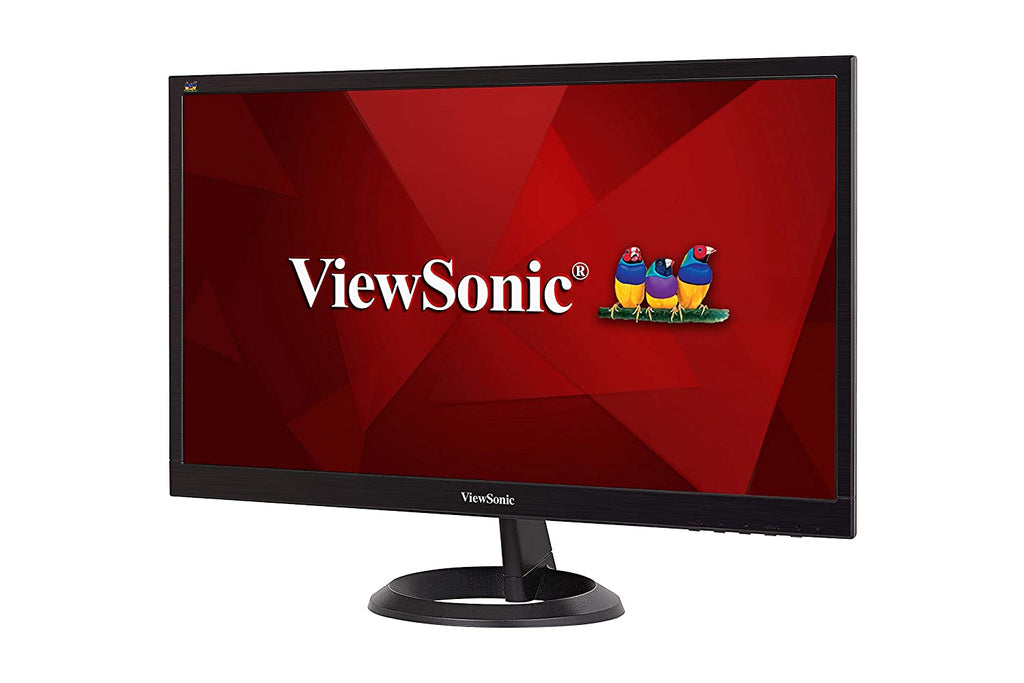

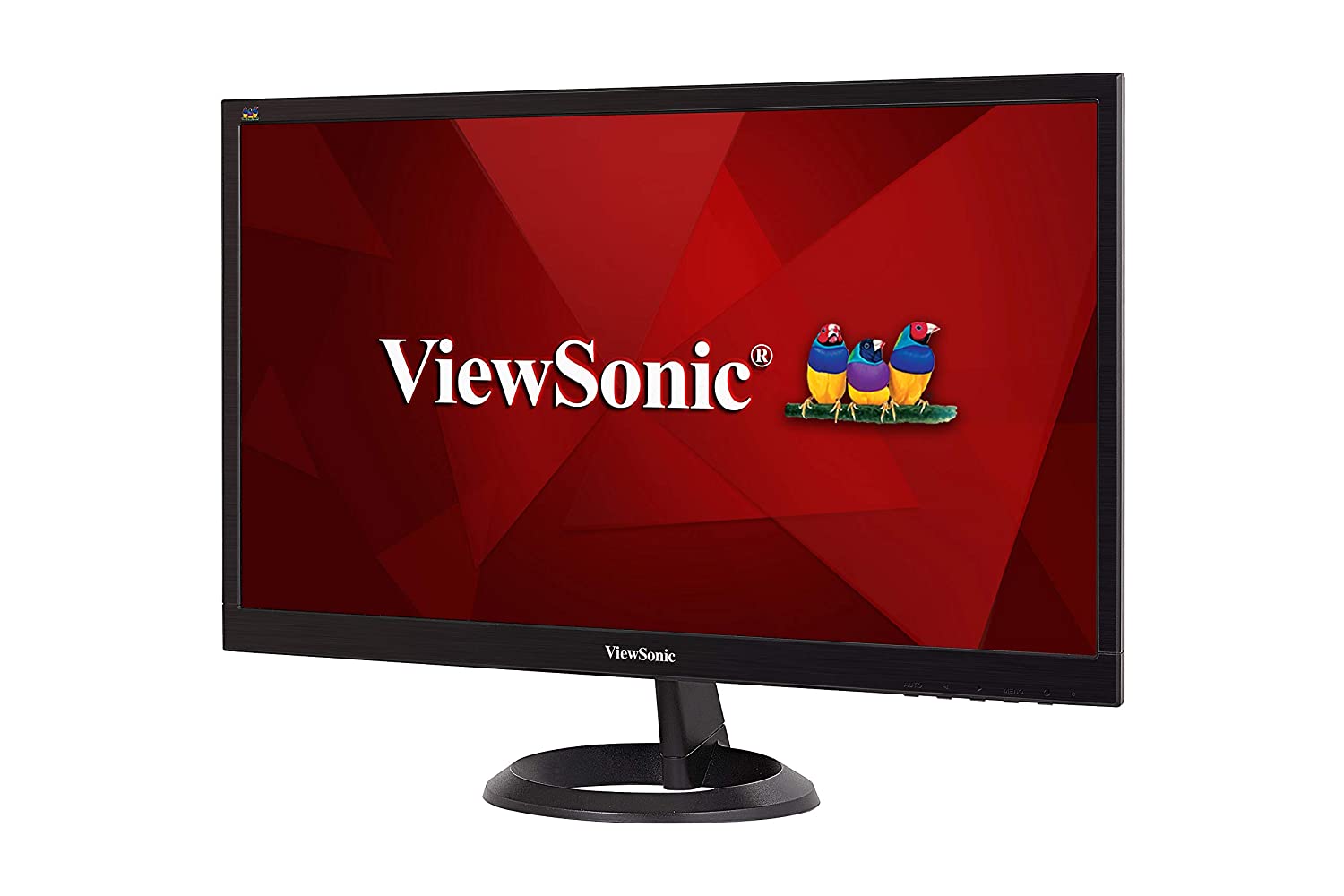

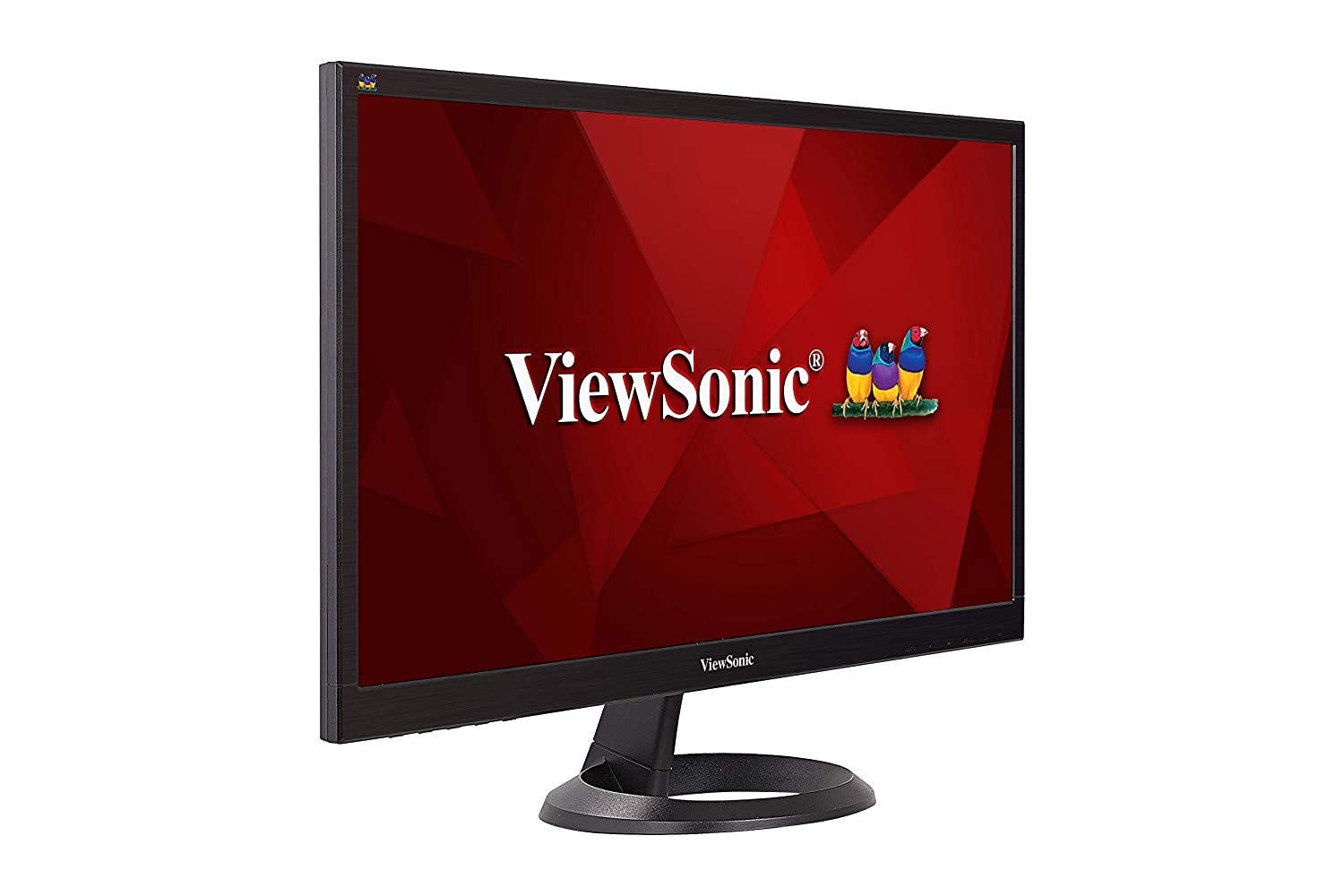

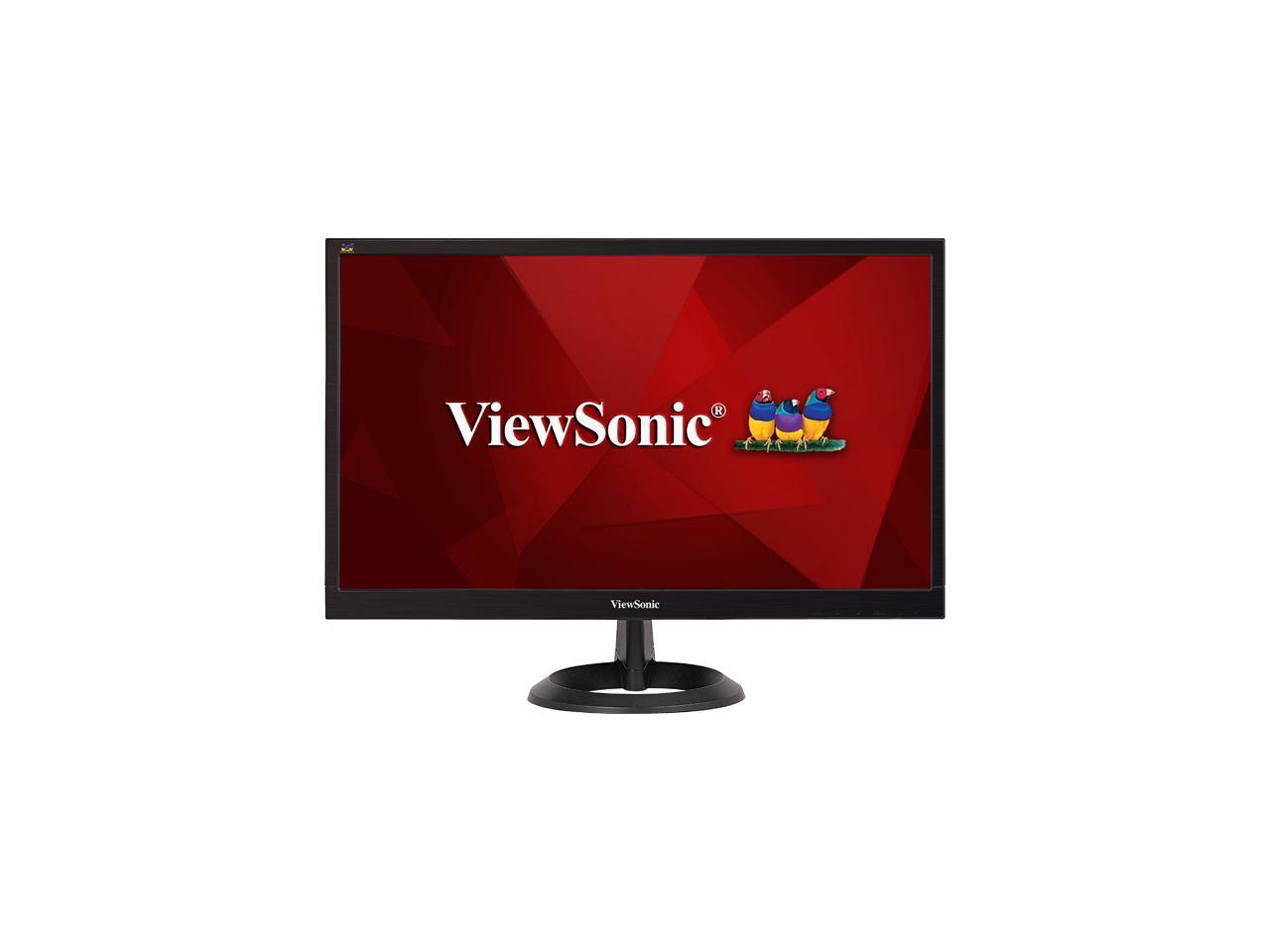

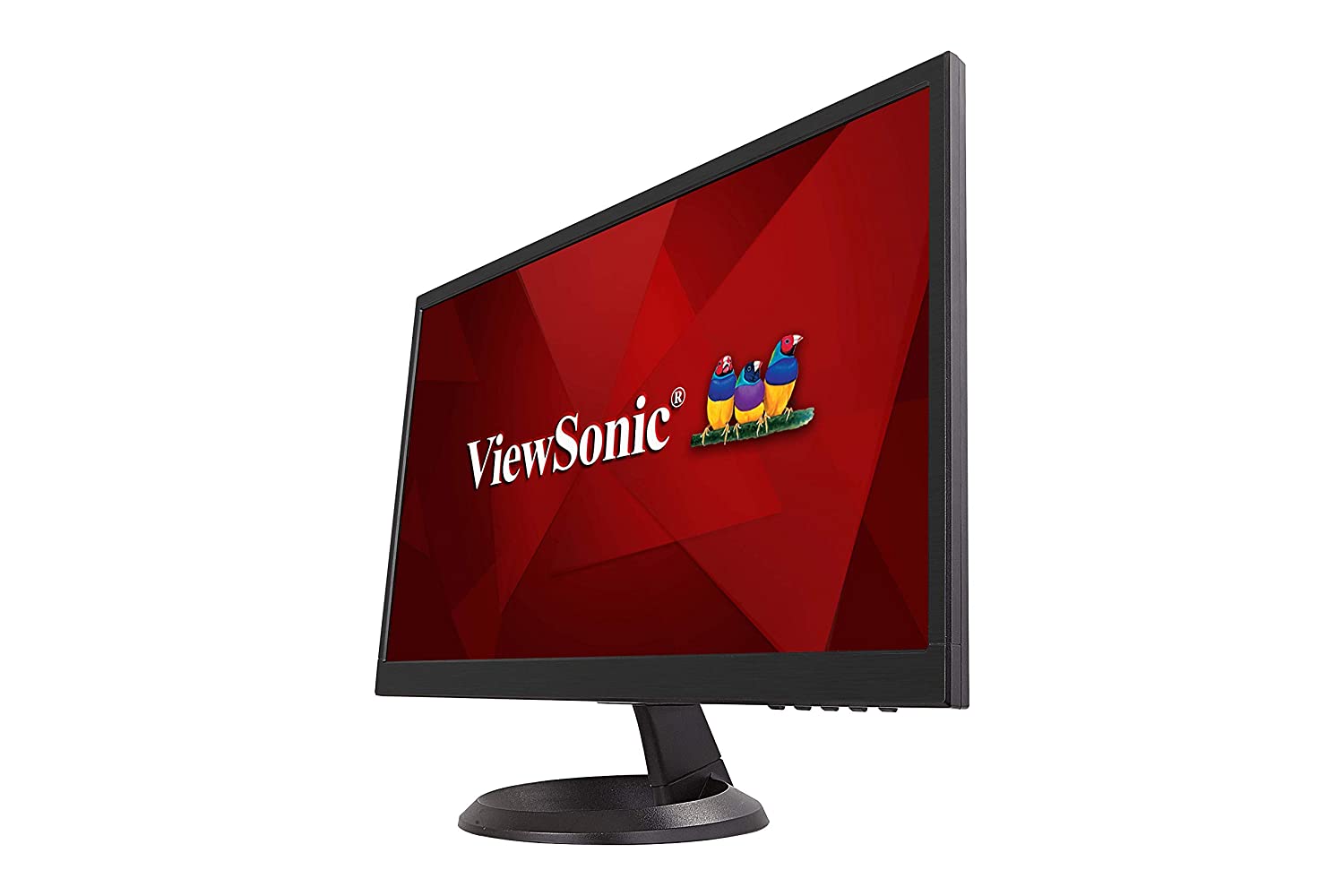

The ViewSonic® VA2261H-2 is a 22” (21.5” viewable) Full HD LED Monitor that is ideal for business or home usage. Its 1080p resolution delivers stunning image quality and more detailed content. ViewSonic’s exclusive View Mode feature provides intuitive presets that deliver optimized screen performance for different applications. Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods for improved productivity. HDMI and VGA provide flexible connectivity, and a VESA-compatible mount adapts easily to multi-monitor or wall-mounted set ups.
Features
- 1920 x 1080 60 Hz
- D-Sub HDMI
- DCR 50M:1 (600:1)
- 16.7 Million / 8 bit (6 bit + Hi-FRC)
- Tilt (Forward/Back): -6° / 19° VESA Compatibility - Mountable
Comfortable Viewing
Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
ViewMode: Superior Colour Rendering & Intuitive Settings
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimised viewing experience for different screen applications.
Full HD 1080P Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether working, gaming, or enjoying the latest in multimedia entertainment.
Flexible Connectivity
HDMI and VGA inputs give the freedom to connect your monitor to a wide range of devices.
Specifications
| Display
|
Display Size (in.): 22 |
| Viewable Area (in.): 21.5 | |
| Panel Type: TN Technology | |
| Resolution: 1920 x 1080 | |
| Resolution Type: FHD | |
| Static Contrast Ratio: 600:1 (typ) | |
| Dynamic Contrast Ratio: 50M:1 | |
| Light Source: LED | |
| Brightness: 200 cd/m² (typ) | |
| Colours: 16.7M | |
| Colour Space Support: 8 bit (6 bit + Hi-FRC) | |
| Aspect Ratio: 16:9 | |
| Response Time: 5ms | |
| Viewing Angles: 90º horizontal, 65º vertical | |
| Backlight Life (Hours): 30000 Hrs (Min) | |
| Curvature: Flat | |
| Refresh Rate (Hz): 60 | |
| Blue Light Filter: Yes | |
| Flicker-Free: Yes | |
| Colour Gamut: NTSC: 72% size (Typ) | |
| sRGB: 104% size (Typ) | |
| Pixel Size: 0.248 mm (H) x 0.248 mm (V) | |
| Surface Treatment: Anti-Glare, Hard Coating (3H) | |
| Compatibility
|
PC Resolution (max): 1920x1080 |
| Mac® Resolution (max): 1920x1080 | |
| PC Operating System: Windows 7/8/8.1/10 certified; macOS tested | |
| Mac® Resolution (min): 1920x1080 | |

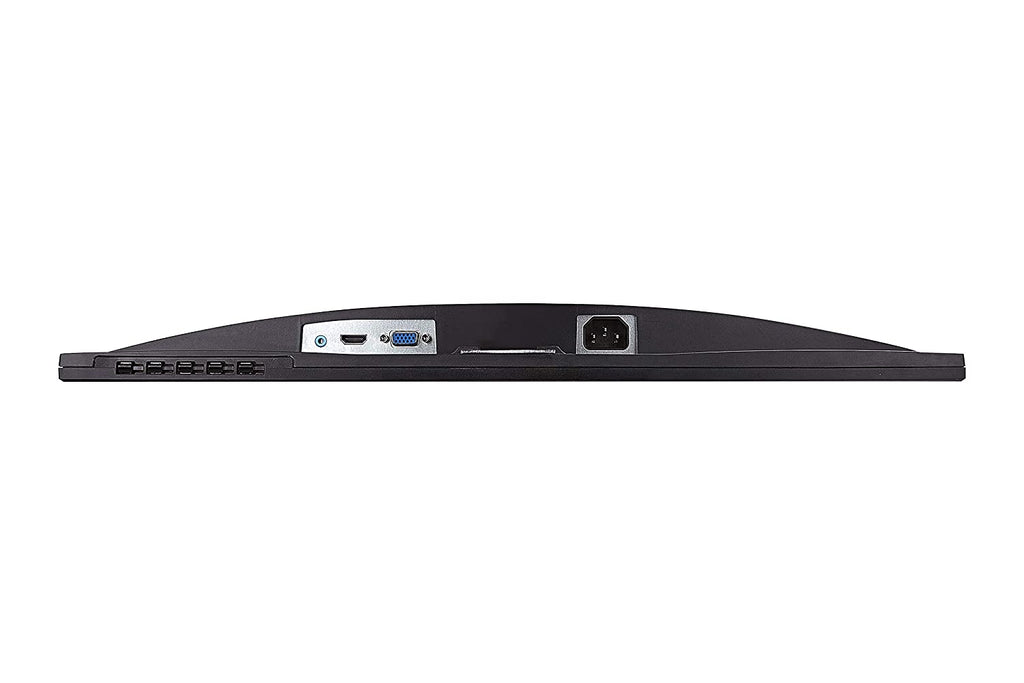

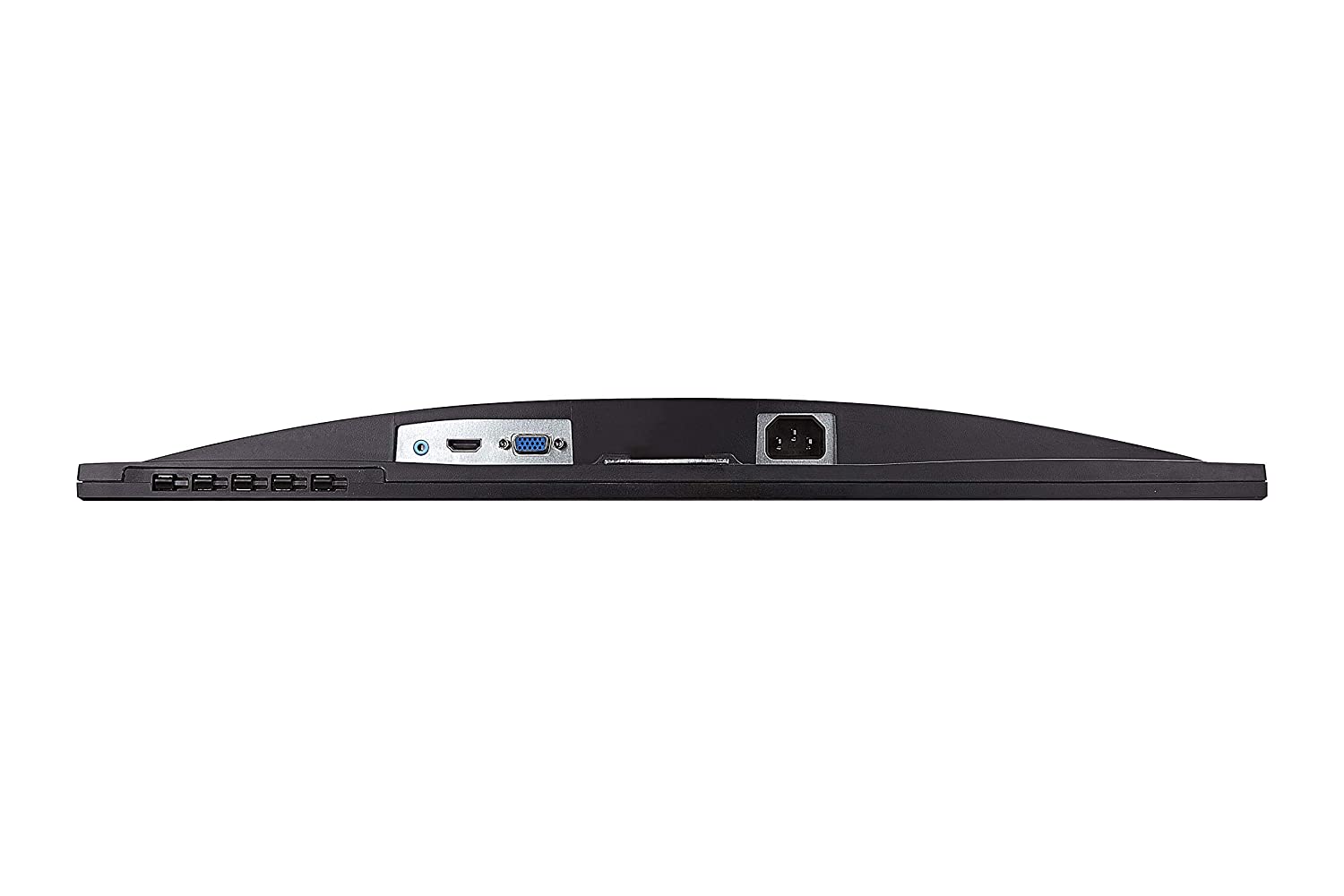

| Connector
|
VGA: 1 |
| 3.5mm Audio Out: 1 | |
| HDMI 1.4: 1 | |
| Power in: 3-pin Socket (IEC C14 / CEE22) | |
| Power
|
Eco Mode (Conserve): 12.5W |
| Eco Mode (Optimised): 14.5W | |
| Consumption (typical): 21.5W | |
| Consumption (max): 24W | |
| Voltage: AC 100-240V, 50/60 Hz | |
| Stand-by: 0.5W | |
| Power Supply: Internal | |
| Additional Hardware
|
Kensington Lock Slot: 1 |
| Controls
|
Physical Controls: Auto, Left, Right, Menu, Power |
| On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall | |
| Operating Conditions
|
Temperature: 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): 20% to 90% | |
| Wall Mount
|

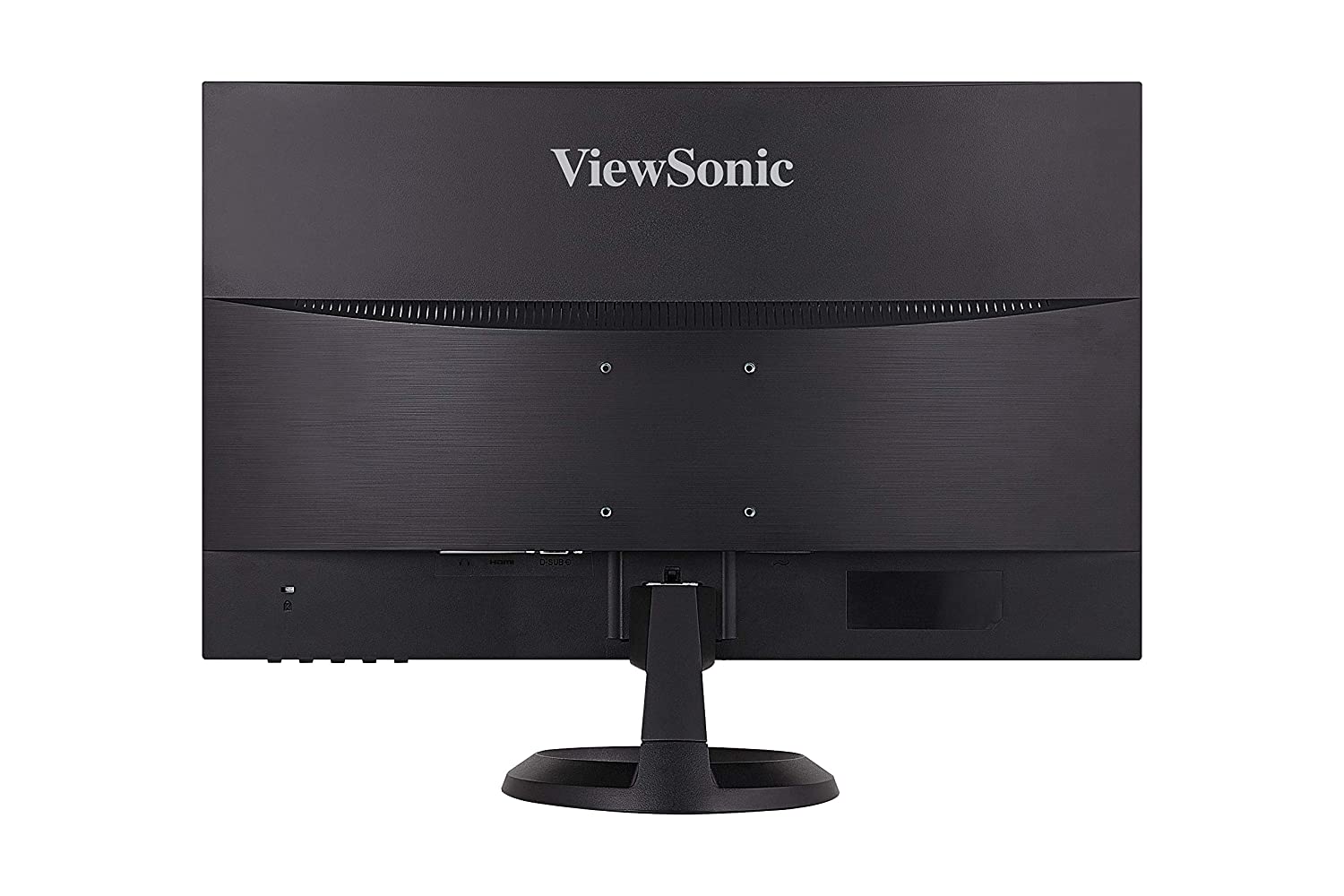

VESA Compatible: 75 x 75 mm |
| Input Signal
|
Frequency Horizontal: 24 ~ 82KHz |
| Frequency Vertical: 50 ~ 75Hz | |
| Video Input
|
Digital Sync: TMDS - HDMI (v1.4) |
| Analog Sync: Separate - RGB Analog | |
| Ergonomics
|

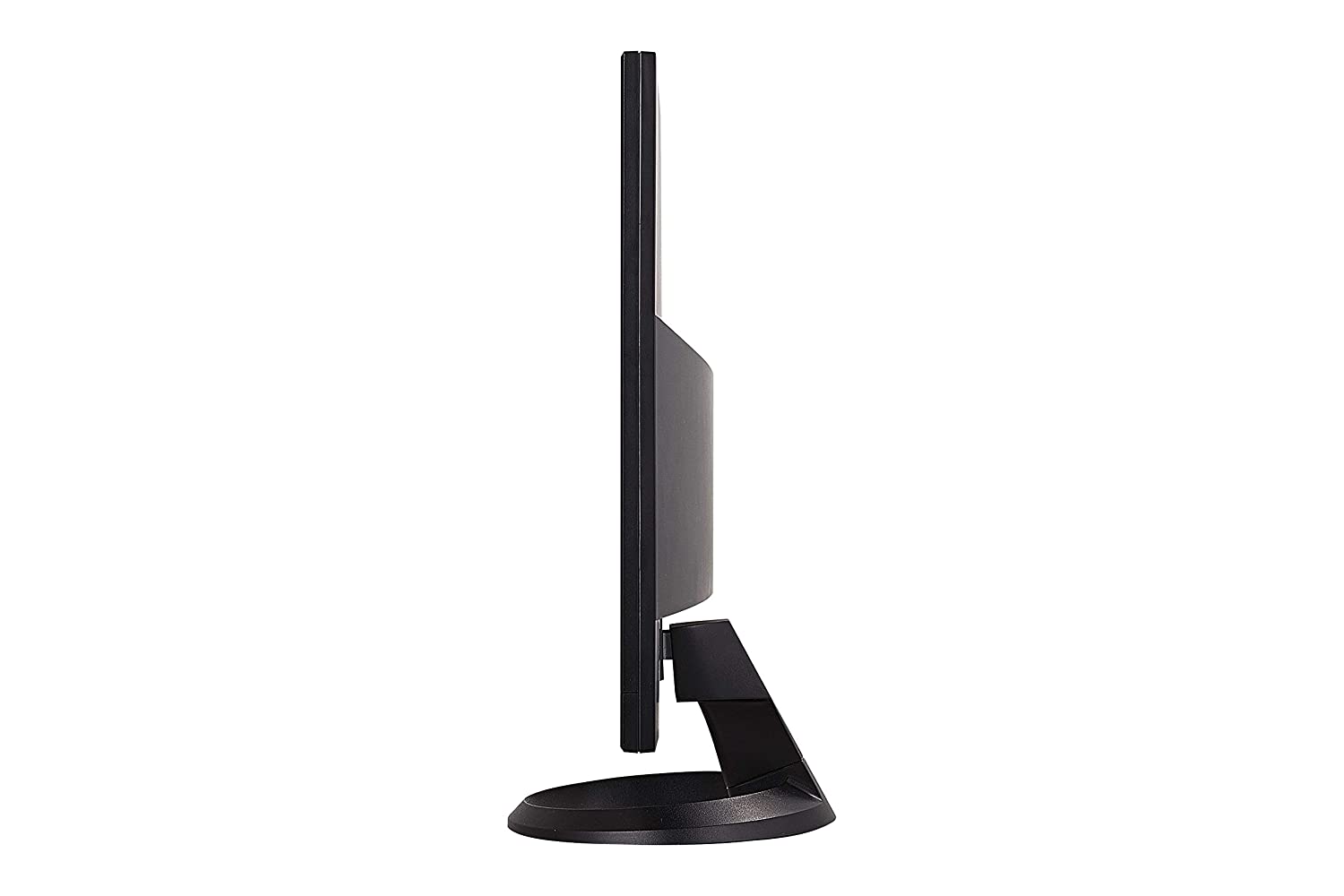

Tilt (Forward/Back): -6º / 19º |
| Weight (metric)
|
Net (kg): 2.6 |
| Net Without Stand (kg): 2.2 | |
| Gross (kg): 3.6 | |
| Dimensions (metric) (wxhxd)
|
Packaging (mm): 565 x 390 x 115 |
| Physical (mm): 505 x 381 x 180 | |
| Physical Without Stand (mm): 505 x 312 x 48 | |
| General
|
Regulations: cTUVus, FCC-B, ICES003, CEC, S-mark, MX-CoC, Mexico Energy, RoHS, WEEE, BSMI, BIS |
| PACKAGE CONTENTS: VA2261H-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (Male-Male) x1, Quick Start Guide x1 | |
| Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. |
