Description
The VA926-LED 19" Standard LED Backlit LCD Monitor from ViewSonic is a standard 19" monitor with a 4:3 aspect ratio compatible with both PCs and Macs via either the VGA or DVI-D port. You can take advantage of enhanced 1280 x 1024 resolution along with a 5ms response time ensuring reduced lag and blur during fast moving videos and movies. You can also view this monitor from nearly any angle with 170 horizontal and 160 vertical viewing angles. Along with enhanced viewing angles, you can adjust this monitor both forward and backward for improved viewing comfort.
Features
- VGA + DVI-D Inputs
- 1280 x 1024 Resolution
- 1000:1 Static Contrast Ratio
- 250cd/m Brightness
LED Panel By taking advantage of LED technology this monitor uses about 50% less power when compared to traditional CCFL monitors. Along with reduced power consumption, this slim LED monitor is also environmentally friendly with a mercury-free backlight and low EMI (Electro Magnetic Interference). MEGA Dynamic Contrast Ratio Contrast ratios refer to the ratio of the brightest color to the darkest color. The VA926-LED has the ability to dim the backlight completely for pure darkness during dark scenes as each LED can completely shut-off allowing a near infinite ratio of black to white contrast. Mac / PC Compatible One of the key advantages of the VA926-LED monitor is its diverse connectivity options, making it flexible enough to be paired with either a PC or Mac computer. VESA Mountable The VA926-LED features a 100 x 100 mm VESA mountable design that allows you to mount it on a monitor stand or on a wall, depending on your specific needs. You can detach the base easily by unscrewing four screws and then mounting the display on its new stand or wall mount. Eco-Mode for Energy Savings ViewSonic's proprietary Eco-mode function comes standard with the VA926-LED. When you don't need all of the powerful features the VA926-LED has to offer, you have the option to reduce the monitor's brightness, save energy, and prolong the lamp life. You can select one of the "Optimize" or "Conserve" options and take advantage of up to a 35% increase in energy savings. Especially under low ambient light conditions, adjusting the brightness will improve visibility by reducing eye fatigue. Reducing brightness will also prolong the life of the monitor.
Specifications
| LCD Panel | |
| Type | 19" Wide Color TFT Active Matrix LED |
| Display Area | 14.8" horizontal x 11.9" vertical; 19" diagonal |
| Resolution | 1280 x 1024 |
| Contrast Ratio | Typical: 1,000:1 |
| Dynamic: 10,000,000:1 | |
| Viewing Angles | Horizontal: 170° |
| Vertical: 160° | |
| Response Time | 5ms |
| Light Source | White-light LED |
| Brightness | 250&cd/m² |
| Panel Surface | Anti-glare, hard coating (3H) |
| Video Inputs | |
| Analog/Digital | RGB analog (0.7 / 1.0 Vp-p, 75 ohms) |
| Frequency | Fh: 24~82kHz, Fv: 50~75Hz |
| Sync | Separate Sync |
| Compatibility | |
| PC | PC compatibles (VGA up to 1280x1024 non-interlaced) |
| Mac | Up to 1280x1024 |
| Connectors | |

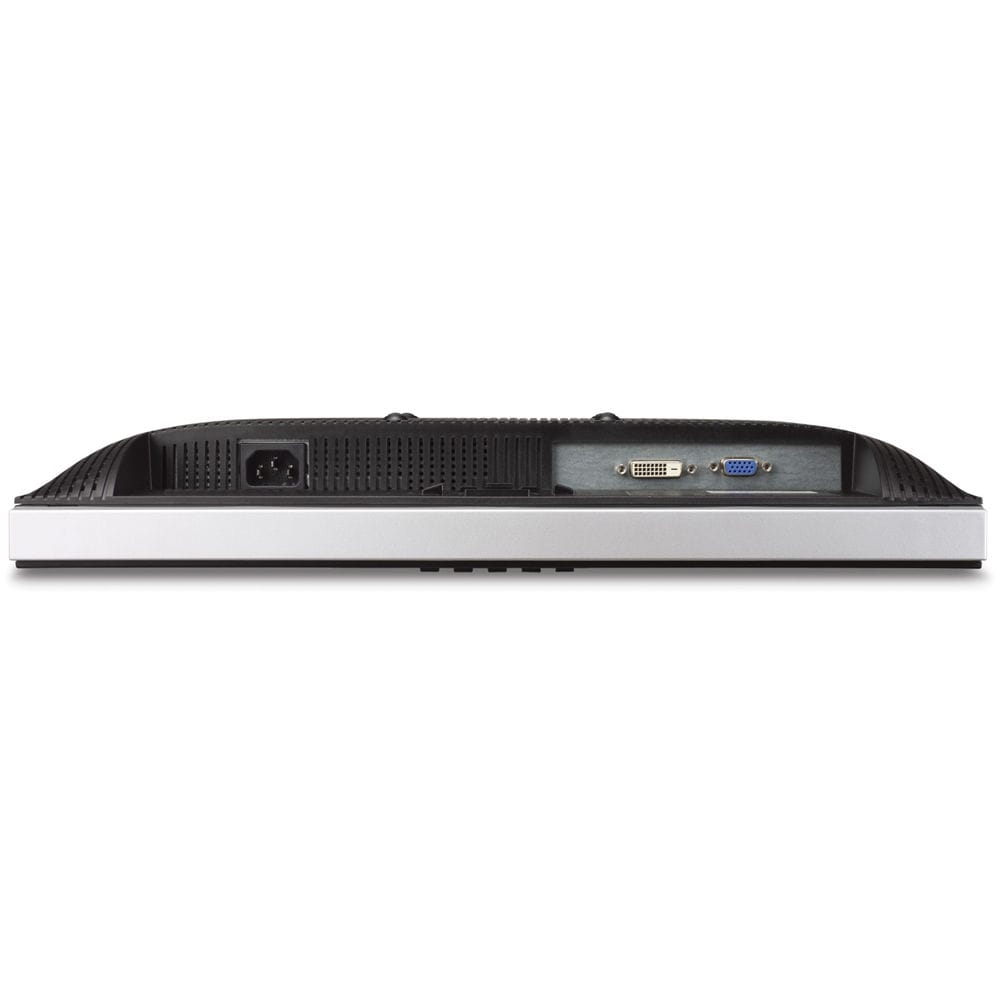

| Analog/Digital | 15-pin mini D-sub (VGA)/ DVI-D |
| USB | N/A |
| Power | Internal Power Board, 3-pin plug (CEE22) |
| Other Specifications | |
| Power Requirements | Voltage: |
| AC 100-240V (universal), 50 / 60Hz | |
| Consumption: | |
| 18W (typ); Optimize: 16W (typ); Conserve: 12W (typ) | |
| Eco Mode: | |
| N/A | |
| Power Save Mode: | |
| N/A | |
| Controls | Basic: |
| Power, 1, up, down, 2 | |
| OnView: | |
| N/A | |
| OSD: | |
| Auto Image Adjust, Contrast/Brightness, Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B]), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect Ratio, Eco-mode), Setup Menu (Language Select, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Power Indicator), Memory Recall | |
| Operating Conditions | Temperature: 32 to 104ºF / 0 to 40ºC |
| Humidity: 10 to 90% (non-condensing) | |
| Tilt | Forward 5º, Back 20º |
| VESA Compatibility | 100 x 100 mm |
| Regulations | CE,CB, UL, cUL, FCC-B / ICES-003B, WEEE, RoHS, ENERGY STAR,REACH SVHC List, TCO 5.0 |
| Dimensions | With Stand: 16.2 x 17.1 x 7.7" / 412.2 x 434.9 x 195 mm |
| Without Stand: 16.2 x 14.0 x 2.5" / 412.2 x 354.9 x 63.8 mm | |
| Weight | With Stand: 7.7 lb / 3.5 kg |
| Without Stand: 6.9 lb / 3.1 kg | |
|
Packaging Info
|
|
| Package Weight | 10.15 lb |
| Box Dimensions (LxWxH) | 19.9 x 18.4 x 5.8" |
