Description
The ViewSonic® VG2239Smh is a 22’’ (21.5’’ viewable) Full HD LED multimedia monitor with future-proof connectivity and full ergonomic functionality ideal for corporate, government and education. With SuperClear ®MVA panel technology for wide-angle viewing, and 20M:1 dynamic contrast ratio, this monitor delivers incredibly sharp images and video playback. Integrated with HDMI, DisplayPort, VGA and 2 USB ports, the VG2239Smh allows flexible connection to PC systems, laptops and other multimedia peripheral devices. ViewSonic’s exclusive ViewMode provides intuitive presets to deliver optimized screen performance in different applications. In addition, Flicker-Free and Blue Light Filter technology help to eliminate eye strain from extended viewing periods. The LED backlight design makes this display ENERGY STAR and EPEAT silver certified.
Features
- 22’’ (21.5’’ viewable) Full HD LED
- SuperClear MVAPanel Technology
- HDMI, DisplayPort
- Full HD 1080p Resolution
- Optimized View Settings
SuperClear® MVAPanel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
High-Performance DisplayPort
Future-proof DisplayPort connectivity delivers the best refresh rate, highest resolution, and incredibly rich color and sound.
The Power of HDMI®
HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
Optimized View Settings
ViewSonic’s unique ViewMode™ feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.

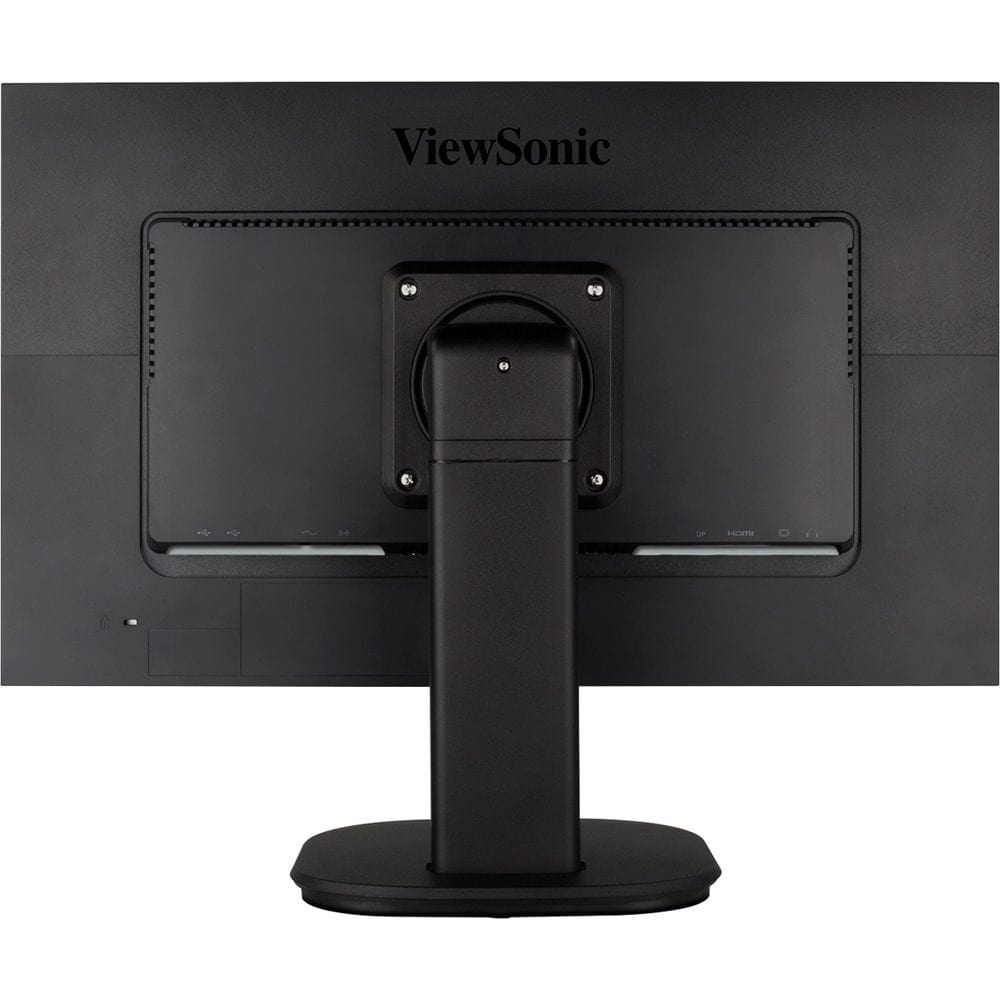

VESA-Compatible Mount Design
Mount the monitor as you see fit using its convenient 100 x 100mm VESA-compatible mount design.
Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
EPEAT Gold Certification
With EPEAT Gold Certification, this monitor delivers a reduced environmental impact over the complete product lifecyle, making it a great eco-friendly, long-term investment.
ENERGY STAR Certification
This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors
Enhanced Viewing Comfort
With Flicker-Free technology and a Blue Light Filter, this monitor helps to eliminate eyestrain that comes with extended viewing periods – meaning you can outlast and out-game your opponents just as their eyes begin fail them.
Specifications
| Display: | |
| Display Size (in.): | 22 |
| Viewable Area (in.): | 21.5 |
| Panel Type: | MVA |
| Resolution: | 1920 x 1080 |
| Static Contrast Ratio: | 3,000:1 |
| Dynamic Contrast Ratio: | 20,000,000:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m2 |
| Colors: | 16.7M |
| Response Time (Typical GTG): | 7ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Backlight Life (Hours): | 40,000 |
| Panel Surface: | 3H Anti-glare, hard-coating |
| Compatibility: | |
| PC Resolution (max): | 1920 x 1080 |
| Mac® Resolution (max): | 1920 x 1080 |

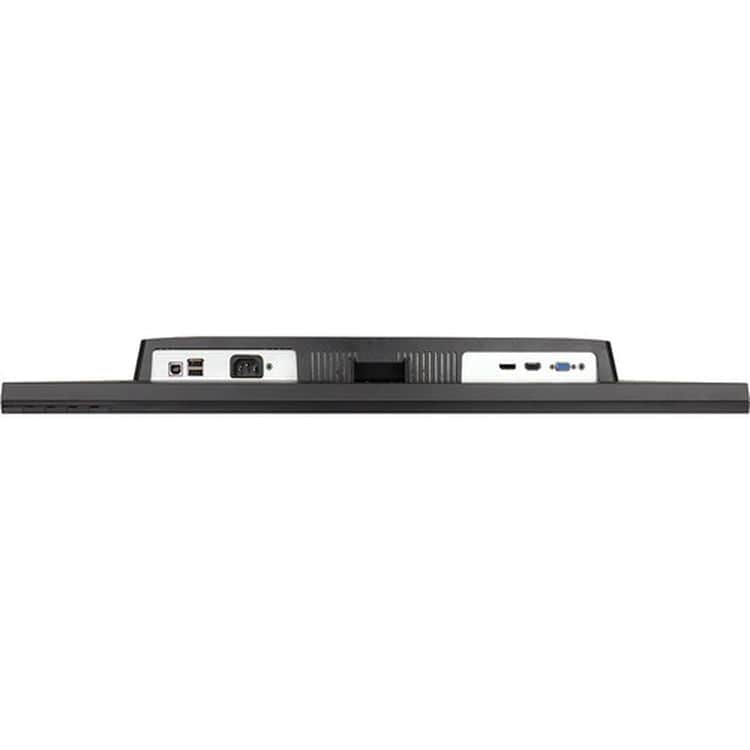

| Connector: | USB 2.0 Type A(2), USB 2.0 Type B(1), 3.5mm Audio In(1), 3.5mm Audio Out(1), HDMI(1), VGA(1), Display Port(1) |
| Audio: | |
| Internal Speakers: | 2-watt (x2) |
| Power: | |
| Eco Mode (Conserve): | 15W |
| Eco Mode (optimized): | 18W |
| Consumption (typical): | 20.5W |
| Consumption (max): | 30W |
| Voltage: | AC 100-240V (universal), 50-60Hz |
| Additional Hardware: | |
| Kensington Lock Slot: | 1 |
| Controls: | |
| Physical Controls: | 1, 2, Down, Up, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select,Audio Adjust, Color Adjust, Information, Manual ImageAdjust, Setup Menu, Memory Recall(See user guide for complete OSD functionality) |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Humidity (non-condensing): | 10-90% |
| Mount: | |
| VESA Compatible: | 100 x 100 mm |
| Video Signal: | |
| Frequency Horizontal: | 24~82kHz |
| Frequency Vertical: | 50~75Hz |
| Video Input: | |
| Analog Sync: | Separate Sync, Composite Sync, Sync on Green |
| Ergonomics: | |
| Height Adjust (mm): | 135 |
| Swivel: | 360º |
| Pivot (Right/Left): | 90º / 0º |
| Tilt (Forward/Back): | 5º / 20º |
| Weight (imperial): | |
| Net (lbs): | 10.6 |
| Net Without Stand (lbs): | 7.4 |
| Gross (lbs): | 14.9 |
| Weight (metric): | |
| Net (kg): | 4.8 |
| Net Without Stand (kg): | 3.3 |
| Gross (kg): | 6.8 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 22.9 x 19.0 x 7.4 |
| Physical (in.): | 20.2 x 16.5 x 9.4 |
| Physical Without Stand (in.): | 20.2 x 12.0 x 2.2 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 581 x 483 x 187 |
| Physical (mm): | 512.4 x 418.0 x 239.6 |
| Physical Without Stand (mm): | 512.4 x 304.4 x 56.4 |
| General: | |
| Regulations: | WEEE, RoHS, CE, CB, WHQL, cULus, ICES003, FCC-B,ENERGY STAR 7.0, EPEAT Silver, Mexico Energy, EMC, EAC, UkrSEPRO + DoC, ErP, REACH SVHC List & DoC, EEL TCO6.0, UL-MX-CoC |
| Package Contents: | VG2239Smh monitor, Power cable, VGA cable, DisplayPort cable, Audio cable, USB cable,Quick Start Guide, ViewSonic Wizard CD (User Guide) |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | 90 days limited warranty on parts and labor. |
| UPC: | 766907801811 |
| Accessories: | CB-00008948, CB-00010555, CB-00010684, CB-00010958, LCD-EE-22-03, LCD-EEEW-22-01, LCD-EEEW-22-02, LCD-EW-22-01, LCD-EW-22-02, LCD-EW-22-03, VSPF2150 |
