Description

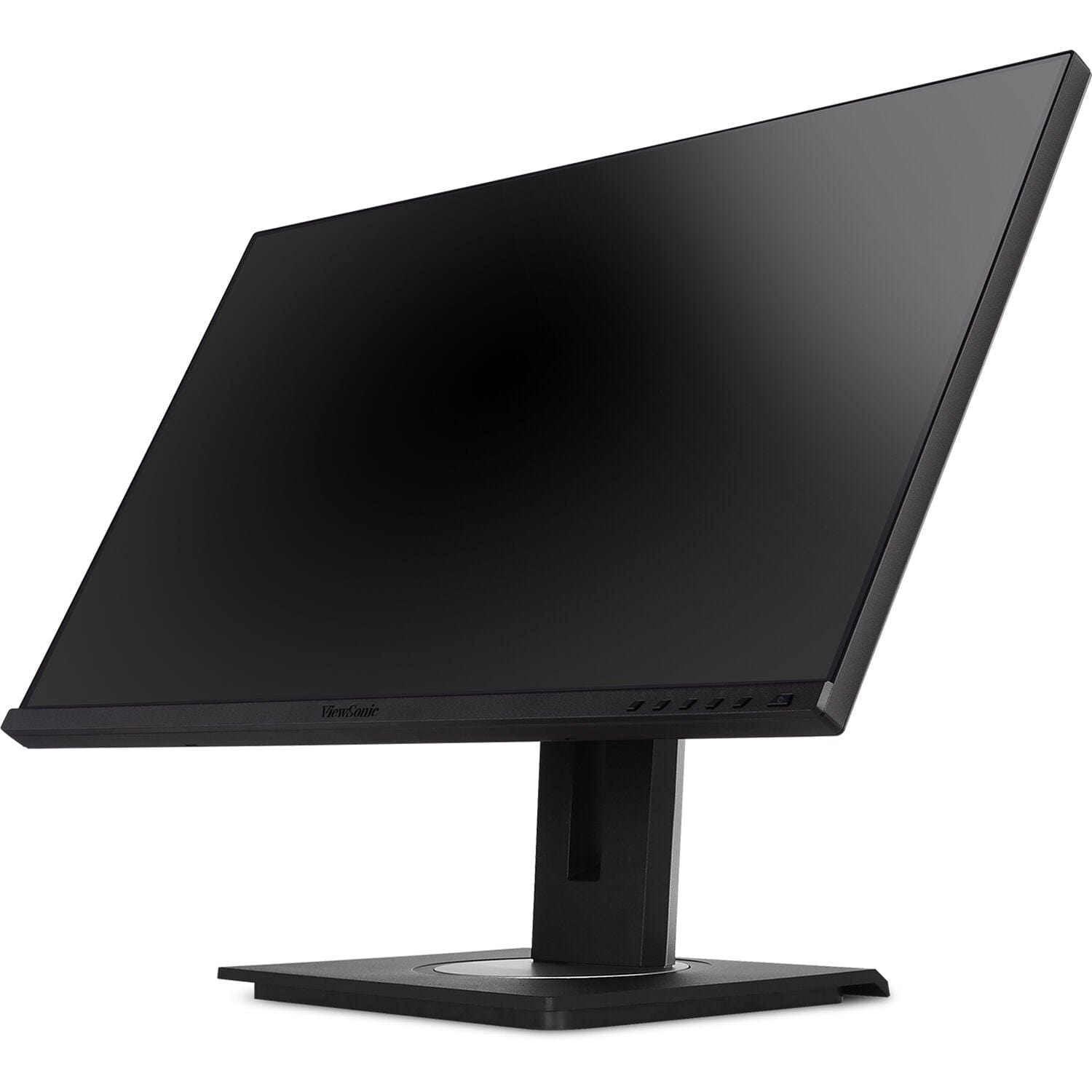

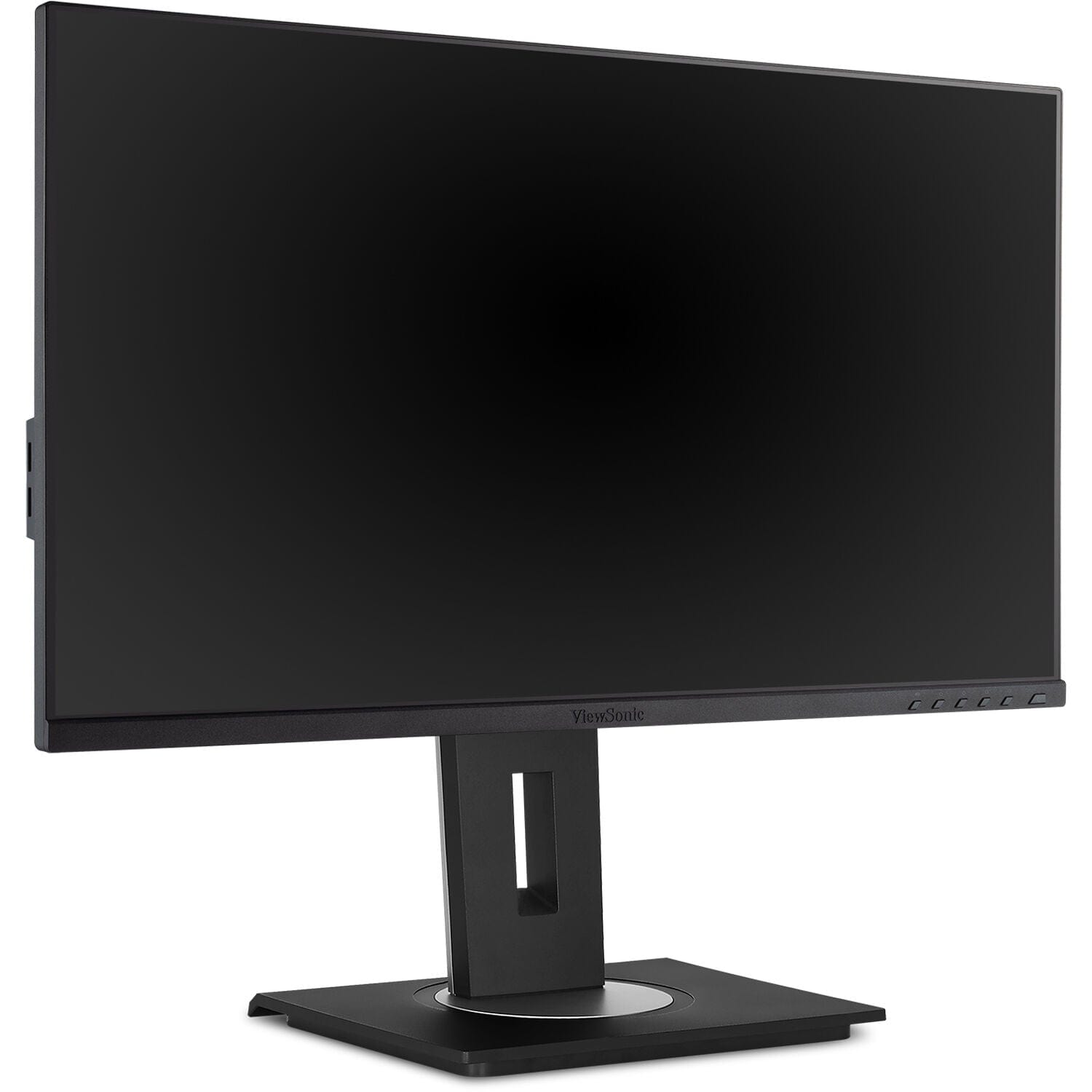

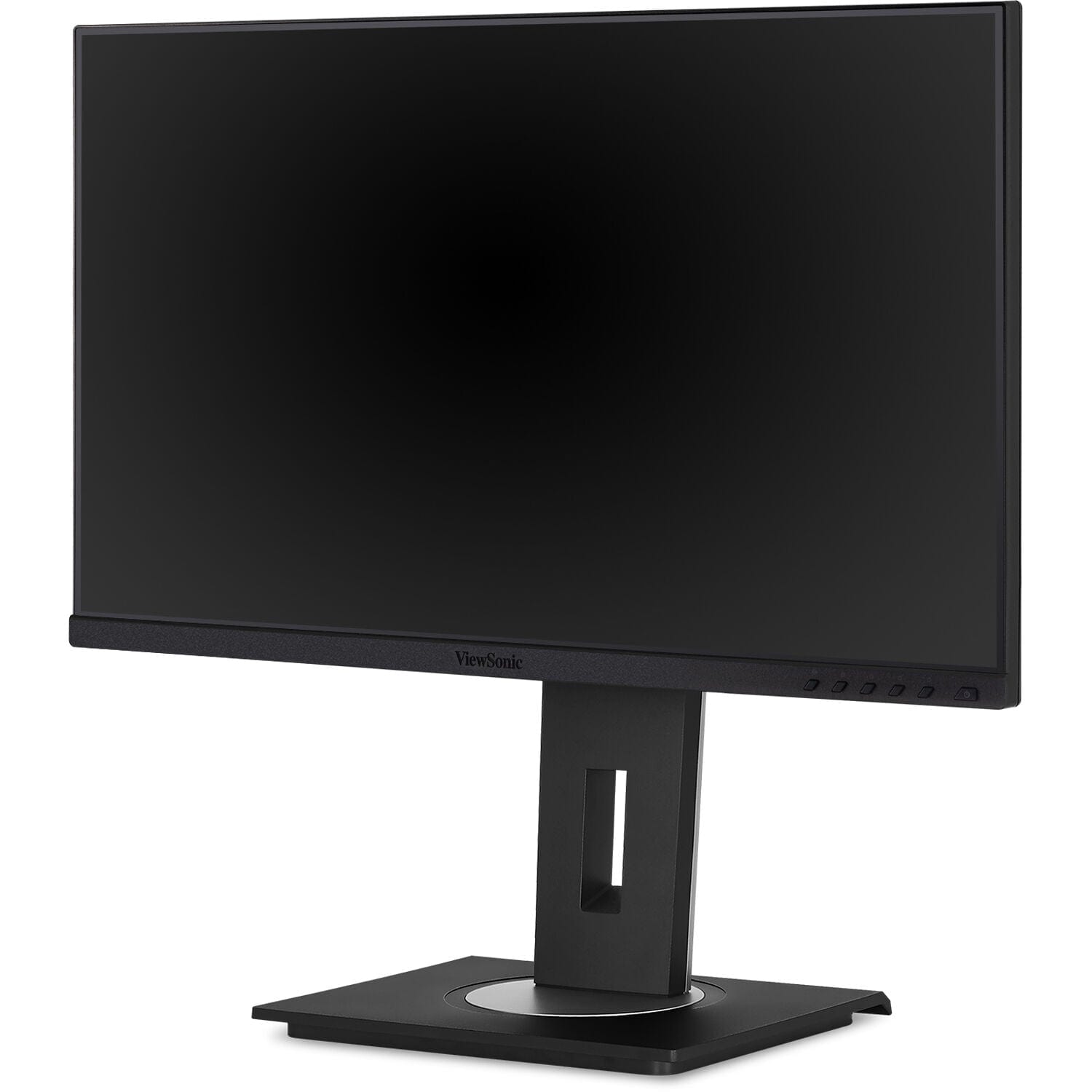

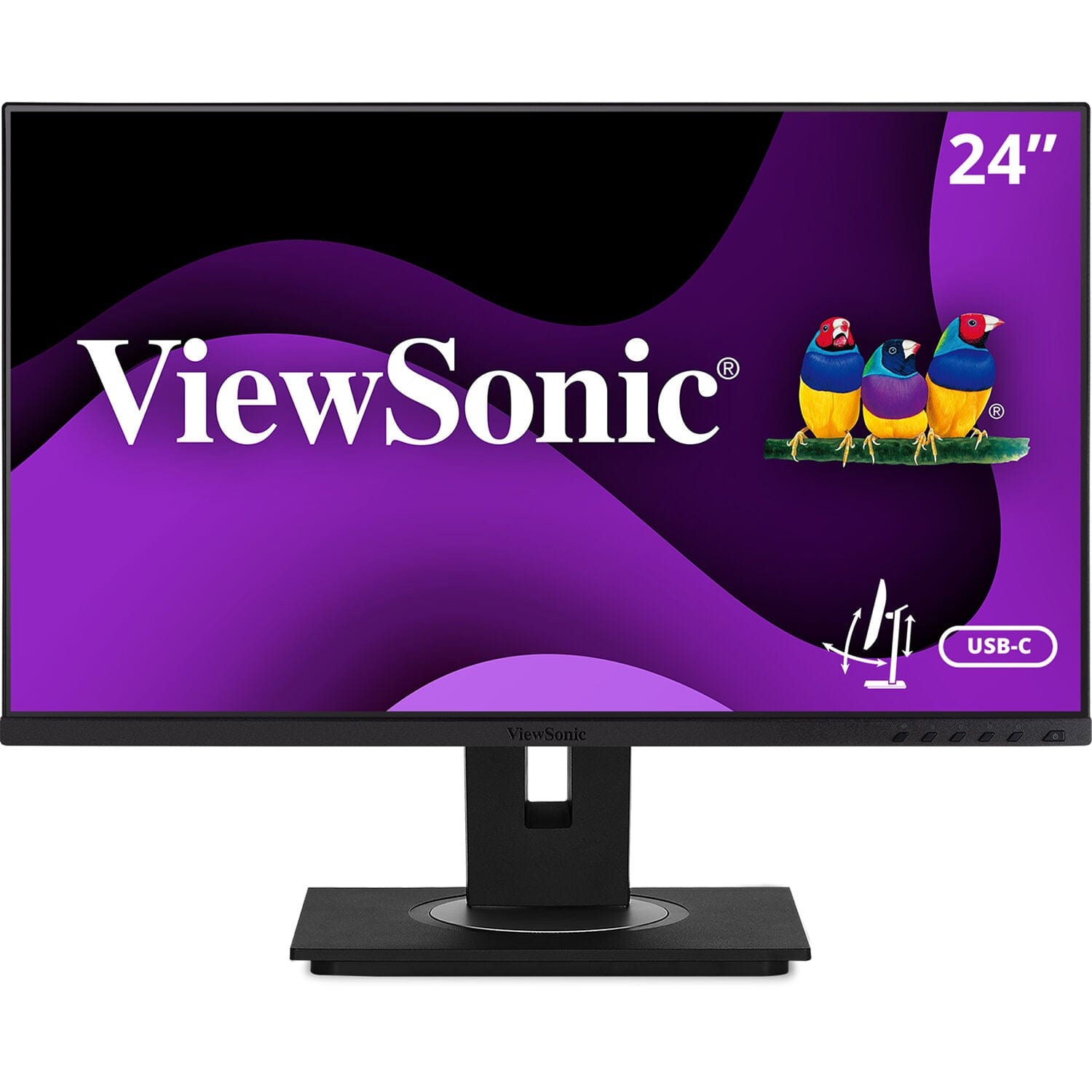

Dock your laptop and boost productivity with the VG2456a 23.8" 16:9 IPS Monitor from ViewSonic. Featuring a 23.8" In-Plane Switching (IPS) display, this monitor provides a 1920 x 1080 Full HD resolution. Connect your laptop via USB Type-C to take advantage of video, data, and power via a single cable. An RJ45 port on the monitor supports Gigabit Ethernet, while two USB Type-A ports accommodate wired peripherals like a mouse and keyboard. Furthermore, the ergonomic stand can be tilted, swiveled, rotated, or adjusted up and down to provide the optimum viewing angle and height. View images in accurate detail thanks to a 1000:1 static contrast ratio and 16.7 million colors. Additionally, a 5 ms (GtG) response time and 75 Hz refresh rate ensure smooth video performance, while the wide 178° horizontal and vertical viewing angles and 250 cd/m² brightness allow for comfortable views, even at wide angles. Dual 2W speakers provide onboard audio, and a Kensington Lock slot can be used to secure the monitor with a compatible cable lock, available separately. Utilizing a 100 x 100mm VESA mounting pattern, the ViewSonic VG2456a easily attaches to compatible third-party mounts and stands.
Features
- 23.8" In-Plane Switching (IPS) Panel
- 1920 x 1080 Resolution
- USB Type-C, DisplayPort & HDMI Inputs
- 1000:1 Static Contrast Ratio
Down to Dock
Dock your laptop via a single USB Type-C input. Plus, take advantage of an RJ45 port supporting Gigabit Ethernet and an integrated hub with two USB Type-A ports.
Optimized for Dual Monitor Setups
A USB Type-C input and DisplayPort output allow you to easily daisy-chain multiple monitors for a productivity-boosting setup. Please not, multi-stream transport (MST) is not supported by macOS.
Comfort At Work

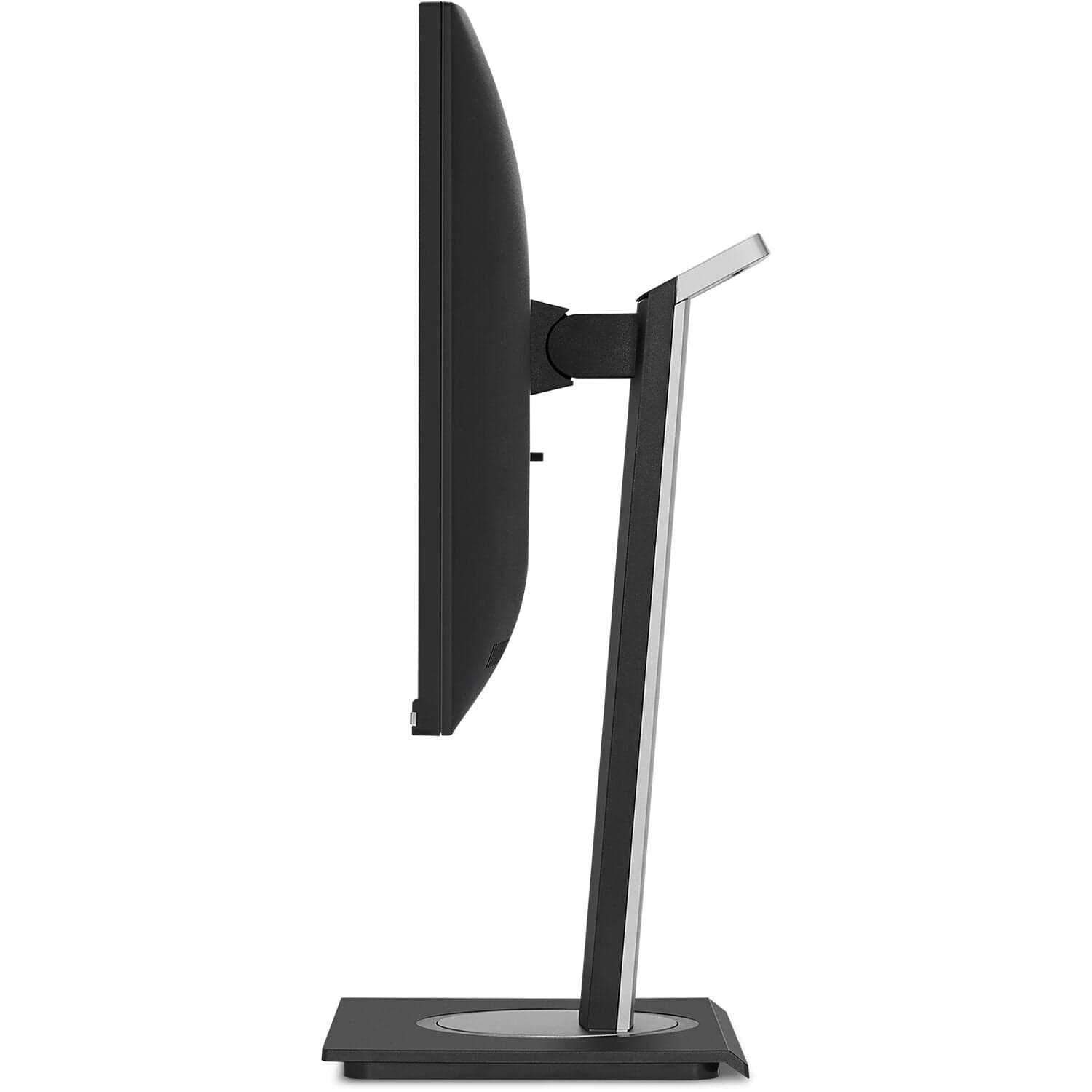

Featuring a swiveling, rotating, tilting, and high-adjusting design, this monitor is designed for increased productivity and comfort, as well as for group discussions and screen sharing.
Command and Control
Integrated vDisplayManager software enhances productivity by putting the On-Screen Display (OSD) menu controls on your monitor's screen. This delivers a more comfortable viewing experience by allowing you to quickly and easily adjust display settings such as volume, brightness, contrast, and more.
Minimized Total Cost of Ownership
Designed for the busiest of office environments, this monitor helps to reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns, to user experience and screen performance, this monitor has been optimized meet workspace demands while also reducing your TCO.
IPS Panel Technology
In-plane switching (IPS) screen technology delivers accurate and vivid colors with consistent levels of brightness whether you're looking at the screen from above, below, the front, or side.
Optimized View Settings
ViewSonic's unique ViewMode feature offers Game, Movie, Web, Text, and Mono presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
ENERGY STAR Certified
ENERGY STAR-certified, this monitor helps you save on energy costs while reducing greenhouse gases.
EPEAT Certified
With EPEAT Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it an eco-friendly long-term investment.
Specifications
|
Display
|
|
| Size | 23.8" |
| Panel Type | IPS-Type LCD |
| Touchscreen | No |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Pixels Per Inch (ppi) | 92 ppi |
| Finish | Anti-Glare / Matte |
| Hardness Rating | 3H |
| Maximum Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 50,000,000:1 |
| Refresh Rate | 75 Hz |
| Variable Refresh Technology | None |
| Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) |
| Response Time | 5 ms (GtG) |
| Viewing Angle (H x V) | 178 x 178° |
| Backlight Lifespan | 30,000 Hours |
|

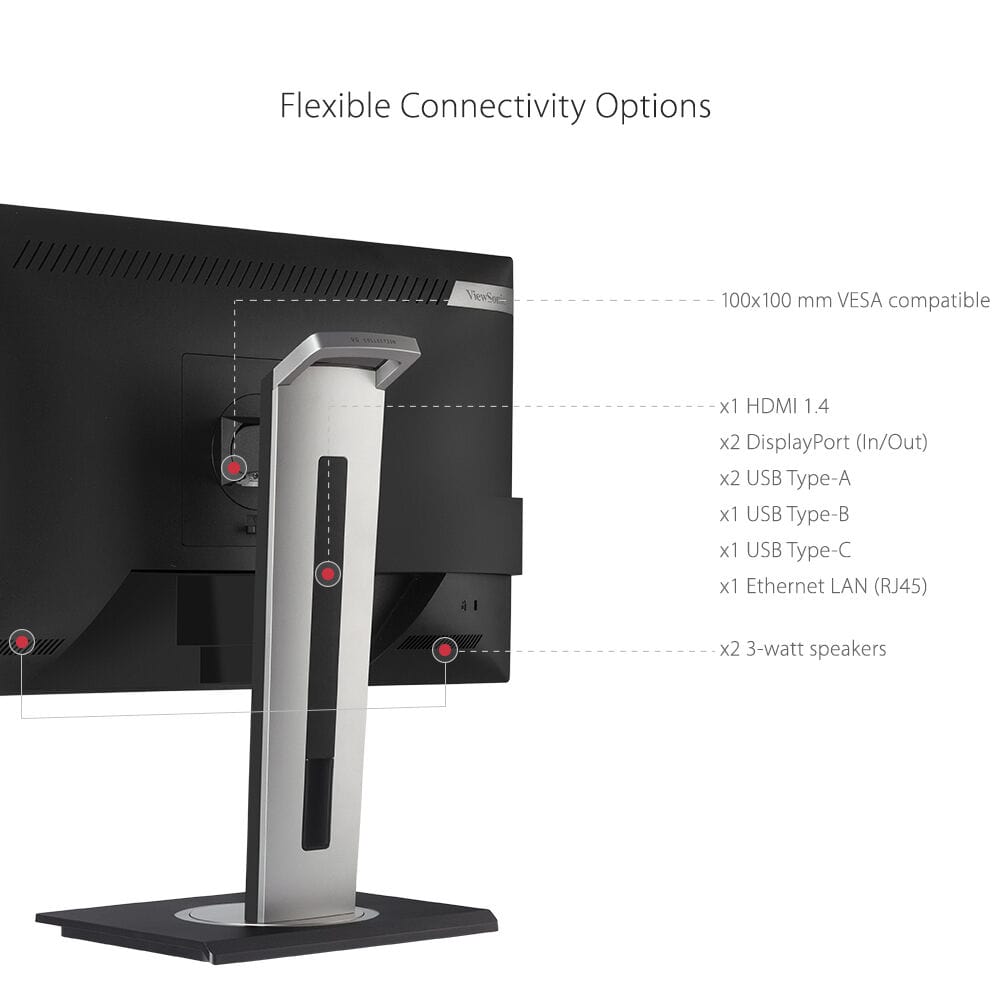

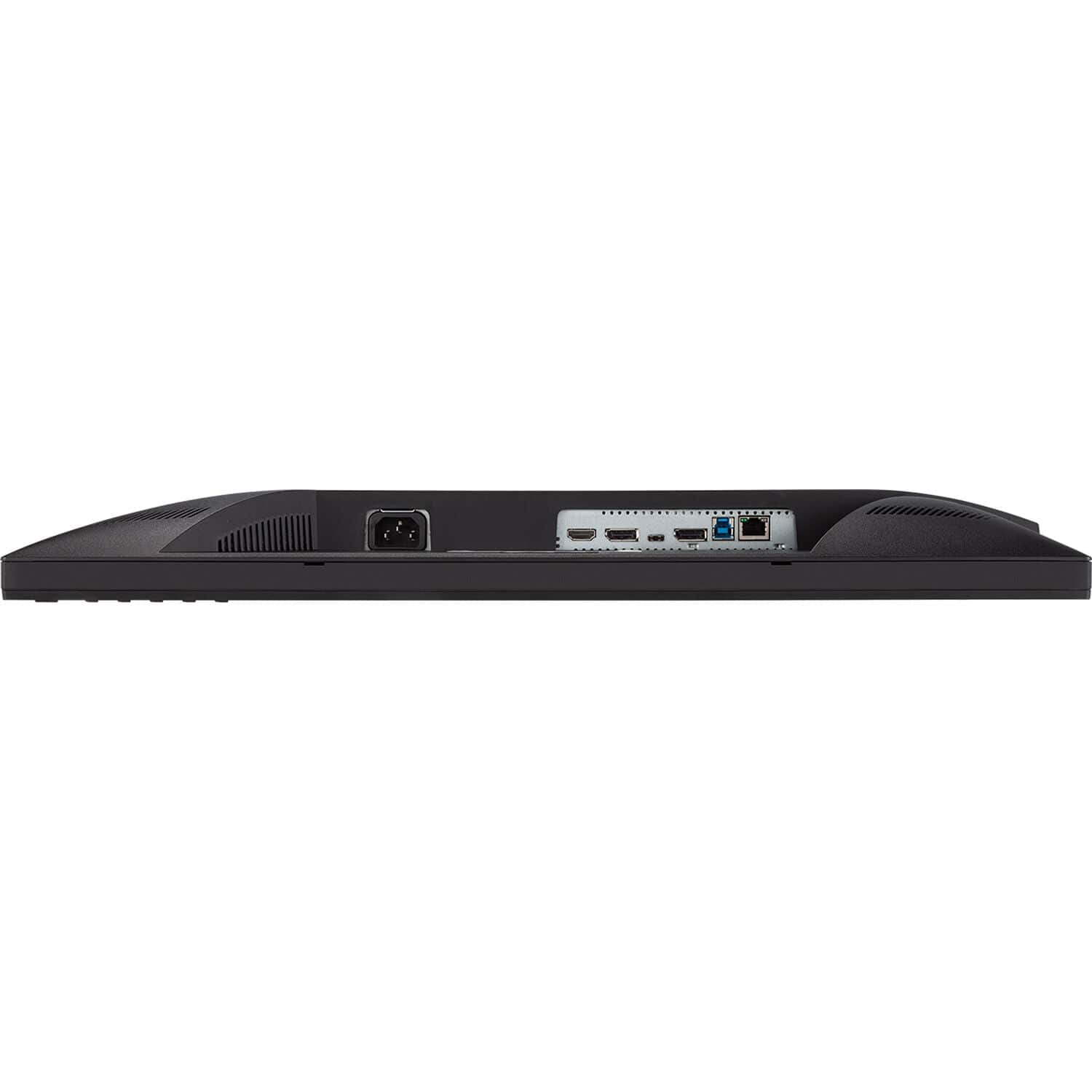

Inputs / Outputs
|
|
| Inputs/Outputs | 1 x DisplayPort Input |
| 1 x HDMI 1.4 Input | |
| 1 x USB Type-C Input | |
| 1 x DisplayPort Output | |
| 1 x USB Type-B Input | |
| 2 x USB Type-A Input/Output | |
| 1 x RJ45 Input | |
| Built-In Speakers | Yes, 2 x 2 W |
| Media Card Reader | None |
| Multi-Input Support (PIP/PBP) | None |
|
Power
|
|
| Power Consumption | 24 W (Typical) |
| 46 W (Maximum) | |
| 0.5 W (Standby) | |
| 21 W (Eco) | |
| 18 W (Eco) | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
| USB Power Delivery | None |
|
Environmental
|
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Certifications | CEC, ENERGY STAR, EPEATSilver, FCC-B, Mexico Energy, Mexico-CoC, cTUVus |
| *as per Manufacturer | |
|

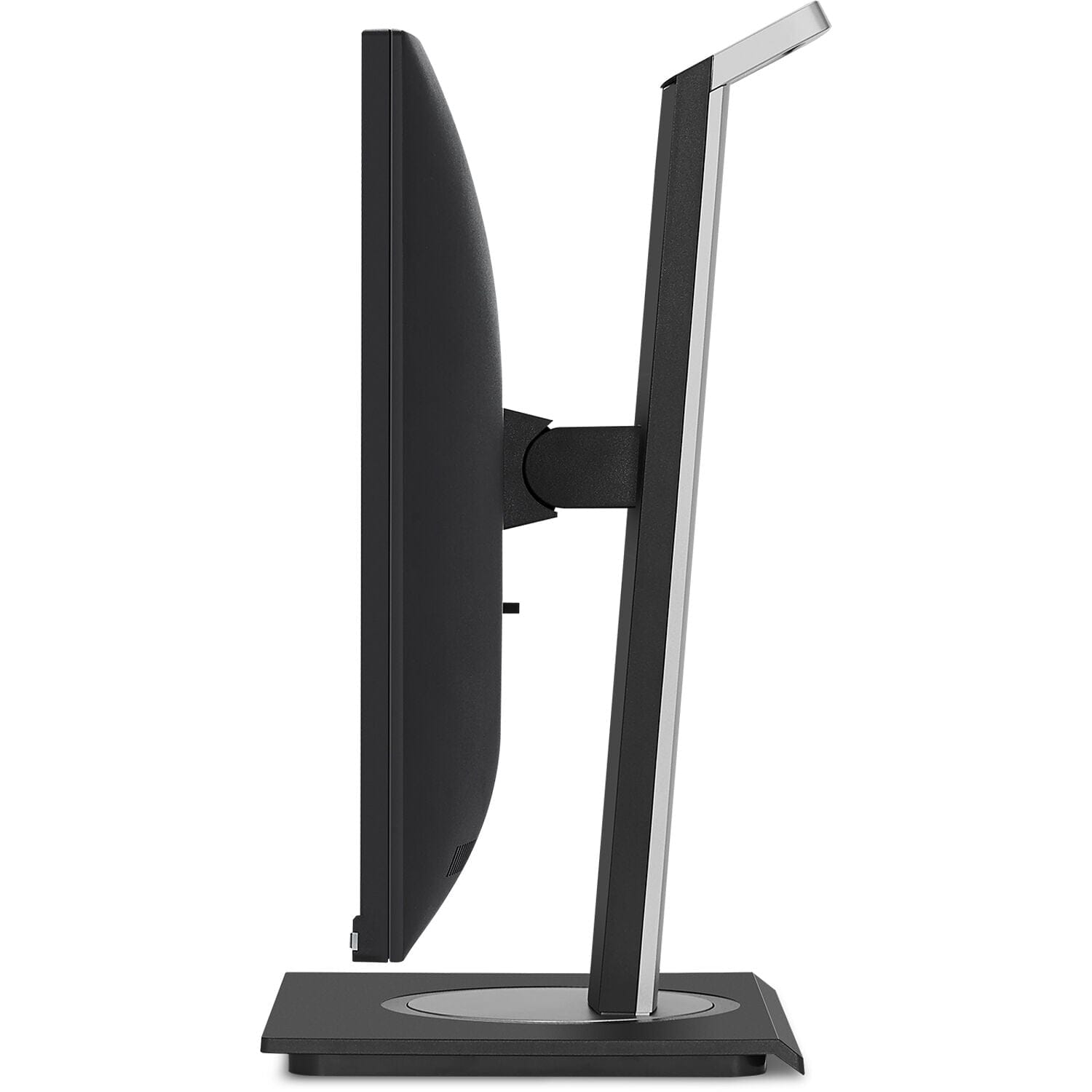

Physical
|
|
| Height Adjustment | 5.1" / 130 mm |
| Rotation Adjustment | 180° (-90 to 90°) |
| Swivel Adjustment | 120° |

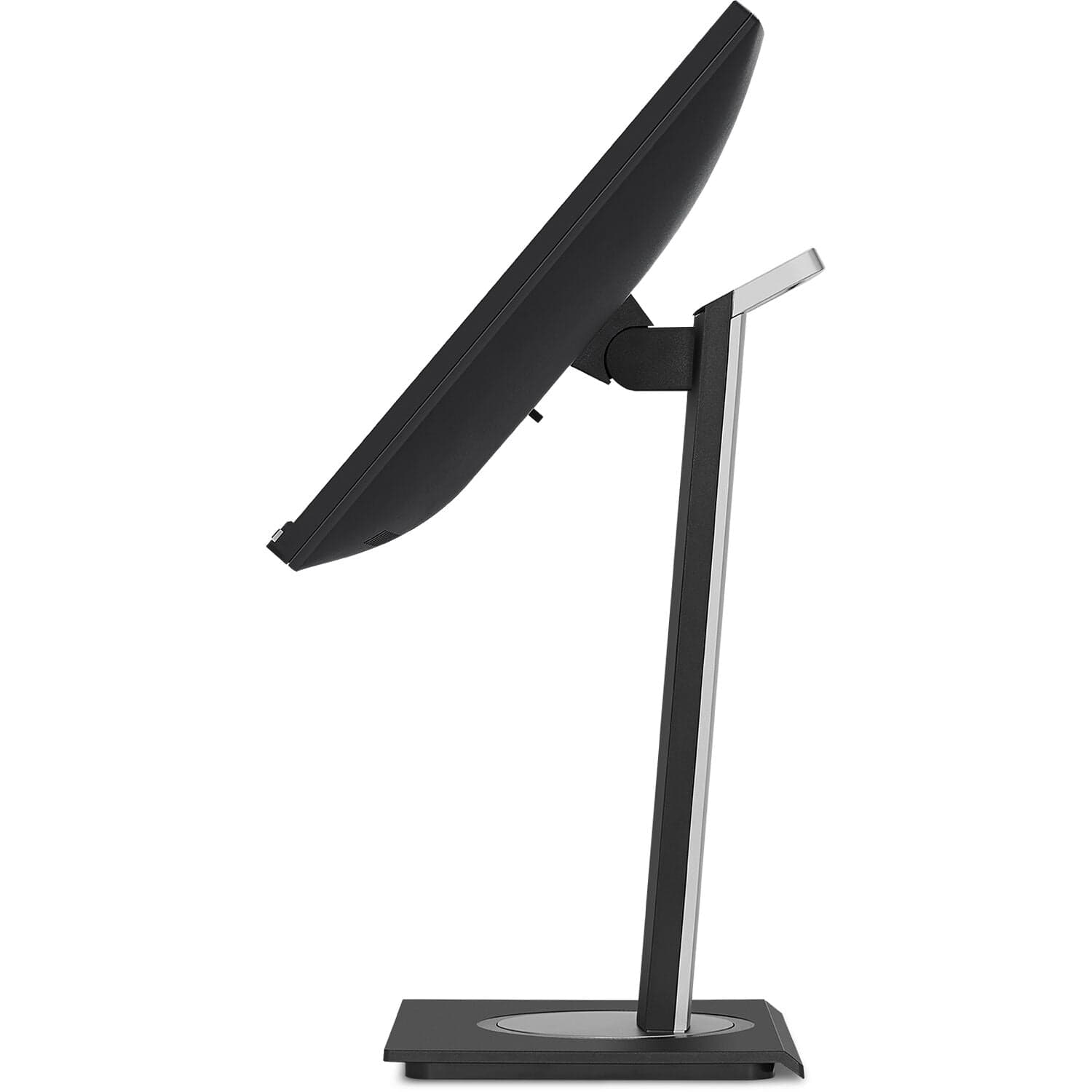

| Tilt Adjustment | -5 to 40° |
| Max Arm Extension Length | None |

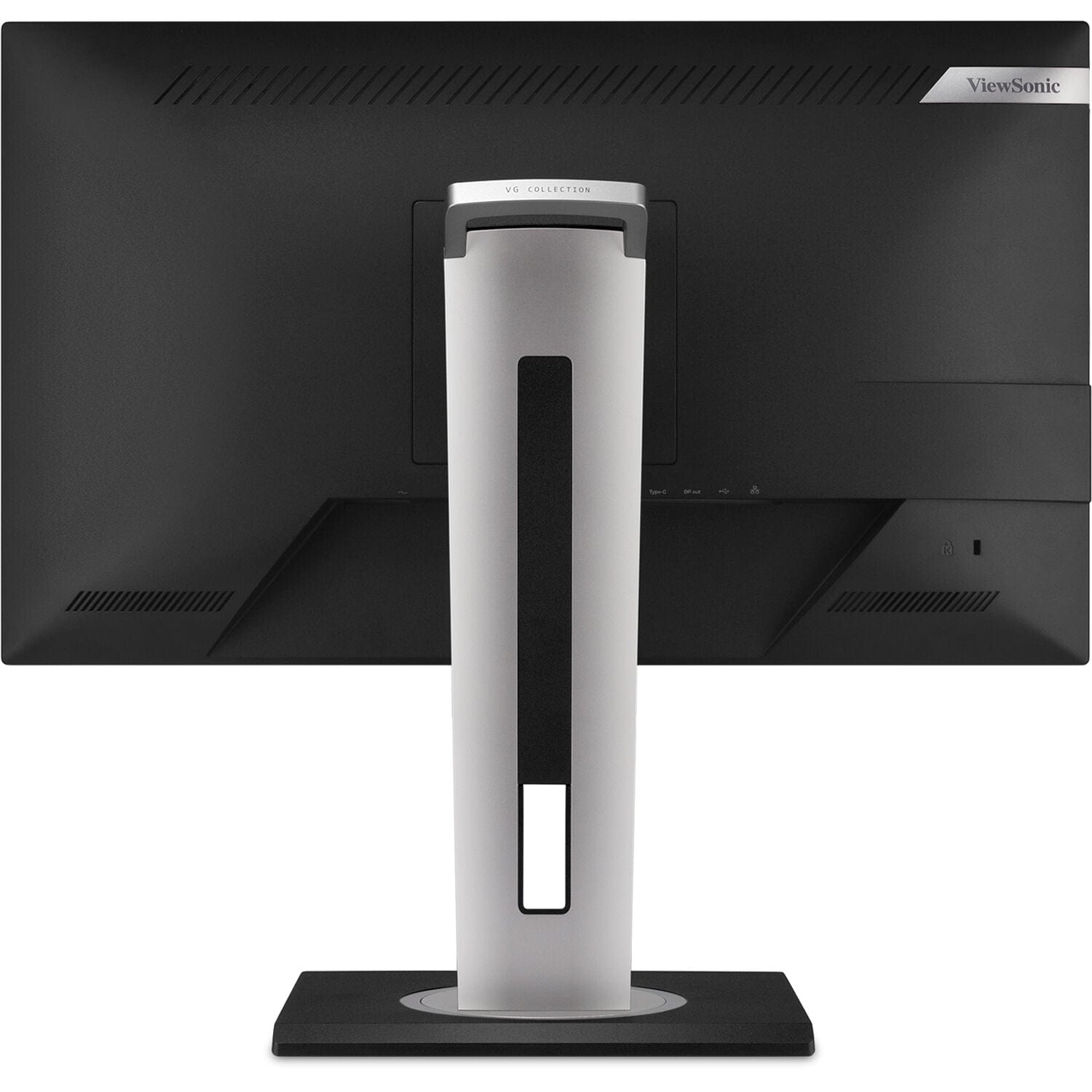

| Mounting-Hole Pattern | 100 x 100 mm |
| Lock Slot | Yes, Kensington |
| Dimensions (W x H x D) | 21.2 x 16.0 x 8.0" / 539.0 x 406.2 x 202.0 mm (with Stand) |
| 21.2 x 12.6 x 2.0" / 539.0 x 320.0 x 52.0 mm (without Stand) | |
| Weight | 13.9 lb / 6.3 kg (with Stand) |
| 8.6 lb / 3.9 kg (without Stand) | |
|
Packaging Info
|
|
| Package Weight | 20 lb |
| Box Dimensions (LxWxH) | 23.5 x 23.5 x 15.5" |
