Description

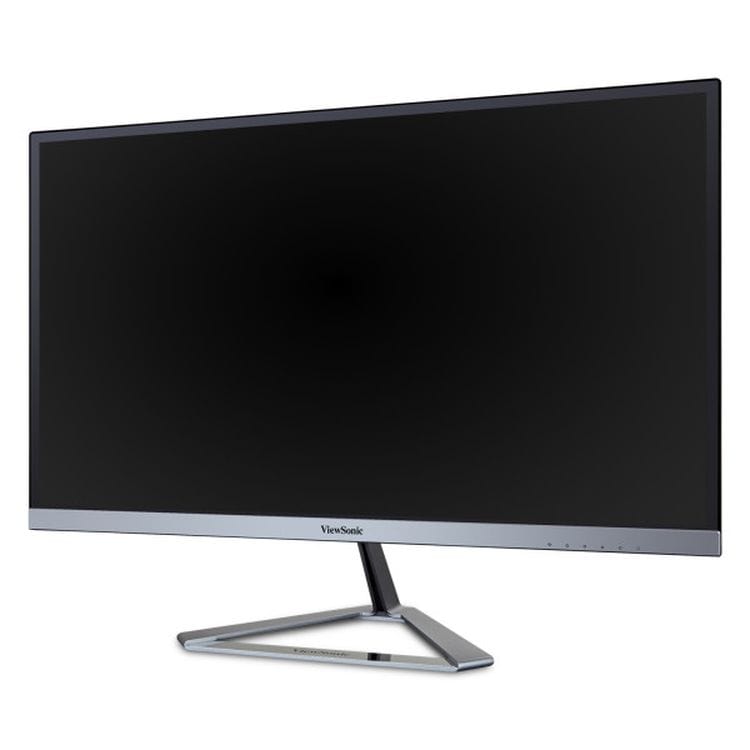

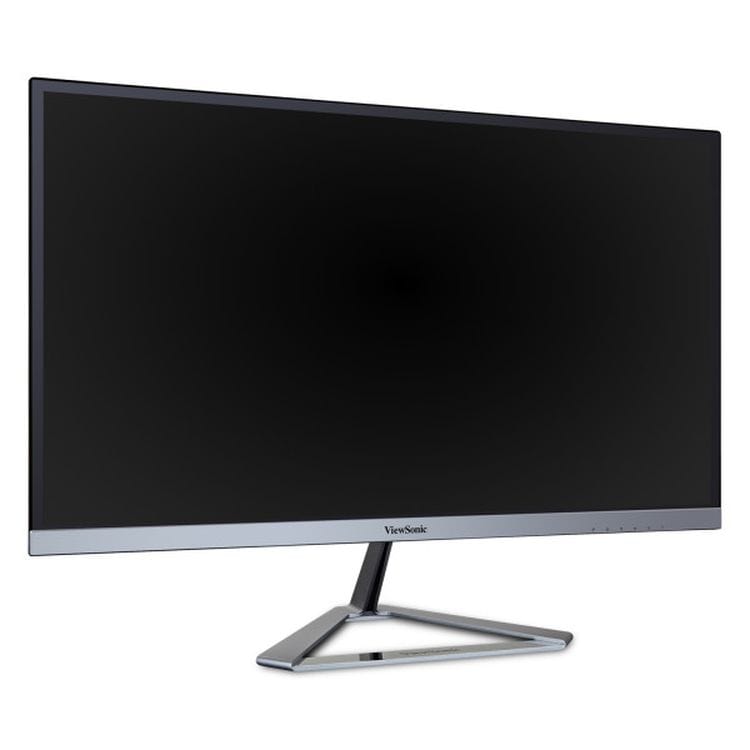

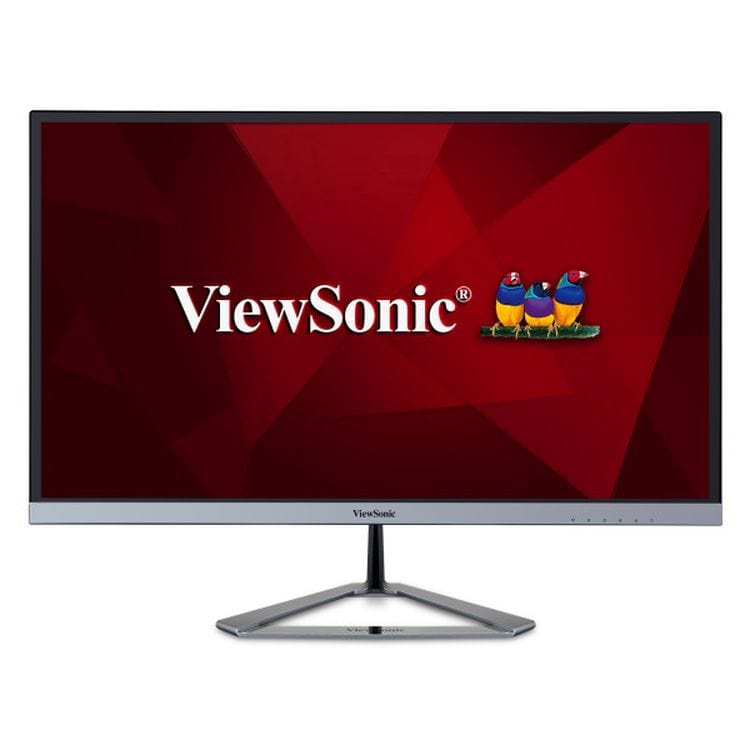

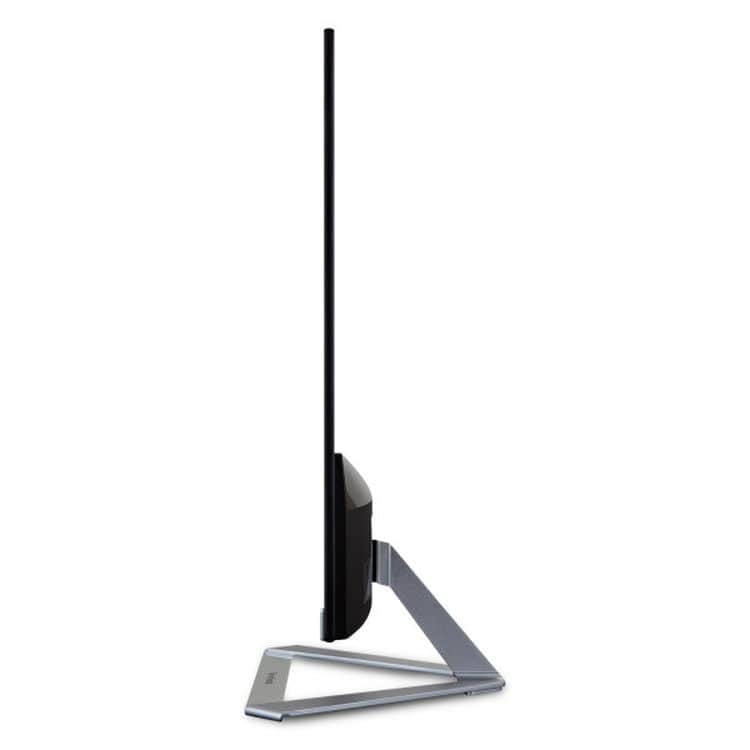

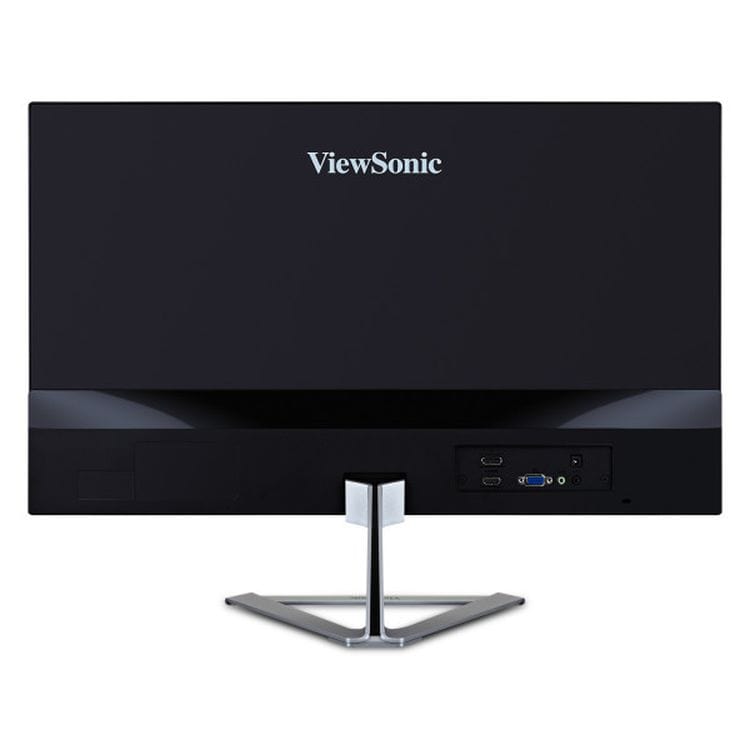

The ViewSonic VX2276-smhd is a sleek 22” (21.5” viewable) Full HD monitor with a modern and minimalist style perfect for home use. With SuperClear® IPS Panel technology, this monitor offers best-in-class screen performance with ultra-wide viewing angles. A premium ID includes an ultra-slim profile, unique desktop stand, and a sleek edge-to-edge frameless design, that when combined with vivid 1920x1080 resolution and dual speakers, deliver an immersive viewing experience for home entertainment and multimedia applications. HDMI, DisplayPort, and VGA inputs offer flexible connectivity options for both computing and gaming environments, while ViewSonic’s exclusive ViewMode feature provides intuitive presets for optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to minimize eye strain from extended viewing periods.
Features
- Ultra-slim panel with frameless design
- SuperClear® IPS panel technology
- Versatile connectivity
- Full HD 1080p resolution
- Superior color rendering and intuitive settings
Enhanced Viewing Comfort
This display features Flicker-Free technology and Blue Light Filter to help reduce flickering and blue light emissions for a more comfortable viewing experience over extended use.
Viewing Modes
Swap through multiple viewing modes such as Game, Movie, Web, Text, and Mono for optimized display settings that's ideal for specific applications.
Low EMI
The VX2276-SMHD is a Low EMI product that's environmentally safe, health-conscious, and prevents interference from nearby electronic devices.
Specifications
| Display: | |
| Display Size (in.): | 22 |
| Viewable Area (in.): | 21.5 |
| Panel Type: | IPS |
| Resolution: | 1920 x 1080 |
| Static Contrast Ratio: | 1,000:1 |
| Dynamic Contrast Ratio: | 80M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m2 |
| Colors: | 16.7M |
| Response Time (Typical GTG): | 7ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Backlight Life (Hours): | 30,000 |
| Panel Surface: | Anti-glare, hard-coating (3H) |
| Compatibility: | |
| PC Resolution (max): | Up to 1920x1080 non-interlaced |
| Mac® Resolution (max): | Up to 1920x1080 |

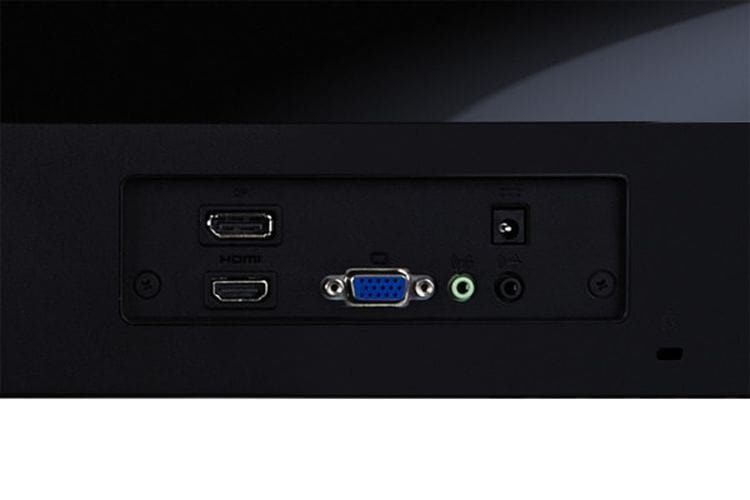

| Connector: | 3.5mm Audio In(1), 3.5mm Audio Out(1), HDMI(1), VGA(1), Display Port(1) |
| Audio: | |
| Internal Speakers: | 3-watt (x2) |
| Power: | |
| Eco Mode (Conserve): | 15W |
| Eco Mode (optimized): | 18W |
| Consumption (typical): | 21W |
| Consumption (max): | 30W |
| Voltage: | AC 100-240V (universal), 50-60Hz |
| Additional Hardware: | |
| Kensington Lock Slot: | 1 |
| Controls: | |
| Physical Controls: | GameMode, 1, 2, 3, 4, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Humidity (non-condensing): | 20-90% |
| Video Signal: | |
| Frequency Horizontal: | 24~82kHz |
| Frequency Vertical: | 50~75Hz |
| Video Input: | |
| Analog Sync: | Separate Sync,TMDS, PCI-E |
| Ergonomics: | |
| Tilt (Forward/Back): | 15º / 5º |
| Weight (imperial): | |
| Net (lbs): | 5.4 |
| Gross (lbs): | 10.2 |
| Weight (metric): | |
| Net (kg): | 2.4 |
| Gross (kg): | 4.6 |

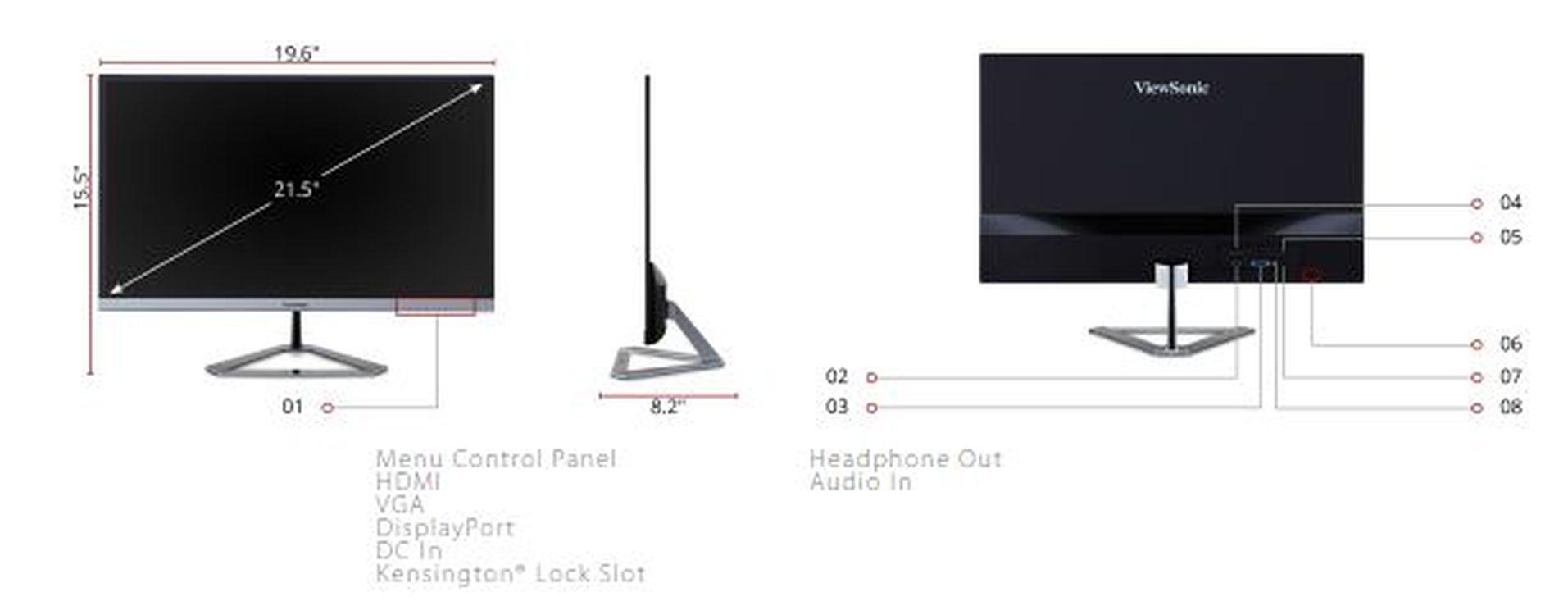

| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 22.2 x 15.0 x 4.5 |
| Physical (in.): | 19.6 x 15.5 x 8.2 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 563 x 382 x 115 |
| Physical (mm): | 497.9 x 392.8 x 209 |
| General: | |
| Regulations: | cULus, FCC, ICES-003, Energy Star 7.0, EPEAT (Silver), NRCan, UL-MXCoC, Mexico Energy, CE, WEEE, Energy Efficiency (EEL), EAC |
| PACKAGE CONTENTS: | VX2276-smhd monitor, Power cable, AC/DC adapter, Audio cable, VGA cable, HDMI cable, Quick Start Guide, ViewSonic Wizard CD |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | 90 day limited warranty on parts, labor and backlight |
| UPC: | 766907834321 |
