Description

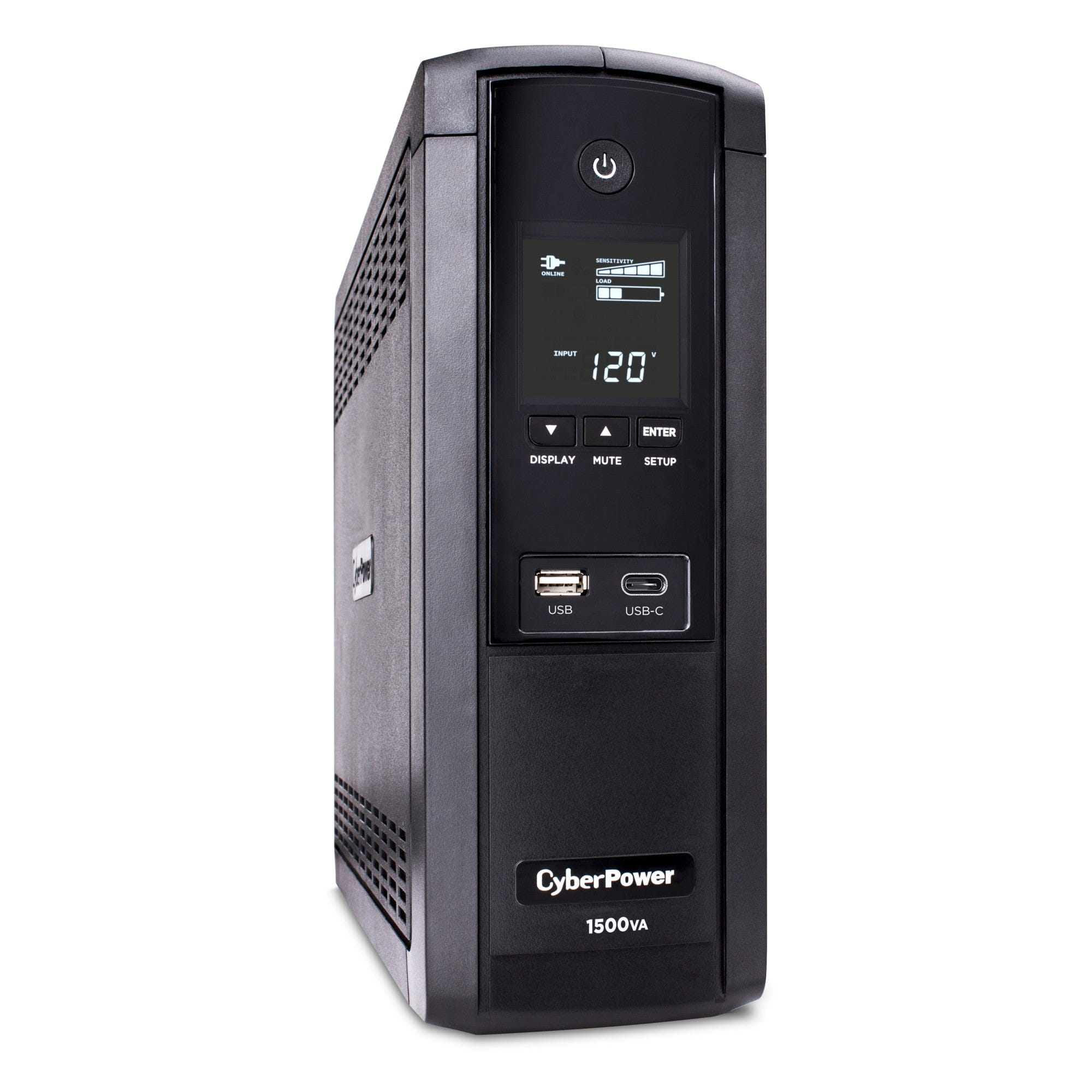

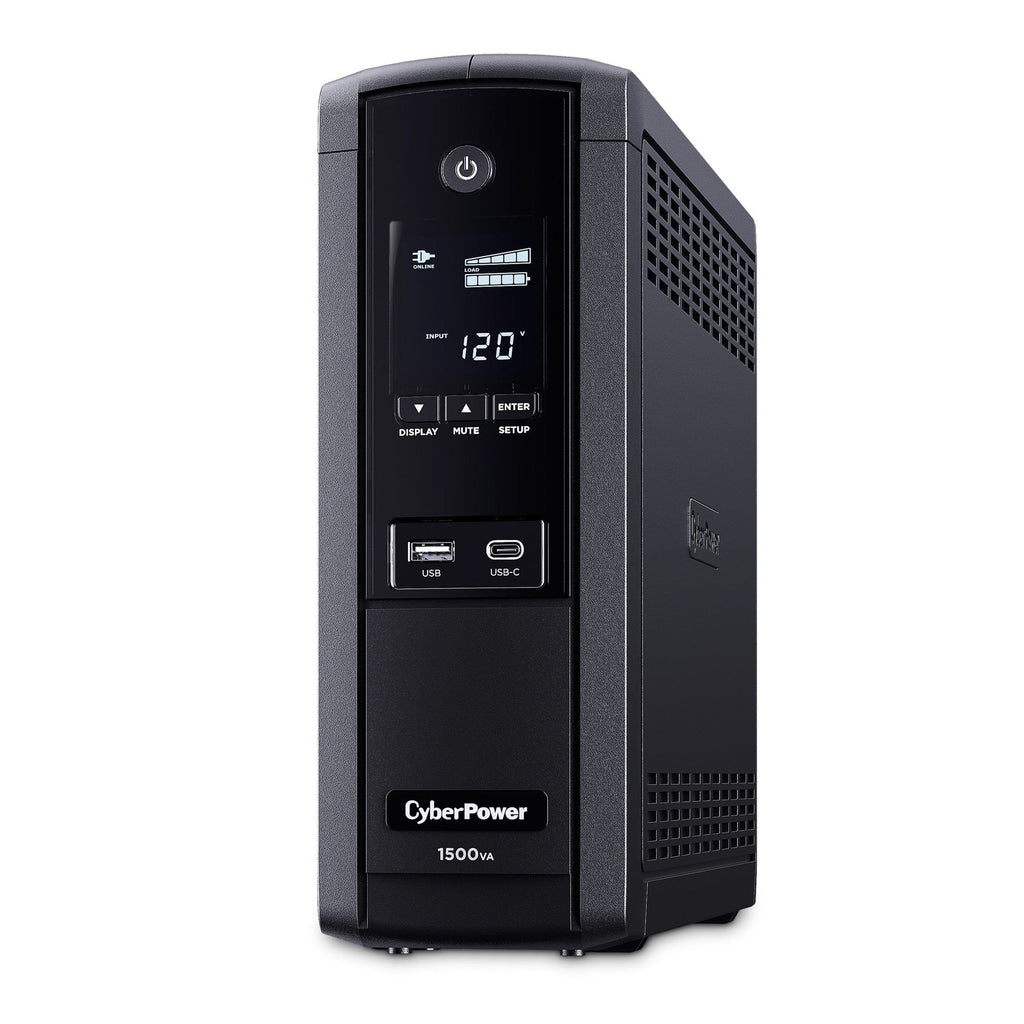

A mini-tower UPS with line interactive topology, the CyberPower CST1500SUC provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. The CST1500SUC uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Features
- Battery Backup - Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection - Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Sine Wave Output - The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

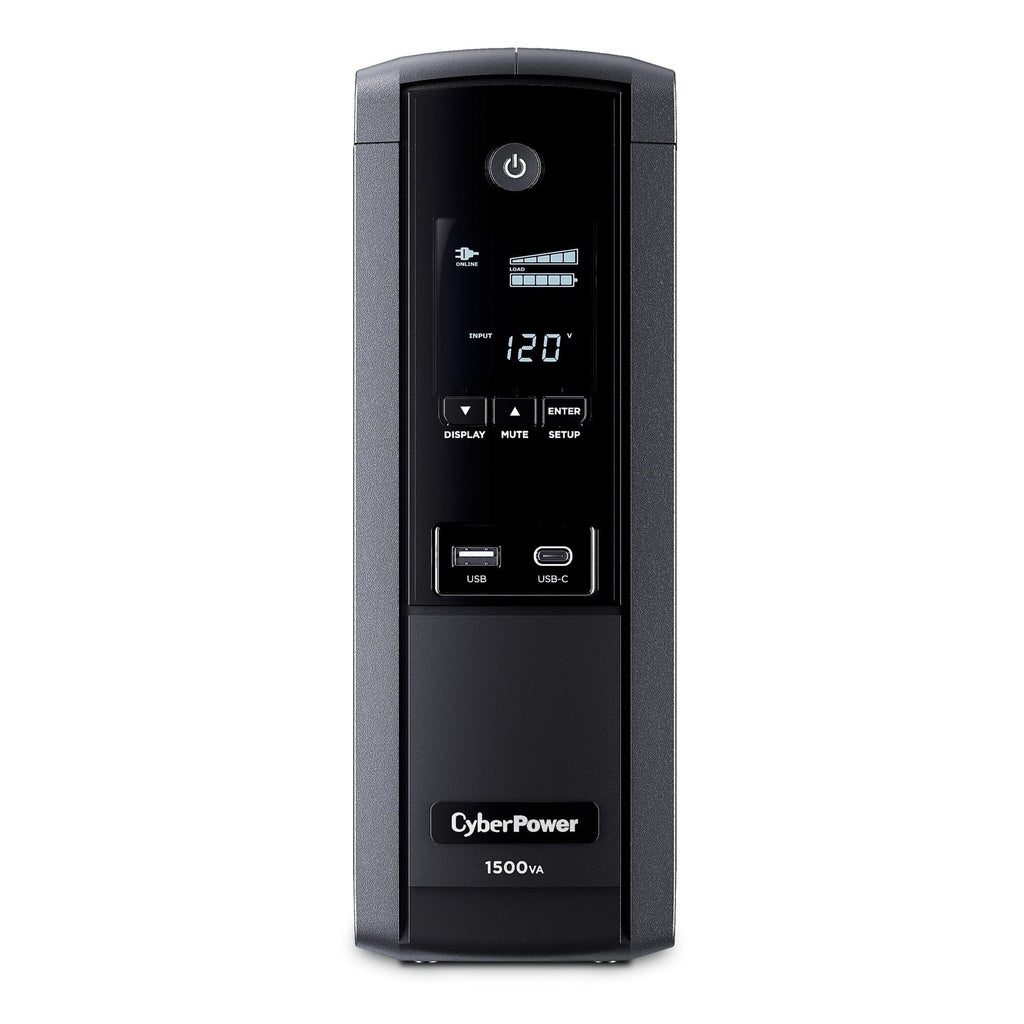

- Multifunction LCD Panel - Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Automatic Voltage Regulation (AVR) - AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
- USB Charge Ports - Rapidly charge and power USB devices whether the UPS is providing utility or battery backup power.
- Data Line Protection - Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.
- Widely Spaced Outlet(s) - The widely-spaced outlet allow you to conveniently add transformer-sized plugs without blocking other outlets.
- Line Interactive Topology - Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- ENERGY STAR - This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- GreenPower UPS™ Bypass Design - A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Ultra Quiet Design - Minimizes noise during operation for a quieter work environment.
Specifications
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X2 |
| Replacement Battery Cartridge Quantity | 1 |

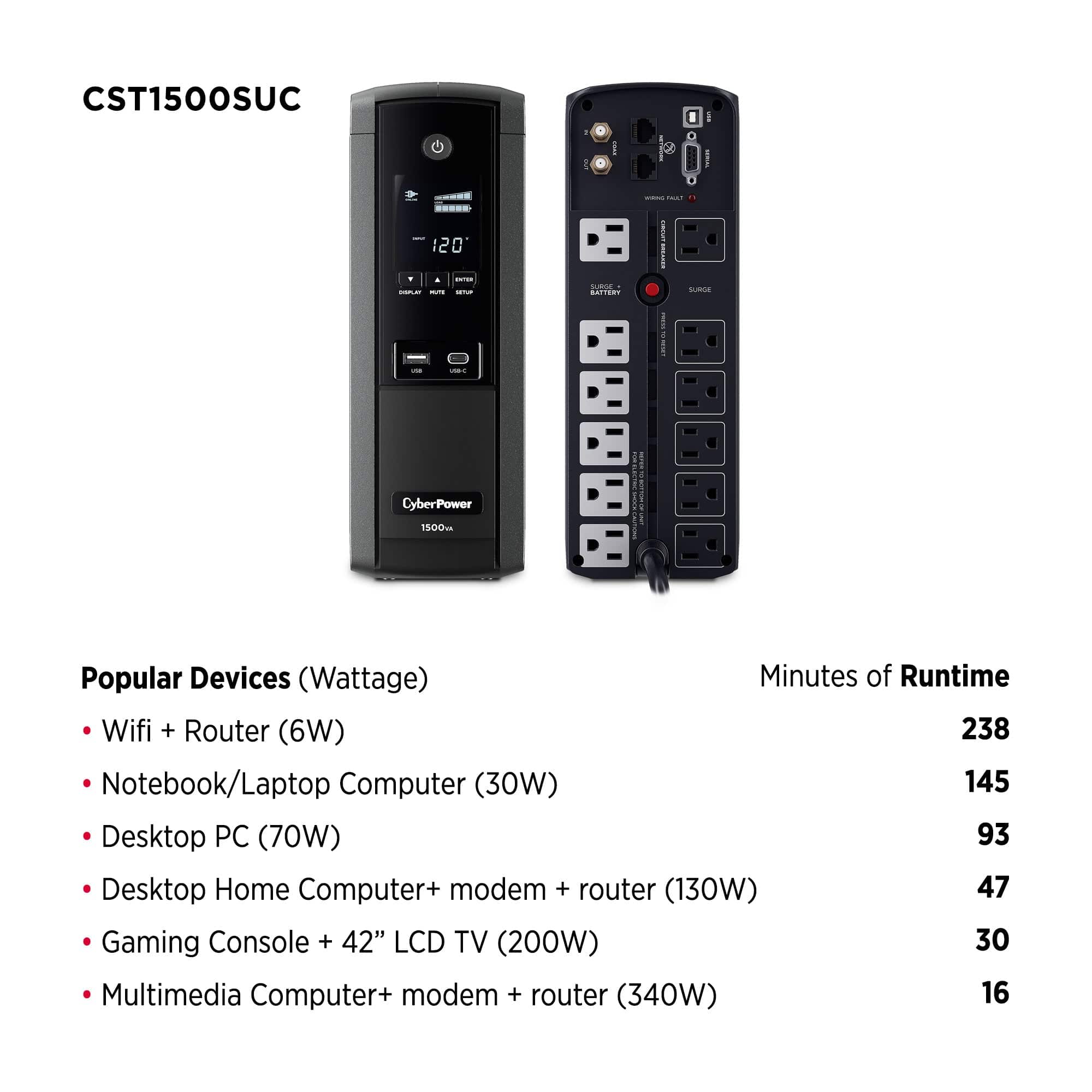

| Runtime at Full Load | 2 min |
| Runtime at Half Load | 11 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Cord Length | 5 ft (1.5 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 89 VAC – 144 VAC |
| Nominal Input Voltage | 120 VAC |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Sine Wave |

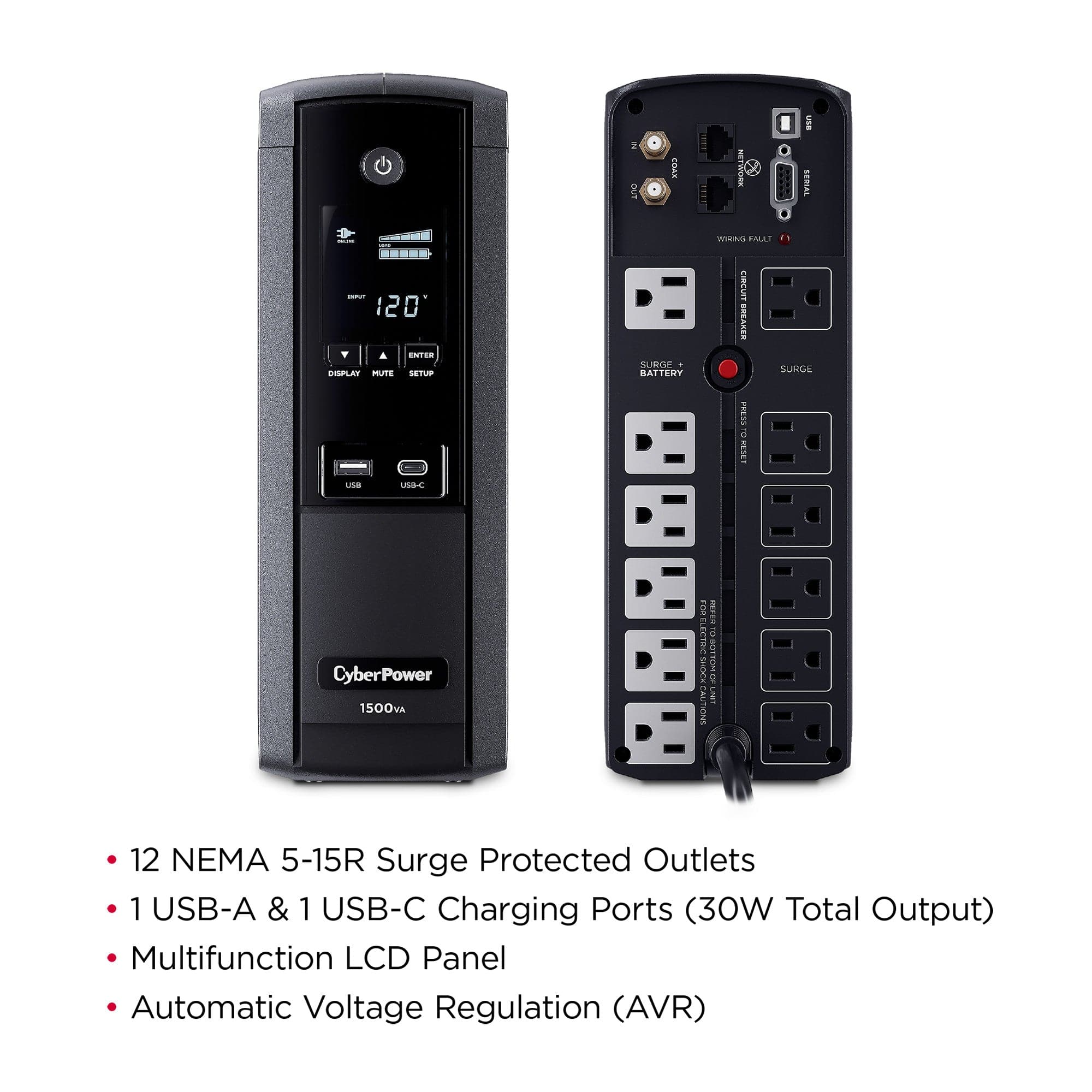

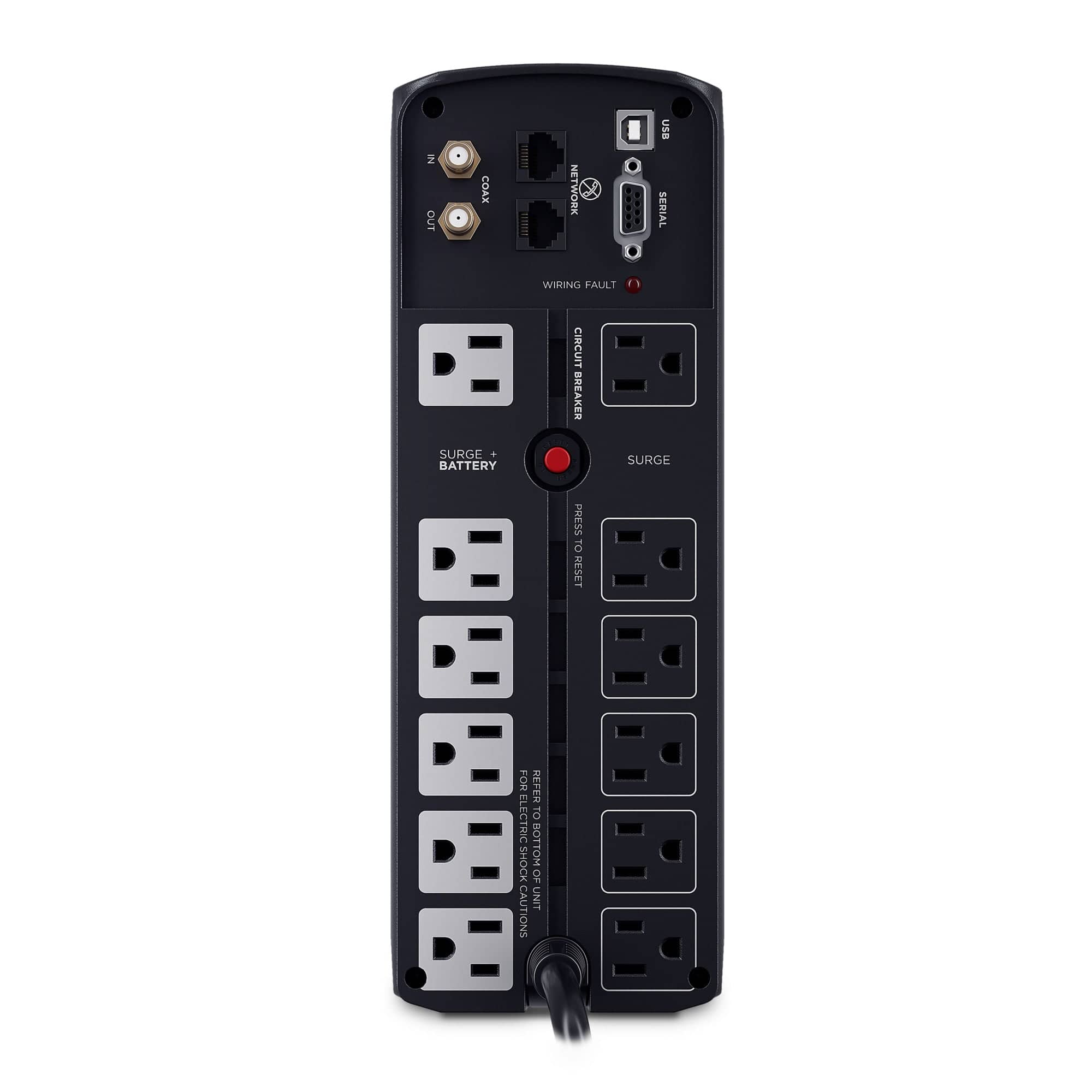

| Outlet Type | 12 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 5 |
| Outlets – Surge-Only Protected | 5 |
| Outlets – Total | 10 |
| Outlets – Widely Spaced | 2 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 2.4 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Standard | Type A |
| USB Charge Port Type | 1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 30 Watts |
| VA | 1500 VA |
| Watts | 900 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1445 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On Wiring Fault |
| Management Cable | USB Cable |
| Serial Port | 1 Dry Contact |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 9.91 x 27.94 x 35.56 (cm) |

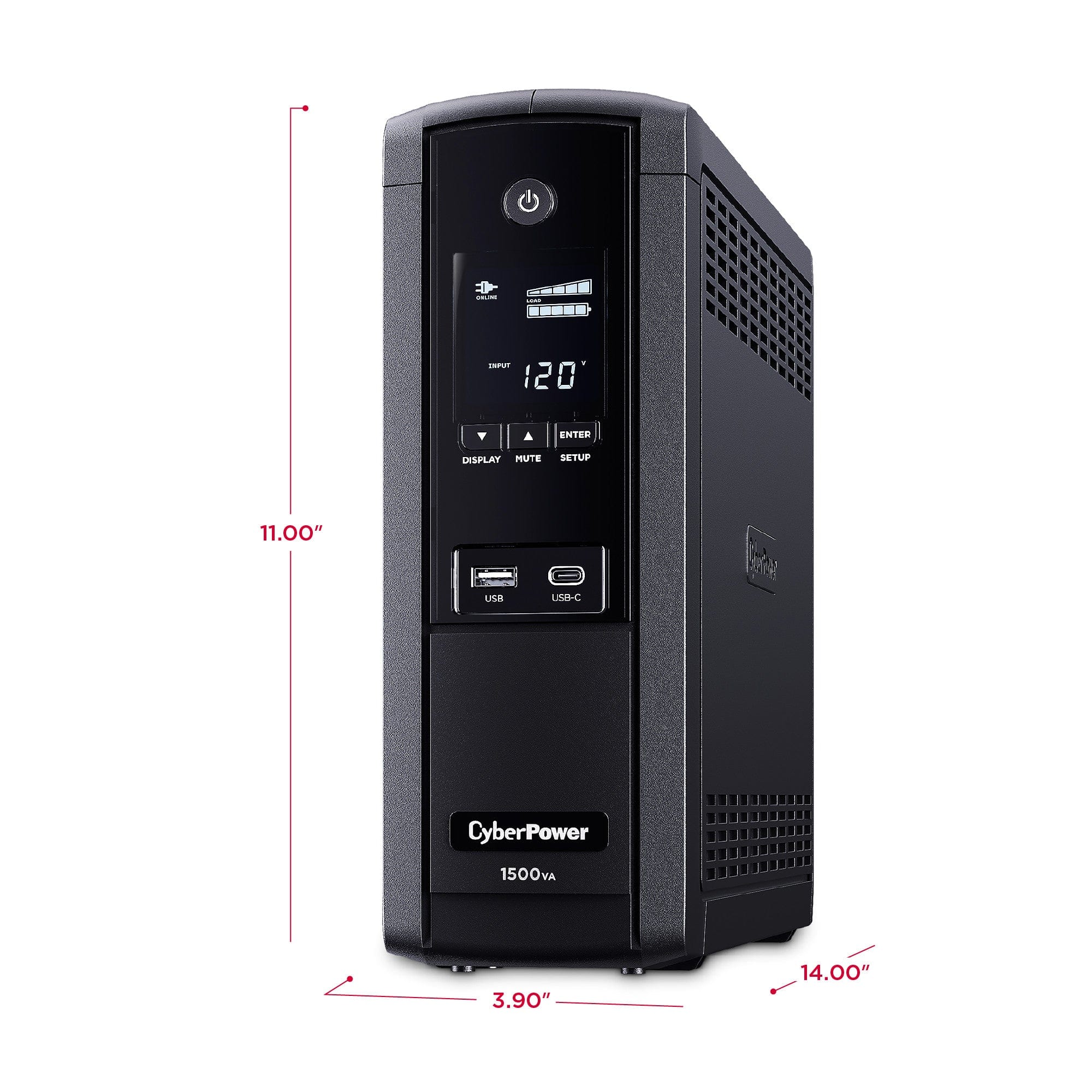

| Physical Dimensions – (WxHxD) (in) | 3.9 x 11 x 14 (in) |
| Physical Dimensions – (WxHxD) (mm) | 99 x 279 x 356 (mm) |
| Physical Weight (kg) | 11.29 |
| Physical Weight (lb) | 24.9 |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 cUL 107.3 FCC DOC Class B |
