Description
The CyberPower CP685AVRG uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver battery backup to power connected electronics during a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems. The CP685AVRG uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit’s battery life. CyberPower designed the CP685AVRG to minimize noise for a quieter work environment and run efficiently to reduce power consumption.
Features

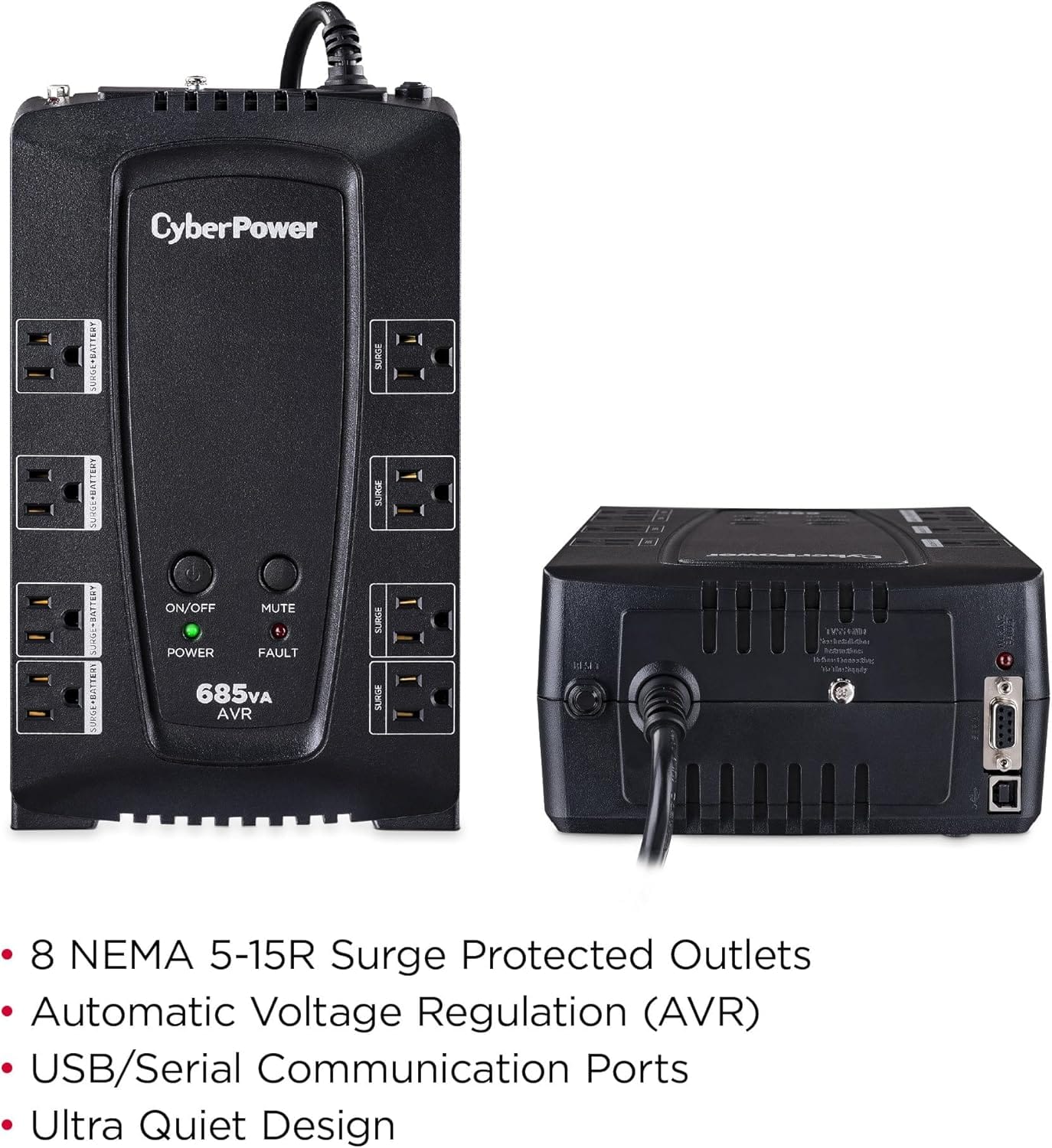

- 685VA/390W AVR Uninterruptible Power Supply (UPS): Uses simulated sine wave technology to provide battery backup power to safeguard desktop computers, workstations, networking devices, and home entertainment equipment
- EIGHT NEMA 5-15R OUTLETS: Four battery backup & surge protected outlets, Four surge protected outlets
- INPUT: NEMA 5-15P right angle, 45 degree offset plug with six foot power cord
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
- LED STATUS LIGHTS: Indicates Power-On and Wiring Faults
- UL SAFETY CERTIFIED: Product has been tested in a UL certified lab and listed with UL as meeting or exceeding safety standards
Specifications
| Brand | CyberPower |
| Color | Black |
| Enclosure Material | Plastic |
| Voltage | 120 Volts |
| Amperage | 15 Amps |
| Form Factor | Compact |
| Input Voltage | 120 Volts |
| Maximum Power | 390 Watts |
| Surge Protection Rating | 1030 Joules |
| Output Current | 3.25 Amps |
| Output Voltage | 120 Volts (AC) |
| Power Plug Type | Type B - 3 pin (North American) |
| Connector Type | NEMA |
| Number of Outlets | 8 |
| Battery Average Life | 3 years |
| Output Wattage | 390 Watts |
| Wattage | 390 Watts |
| Frequency Range | 60 Hz |
| Runtime | 10 minutes |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 95 Degrees Fahrenheit |
| Specification Met | Partial Compliance |

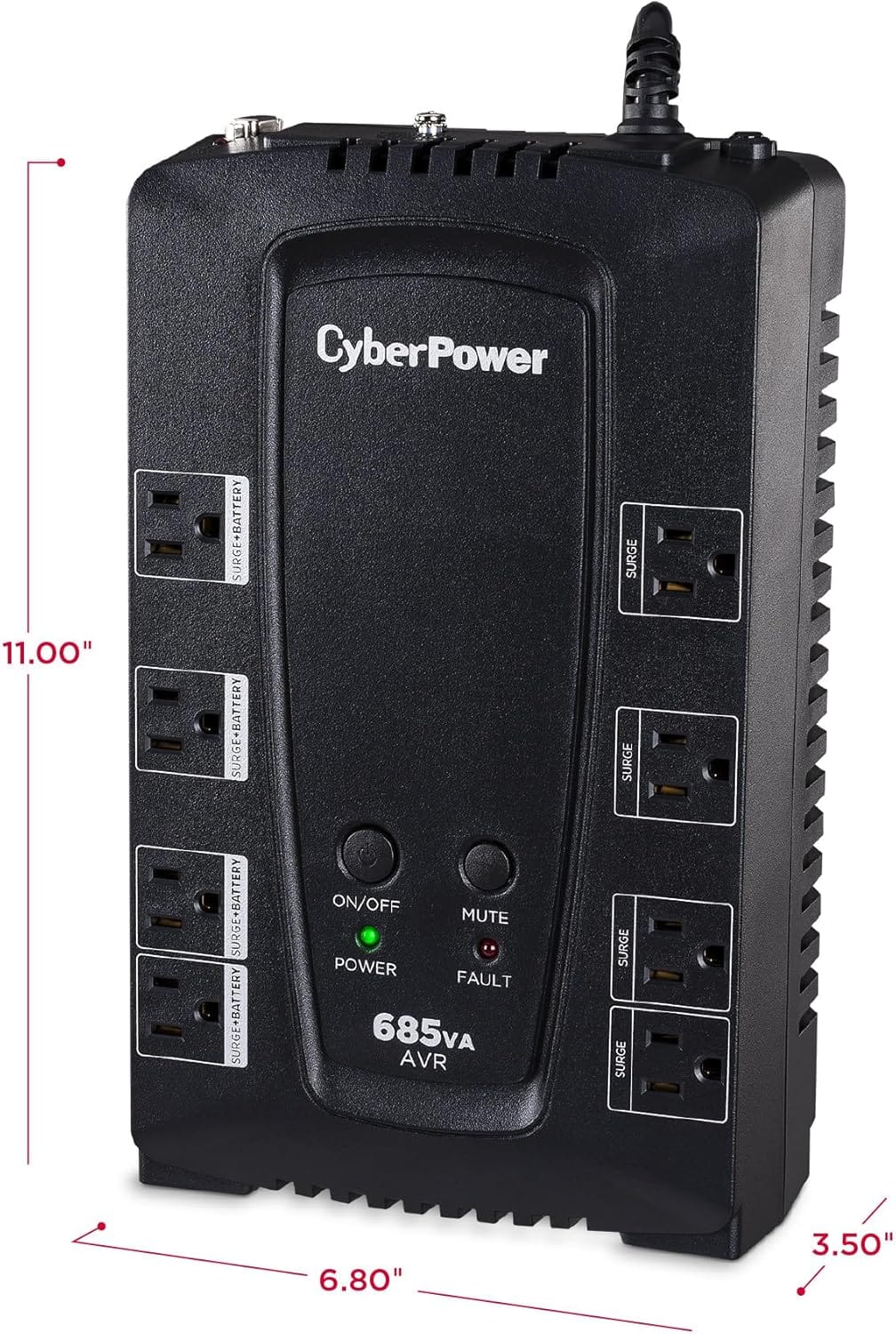

| Product Dimensions | 3.5"D x 11"W x 6.8"H |
| Item Weight | 11.62 Pounds |
