Description

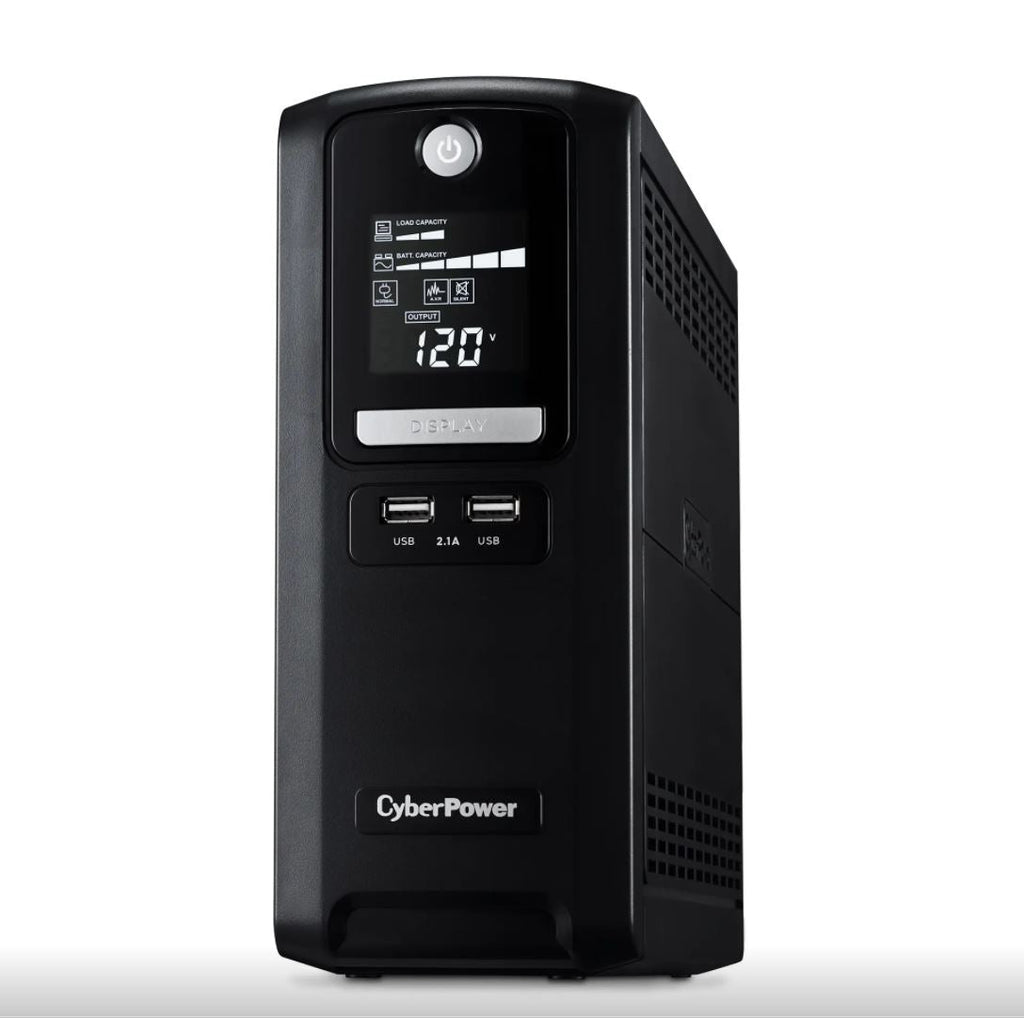

CyberPower CST150XLU-R 1500VA / 900W Battery Backup And Surge Protection UPS - New Battery Certified Refurbished
Description
A mini-tower UPS with line interactive topology, the CyberPower CST150XLU provides new battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. Using Automatic Voltage Regulation (AVR), the CST150XLU corrects minor power fluctuations without switching to battery power, which extends battery life. In areas where power fluctuations occur frequently, AVR is essential.Features
- 1500 VA / 900 W
- 10 (5 surge, 5 surge + battery backup) Outlets
- Simulated Sine Wave
- 120 VAC ± 5% Output
- NEMA 5-15P Plug , 6 ft. cord
New Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS™ Bypass
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Multifunction LCD Panel
Displays immediate, detailed information on the battery backup and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
USB Charger
Two (2) 5Vdc USB charging ports with 2.1A support located on the front panel for convenient access to charge portable electronic devices such as tablets, mobile phones, MP3 players, and cameras.
PowerPanel® Personal Edition Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
Specifications
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Replacement Battery Cartridge | RB1290X2 |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 13 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Circuit Breaker | 15A |
| Cord Length | 6 ft (2 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |

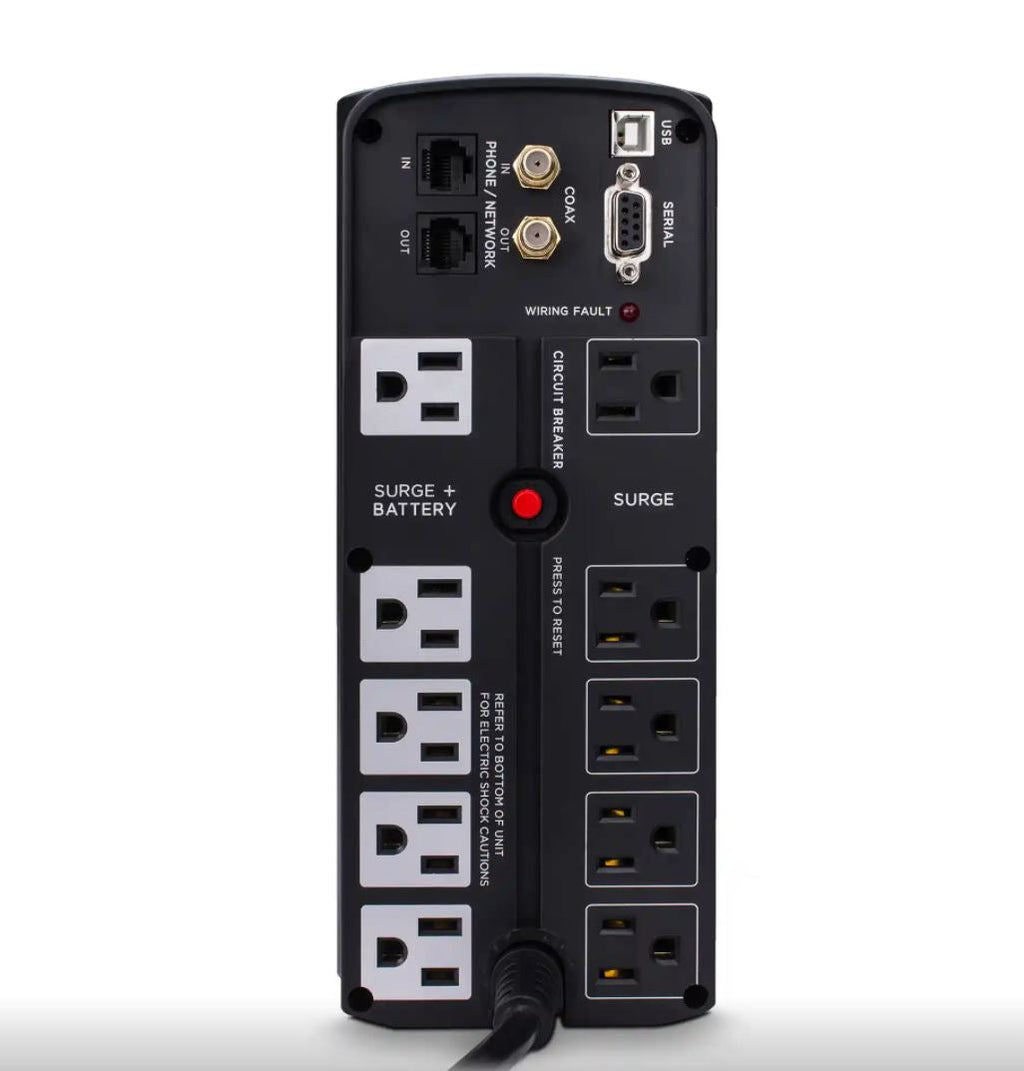

| Outlet Type | NEMA 5-15R |
| Outlets – Battery & Surge Protected | 5 |
| Outlets – Surge-Only Protected | 5 |
| Outlets – Total | 10 |
| Outlets – Widely Spaced | 2 |
| Overload Protection | Internal Circuitry Limiting |
| Circuit Breaker Protected | |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 2.1 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| VA | 1500 VA |
| Watts | 900 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Phone / Network Protection RJ11/RJ45 | 1-In / 1-Out (Combo) |
| Surge Suppression (Joules) | 890 J |
| Management & Communications | |
| Audible Alarms | Battery Mode |
| Low Battery | |
| Overload | |
| Fault | |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On |
| Wiring Fault | |
| Management Cable | USB Cable |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Dimensions – HxWxD (in) | 9.8 x 3.9 x 13.7 in |
| Dimensions – WxHxD (in) | 3.9 x 9.8 x 13.7 in |
| Weight (kg.) | 11.3 |
| Weight (lbs) | 25 |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 9.91 x 24.89 x 34.8 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.9 x 9.8 x 13.7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 99 x 249 x 348 (mm) |
| Weight (kg) | 11.34 |
| Weight (lb) | 25 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 12.07 |
| Shipping – Weight (lb) | 26.6 |
| Shipping Dimensions – (WxHxD) (cm) | 18.19 x 32.39 x 43.18 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 7.16 x 12.75 x 17.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 181.86 x 323.85 x 431.8 (mm) |
| Environmental | |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| cUL | |
| FCC DOC Class B |
CyberPower CST150XLU 1500VA / 900W Battery Backup & Surge Protection UPS - New Battery Certified Refurbished
