Description

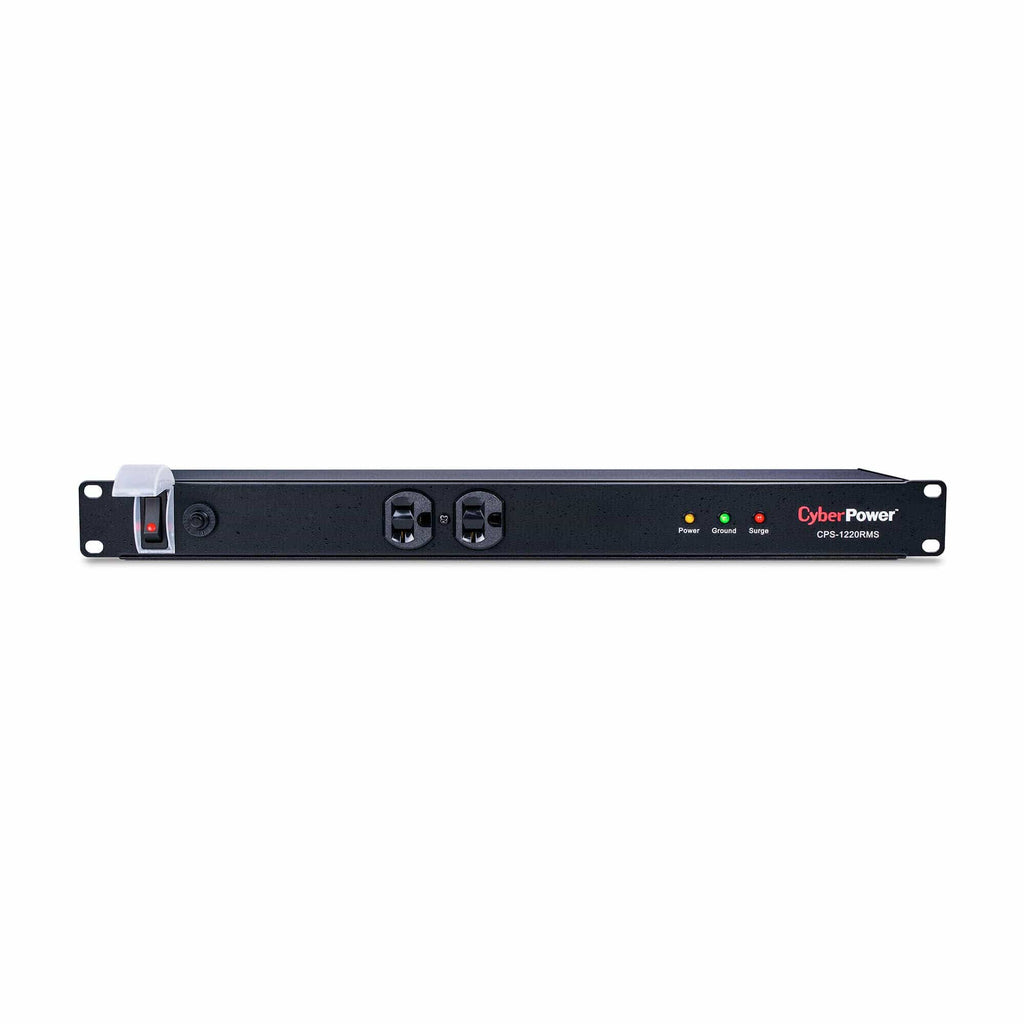

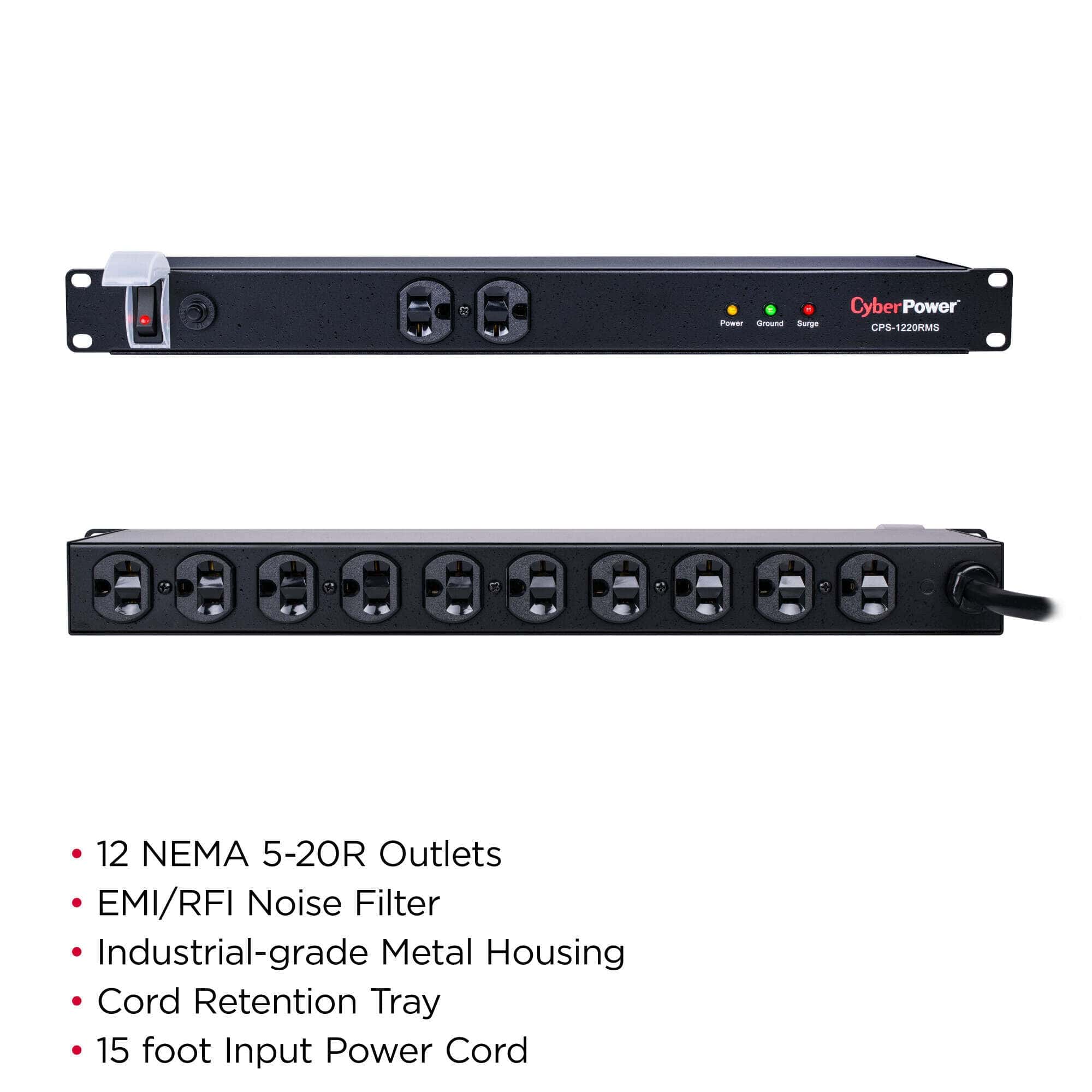

Engineered for the most demanding applications, the professional-grade Rackbar Surge Protector CPS1220RMS from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS1220RMS also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (2 front, 10 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS1220RMS has a 1U racksize and can be mounted horizontally.
Features
- Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- EMI/RFI Noise Filter: Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
- LED Indicators: Provide information about the model’s status: Power, Ground, and Surge.
- Power Management Features: Include network-grade plugs and outlets, an AC power cord.
- Industrial-Grade Metal Housing: Prolongs model life with rugged casing made of impact-resistant material for maximum durability.
Specifications
| Input | |
| Circuit Breaker | 20 A |
| Cord Length | 15 ft (4.6 m) |
| Input Plug Type | NEMA 5-20P |
| Maximum Input Current | 20A |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Straight |
| Switch | Lighted On/Off |
| Output | |
| Nominal Output Voltage | 120 VAC |
| Outlet Type | 12 – NEMA 5-20R |
| Outlets – Front | 2 |
| Outlets – Rear | 10 |
| Outlets – Total | 12 |
| Overload Protection | 20A |
| USB Charge Port | No |
| Surge Protection & Filtering | |
| Clamping Voltage | 800V (H-N) |
| EMI/RFI Filtration | 150 KHz 150 MHz Yes |
| Maximum Surge Current | 90000 A |
| Maximum Surge Current H-G | 30000 A |
| Maximum Surge Current H-N | 30000 A |
| Maximum Surge Current N-G | 30000 A |
| Maximum Surge Voltage | 6000 V |
| Surge Suppression (Joules) | 1800 J |
| Physical | |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| Form Factors Supported | 1U Rackmount |
| Material of Construction | Metal |
| Rack Height | 1U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.82 x 4.45 x 12.07 (cm) |

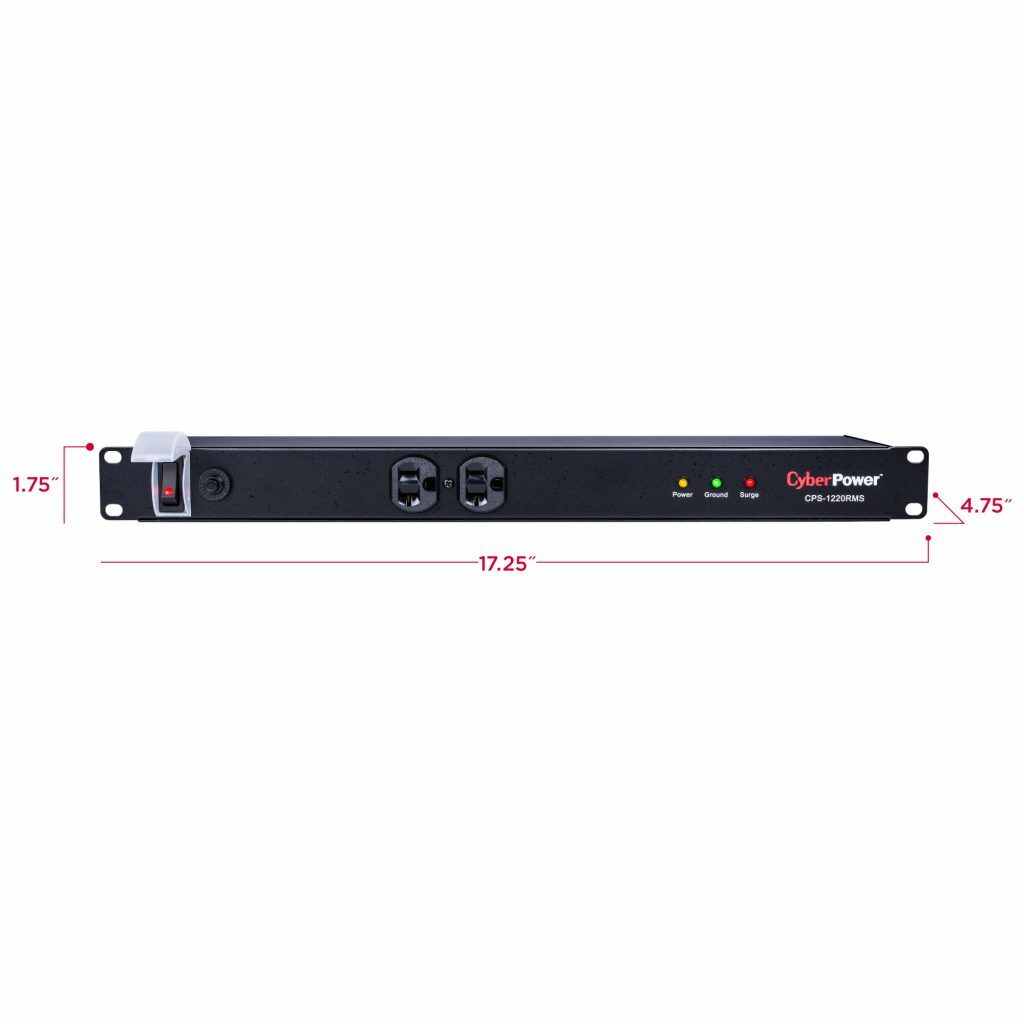

| Physical Dimensions – (WxHxD) (in) | 17.25 x 1.75 x 4.75 (in) |
| Physical Dimensions – (WxHxD) (mm) | 438 x 44 x 121 (mm) |
| Physical Weight (kg) | 2.72 |
| Physical Weight (lb) | 6 |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL Recognized |
