CyberPower 550VA / 330W 8 Outlets UPS - New Battery Certified Refurbished

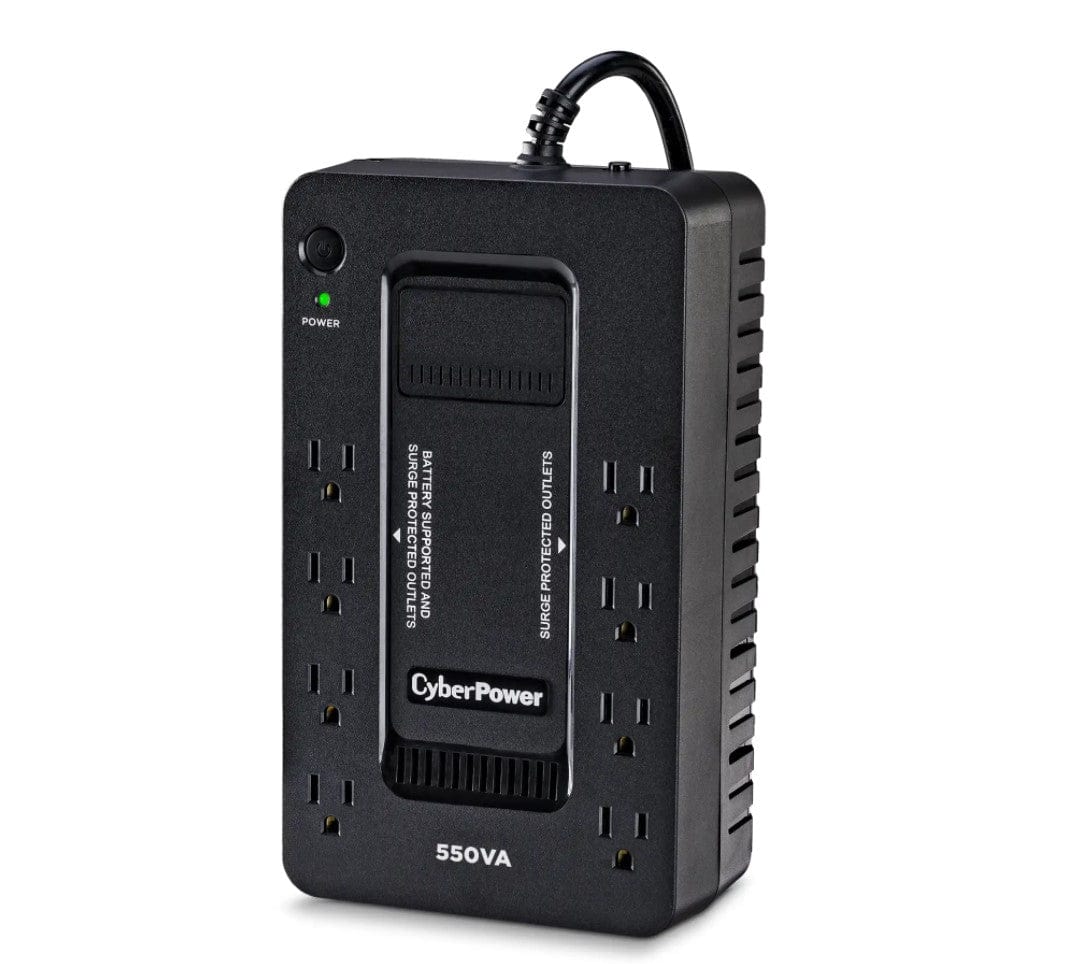

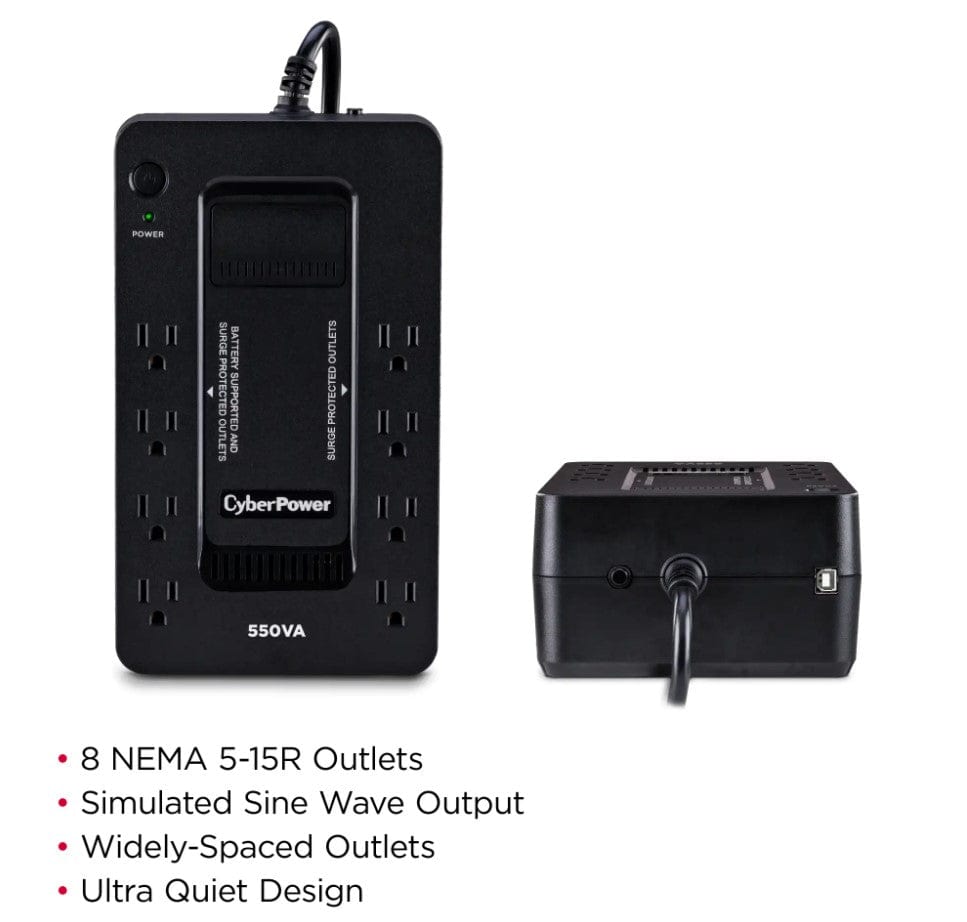

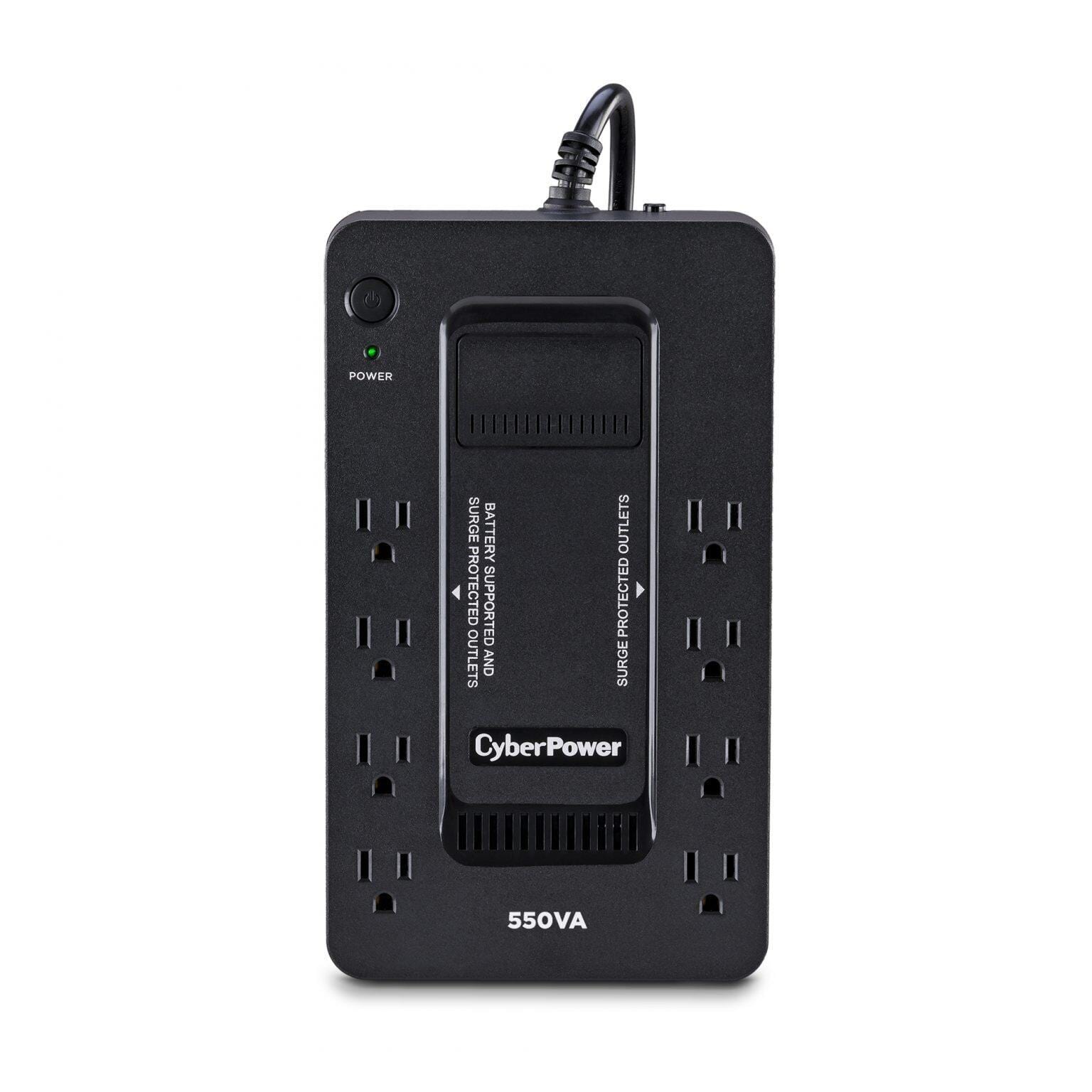

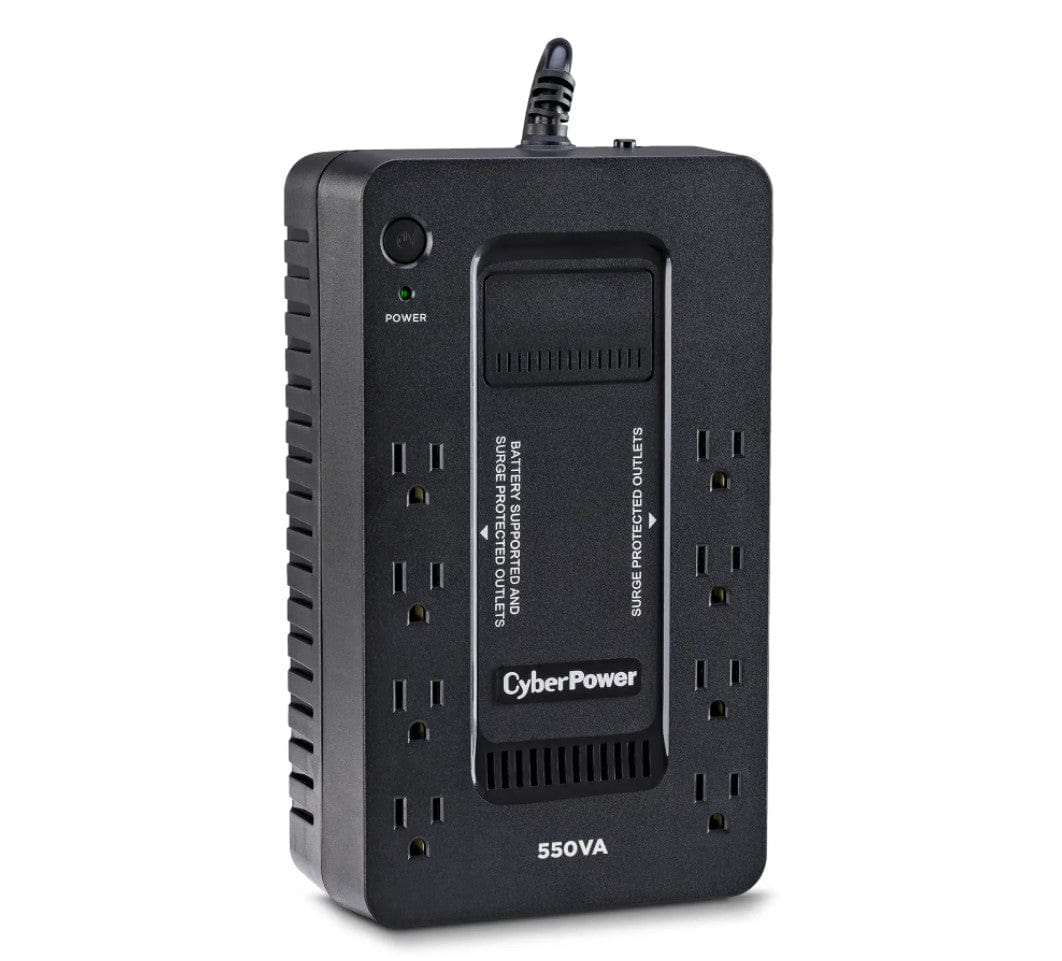

CyberPower SX550G-R 550VA / 330W 8 Outlets UPS - New Battery Certified Refurbished

Description

The CyberPower SX550G uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers battery backup to power connected electronics during a utility power failure and enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable electronics during longer outages.

Features

• Capacity: 550 VA / 330 W
• Topology: Standby
• Waveform: Simulated Sine Wave
• Output: 120 VAC ± 5%
• Plug type & cord: NEMA 5-15P, 5 ft. cord
• Outlet types: 8 × NEMA 5-15R
• Communication ports: USB

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Widely Spaced Outlet(s)

The widely-spaced outlet allow you to conveniently add transformer-sized plugs without blocking other outlets.

GreenPower UPS™ High-Efficiency Design

Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.

Ultra Quiet Design

Minimizes noise during operation for a quieter work environment.

Standby Topology

Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.

Simulated Sine Wave Output

Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.

PowerPanel® Personal Software

Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.

Specifications

General
Energy Saving	GreenPower UPS™ High-Efficiency
UPS Topology	Standby
Battery
Battery Quantity	1
Battery Size	12 V / 5.5 Ah
Battery Type	Sealed Lead-Acid Battery
Runtime at Full Load	2 min
Runtime at Half Load	8 min
Typical Recharge Time	8 Hours
User Replaceable Battery	No
Input
Circuit Breaker	10A
Cord Length	5 ft (2 m)
Input Frequency Range	47 Hz – 63 Hz
Input Plug Type	NEMA 5-15P
Plug Style	Right Angle – 45° Offset
Output
On Battery Frequency	50/60 Hz ± 1%
On Battery Voltage	120 VAC ± 5%
On Battery Waveform	Simulated Sine Wave
Outlet Type	NEMA 5-15R
Outlets – Battery & Surge Protected	4
Outlets – Surge-Only Protected	4
Outlets – Total	8
Outlets – Widely Spaced	4
Overload Protection	Internal Circuitry Limiting
	Circuit Breaker Protected
Typical Transfer Time	4 ms
VA	550 VA
Watts	330 W
Surge Protection & Filtering
EMI/RFI Filtration	Yes
Surge Suppression (Joules)	890 J
Management & Communications
Audible Alarms	Battery Mode
	Low Battery
	Overload
HID Compliant USB Port	Yes
LED Indicators	Power On
	Wiring Fault
Management Cable	USB Cable
Software (Free Download)	PowerPanel® Personal
Physical
Color	Black
Form Factor	Compact

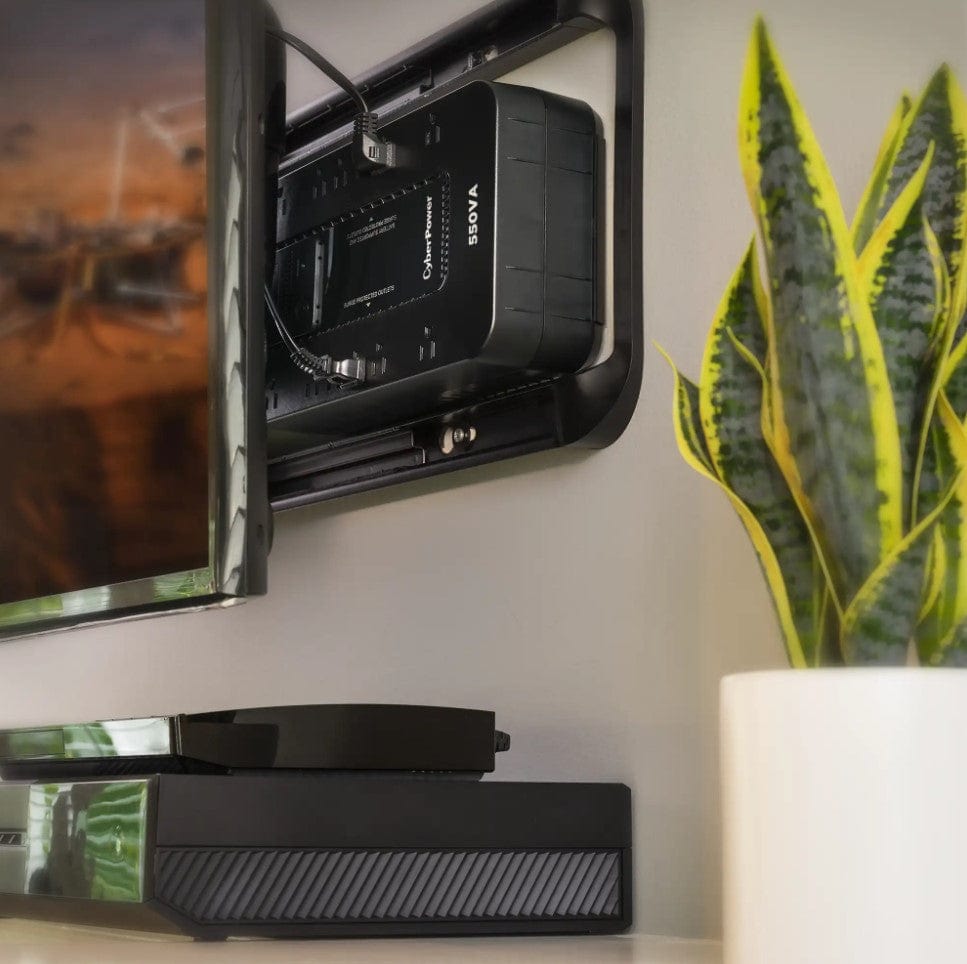

Keyhole Mounting Slots	Yes
Dimensions
Physical Dimensions – (WxHxD) (cm)	24.89 x 14.73 x 8.13 (cm)
Physical Dimensions – (WxHxD) (in)	9.8 x 5.8 x 3.2 (in)
Physical Dimensions – (WxHxD) (mm)	249 x 147 x 81 (mm)
Weight (kg)	2.94
Weight (lb)	6.48
Dimensions – Shipping
Shipping – Weight (kg)	3.4
Shipping – Weight (lb)	7.5
Shipping Dimensions – (WxHxD) (cm)	20.96 x 13.59 x 37.47 (cm)
Shipping Dimensions – (WxHxD) (in)	8.25 x 5.35 x 14.75 (in)
Shipping Dimensions – (WxHxD) (mm)	209.55 x 135.89 x 374.65 (mm)
Environmental
Operating Relative Humidity	0 – 90 % (non-condensing)
Operating Temperature	32 – 104 °F (0 – 40 °C)
Certifications
Environmental	RoHS Compliant
Safety	UL1778
