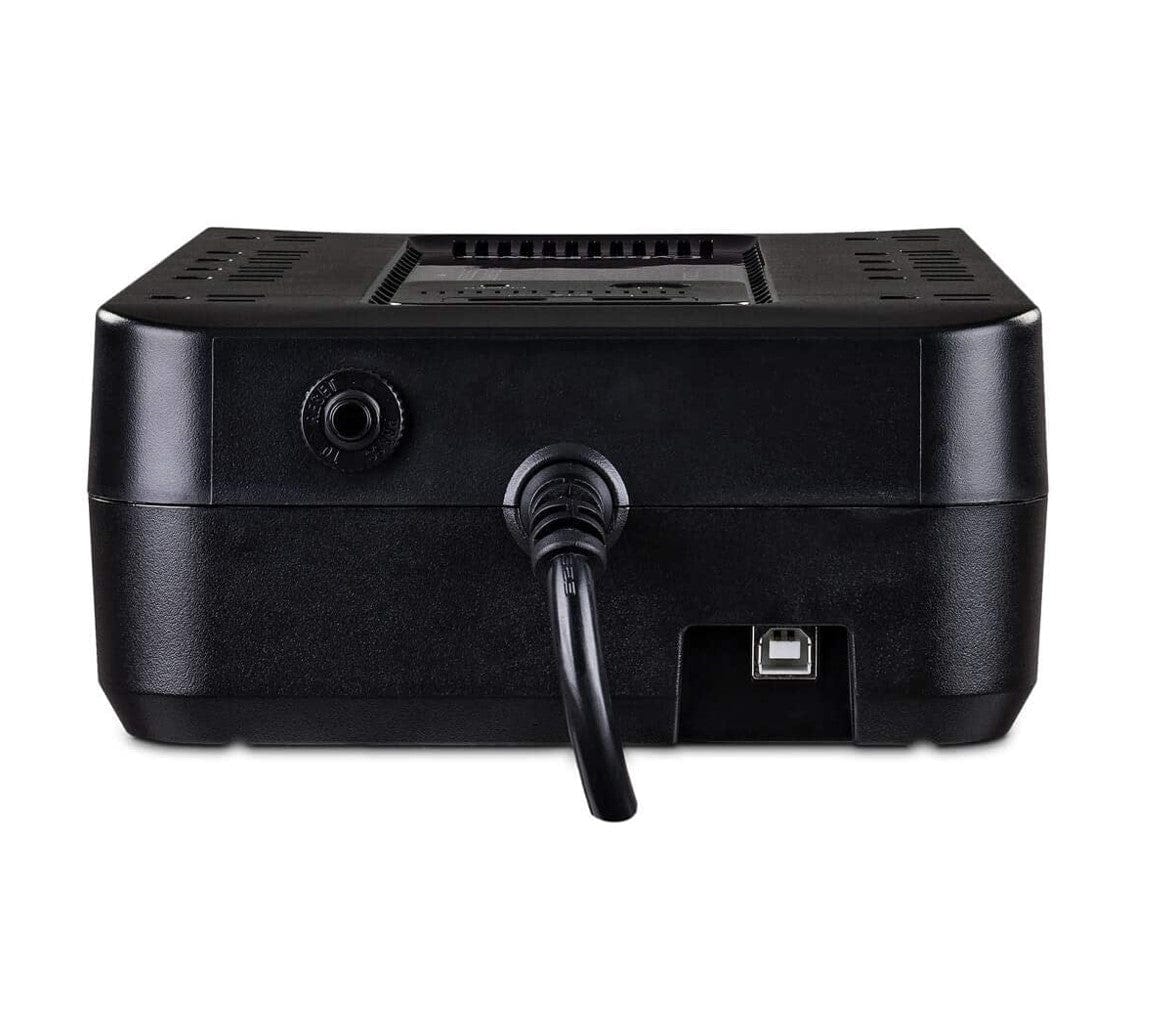

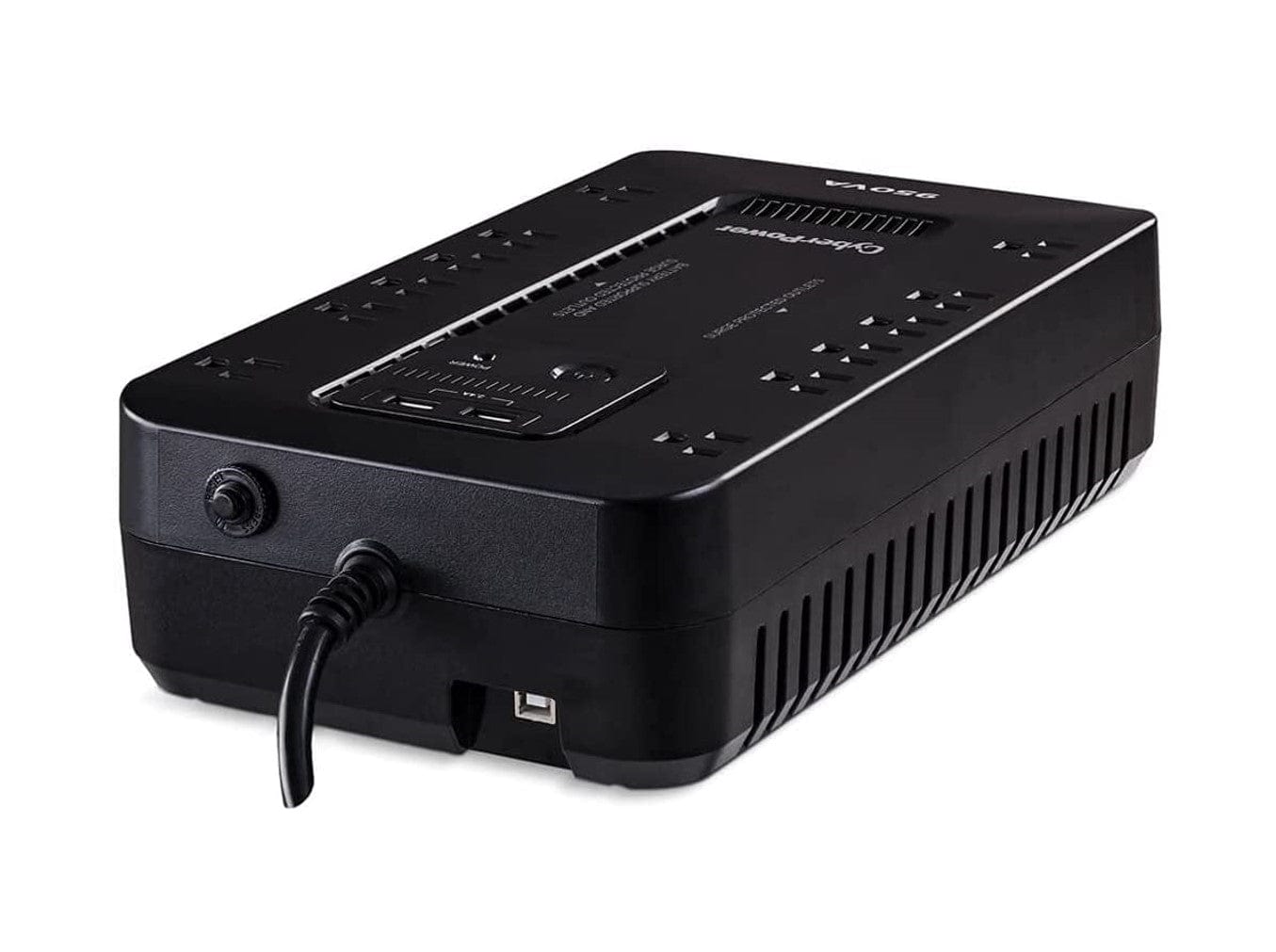

CyberPower SX950U-R 950VA/510W 8-Outlet UPS System with USB - New Battery Certified Refurbished
Description
The CyberPower SX950U uninterruptible power supply (UPS) system provides surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers enough battery backup to connected electronics during a utility power failure, so you can perform a graceful shutdown to protect against the loss of data and damage to valuable electronics including computers, gaming consoles, and broadband routers. The SX950U has two USB charging ports with 2.4 amp shared total output which gives you a faster charging time. This unit is designed to minimize noise for a quieter work environment and to run efficiently to reduce power consumption. Including a sleek new design, this UPS is perfect for all your home office and entertainment needs.Features
- Capacity: 950 VA / 510 W
- Outlet types: 12 × NEMA 5-15R
- Output: 120 VAC ± 5%
- USB charge ports: 2
- Outlets: 12 (6 surge only, 6 surge + battery backup)
- Waveform: Simulated Sine Wave
- Runtime (half/full): 7.5 minutes / 2 minutes
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
USB Charge Ports
Rapidly charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.
GreenPower UPS™ High-Efficiency Design
Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
Transformer-Spaced Outlets
Accommodates large transformer-based plugs without compromising the access of other outlets.
PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.
ENERGY STAR®
This model is an ENERGY STAR® qualified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Specifications
| General | |
| Energy Saving | GreenPower UPS™ High-Efficiency |
| UPS Topology | Standby |
| Battery | |
| Battery Quantity | 0:00 |
| Battery Size | 12 V / 7.2 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Field-serviceable Battery | Replaceable by qualified technician |
| Hot Swappable | No |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 7.5 min |
| Typical Recharge Time | 8 Hours |
| Input | |
| Circuit Breaker | 15A |
| Cord Length | 5 ft (2 m) |
| Input Frequency Range | 47 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage | – 120 VAC |
| Nominal Input Voltage | 120 VAC |
| Output | |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Surge-Only Protected | 6 |
| Outlets – Total | 12 |
| Outlets – Widely Spaced | 4 |
| Output Power Factor | 53% |
| Overload Protection | Circuit Breaker Protected |
| Typical Transfer Time | 8 ms |
| VA | 950 VA |
| Watts | 510 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 890 J |
| Management & Communications | |
| Audible Alarms | Battery Mode |
| Low Battery | |
| Overload | |
| Fault | |
| HID Compliant USB Port | Yes |
| LED Indicators | Power On |
| Management Cable | USB Cable |
| SNMP / HTTP Remote Monitoring | None |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Form Factor | Compact |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 30.99 x 7.87 x 17.78 (cm) |
| Physical Dimensions – (WxHxD) (in) | 12.2 x 3.1 x 7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 310 x 79 x 178 (mm) |
| Weight (kg) | 3.49 |
| Weight (lb) | 7.7 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 3.49 |
| Shipping – Weight (lb) | 7.7 |
| Shipping Dimensions – (WxHxD) (cm) | 36.83 x 20.32 x 11.43 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 14.5 x 8.0 x 4.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 368.3 x 203.2 x 114.3 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| cUL | |
| FCC DOC Class B | |
| ENERGY STAR (USA) | |
| CEC |
CyberPower SX950U 950VA/510W 8-Outlet UPS System with USB - New Battery Certified Refurbished
