Description

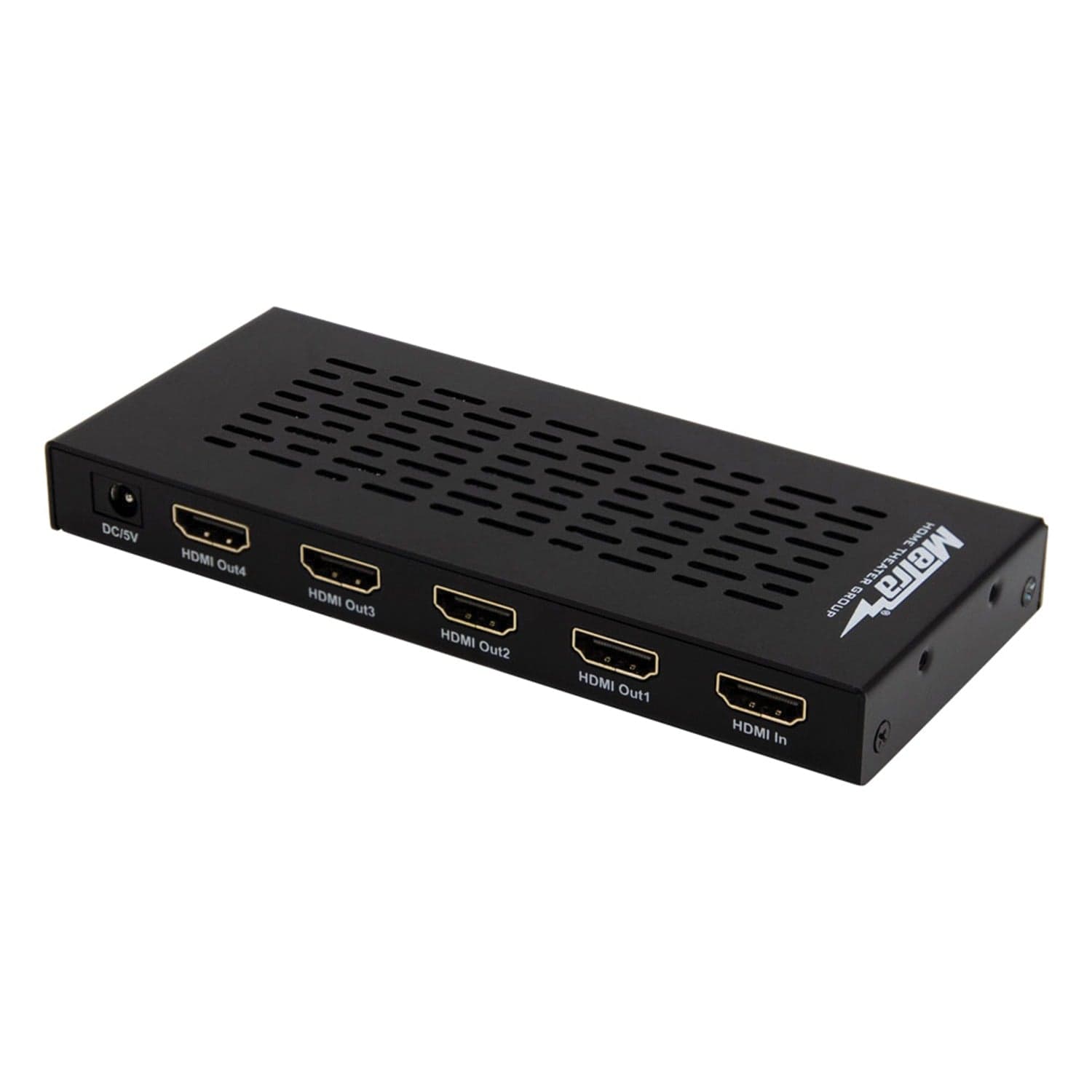

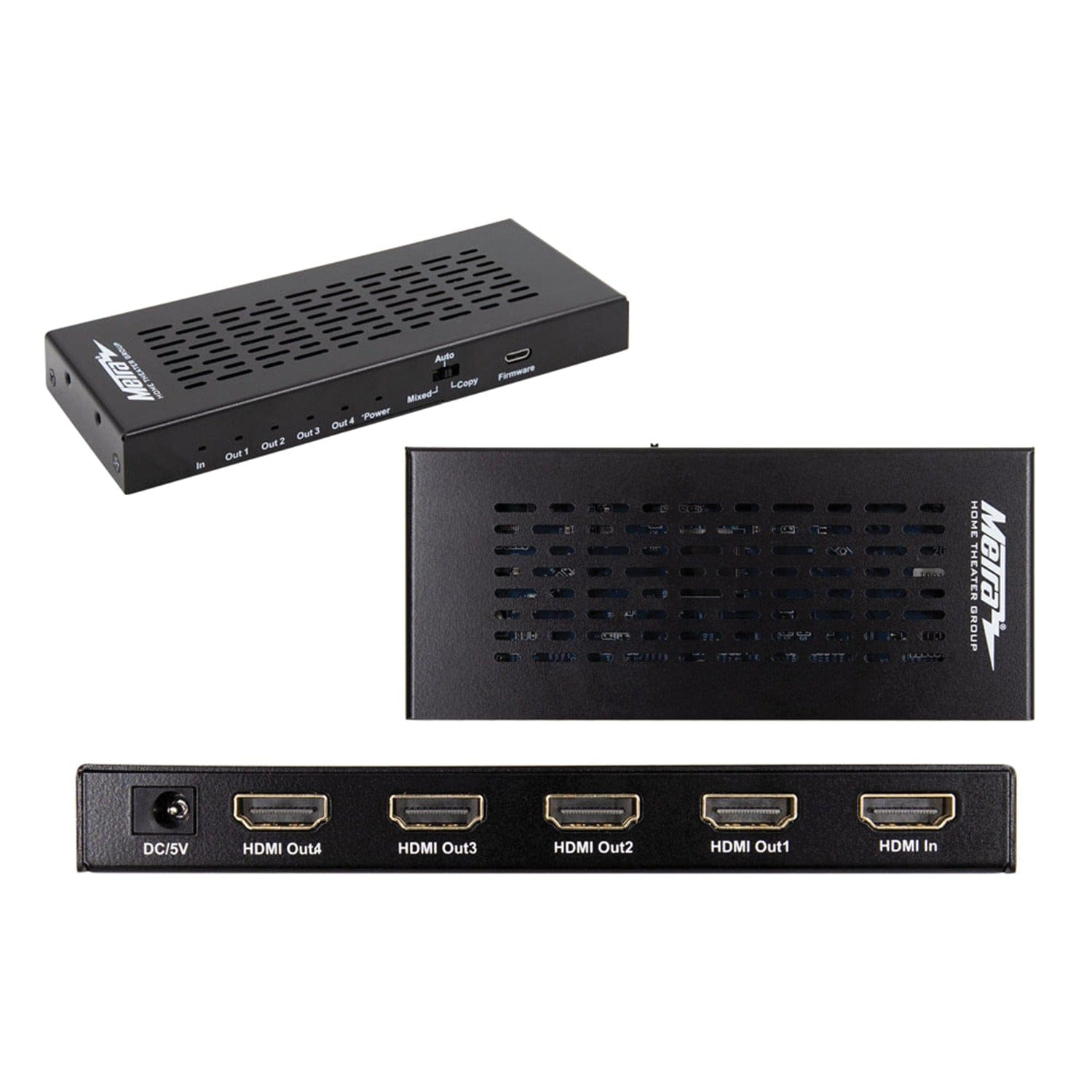

The Ethereal HDMI Scaling Splitter with 1 Input and 4 Outputs provides the ability to take any standard resolution and downscale it to match each of the connected displays (up to 4), simultaneously. For example, show 4K at 60 Hz content on a 4K display while also showing the same content scaled down on a 1080p display. Unlike traditional splitters, this built-in scaling allows legacy devices to work with newer higher resolution displays in the system, without automatically defaulting to the lowest resolution. Video quality on newer TVs is no longer sacrificed by having an older model in the mix.
Features
- Supports HDMI® 2.0 and HDCP 2.2 (and earlier versions)
- Supports 480p/i, 720p, 1080p/i, 3D, 4K at 30/60 Hz 4:4:4 up to 18 Gbps
- Built-in scaling and EDID management to allow multiple resolutions simultaneously
- All HDR formats supported

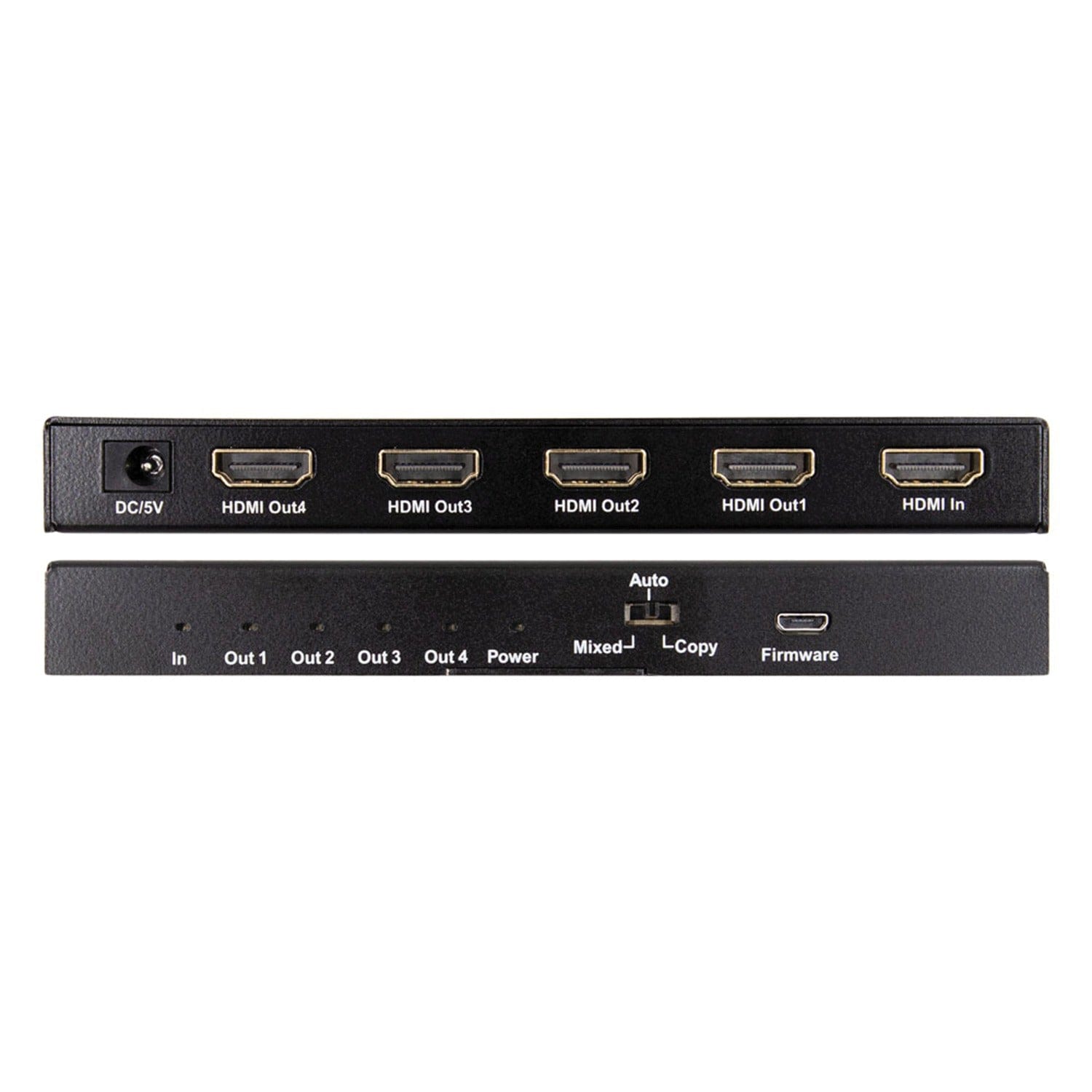

- Copy setting: Copies the EDID of the display hooked up to output 1 and scales down to the other display
- Auto setting: Defaults the unit to only go as high as 4K @ 60 Hz Non-HDR; it will still downscale from there but if there is a TV and source that are capable of HDR, then it will not display the HDR signal
- Mixed setting: Classic HDMI® splitter setting using the highest common denominator so if there is 1 TV that is 1080p and another TV that is 4K at 60 HDR then it will only display 1080p like classic splitters
- This unit scales resolution only and does not scale frame rate; to
- ensure functionality, verify that all displays support the source frame rate
- Includes power supply and user manual
