Description

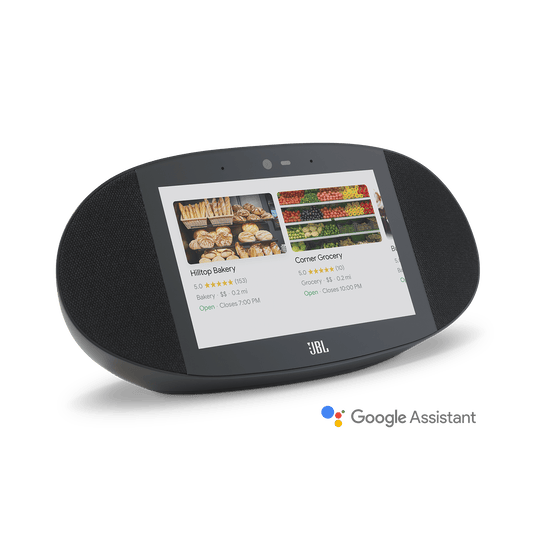

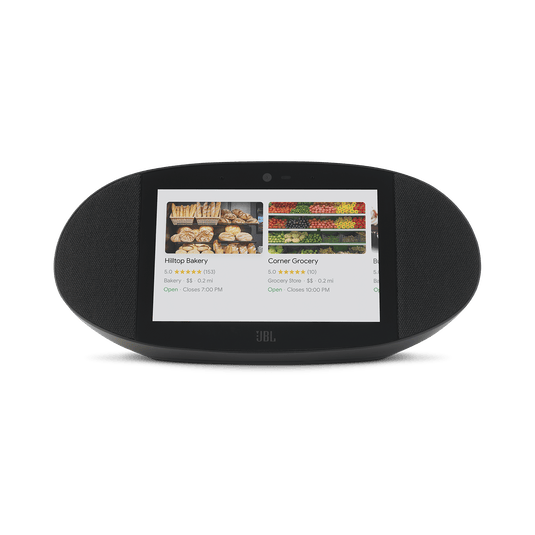

Get more than legendary sound. The integrated display included on JBL LINK VIEW allows you to get things done easily, it also has the Google Assistant built in, you can ask questions and tell it to do things. Just start with “Hey Google” to quickly enjoy your entertainment, stay connected with loved ones, view glanceable answers, manage daily tasks, and control your smart home. Your Assistant can help free up your hands and time, so you can focus on the things that matter most. Like watching videos of your favorite YouTube creators, reliving memories of your latest family vacation, making a video call to your best friend, receiving step-by-step baking instructions for delicious chocolate chip cookies, or dimming the lights for movie night. All this is delivered through a proprietary JBL transducer array, driven by a digital amplifier tuned to deliver full rich bass and crystal clear highs. This amazing combination of Google Assistant, JBL Audio horsepower and HD display make JBL LINK VIEW a must have for your home or office.
Features
- Get Help from your Google Assistant: Ask it question, tell it to do things, control your music, lights, queries and much more with a simple voice control.
- Legendary JBL sound: Enjoy incredible rich stereo sound with deep bass.

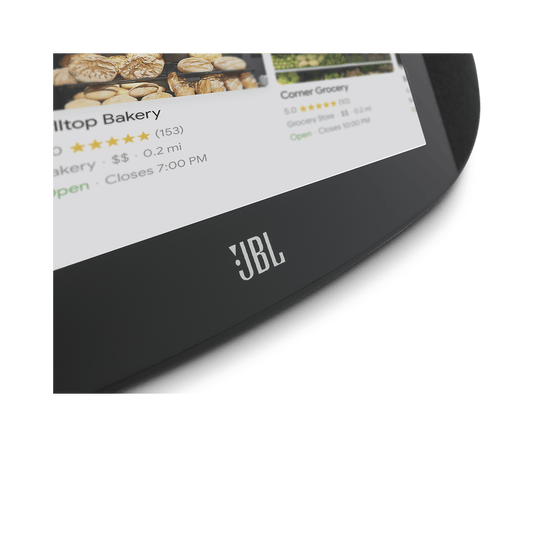

- 8" high-defi nition touch screen: View more information and content at a glance, clear and crisp.
- 5MP front facing camera: Enjoy a high-defi nition video calls to your family and friends.
- PrivacySwitch™ – camera shutter and microphone mute slider: Ensures highest level of security and privacy, leaves hackers out of the house.
- Splash proof and easy to clean: LINK VIEW is splash proof (IPX4) and easy to clean, it’s the ideal companion to enjoy music or to follow a tasty cooking recipe in the kitchen.
- Chromecast built-in: Let you instantly stream your favorite music, radio, or podcasts from your mobile device to your speakers.
Specifications
| General Specifications | |
| Transducer | 2 x 51mm (2”) full range driver |
| Output power | 2 x 10W RMS |
| 2.4G Wi-Fi transmitter frequency range | 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
| 2.4G Wi-Fi transmitter power | <20dBm (EIRP) |
| 2.4G Wi-Fi modulation | OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM |
| 5G Wi-Fi transmitter power | <20dBm (EIRP) |
| 5G Wi-Fi modulation | OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM, 256QAM |
| 5G Wi-Fi transmitter frequency range | 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz |
| Gross Weight | 1.9kg |
| Net Weight | 1.3kg |
| Note | The integrated display of the JBL Link View allows you to get things done easily. According to the definition of networked equipment with high network availability functionality set out in commission regulation (EU) No 801/2013 amending Regulation (EC) No 1275/2008, the product is considered as a networked equipment with functionality of videophone. Therefore, JBL Link View exempts from the requirements for availability of standby/off modes, power management function and possibility of deactivating wireless network connections, if these requirements are found, it will be inappropriate for the intended use of the product. JBL Link View is in compliance with the European Union energy legislation. JBL Link View is in active standby mode once the device is plugged into a wall socket. |
| Active standby consumption | <4.3 Watts. |
| Trademark | Google is a trademark of Google LLC. |
| Audio Specifications | |
| Frequency response | 60Hz-20kHz (-6dB) |
| Signal-to-noise ratio | >80dBA |
| Dimensions | |
| Dimensions (W x H x D) | 332 x 152 x 100mm |
| Control and Connection Specifications | |
| Bluetooth version | 4.2 |
| Bluetooth transmitter frequency range | 2402 – 2480MHz |
| Bluetooth transmitter power | ≤10dBm (EIRP) |
| Bluetooth transmitter modulation | GFSK, π/4 DQPSK, 8DPSK |
| Wireless network | 802.11b/g/n/ac (2.4GHz/5GHz) |
| Powering Input | |
| Power Supply | 100-240V~50/60Hz |
