Description
Help ensure that your home is fully covered by high-speed wireless network access with the Orbi AX4200 Wireless Tri-Band Mesh Wi-Fi System from Netgear. This Wi-Fi 6 (802.11ax) mesh system includes a router and one satellite that are each designed with six high-powered antennas to provide up to 1800 Mb/s of bandwidth to connected devices through the 2.4 GHz and 5 GHz frequencies, covering up to 5000 square feet. A dedicated 5 GHz connection allows the Orbi router and satellite to transfer data to each other at up to 2400 Mb/s. In total, that's about 4x the speed of 802.11ac, delivering smooth 4K video streaming and online gaming experiences. The router has three Gigabit Ethernet ports, while the satellite has two, allowing you to connect wired devices such as smart TVs, game consoles, computers, and more. Use the Orbi app to quickly configure and manage the devices, including setting up a guest network login. You can also use Alexa and Google Assistant to issue voice commands.
Features

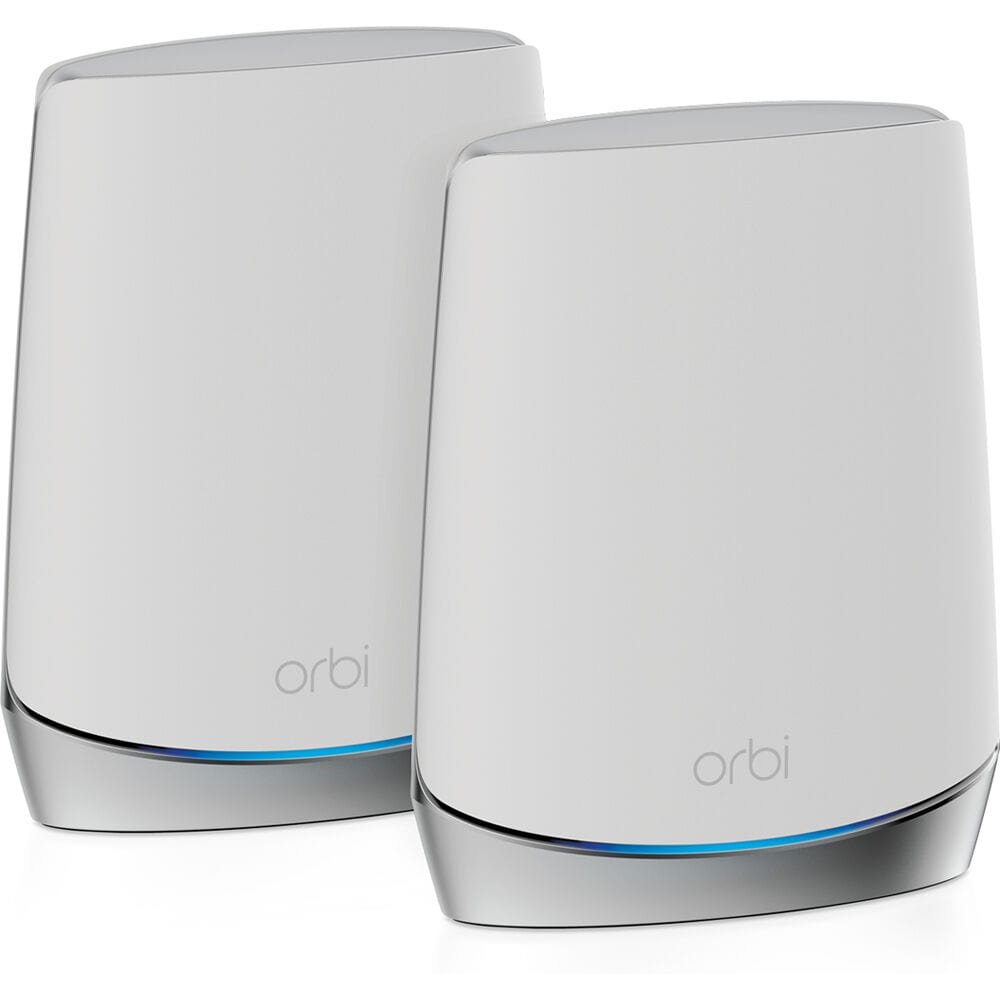

- Includes Orbi Router and One Satellite
- Wi-Fi 6 (802.11ax)
- 2.4 GHz / 5 GHz / 5 GHz (Tri-Band)
- Up to 4200 Mb/s Throughput
Fast Wi-Fi
The Orbi system is designed to deliver 600 Mb/s over the 2.4 GHz frequency and 1200 Mb/s over the 5 GHz band to connected devices. The router and satellite use a dedicated 5 GHz Wi-Fi link to transfer data with each other at up to 2400 Mb/s.
Total Coverage
Designed for large homes, the Orbi AX4200 is designed to provide Wi-Fi coverage for up to 5000 square feet of space.
Wireless Security
The wireless signal is secured with 128-bit AES encryption, and Netgear Armor provides comprehensive antivirus and data theft protection for Windows, Mac, and mobile devices. You can also set up guest logins for additional security.

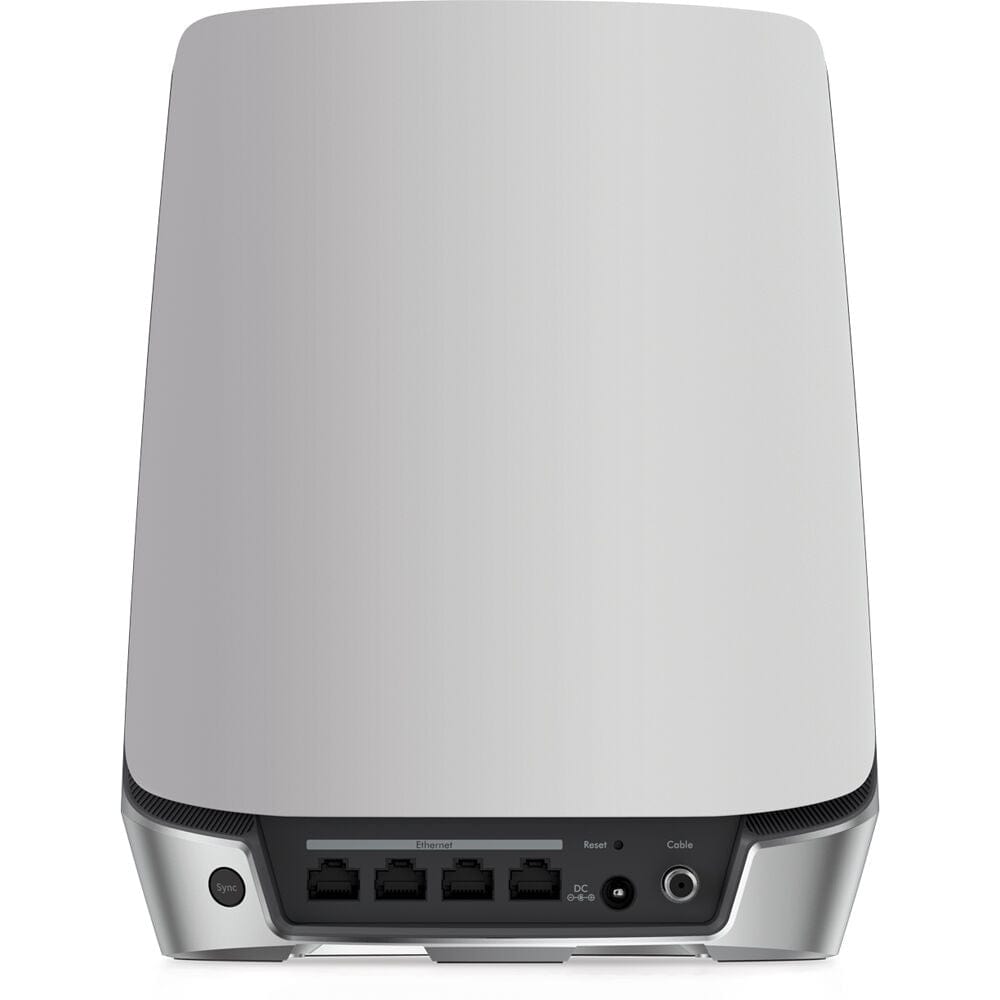

Wired Connections
The Orbi router has three Gigabit Ethernet LAN ports and the satellite has two Gigabit Ethernet ports to connect wired devices such as smart TVs, game consoles, and computers.
Easy Setup
Use the Orbi app to quickly set up and manage your Orbi devices.
Voice Control
Issue commands to the Orbi system using Alexa or Google Assistant.
Specifications
| Number of Units | 2 |
|
Connectivity
|
|
| Wi-Fi | Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) |
| Inputs/Outputs | Router: |
| 3 x RJ45 Gigabit Ethernet (LAN) | |
| 1 x RJ45 Gigabit Ethernet (WAN) | |
| Satellite: | |
| 2 x RJ45 Gigabit Ethernet (LAN) | |
| Number of Antennas | 6 x Internal (Amplified) |
| MU-MIMO Support | Yes |
| Beamforming Support | Yes |
| Wireless Security | AES |
| Bluetooth | None |
| Communication Protocol | None |
| Virtual Assistant | Works with Alexa, Works with Google Assistant |
|
General
|
|
| Throughput | 4200 Mb/s Total |
| 2.4 GHz: 600 Mb/s | |
| 5 GHz: 1200 Mb/s | |
| 5 GHz: 2400 Mb/s | |
| Guest Network Support | Yes |
| Mobile Operating System Support | Yes |
| Operation Modes | Mesh |
| Supported IEEE Standards | 802.11ac, 802.11ax, 802.11a, 802.11b, 802.11g, 802.11n |
|
Hardware
|
|
| CPU | to 1.4 GHz Quad-Core |
| Memory | Router: 1 GB |
| Flash Memory | Router: 512 GB NAND |
| Speakers | None |
| Built-In Microphones | None |
| Display | None |
|
Physical
|
|
| Environmental Protection | None |
| Dimensions | 9.1 x 7.2 x 2.8" / 231.1 x 182.9 x 71.1 mm |
| Weight | 1.9 lb / 0.9 kg |
|
Packaging Info
|
|
| Package Weight | 5.3 lb |
| Box Dimensions (LxWxH) | 9.5 x 9 x 7.3" |
| Box Dimensions (LxWxH) | 10.3 x 9.7 x 8.5" |
