Description

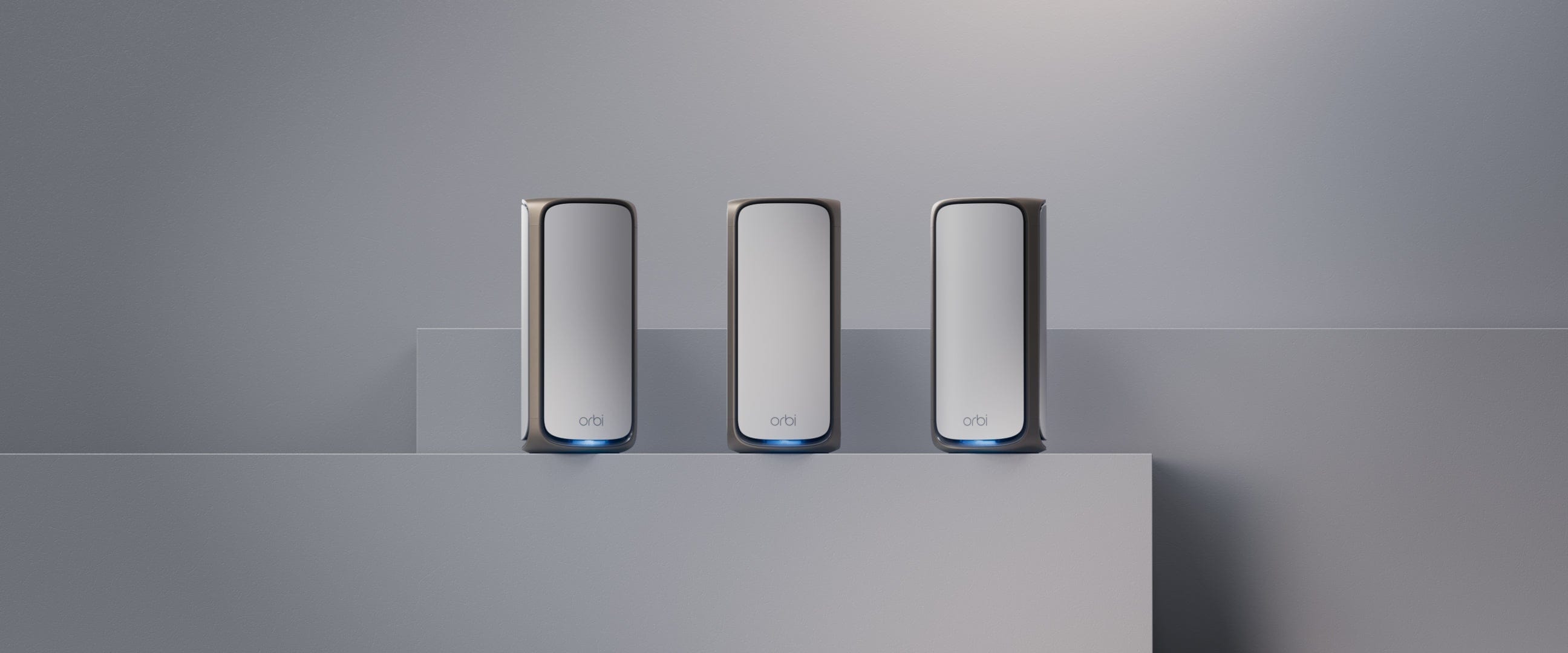

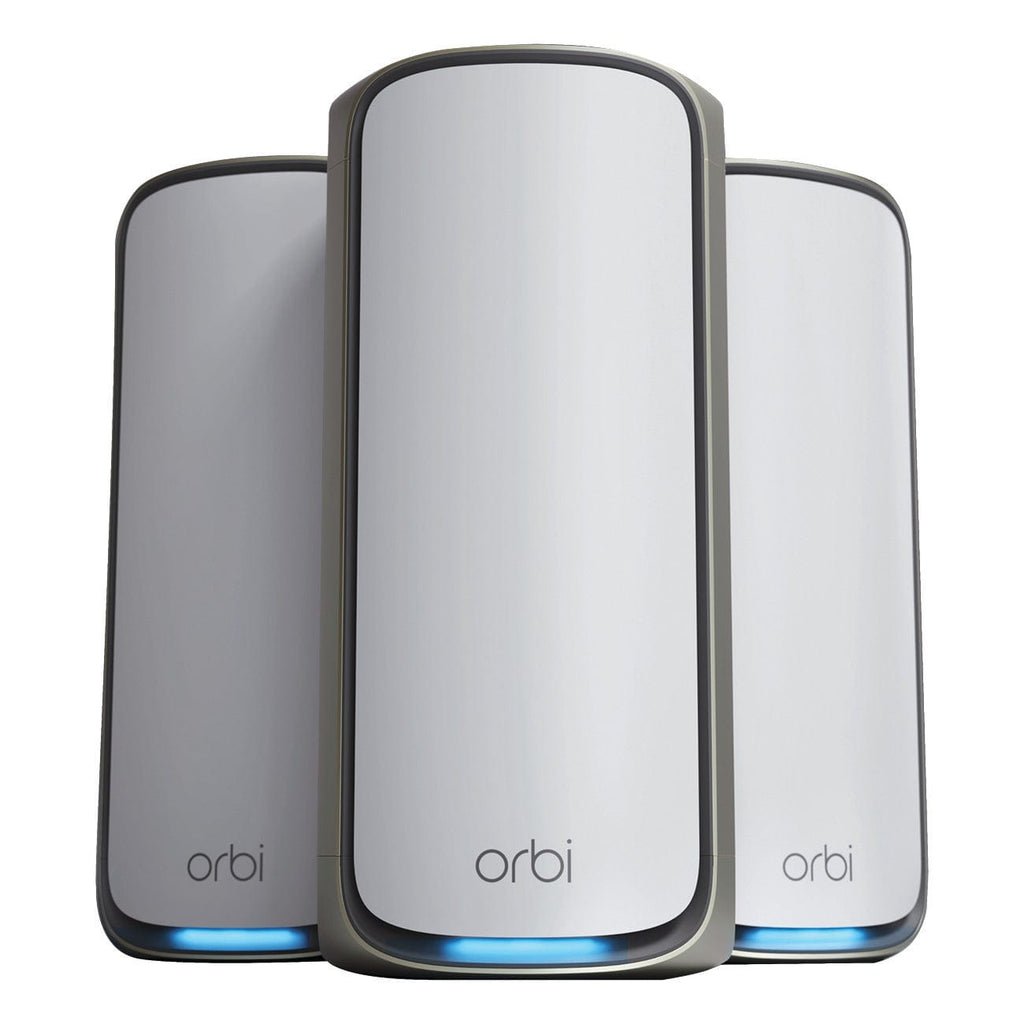

Orbi WiFi 7 is in a class of its own, designed for a new era of entertainment, hybrid work, and smart home convenience. The Orbi 970 Series unlocks the power of WiFi 7 with speeds up to 27Gbps, 2.4X faster than WiFi 6. In addition, the Orbi 970 brings exceptional 360° WiFi coverage across every corner of your home, regardless of the layout, from the front door to the back yard. It includes a 1-year subscription of Armor, all-in-one security protection.
Features
- 2.4X Faster than WiFi 6—Unlock incredible speeds up to 27Gbps on the only mesh system designed to ensure WiFi stays fast on your devices simultaneously.

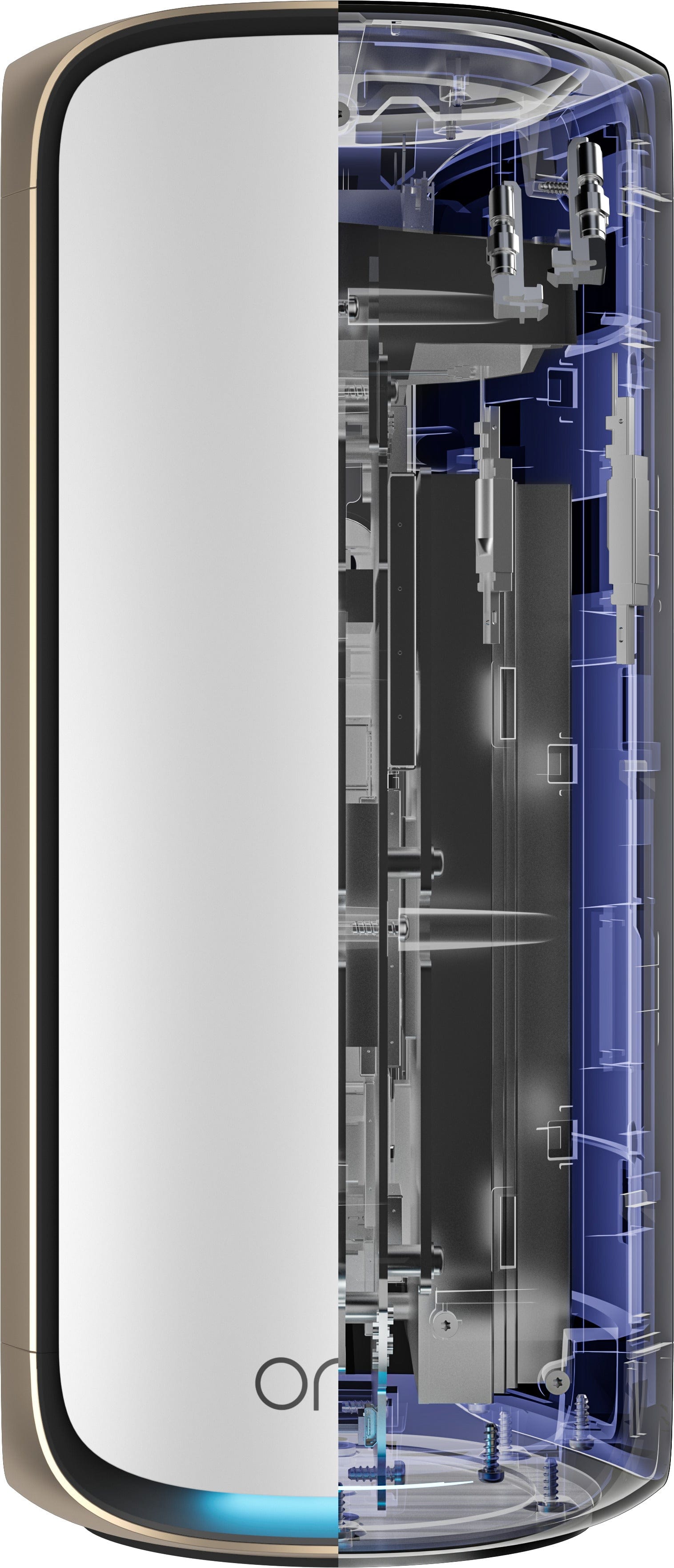

- Exceptional Whole-home Mesh WiFi—Elegant new design and high-performance antennas provide 360° WiFi coverage throughout your home, no matter the layout, from the front door to the backyard.
- Unleash Incredible Speed—Whether Multi-Gig cable or fiber, get the fastest speeds available today and tomorrow with a 10 Gig internet port.
- Designed for a Flawless Experience—From 4K/8K streaming to video conferencing, gaming, AR/VR and more, Orbi ensures your family can accomplish it all at once.
- Enhanced Dedicated Backhaul—Multi-link operation ensures maximum speeds across your devices.
- Resilient WiFi—Preamble puncturing blocks interference for stronger WiFi connections.

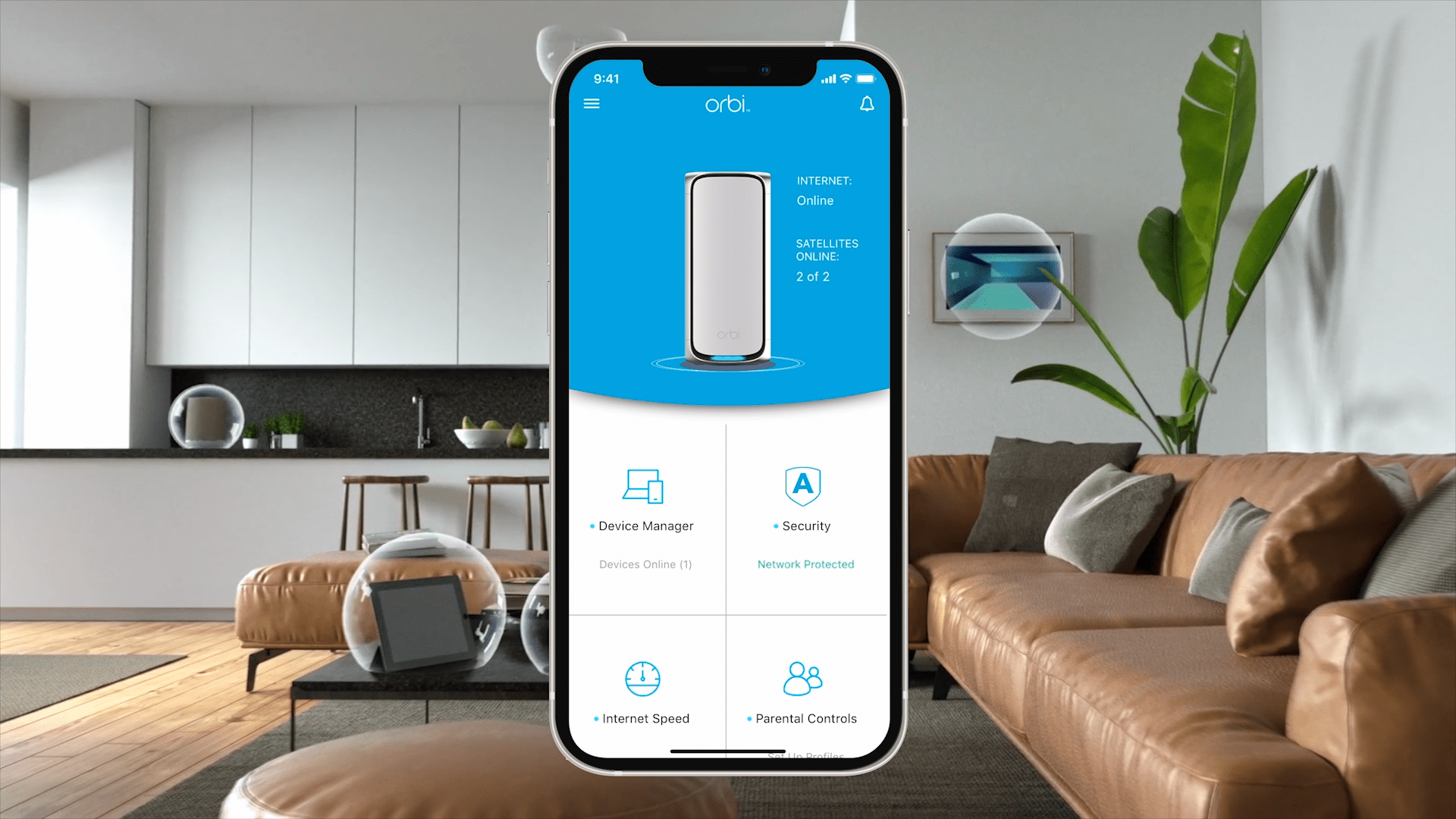

- Easy Setup and Management—Orbi works with any internet service provider. The Orbi app makes it a breeze to set up and manage your WiFi.
Technical Specifications
- Combined WiFi speeds of up to 27Gbps on Orbi Router and Satellites
- Quad-band with 16 streams of WiFi
- 6GHz (4x4/320MHz, 4K-QAM): 11,530Mbps
- 5GHz-1 (4x4/240MHz, 4K-QAM): 8,647Mbps, Dedicated Backhaul
- 5GHz-2 (4x4/160MHz, 4K-QAM): 5,765Mbps
- 2.4GHz (4x4/40MHz, 1K-QAM): 1,147Mbps

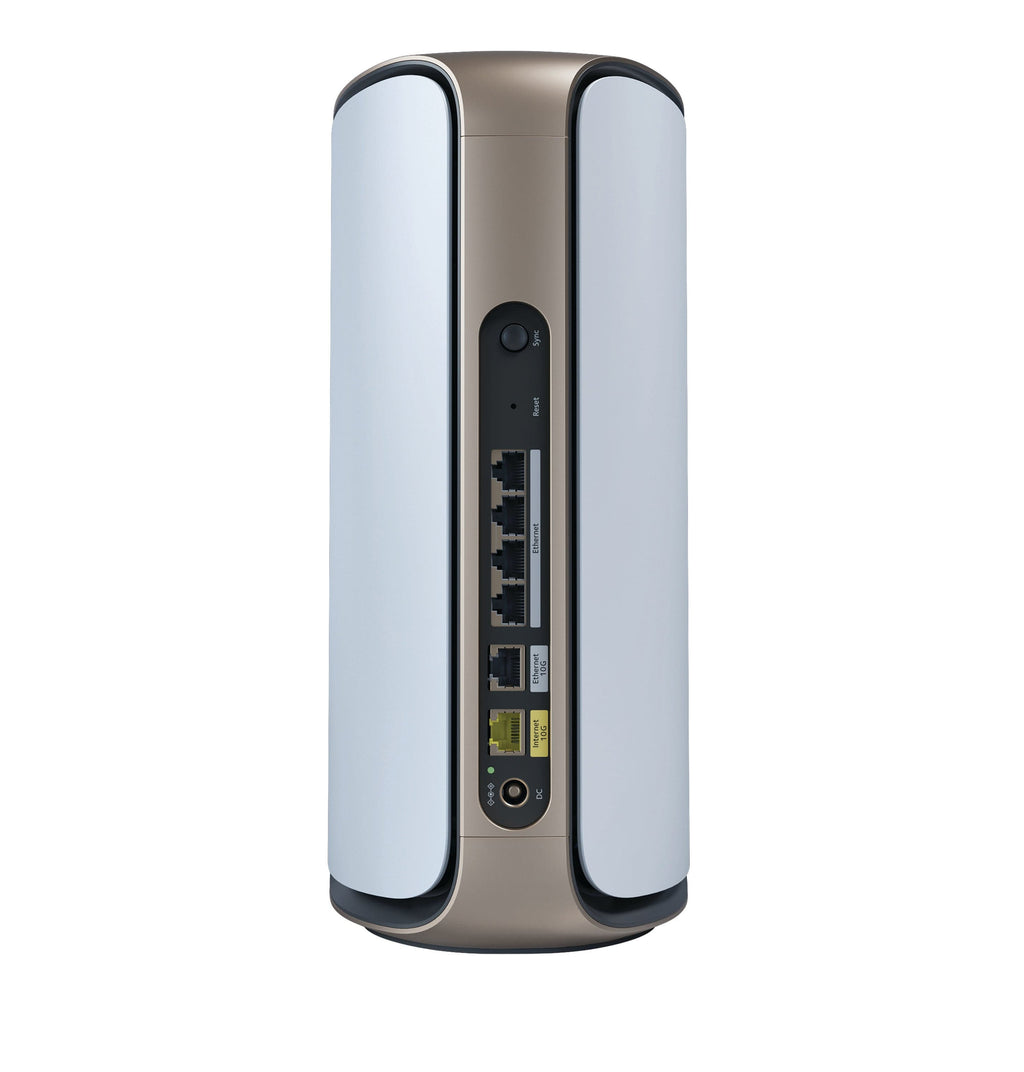

- Multi-Gig Ethernet ports - Orbi Router
- One (1) 10 Gig internet WAN port
- One (1) 10Gbps Ethernet LAN port
- Four (4) 10/100/1000/2500Mbps Gigabit Ethernet LAN ports

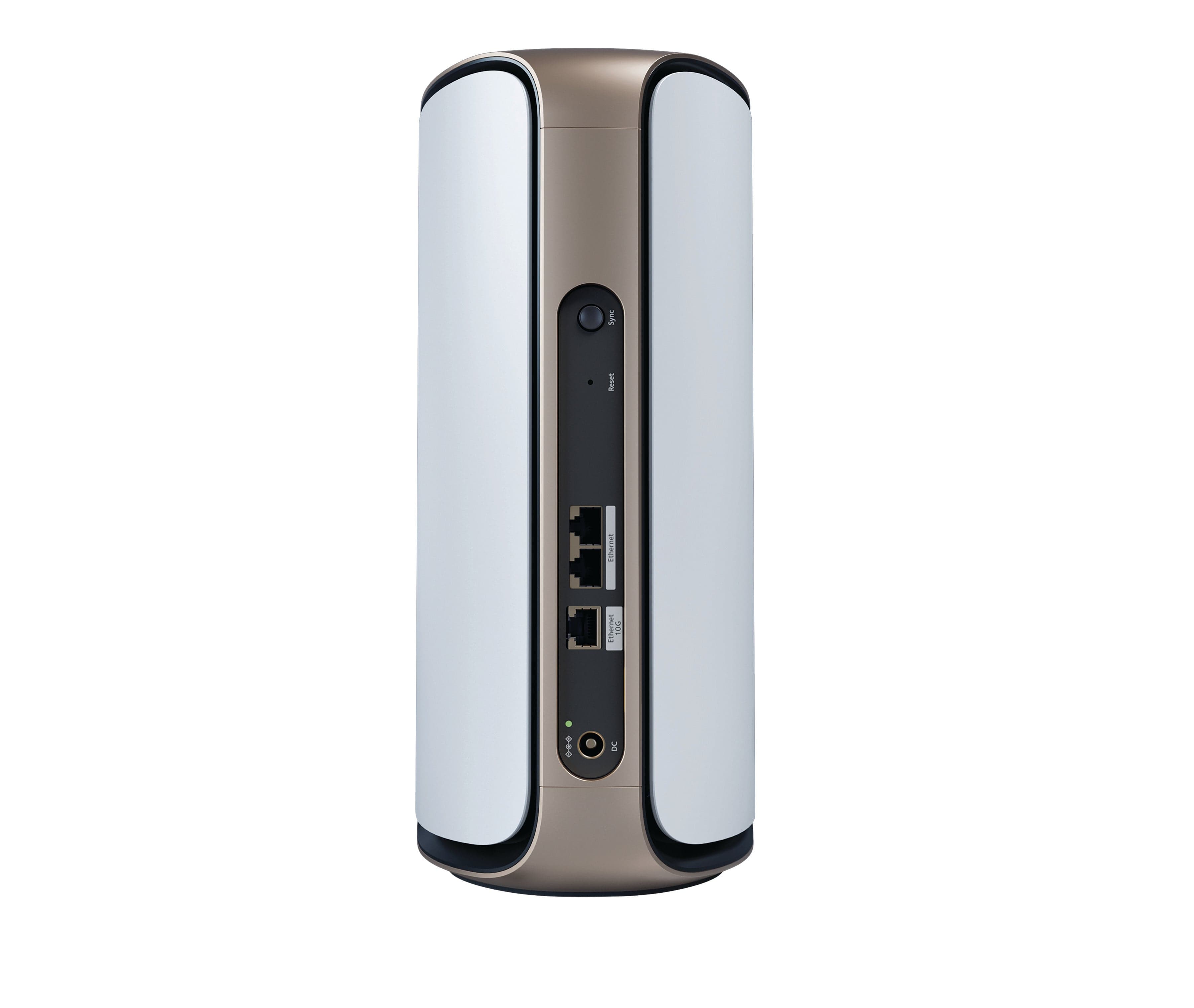

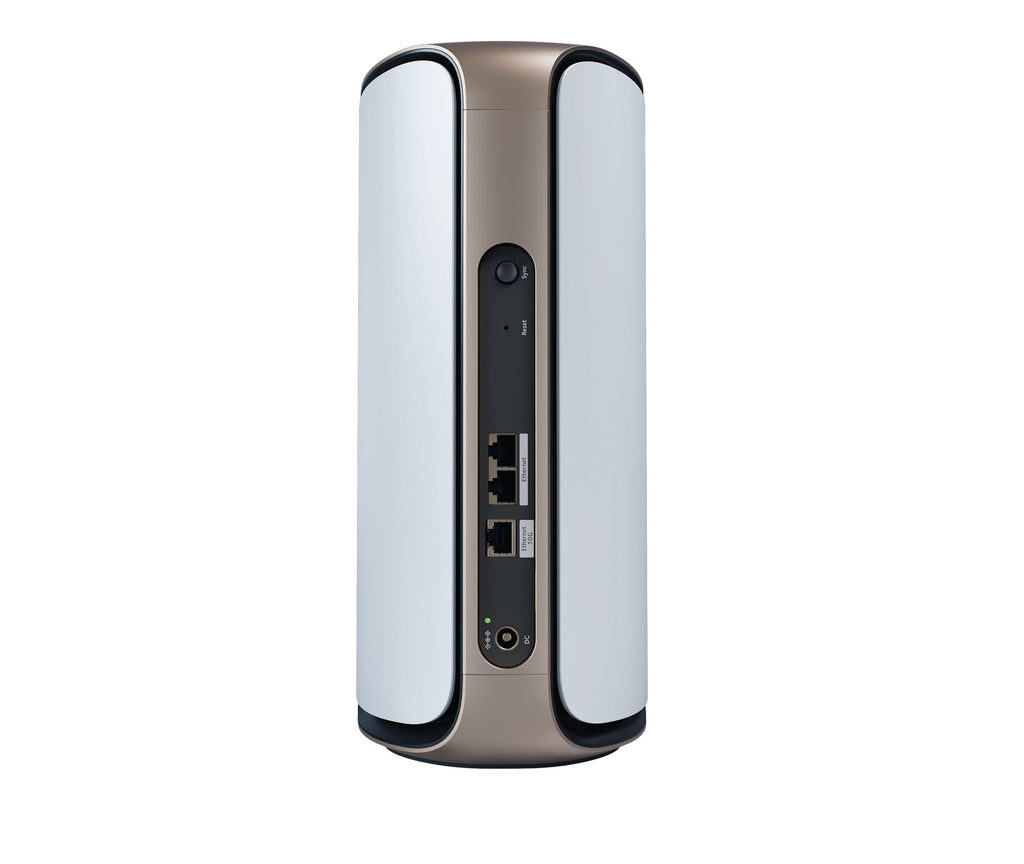

- Multi-Gig Ethernet ports - Orbi Satellites-
- One (1) 10Gbps Ethernet LAN port (each)
- Two (2) 10/100/1000/2500Mbps Gigabit Ethernet LAN ports (each)
- Multi-link Operation: Combines two WiFi bands
- Backhaul: Dedicated 5GHz-1 & 6GHz
- Fronthaul: 5GHz-2 & 6GHz
- Processor - Router
- Powerful quad-core 2.2GHz processor
- Memory - Router
- 4GB flash and 2GB RAM
Specifications
| Height | 11.58 inches (294.03mm) |
| Width | 5.68 inches (144.38mm) |
| Depth | 5.15 inches (130.79mm) |
| Weight | 3.96 lbs (1.79kg) |
| Overall WiFi Coverage | Up to 10,000 sq. ft. |
| Speed | Up to 27 Gbps |
| Technology | WiFi 7 Quad-Band |
| Devices | Up to 200 |
| Requirements | High-speed internet connection to existing modem or gateway |
| ROUTER | |
| WiFi Coverage | Up to 3,300 sq. ft. |
| Speed | BE27000 (11,530 + 8,647 + 5,765 + 1,147Mbps) |
| Simultaneous Quad-Band WiFi with dedicated backhaul |
|
| Processor | Quad-core 2.2GHz processor |
| Memory | 4GB Flash and 2GB RAM |
| Antenna | Twelve (12) high-performance internal antennas with high-power amplifiers |
| Ports |
|
| SATELLITE | |
| WiFi Coverage | Up to 3,300 sq. ft. |
| Speed | BE27000 (11,530 + 8,647 + 5,765 + 1,147Mbps) |
| Simultaneous Quad-Band WiFi with dedicated backhaul |
|
| Antenna | Twelve (12) high-performance internal antennas with high-power amplifiers |
| Ports (each) |
|
