Description

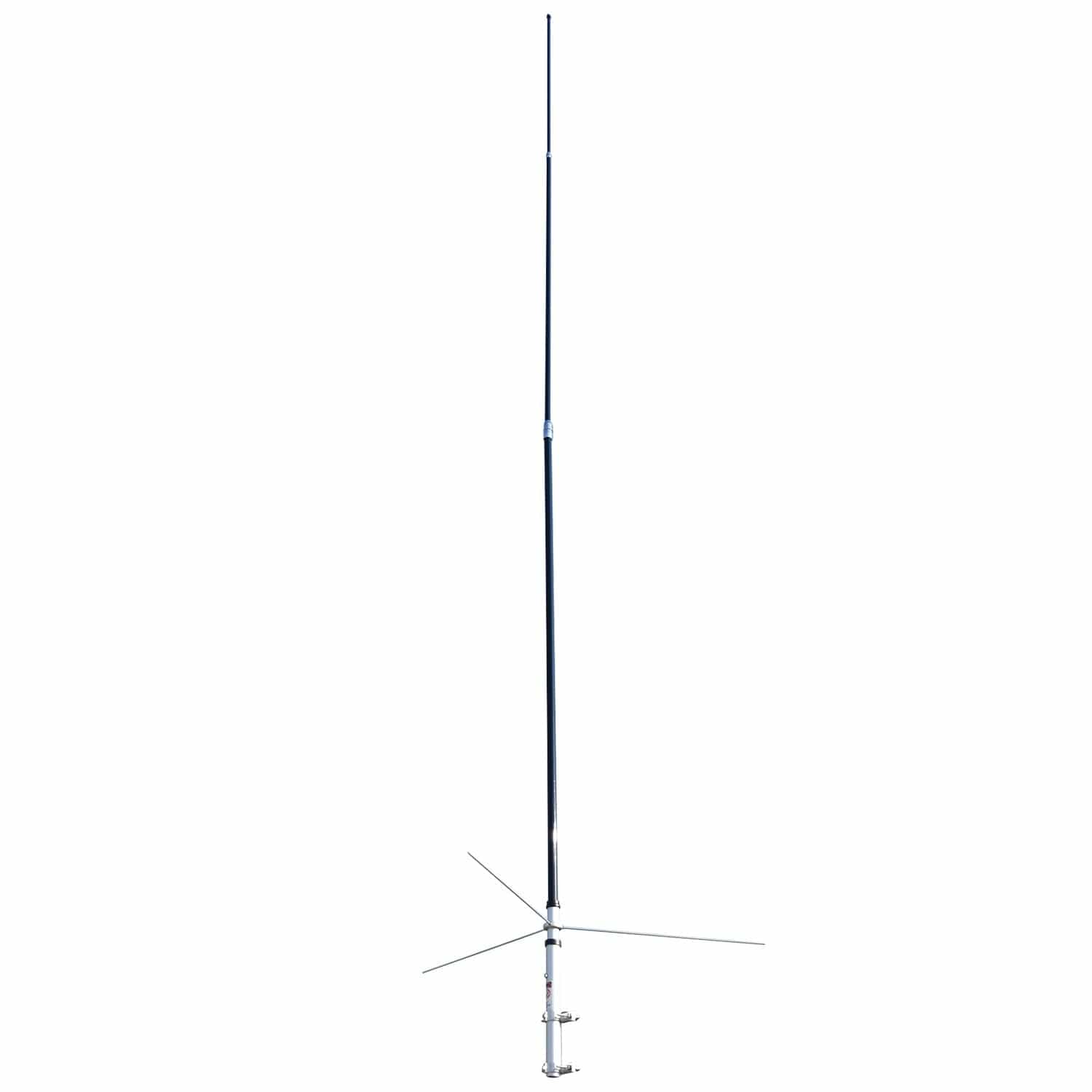

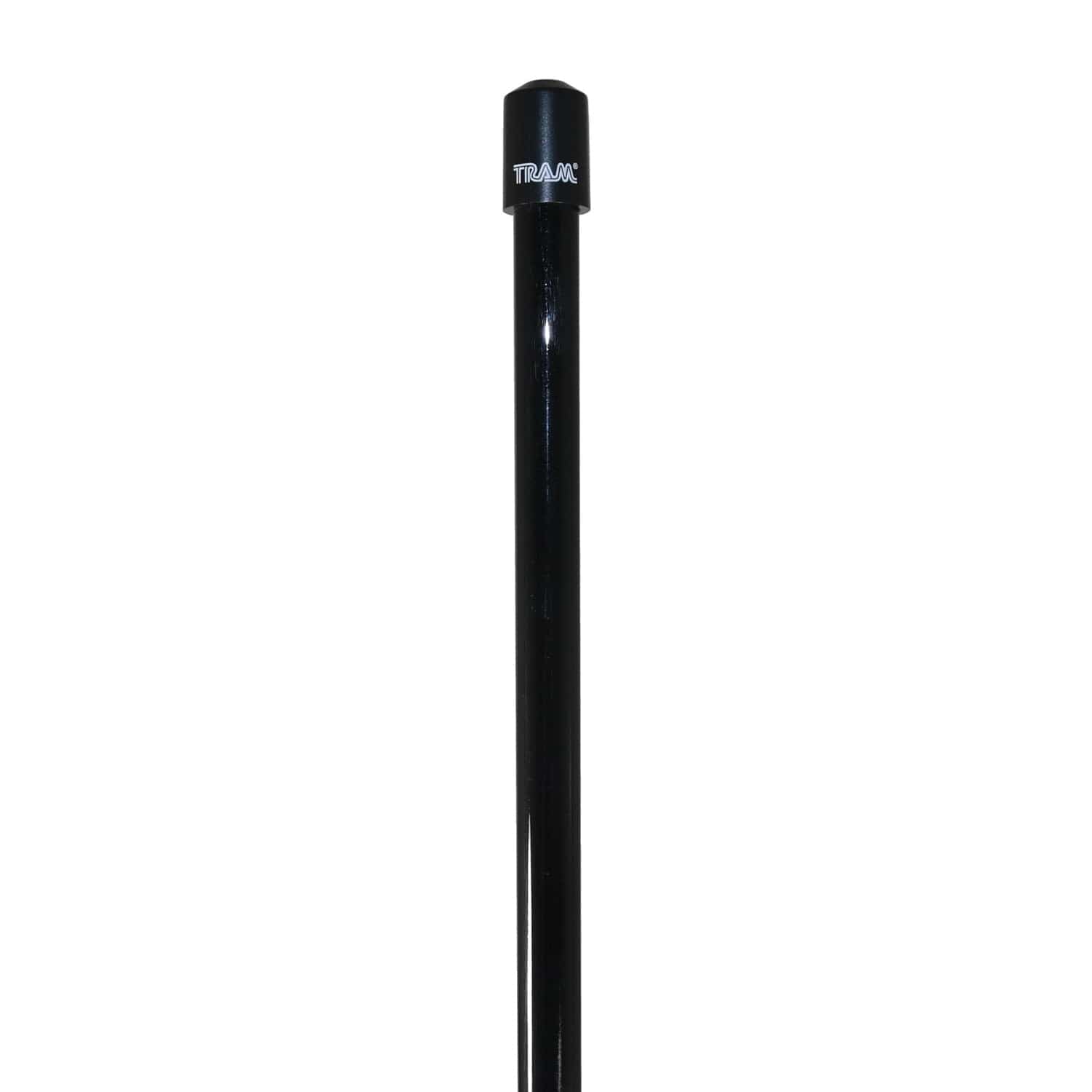

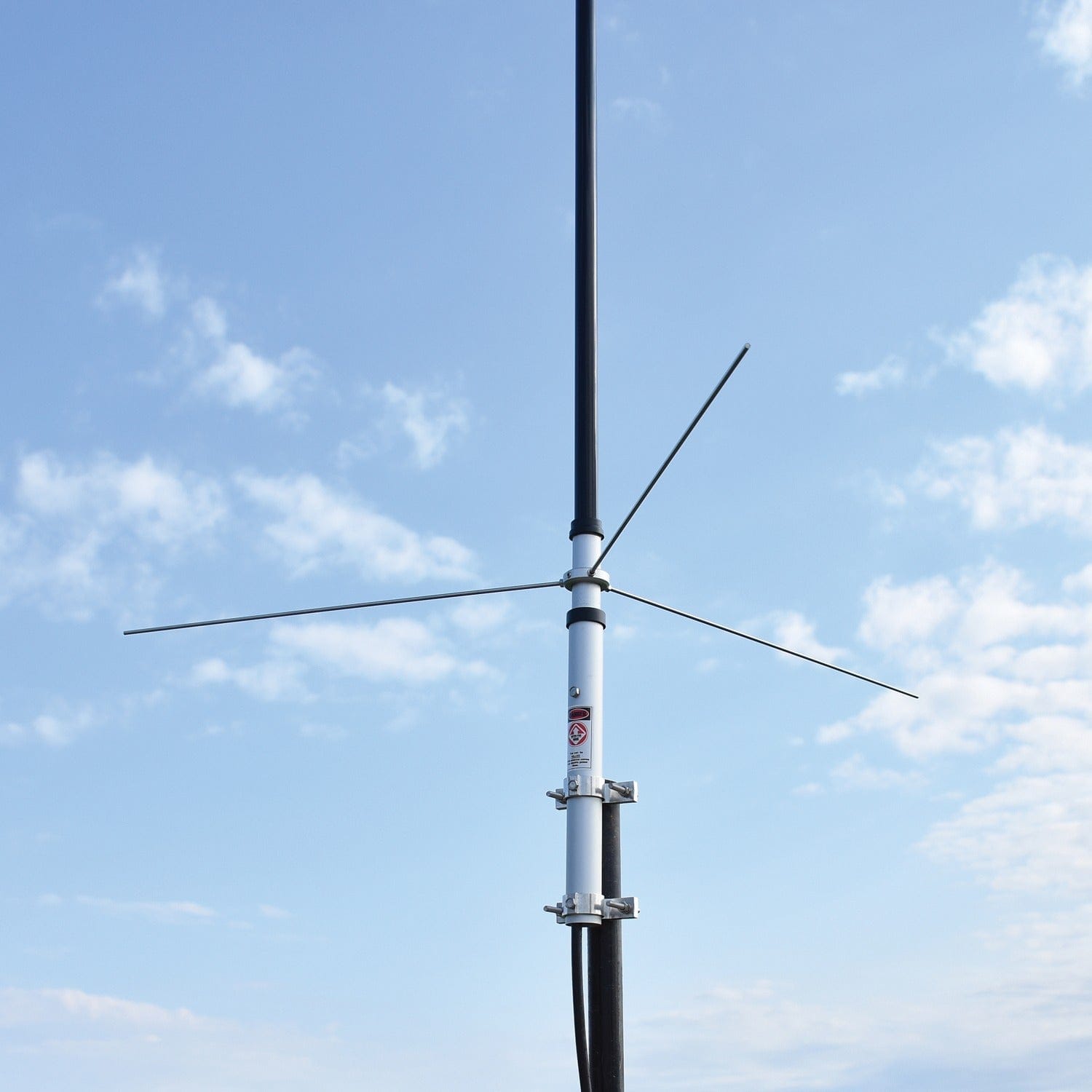

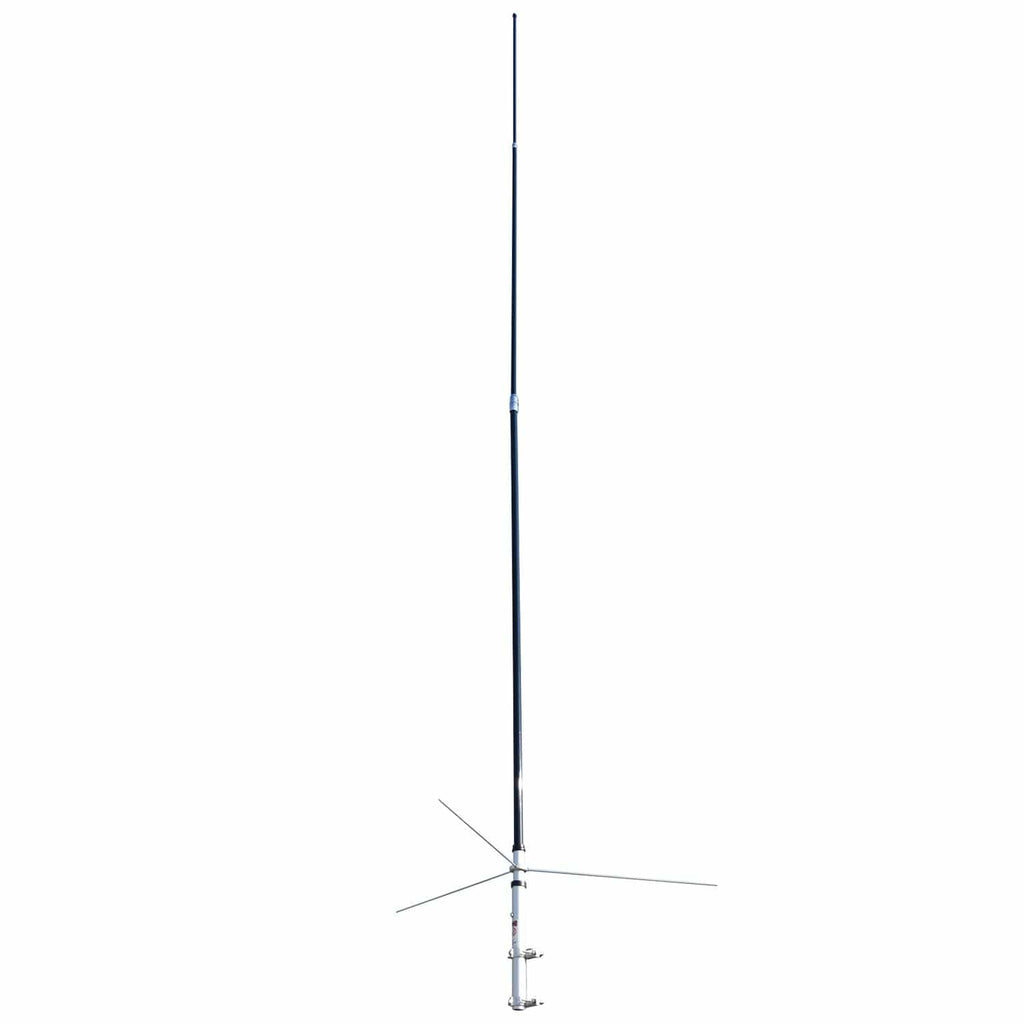

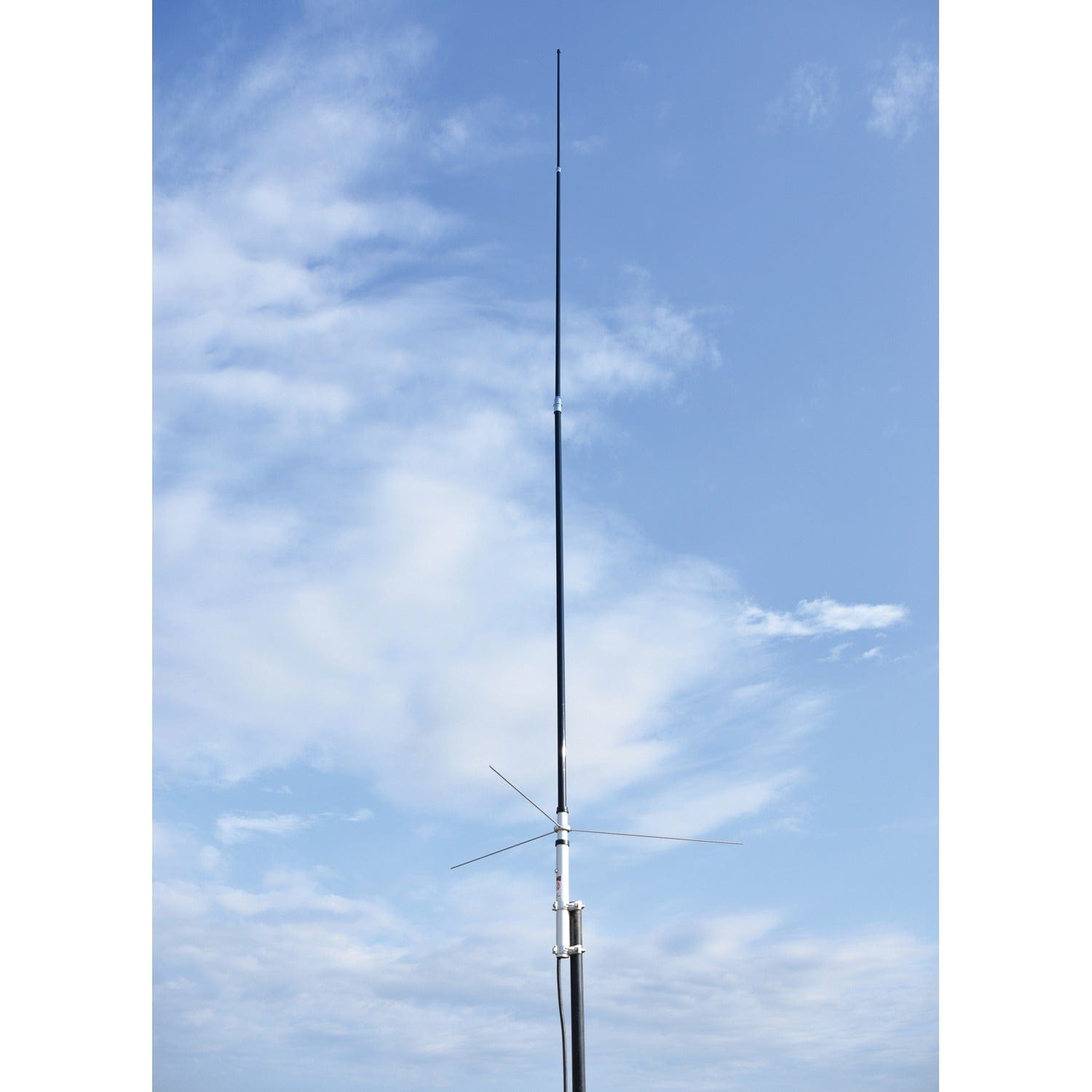

Choose Tram for your next antenna installation project with this Black 200-Watt Dual-Band 3-Section Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector. This 17-ft. antenna has 2 frequency ranges: 144 MHz to 148 MHz and 430 MHz to 450 MHz and can withstand winds up to 90 MPH. Stay connected with Tram.
Features
- 200 watts power rating
- 17 ft. tall
- Heavy-duty, 3-section fiberglass construction; max wind speed of 90 MPH
- Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
- 144 MHz to 148 MHz; 4 MHz bandwidth; 8.3 dBd gain
- 430 MHz to 450 MHz; 20 MHz bandwidth; 11.7 dBd gain
- 5/8 wave 3 elements c-load, 5/8 wave 8 elements c-load; 20-1/2 in. radial length
- Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
- DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
- Vertical polarization with 50 ohms impedance
- UHF (SO-239) connector
- Mast diameter accepted: 1-3/16 in. to 2-7/16 in.
- Includes mounting bracket with 3 stainless steel radials
- Black
⚠️
