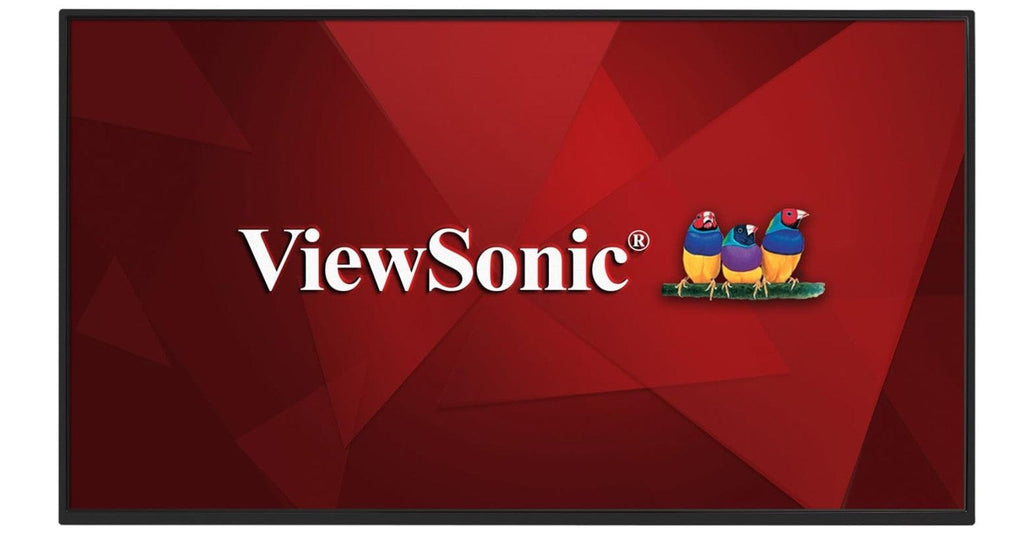

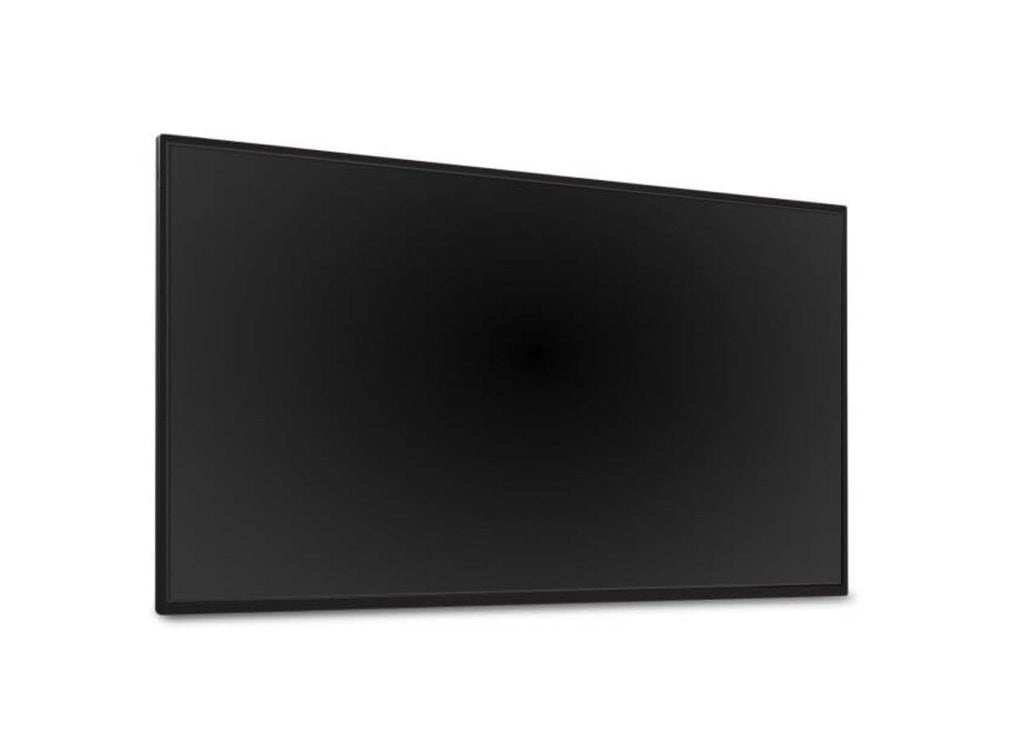

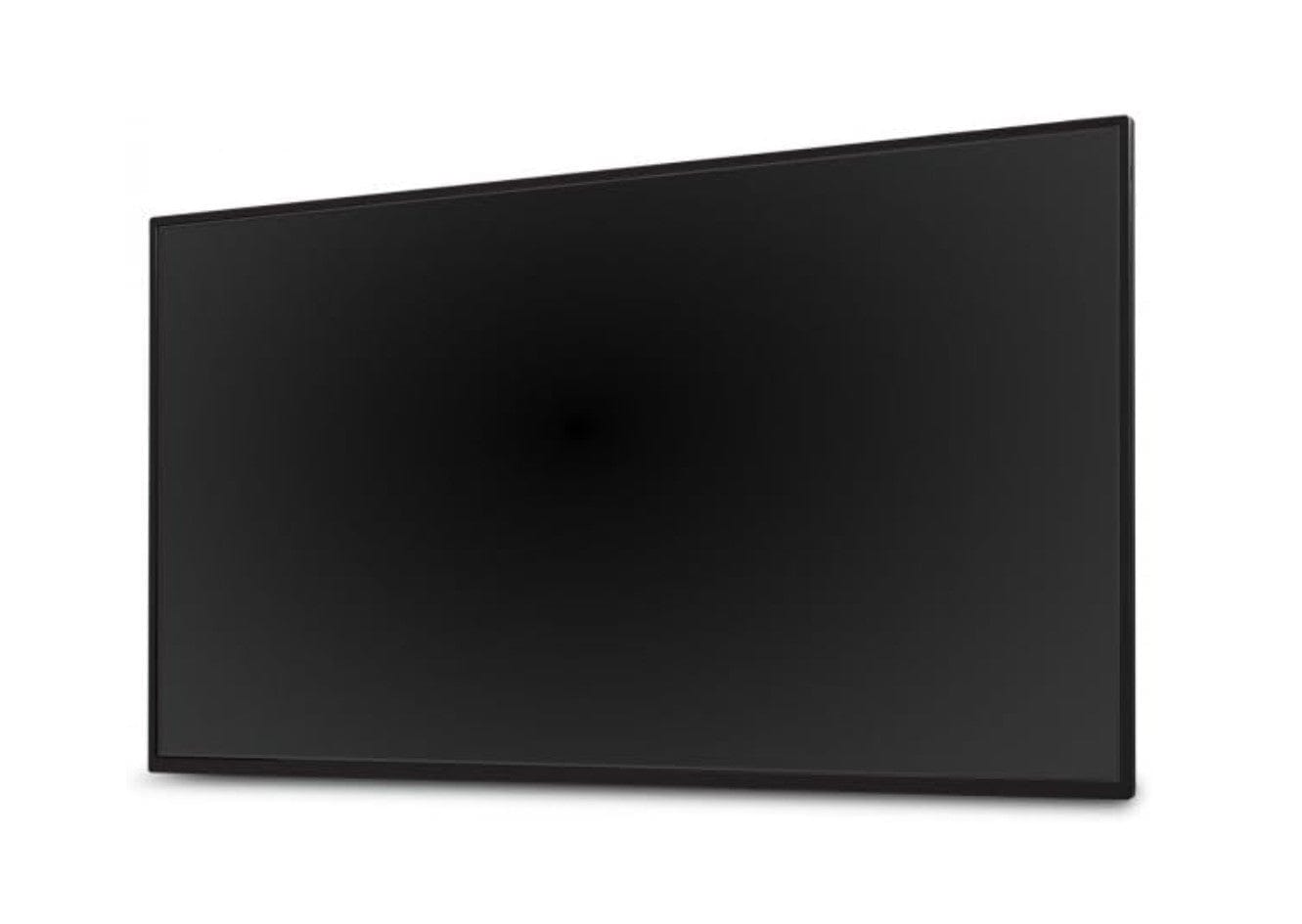

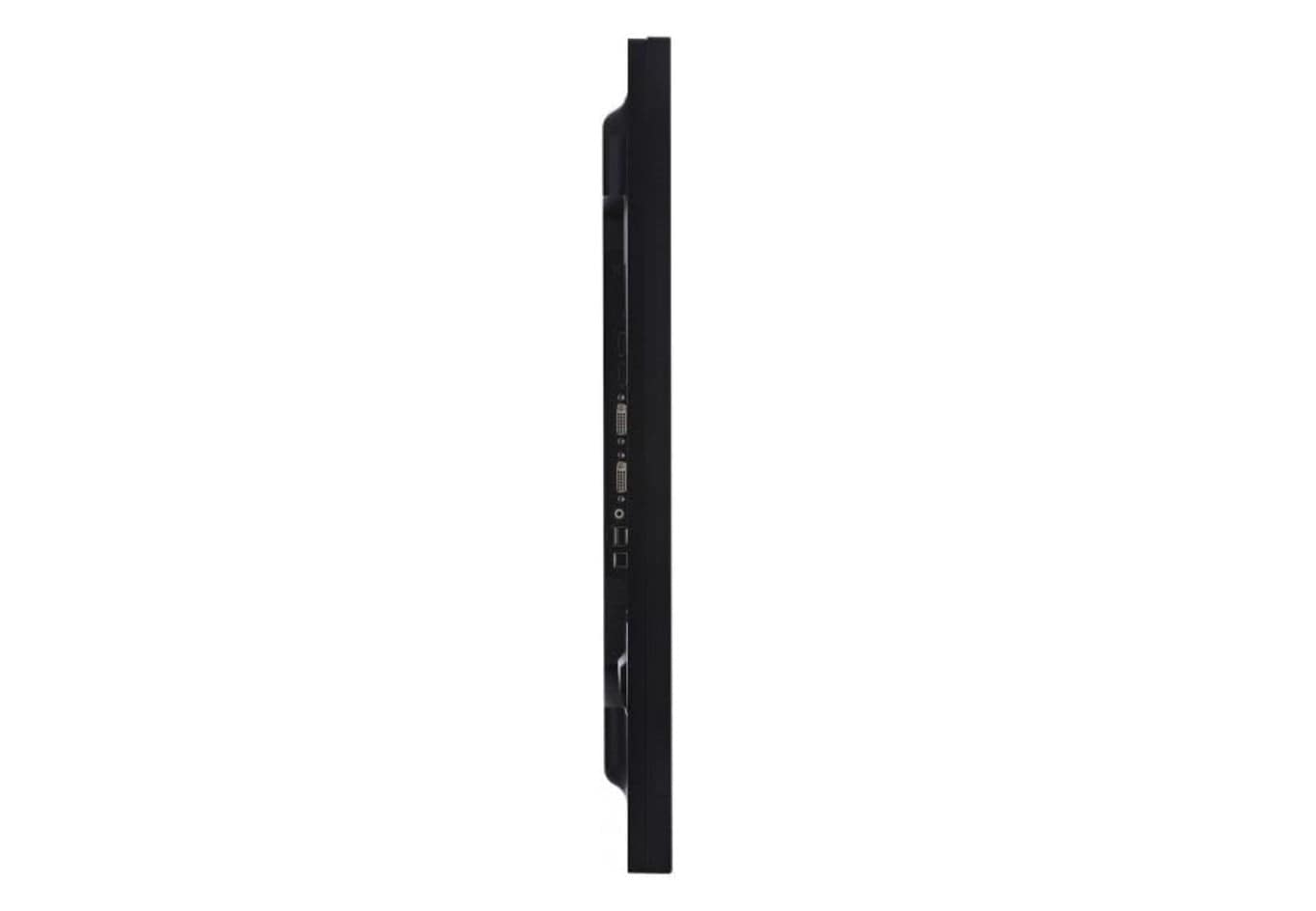

ViewSonic CDM5500R-S 55" LED Commercial Display Media Player - Certified Refurbished
Description
Physical deployment, content creation, and message delivery couldn’t be easier than with the ViewSonic®CDM5500R. Featuring an internal media player this commercial display gives you everything you need for easy digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500R also features built-in LAN / WiFi for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall application, and commercial construction for reliable messaging 24 hours a day, 7 days a week.Features
- 55" LED Commercial Display Media Player
- Built-in Quad Core Media Player with 16GB Storage
- 1920 x 1080 Resolution
- Embedded LAN and Wi-Fi
- Internet Browser
- Internal Scheduler
Built-in Quad-core Media Player with 16GB Storage
A powerful quad-core media player enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.
Embedded LAN, Wi-Fi, and Browser
An integrated RJ45 connection, as well as Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated browser provides simple content delivery via connection to the web.
Internet Browser
An integrated internet browser provides simple content delivery via connection to the web.
Internal Scheduler
An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.
Dual Integrated Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
Specifications
| Display: | |
| Display Size (in.): | 55 |
| Viewable Area (in.): | 54.6 |
| Orientation: | Landscape / Portrait |
| Light Source: | ELED |
| Resolution: | 1920 x 1080 |
| Aspect Ratio: | 1 |
| Static Contrast Ratio: | 1,100:1 |
| Backlight Life (Hours): | 0:00 |
| Brightness: | 450 cd/m2 |
| Response Time (Typical GTG): | 12ms |
| Bezel Width (in.): | Top 0.38 in / Left 0.38 in / Bottom 0.62 in / Right 0.38 in |
| Bezel Width (mm): | Top 9.6 mm / Left 9.6 mm / Bottom 15.7 mm / Right 9.6 mm |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Panel Surface: | 3H Anti-glare, hard-coating |
| Operation Rating: | 24/7 |
| Embedded Player: | |
| CPU: | Quad core A9 CPU - RK3188 |
| Interface: | OSD / Remote Control |
| Audio: | |
| Internal Speakers: | 10W (x2) |

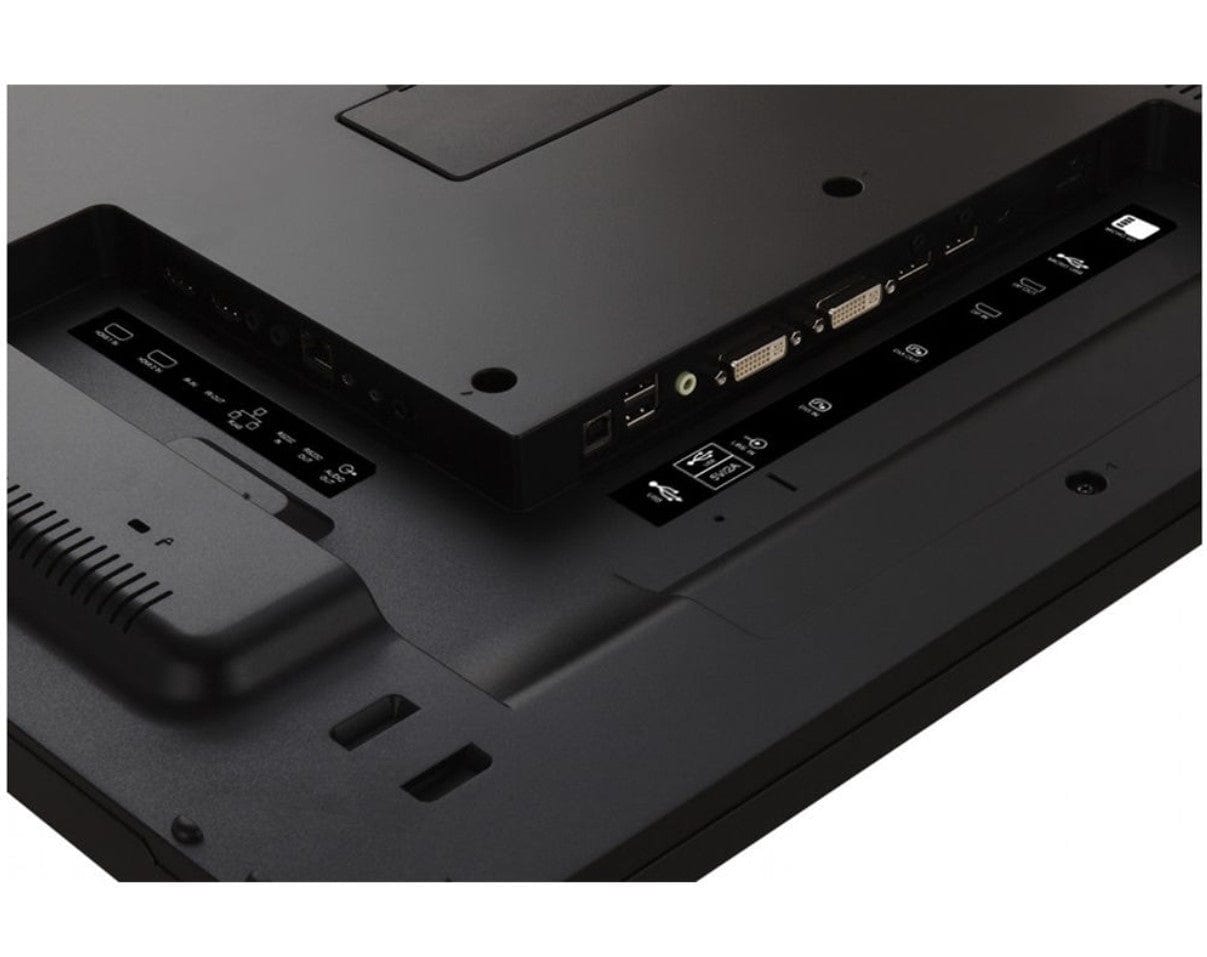

| Connector: | HDMI 1.4(2), DVI-I(1), DVI-I Out(1), Display Port(1), Display Port Out(1), RCA Audio In(1), RCA Audio Out(1), Speaker Out(2), USB 2.0(2), RS232 Out(1), Ethernet LAN (RJ45)(1), SD Card Reader(1) |
| Power: | |
| Voltage: | 100-240 VAC |
| Consumption (max): | 130W |
| Consumption (typical): | 75W |
| Stand-by: | <.5W |
| Controls: | |
| On Screen Display: | POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU |
| Remote Control: | Brightness, Contrast, Sharpness, Black Level, Tint, Color, Noise Reduction, Gamma Selection, Color Temperature, Color Control, Picture Mode, Overscan, Flicker Free, Blue Filter, Picture Reset, Brightness, Contrast, Sharpness, Black Level, Tint, Color, Noise Reduction, Gamma Selection, Color Temperature, Color Control, Picture Mode, Overscan, Flicker Free, Blue Filter, Picture Reset, Balance, Treble, Bass, Volume, Maximum Volume, Minimum Volume, Mute, Audio Source, Audio Out, Sync. Volume, Audio Reset, Sub Mode, PIP Size, PIP Position, PIP Change, PIP Source, PIP Audio, PIP Reset, Switch on State, Panel Saving, RS232 Routing, Boot on Source, WOL, DDC/CI, Light Sensor, Human Sensor, Power LED Light, Configuration 1 Reset, Factory Reset, OSD Turn Off, OSD H Position, OSD V Position, OSD Transparency, Information OSD, Logo, Monitor ID, Heat Status, Monitor Information, DP Version, Window Selection, Rotation, Language, QR Code, Configuration 2 Reset, Input Resolution, IR Control, Keyboard Control, Off Timer, Date and Time, Schedule, HDMI with One Wire, Auto Signal Detection, Power Save, Scaler FW Update, Auto FW Update, USB Cloning, Advanced Option Reset |
| Operating Conditions: | |
| Temperature: | 41-104º F (5 - 40º C) |
| Humidity (non-condensing): | 10-90% |
| Weight (metric): | |
| Net (kg): | 22 |
| Net Without Stand (kg): | 18 |
| Gross (kg): | 24.3 |
| Weight (imperial): | |
| Net (lbs): | 48.7 |
| Net Without Stand (lbs): | 39.6 |
| Gross (lbs): | 53.5 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 1448 x 952 x 223 |
| Physical (mm): | 1233 x 710 x 45.5 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 54.0 x 37.4 x 8.7 |
| Physical (in.): | 48.5 x 27.9 x 1.8 |
| Mount: | |

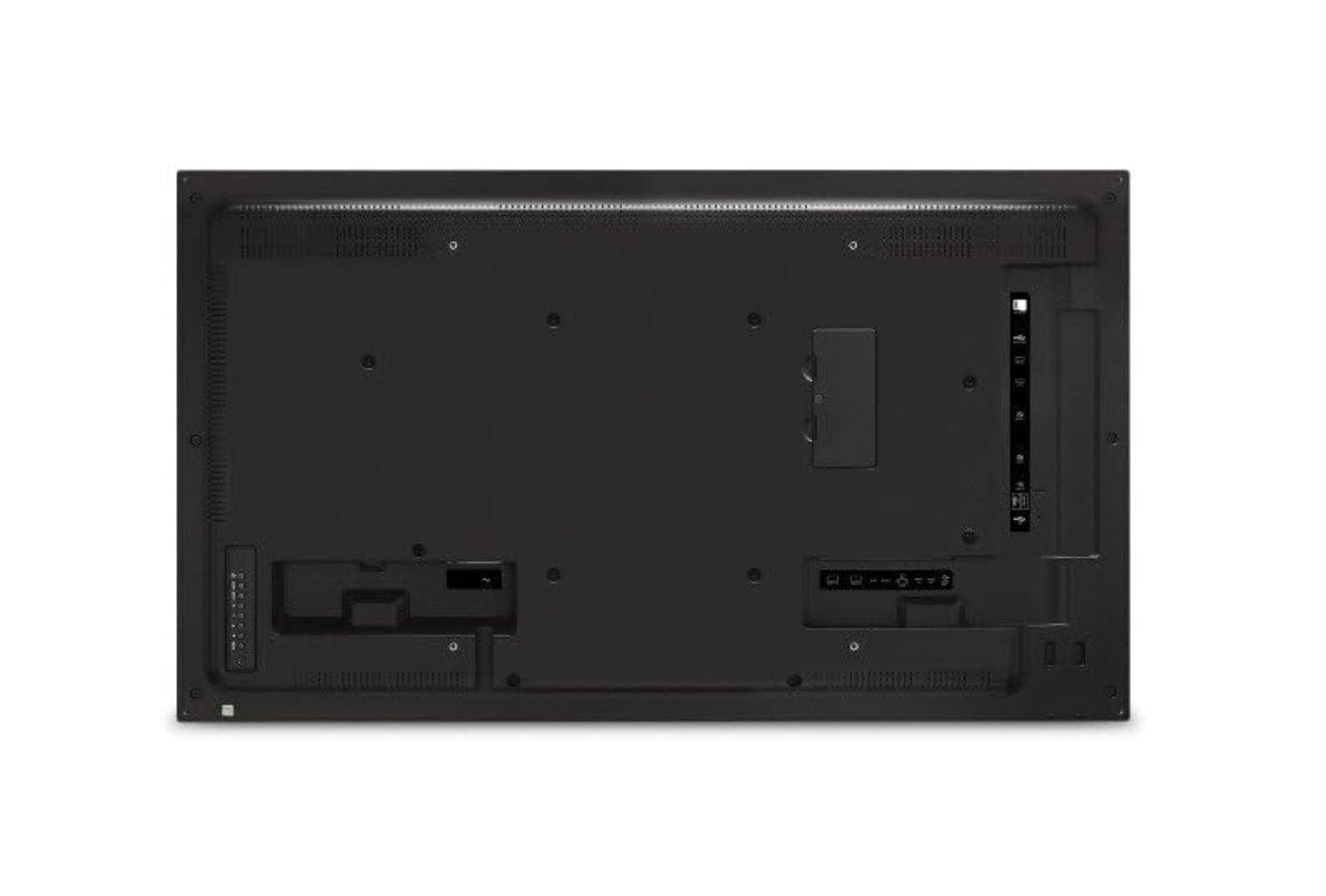

| VESA Compatible: | 400 x 400 mm |
| General: | |
| Warranty: | Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes. |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Package Contents: | CDM5500R, Remote control, User Manual, Quick Start Guide, power cables, RS232 cable, IR sensor cable, RS232 daisy chain cable |
| Regulations: | UL/cUL, FCC, Energy Star 7.0, UL-MX-CoC, Mexico Energy |
| UPC: | 766907844016 |
| Accessories: | , CD-EW-55-01, CD-EW-55-02, LB-STND-005-3, NMP250-WL, NMP250-WU, NMP520-W, NMP620-P10, NMP620-P10X, STND-044, STND-052, SW-071, SW-071-2, SW-072, SW-072-2, SW-073, SW-073-2, SW-074, SW-074-2, SW-075-2, SW-090, SW-091, SW-092, SW-093, SW-094, SW-095, SW-096, VC10, VCB10, WMK-014, WMK-054, sw-014, sw-015 |
ViewSonic 55" LED Commercial Display Media Player - Certified Refurbished
