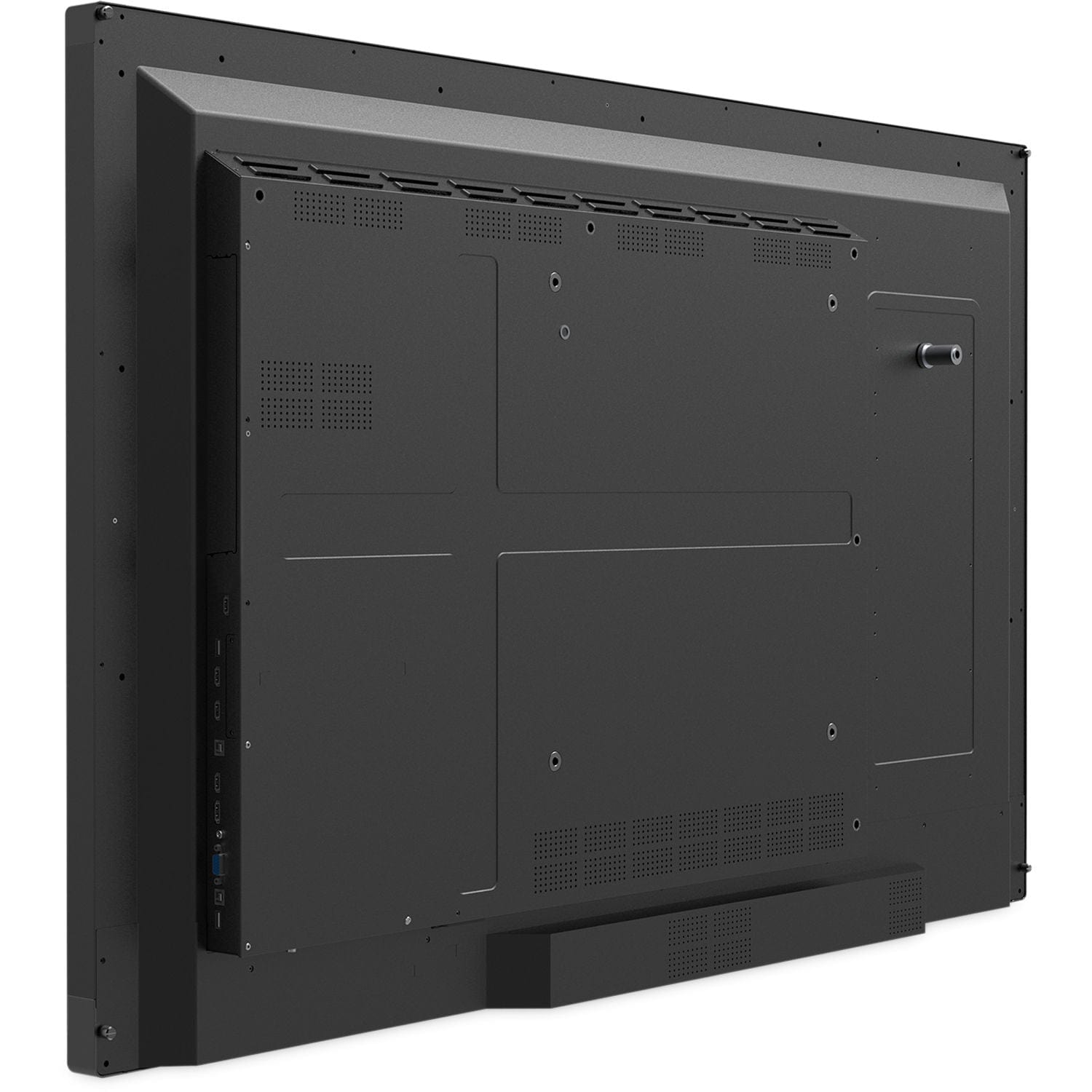

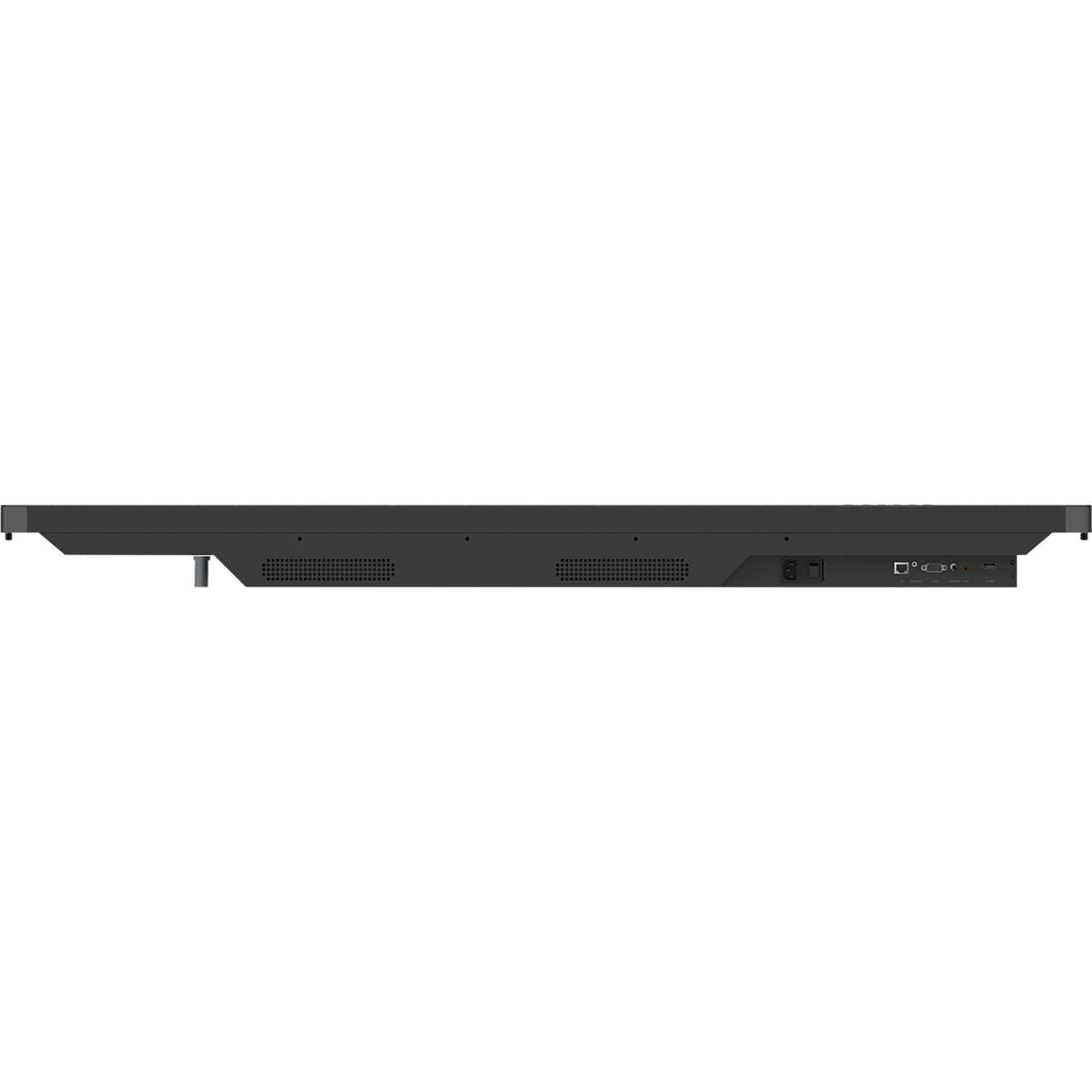

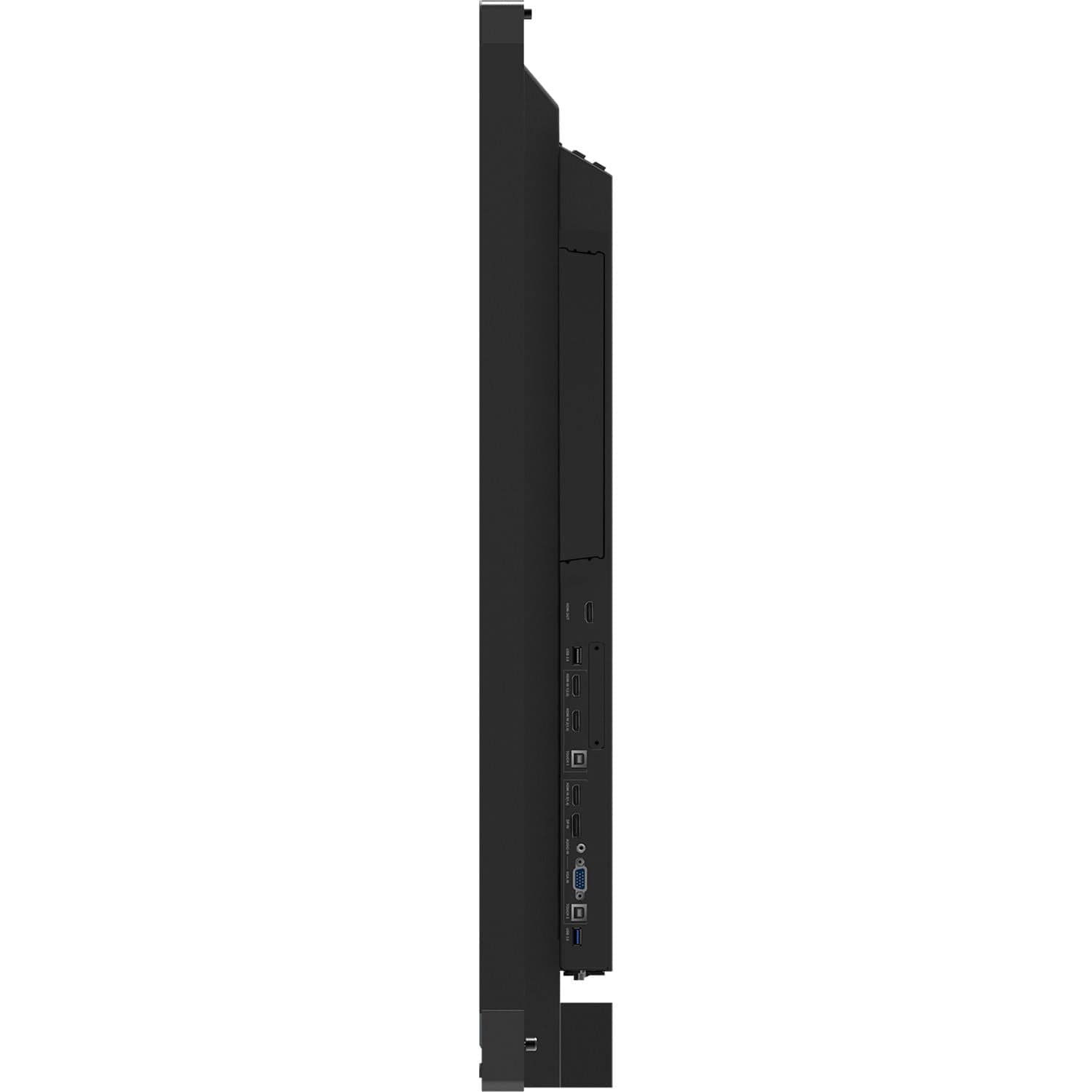

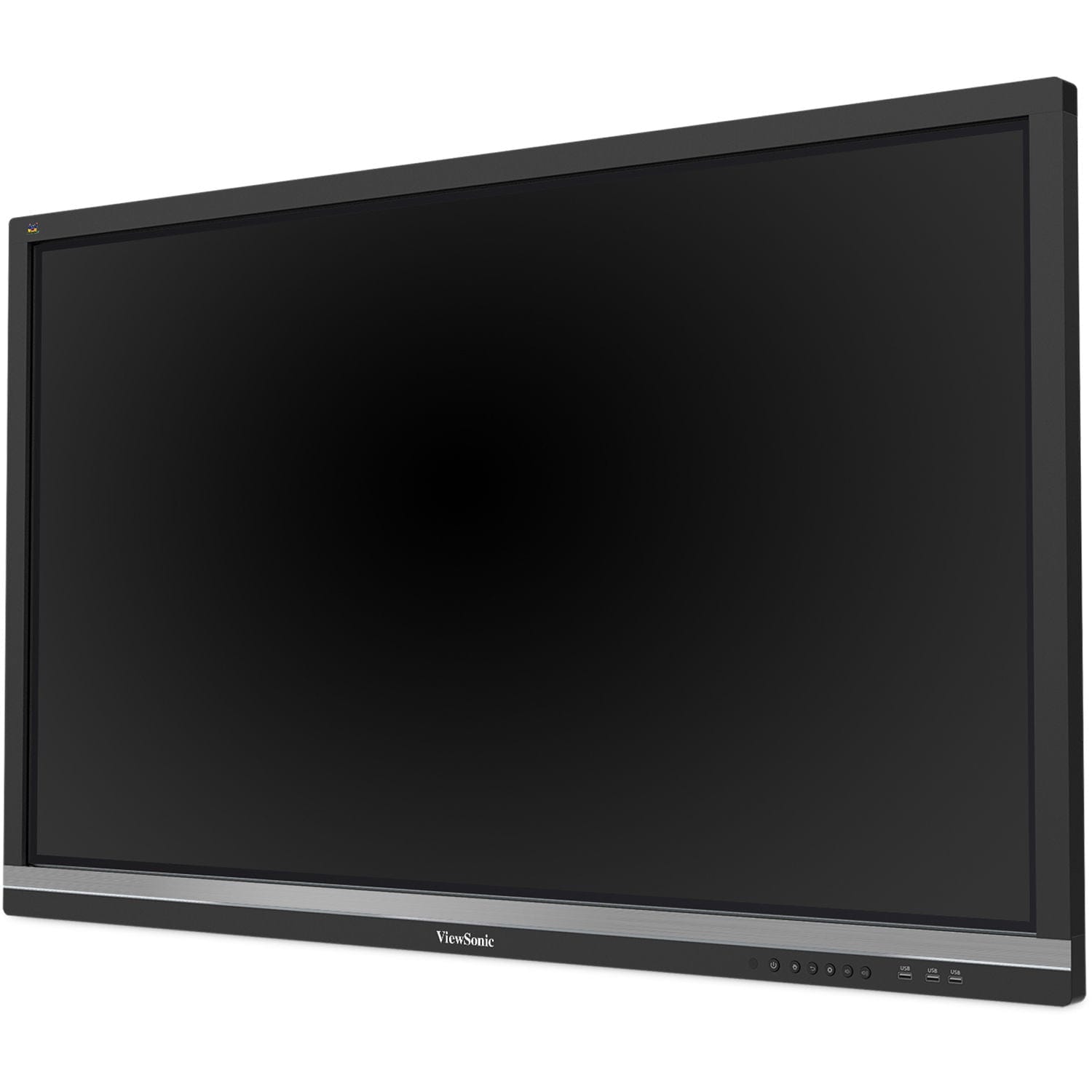

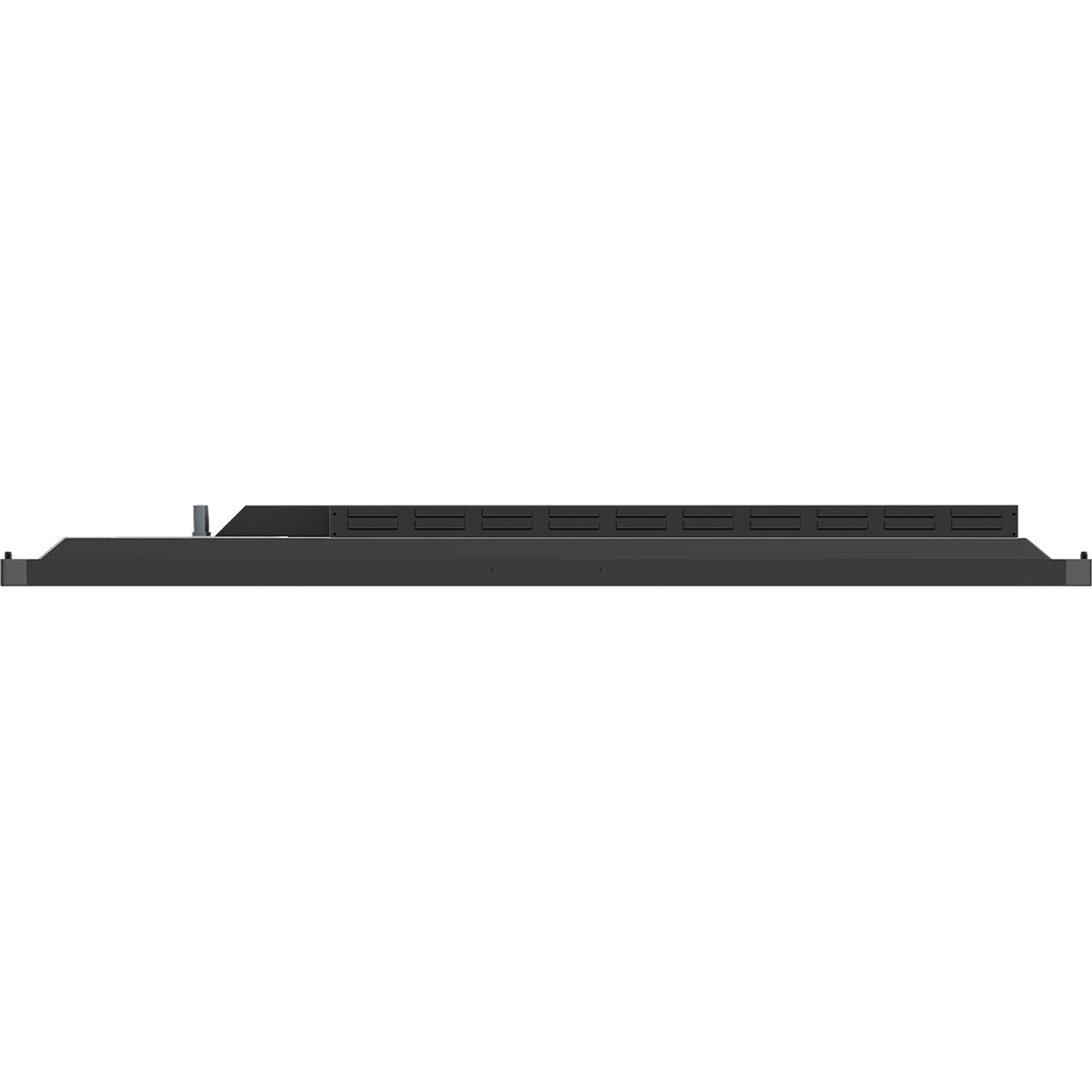

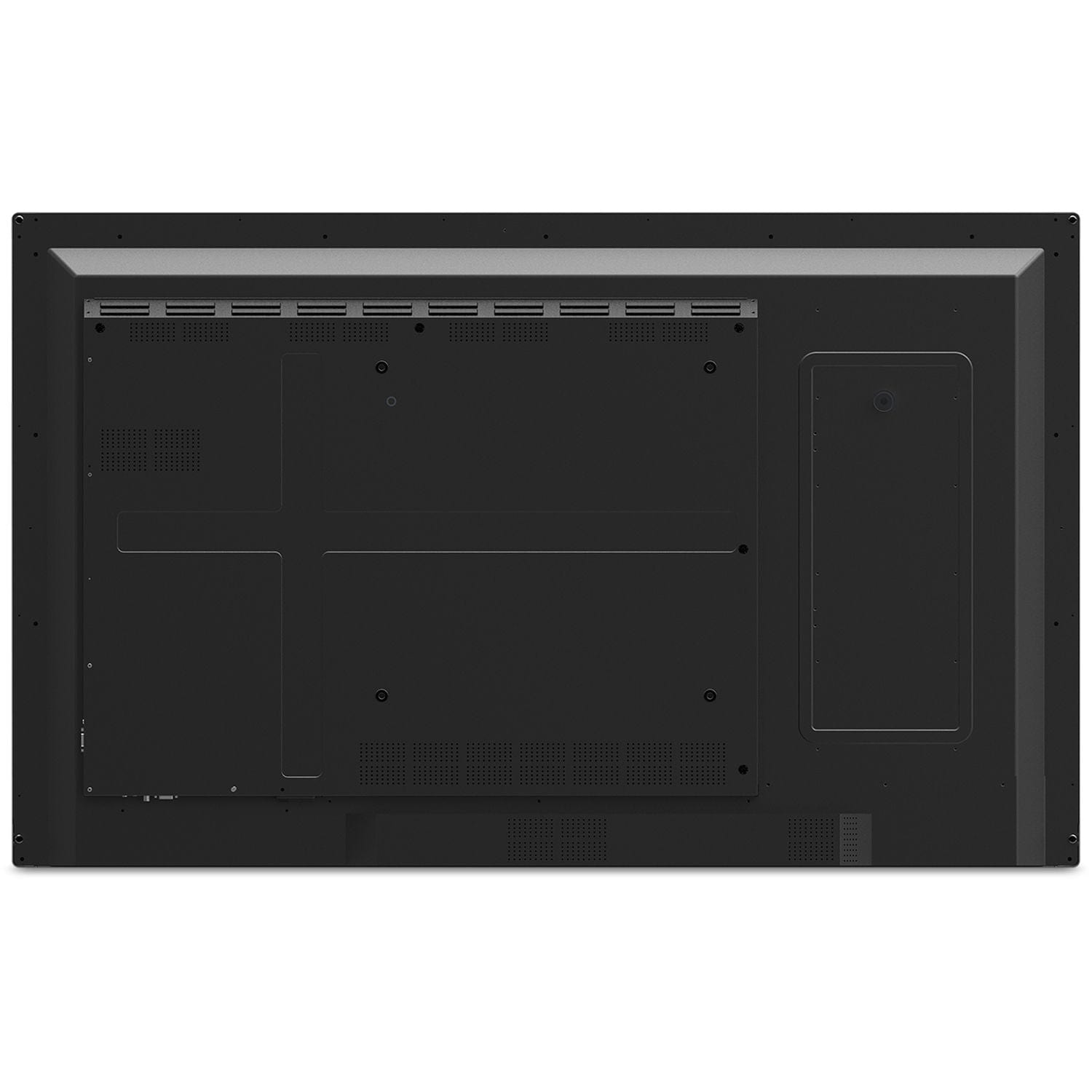

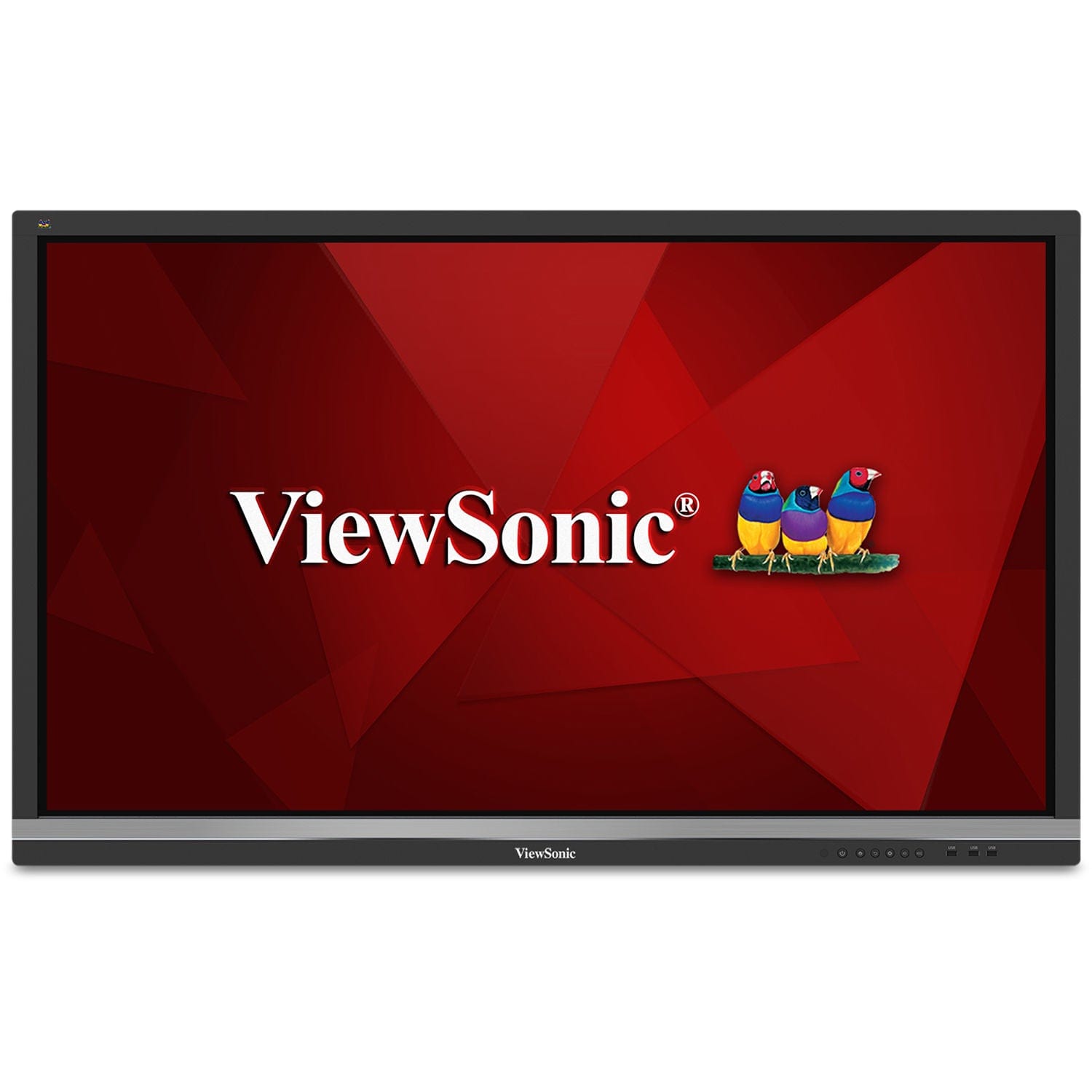

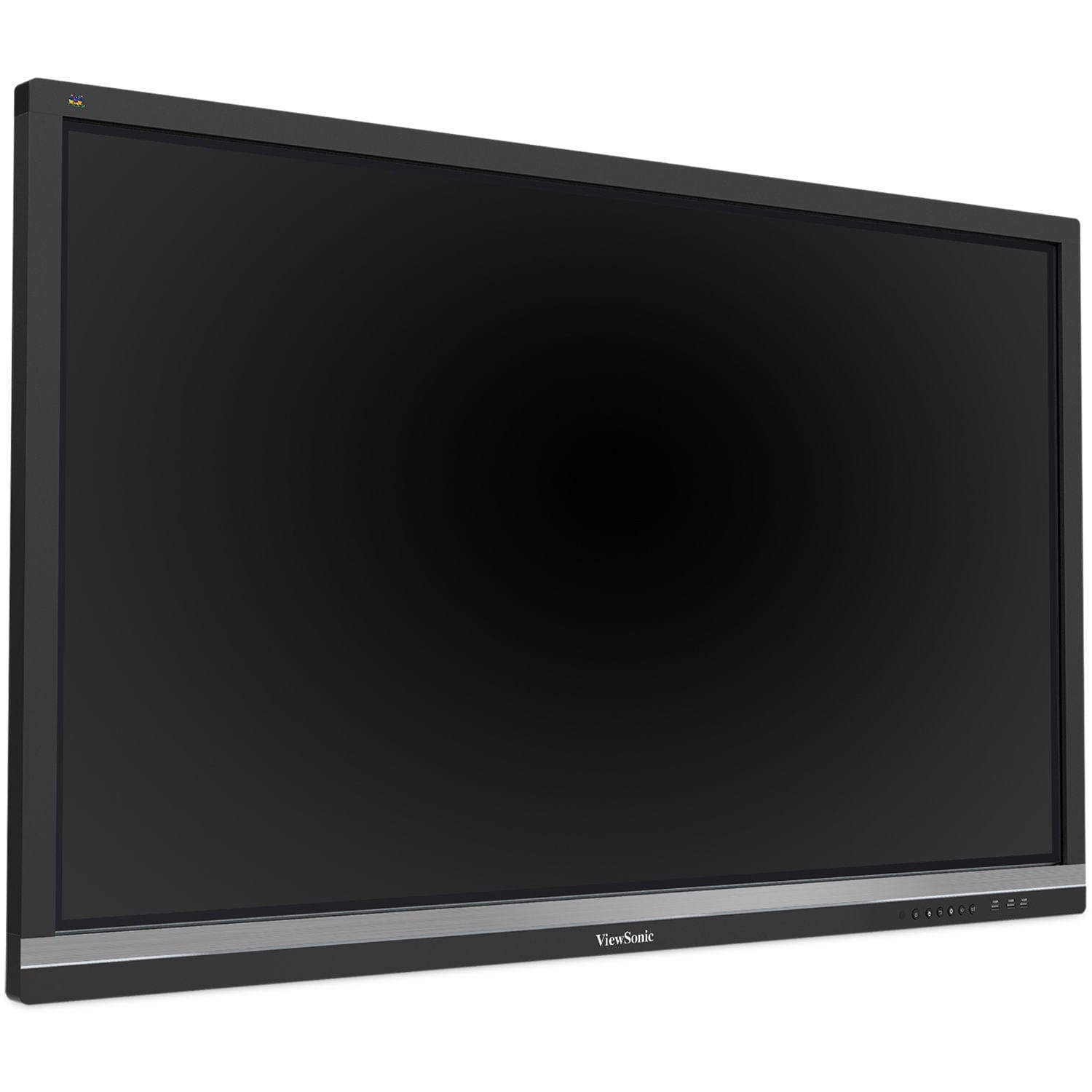

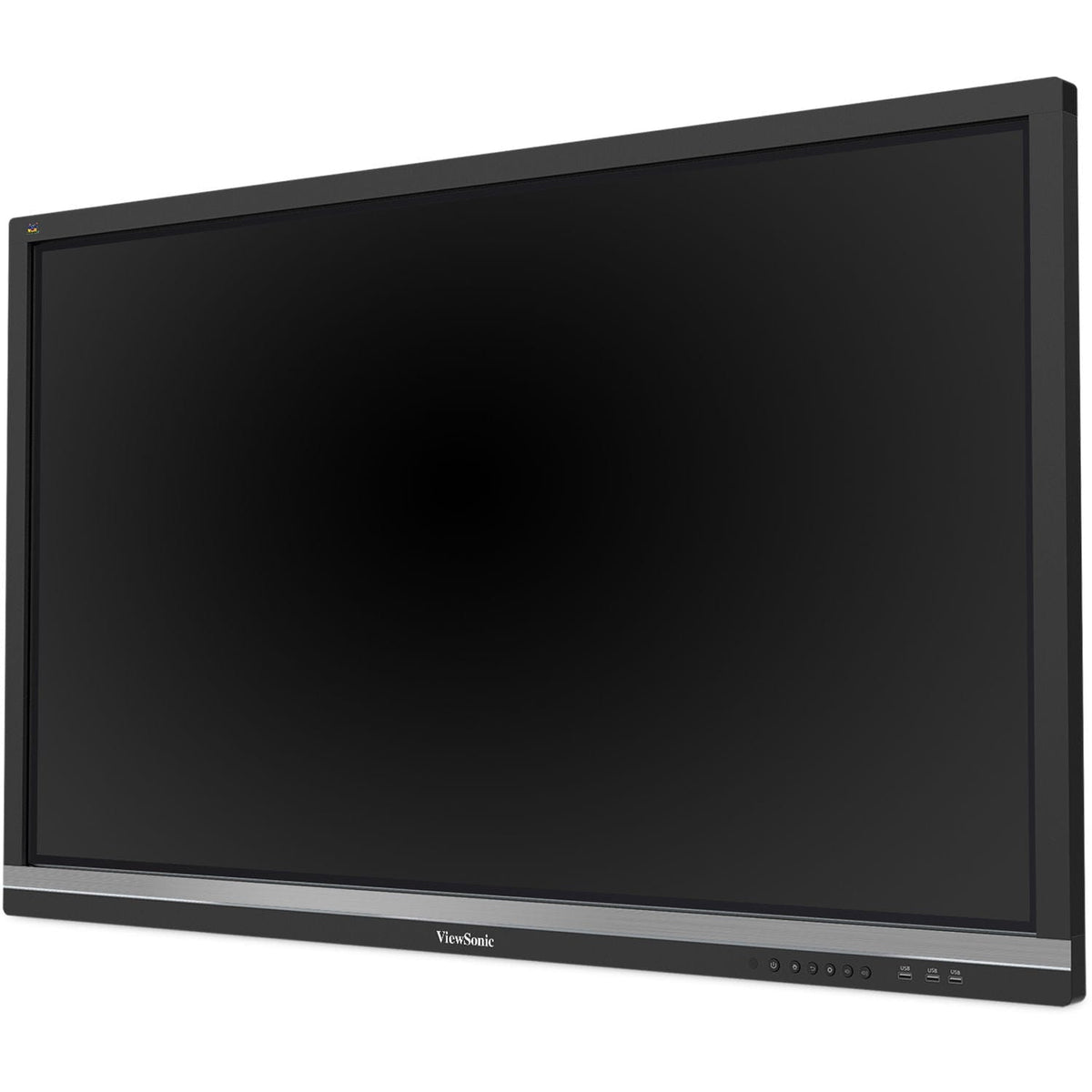

ViewSonic IFP5550-S 55" 4K Touch Enabled ViewBoard Smart Display - Certified Refurbished
Description
Empower your team to connect, collaborate, and create with the ViewBoard 55" UHD 4K Interactive Display from ViewSonic. This touchscreen features 20-point infrared touch technology and comes with integrated myViewBoard annotation software and ViewBoard Cast streaming software for easy content creation and sharing. Two stylus pens are included. The display's connectivity interface includes HDMI and VGA video inputs, and an HDMI video output. For more computing-intensive interactive applications, the display can be outfitted with an optional slot-in PC module.Features
- 55" Touchscreen LCD Monitor
- 4K UHD 3840 x 2160 Resolution
- 20-Point IR Touch Technology
- Built-In Slot for Optional PC Module
- 1200:1 Contrast Ratio
- 350 nits Brightness
- HDMI & VGA Interfaces, 2 x USB 3.1 Gen 1 Ports
Ultra HD Resolution
55 Inch 4K Ultra HD (3840x2160p) interactive display
Advanced Touch
20-point multi-touch lets users write on the display with their fingers and stylus pens

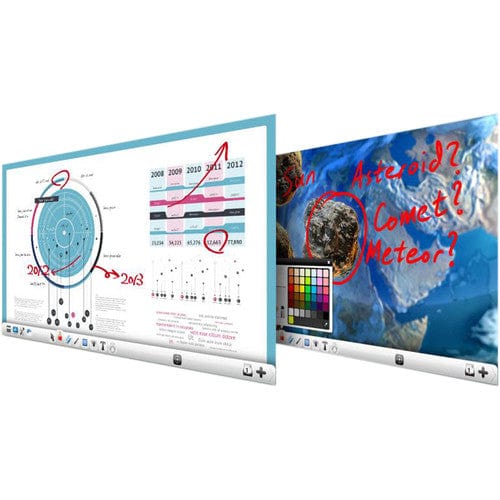

Integrated Software
The myViewBoard suite includes Whiteboard, ViewBoard Cast, and more for better engagement
BETTER SOUND: Built-in 45W stereo soundbar delivers optimal sound
Flexible Connectivity
Include powerful quad-core processor and versatile connectivity options (HDMI,VGA, RJ45, and USB ports)
Remote Management
Schedule updates and monitor device status with the built-in myViewBoard® Manager software
Specifications
Display | |
Panel Size | 55" |
Type/Tech | TFT LCD Module with DLED Backlight. |
Display Area (mm) | 1209.6(H) x 680.4 (V) (54.64” diagonal) |
Aspect Ratio | 16:9 |
Native Resolution | UHD 3840x2160(Pixels) |
Colours | 1.07B colours (10bit) |
Brightness | 350 nits (typ.) 300 nits (min.) |
Contrast Ratio | 5000:1 (DCR) |
Response Time | 8ms |
Viewing Angles | H = 178, V = 178 typ. |
Backlight Life | 30,000 Hours (Min) |
Surface Treatment | Anti-Glare |
Bezel | Slim |
Orientation | Landscape |
Platform | |
Processor | ARM Cortex A73 dual-core 1.2GHz |
RAM | 2GB DDR4 |
Storage | 16GB |
Touch | |
Type/ Tech | IR Recognition |
Touch Resolution | 32767 x 32767 |
Touch Point | 20 points touch, 10 points writing |
INPUT | |
HDMI | 2.0 x3 (3840x2160 @60Hz) |
RGB / VGA | x1 |
Audio | x1 (PC audio in) |
CVBS | x1 |
RS232 | x1 |
OPS | x1 PC Slot (proprietary) |
OUTPUT | |
HDMI | x1 |
Audio | x1 (Earphone out) |
SPDIF | 1(optical) |
RS232 | x1 |
LAN | |
RJ45 | x1 |
USB | |
Type A | USB 2.0 x4(including 2 USB port in front) |
USB 3.0 x2(including 1 USB port in front) | |
Type B | x2, for touch |
SPEAKERS | |
SPEAKERS | 10W x 2 + 15W x 1 |
Top Camera Plate | Yes |
COMPATIBILITY | |
RGB PC/HDMI PC | Refer to timing table |
CVBS | 480i |
HDMI | 3840x2160 |
Embedded OS | |
Embedded OS | Android 7 |
USB SUPPORTED FILE FORMAT | |
Picture | BMP, JPEG, PNG |
Video | Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV |
Container: MPG, MP4, MOV, VOB, DAT, MKV | |
Audio | Codec: AAC, HEAAC, MPEG1, MPEG2 |
Container: AAC, M4A, MP3 | |
Bundle Software | |
Basic Annotation Software | myViewBoard / vBoard Lite |
Pro Annotation Software | myViewBoard for windows (Embedded in Windows Slot-in PC) |
Wireless Presentation with Touch Feedback: Viewboard Cast | yes |
ViewSonic Launcher | Embedded |
Special Features | |
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore) | Front “SmartPort™ USB” to all channels. |
Simple LAN sharing between IFP and slot-in device | 10M/100M for Android 10M/100M/1000M for slot-in PC |
Power | |
Voltage | 100-240VAC +/- 10% Wide Range |
Consumption | 81W (Typ.) |
< 0.5 W ("Off") | |
ERGONOMICS | |
Wall Mount (VESA® ) | 400 x 200 |
OPERATING CONDITIONS | |
Temperature (º C) | 0°C to 40°C |
Humidity | 10% ~ 90% RH non-condensing |
DIMENSIONS (W x H x D) | |
Physical (inch / mm) | 49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm |
Packaging (inch / mm) | 56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm |
WEIGHT | |
Net (lb / kg) | 68.34 lb / 31 Kg |
Gross (lb / kg) | 85.98 lb / 39 Kg |
REGULATIONS | |
REGULATIONS | FCC, cTUVus, CB, CE, BSMI, RCM, EAC |
Energy Star version | |
Energy Star version | ES8.0 |
EEI rating | |
EEI rating | A+ |
