ViewSonic 4000 Lumens High Brightness Projector - Certified Refurbished

ViewSonic PA503HD-S 4000 Lumens High Brightness Projector - Certified Refurbished

Description

Display bright images for home or office with the PA503HD DLP Projector from ViewSonic. Featuring a brightness of 4000 ANSI lumens, Full HD resolution, and DLP color, the PA503HD is a versatile solution for clear video presentations in a a wide variety of controlled lighting scenarios. This standard-throw projector can fill a 16:9, 100" diagonal screen from 11' away and features auto keystone correction to help simplify setup. The PA503HD allows you to connect two HD devices via HDMI 1.4 inputs, with a USB-A connection to power an HDMI dongle such as Google Chromecast or Amazon Fire TV Stick.

Features

• 4000 ANSI Lumens Bright
• Full HD 1920 x 1080 Native Resolution
• 1.48 to 1.62:1 Throw Ratio
• 2 x HDMI 1.4 Inputs
• Up to 15,000 Hours in SuperEco Mode
• 16 ms Input Latency
• USB-A for Power and Software Updates

Bright Images in any Environment

Packed with 4,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in nearly any environment – even in rooms with high ambient light.

Stunning Resolution and Brightness

This projector features Full HD 1920x1080 (1080p) native resolution for sharp and clear images. It is perfect for watching all types of high definition formats (1080p/1080i/720p) and content, including movies, videos, sports, games and TV, without any distortion or scaling of the original video format.

*The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product.

High Native Contrast Ratio

Experience deeper blacks and brighter whites thanks to a state-of-the-art Texas Instruments .65" DMD chip. This high native contrast ratio lets you enjoy greater visual depth, clearer images and enhanced legibility.

See the Bigger Picture with a 300" Screen

Enjoy breathtaking images on an ultra-large screen capable of reaching up to 300". This state-of-the-art projector has a lower cost-per-inch compared to commercial displays.

Versatile Connectivity

Dual HDMI ports and a USB-A power supply port give you the freedom to connect your display to a variety of devices and external media players.

Software Updates via USB

Software and firmware updates for this projector can be easily accessed online. Simply connect the projector to a computer via USB, and run the software update program available below, in the Support & Downloads section of the product page.

Specifications

Image Display
Display System	1-Chip 0.65" DMD DLP
Native Resolution	1920 x 1080
Supported Resolutions	Maximum: 1920 x 1200
Maximum Brightness	4000 Lumens (ANSI)
Aspect Ratio	Native: 16:9
	Supported: 16:10
	Supported: 4:3
Dynamic Contrast Ratio	22,000:1
DLP Link 3D	Yes
Supported 3D Formats	Frame Packing (up to 1080p)
	Side by Side (up to 1080i)
	Top Bottom (up to 1080p)
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Horizontal: 15 to 102 kHz
	Vertical: 23 to 120 Hz
Latency	16 ms
Lens
Includes Lens	Yes
Focus	Manual
Aperture	f/2.5 to 2.67
Focal Length	21.8 to 24mm
Optical Zoom	Manual: 1.1x
Throw Distance	3.3 - 32.8' / 1 - 10 m
Throw Ratio	1.48 to 1.62:1 (100" Screen Size @ 10.76' / 3.28 m)
Projection Size	30 to 300" / .8 to 7.6 m
Features
Keystone Correction	Auto / Manual to Vertical: ± 40°
HDR Support	No,
Digital Zoom	1.25x
Multi-Input Support (PIP/PBP)	No
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	Yes (Mono)
Speaker Power	3 W
Projection Tilt Option	Yes

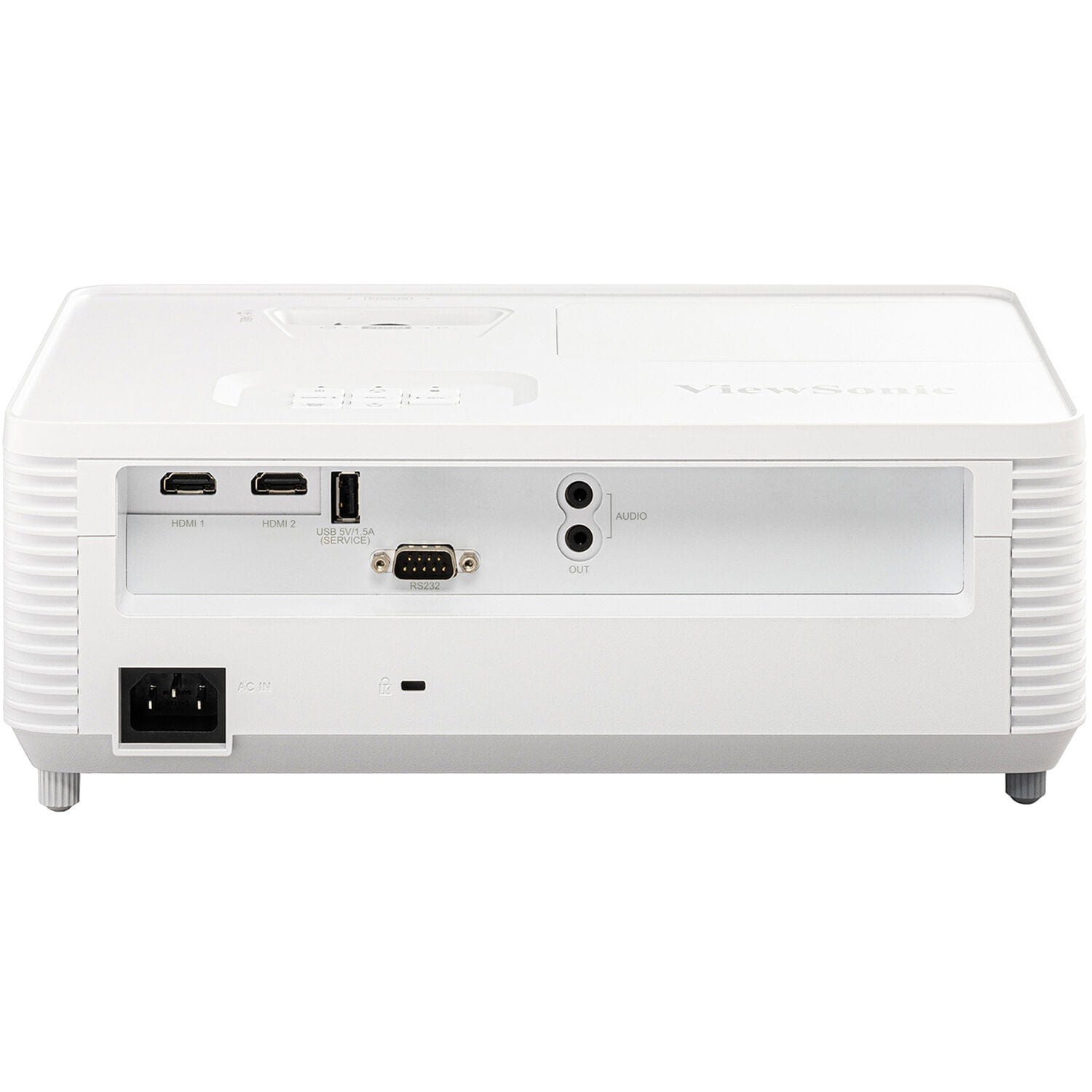

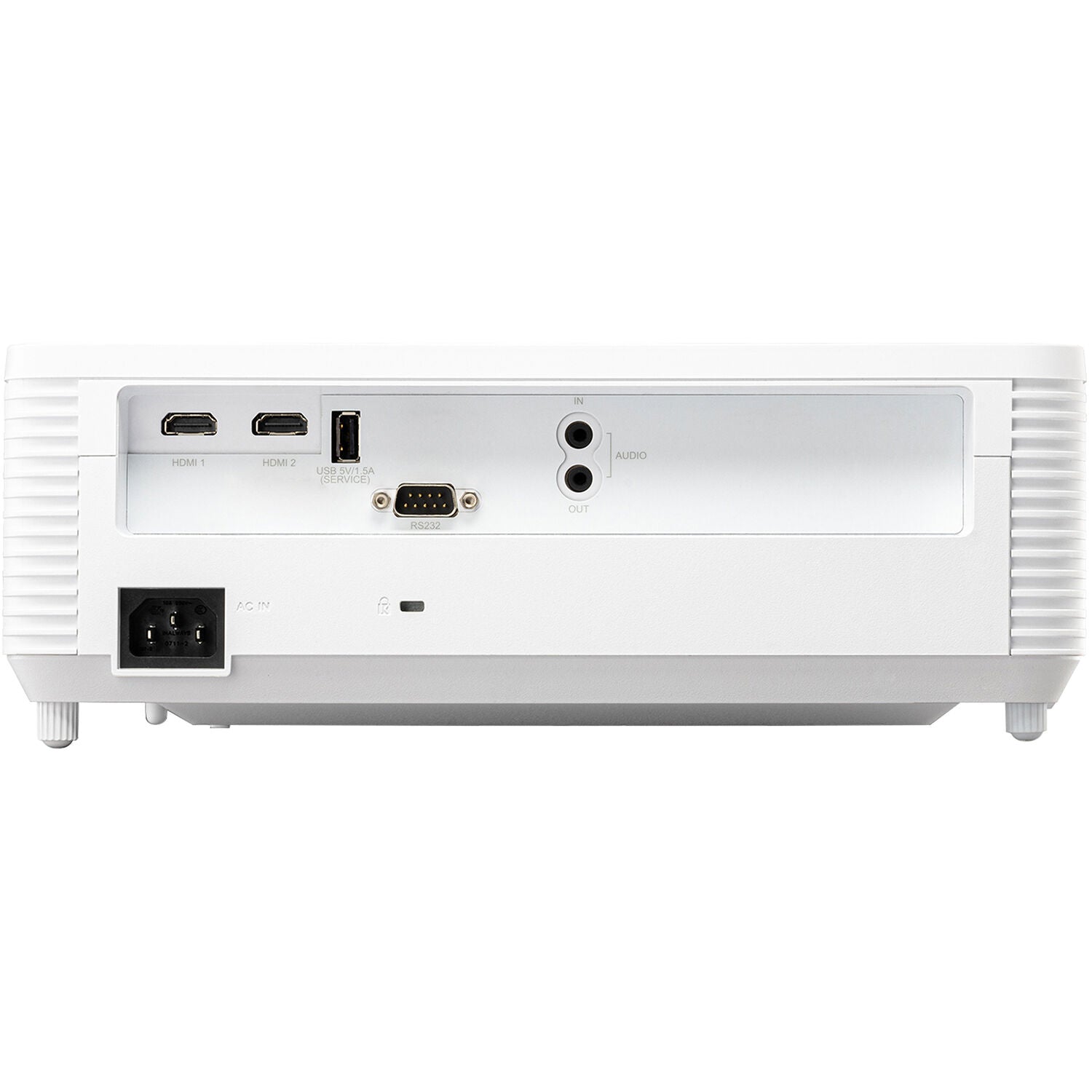

Input/Output Connectors
Inputs/Outputs	2x HDMI 1.4 Audio, Video Input
	1x 1/8" / 3.5 mm Mini Audio Input
	1x 1/8" / 3.5 mm Mini Audio Output
	1x USB-A Power, Service Input/Output
	1x DE-9/DB-9 (RS-232) Control Input
HDCP Support	Yes, Version 1.4
Media/Memory Card Slot	No
Hardware
Mobile App Compatible	No
Wireless LAN / Wi-Fi	No
Bluetooth	No
General
Light Source	Lamp
Lamp Power	240 W
Expected Lamp Life	Medium Brightness: 4000 Hours
	Low Brightness: 15,000 Hours
Security	Cable Lock Slot
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Medium Brightness: 295 W
	Standby Mode (Lamp Off): < 0.5 W
Certifications	cTUVus, FCC, NOM, TUV-Rheinland S Mark
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 80%
Storage Humidity	10 to 90%
Dimensions (W x H x D)	12.2 x 4.5 x 9.2" / 309.0 x 115.0 x 234.0 mm
Weight	6 lb / 2.7 kg
