Description

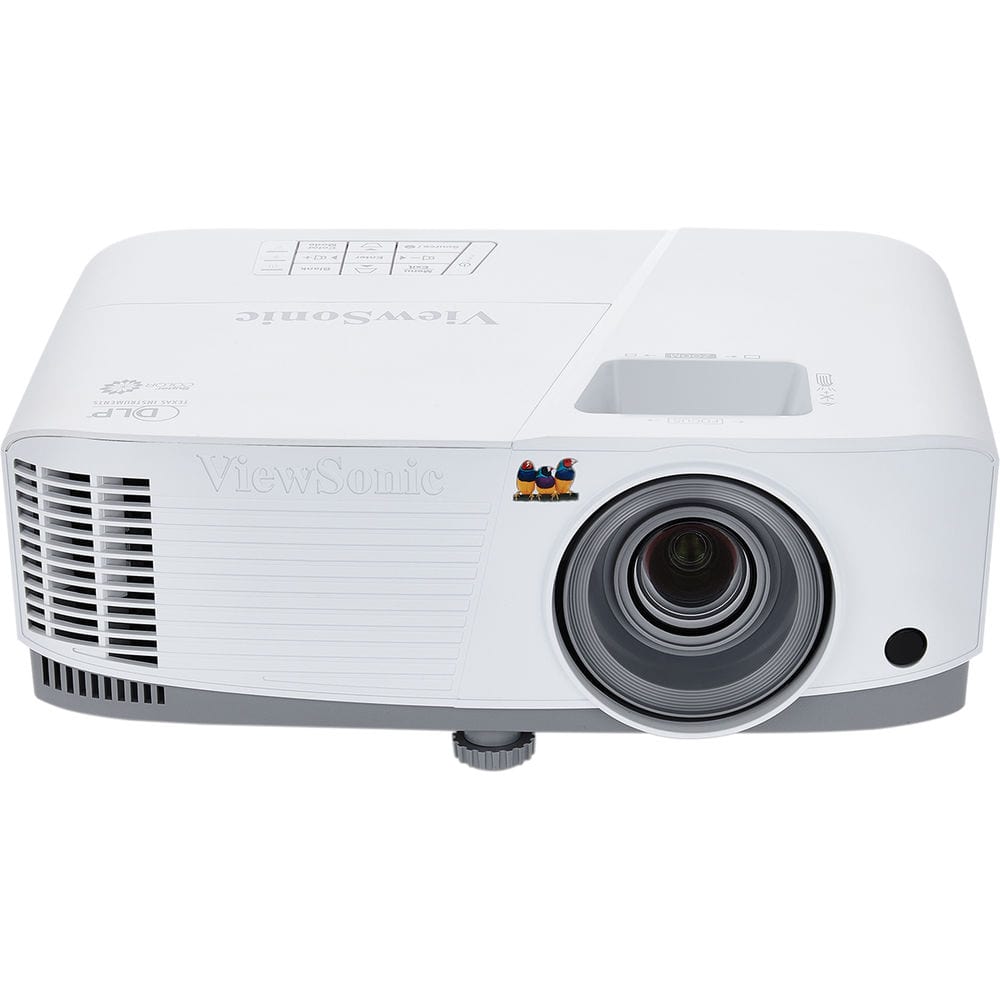

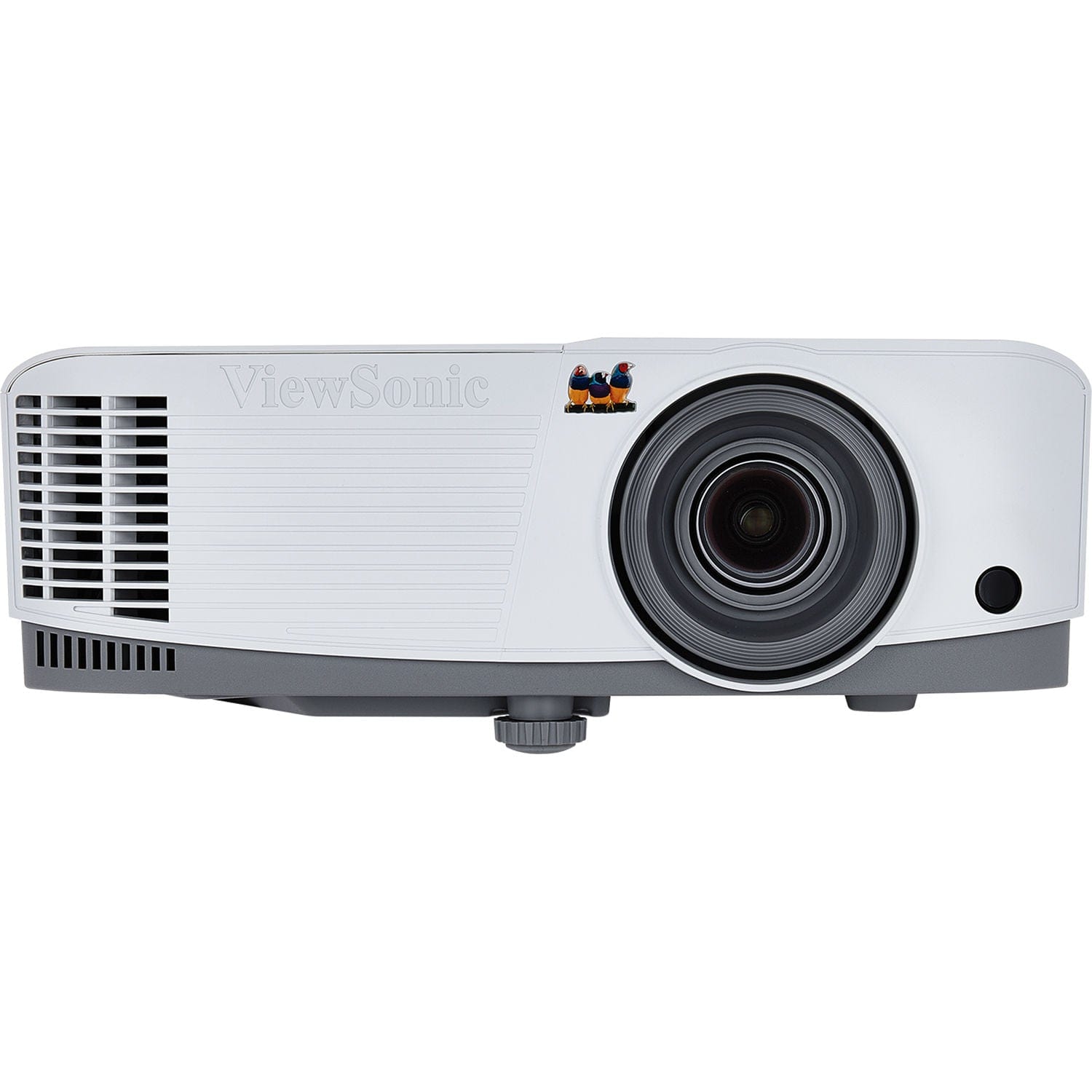

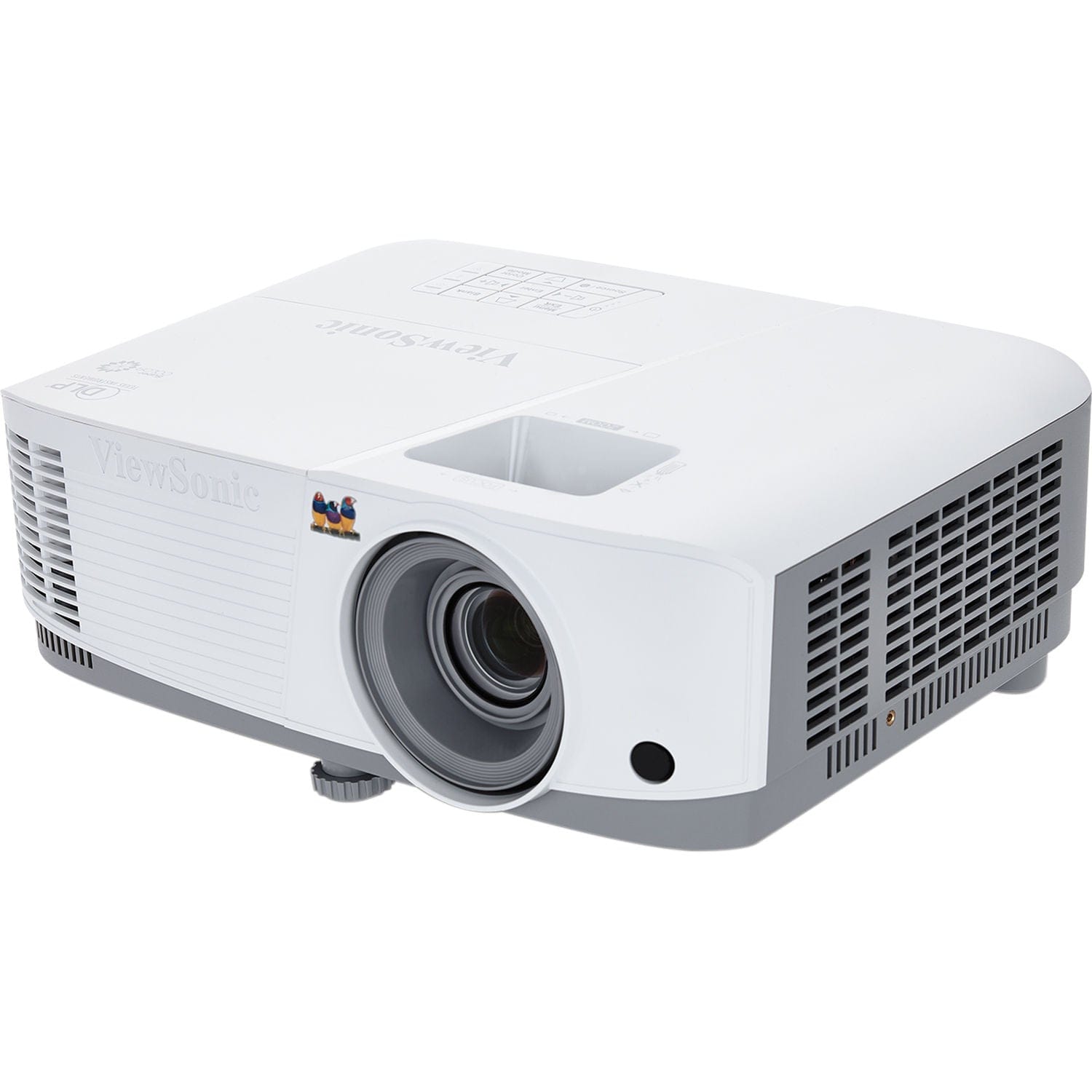

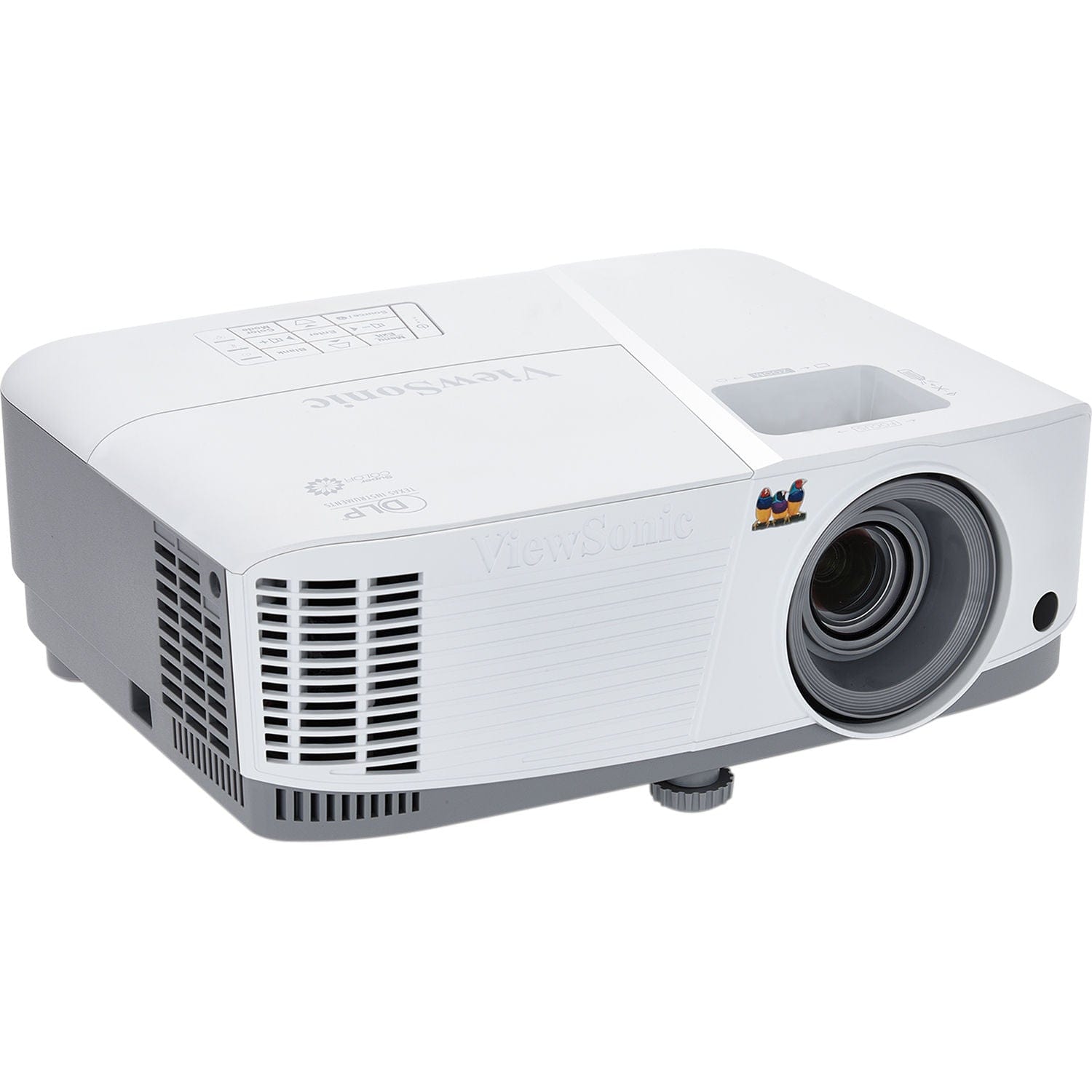

Enjoy bright images in many environments with the ViewSonic PA503W 3600-Lumen WXGA DLP Projector. Its 3600 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The 1280 x 800 WXGA native resolution is suitable for displaying many file and document types, and it will accept video signals up to Full HD (1920 x 1080) for higher resolution sources. The projector features a 1.55 to 1.7:1 throw ratio, which will allow you to place it near the back of the room in many installations. The PA503W has one HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. It also has two VGA inputs for analog sources, and its VGA output will allow you to daisy-chain multiple projectors or displays so they can all display the same source.
Features
- Brightness of 3600 Lumens
- WXGA (1280 x 800) Native Resolution
- 1.55 to 1.7:1 Throw Ratio
- HDMI, Composite Video, 2x VGA Inputs
Reduced Input Latency
This projector delivers smooth images without delay. It's ultra-low 16ms input latency provides faster frame-by-frame action.
SuperColor: Amazing Color Accuracy
ViewSonic’s proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.
3,600 Lumen Brightness
Packed with 3,600 lumens and a high contrast ratio, this projector produces bright images in nearly any environment.
Energy-efficient SuperEco
SuperEco mode allows users to dim projection brightness by up to 70%, thereby reducing the lamp's power consumption—a great energy-saving design that lowers the total cost of ownership (TCO).
Balanced Color and Brightness
A choice of 5 unique view modes provide the best possible viewing experience in any environment regardless of ambient light.
3D Blu-ray Ready HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Specifications
| Display: | |
| Type: | DLP Lamp |
| Resolution Type: | WXGA |
| Resolution: | 1280 x 800 |
| Brightness (Lumens): | 3,600 ANSI |
| Display Size (in.): | 30 - 300 in. / 0.76 - 7.62 m |

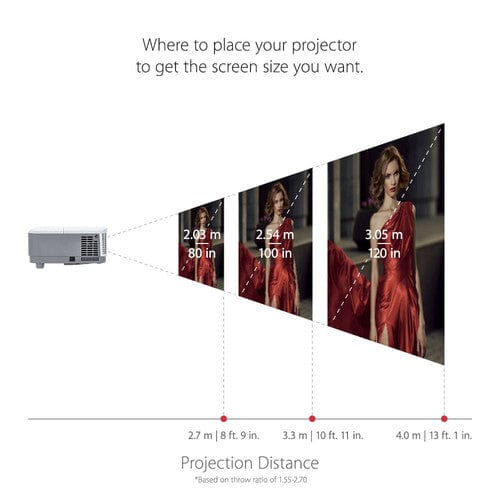

| Throw Distance: | 3.28 - 36.02 ft / .99 - 10.98 m |
| Throw Ratio: | 1.55~1.70 |
| Keystone: | Vertical (± 40º) |
| Lens: | 1.1x optical zoom |
| Light Source (watt): | 00:00 |
| Light Source Life, Normal (hours): | 5,000 |
| Light Source Life, Dynamic Eco-Mode (hours): | 15,000 |
| Color Depth: | 1.07B Color (R/G/B 10bit) |
| Dynamic Contrast Ratio: | 22,000:1 |
| Aspect Ratio: | 1 |
| Video Signal: | |
| Frequency Horizontal: | 15K~102KHz |
| Frequency Vertical: | 23~120MHz |
| Compatibility: | |
| PC Resolution (max): | VGA(640 x 480) to FullHD(1920 x 1080) |
| Mac® Resolution (max): | VGA(640 x 480) to FullHD(1920 x 1080) |

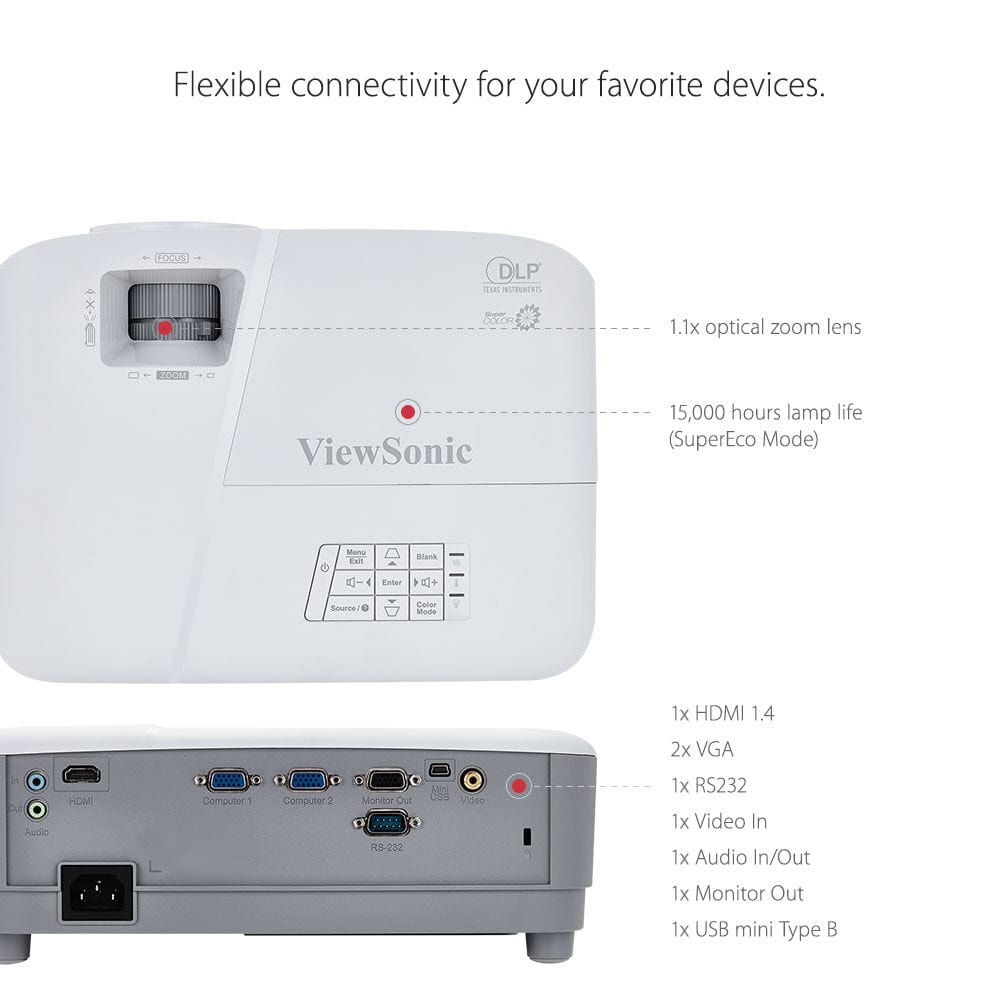

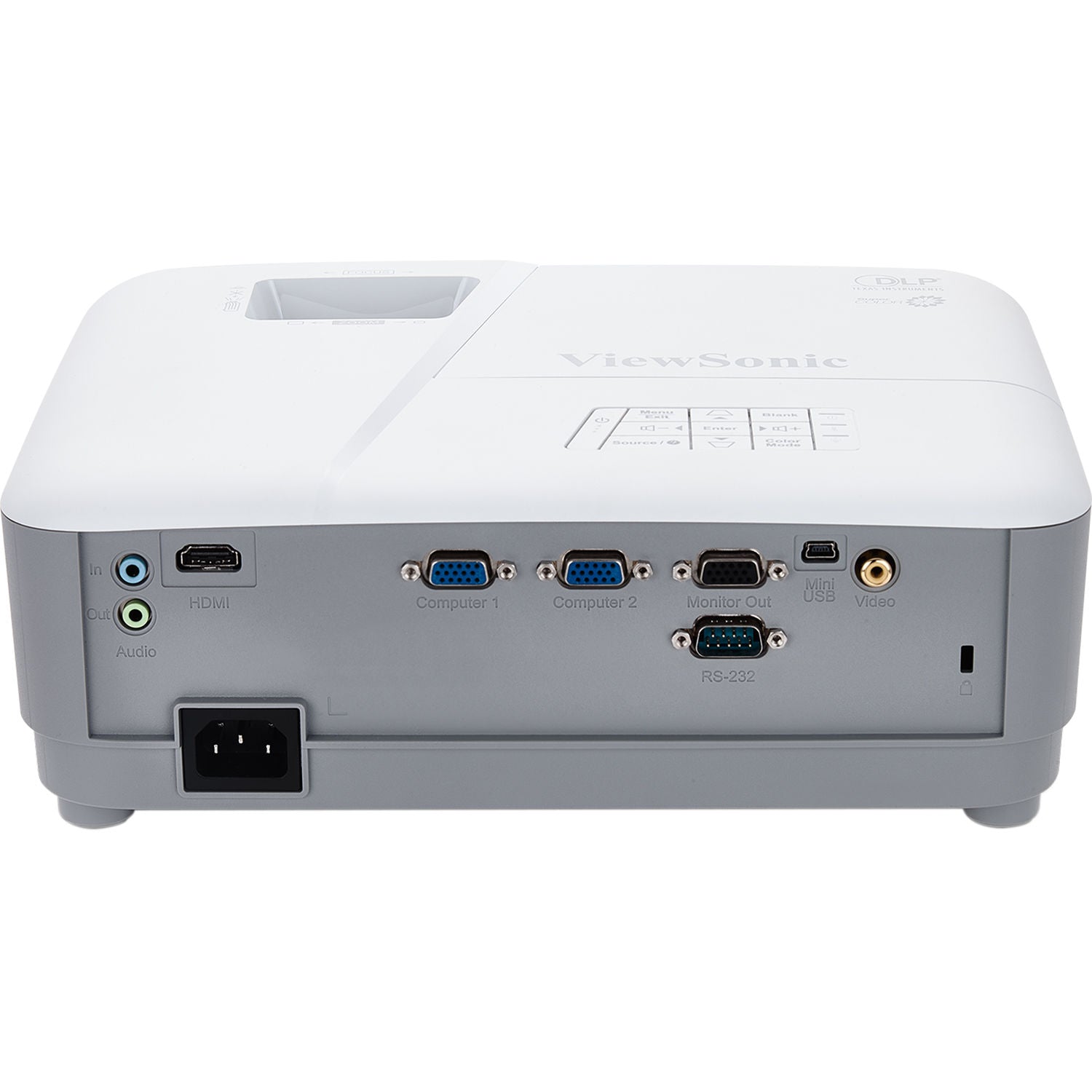

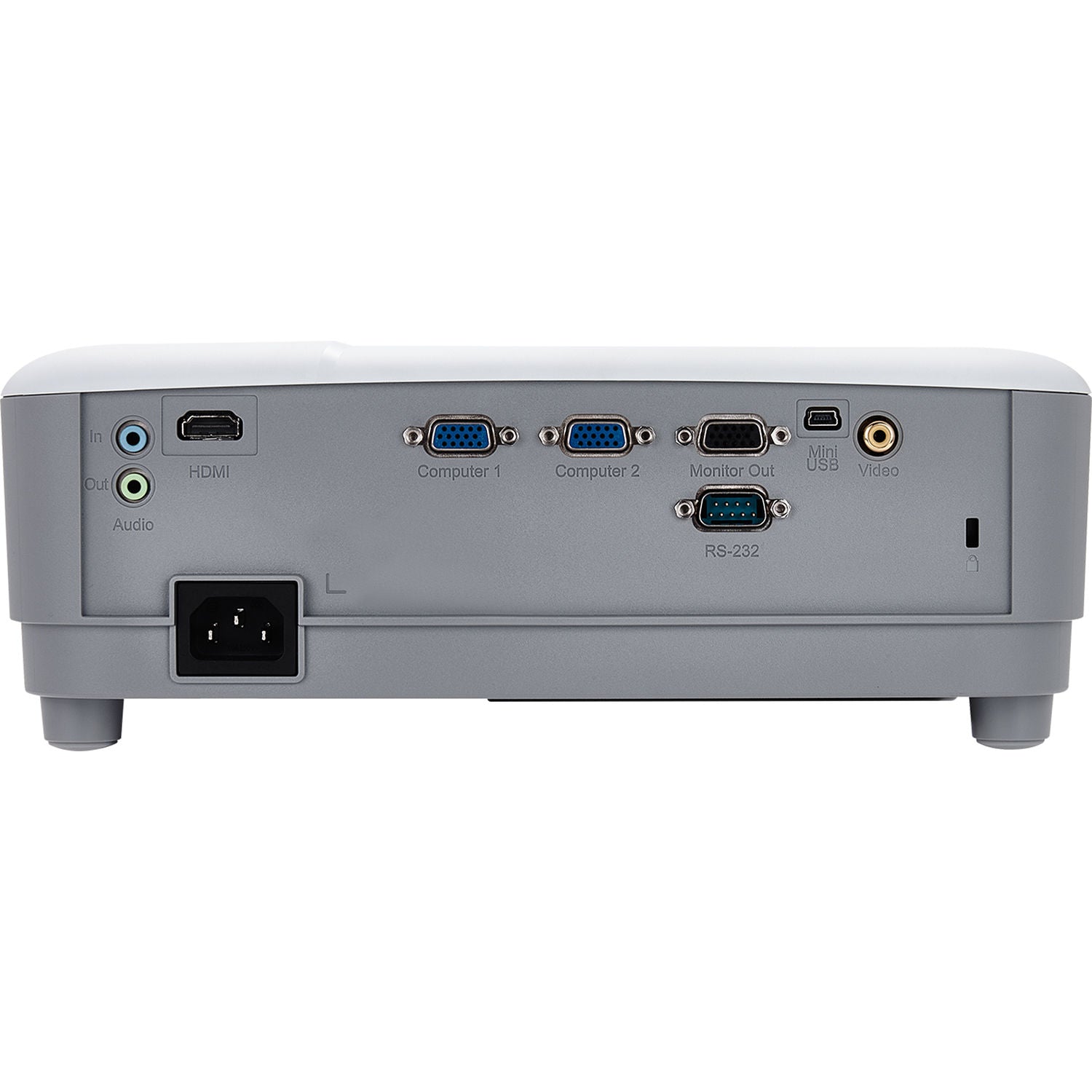

| Connector: | 3.5mm Audio Out(1), 3.5mm Audio In(1), Control (RS232)(1), HDMI(1), VGA In(2), VGA Out(1), Composite RCA Video In(1), Mini USB(1) |
| Audio: | |
| Internal Speakers: | 2W (x1) |
| Power: | |
| Voltage: | 100-240V+/- 10%, 50/60Hz AC |
| Consumption (typical): | 260W |
| Stand-by: | <0.5W |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Weight (imperial): | |
| Net (lbs): | 5 |
| Gross (lbs): | 7 |
| Weight (metric): | |
| Net (kg): | 2 |
| Gross (kg): | 3.2 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 14.4 x 7.4 x 11.8 |
| Physical (in.): | 11.6 x 4.3 x 8.6 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 365 x 188 x 300 |
| Physical (mm): | 294 x 110 x 218 |
| General: | |
| Regulations: | FCC (including ICES003), cTUVus, NOM, TUV-Rheinland S Mark |

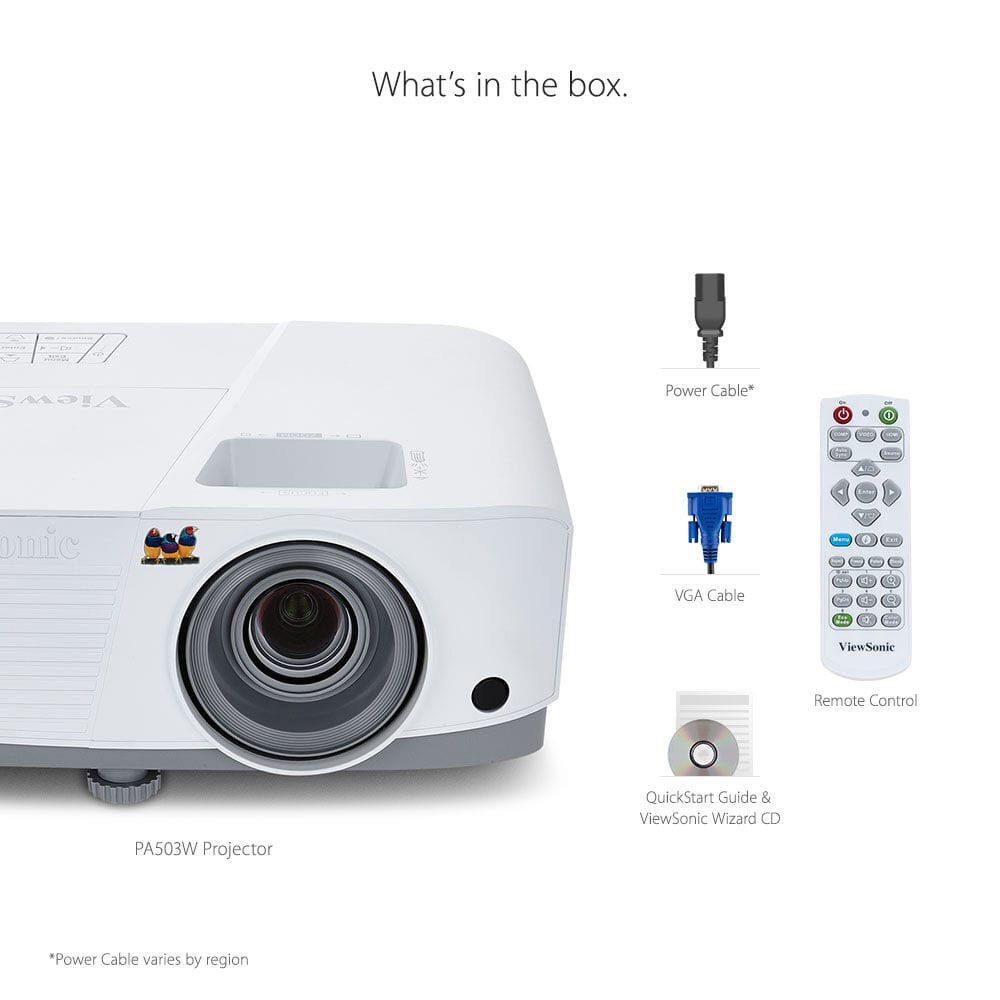

| Package Contents: | PA503W projector, power cable, VGA cable, laser remote control with batteries, Quick Start Guide |
| Warranty: | Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes. |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| UPC: | 766907904918 |
| Accessories: | PGD-350, PJ-CASE-008, PJ-WMK-006, PM-FCP, PRJ-EE-05-03, PRJ-EEEW-07-01 , PRJ-EEEW-07-02, PRJ-EW-07-01, PRJ-EW-07-02, RLC-109 |
