Description

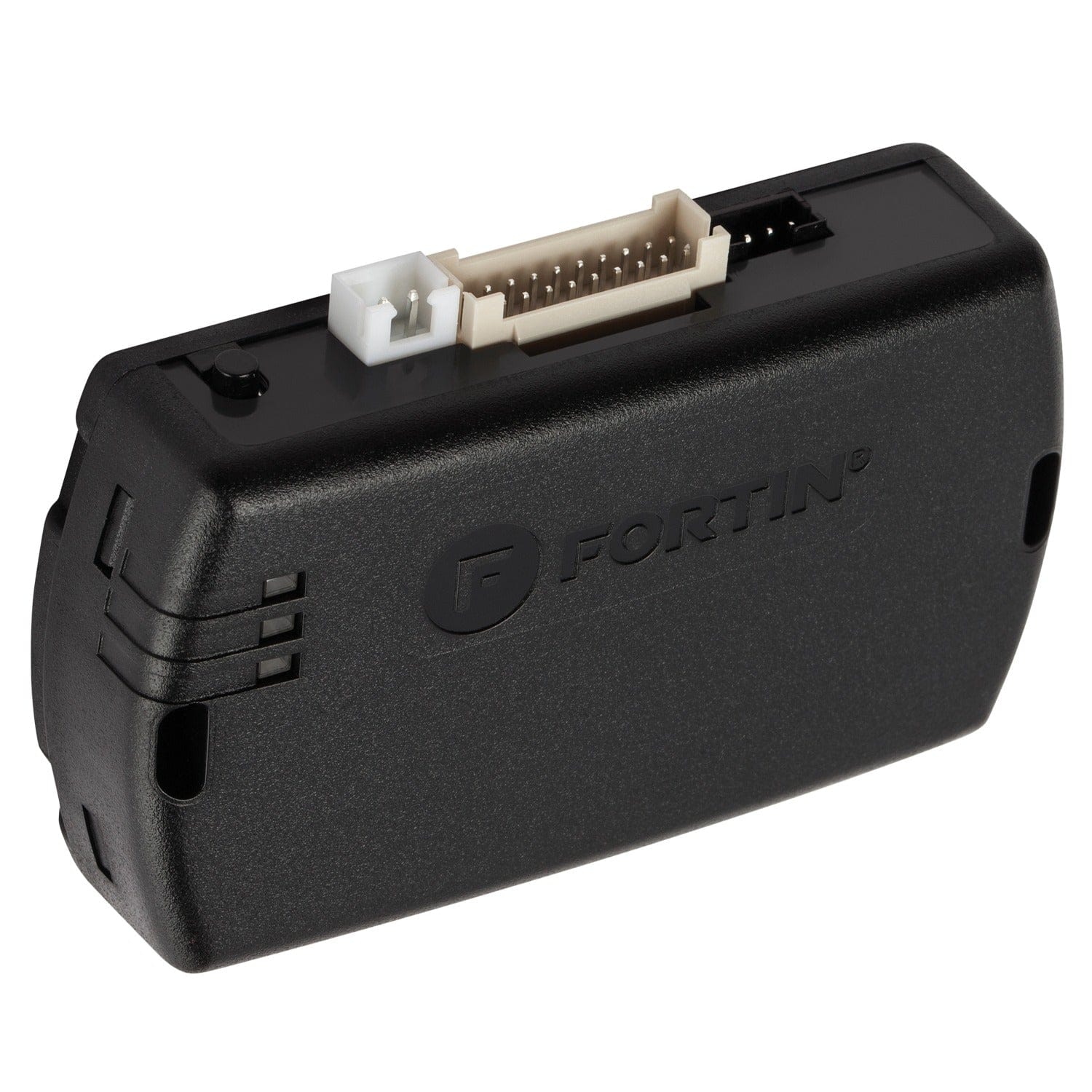

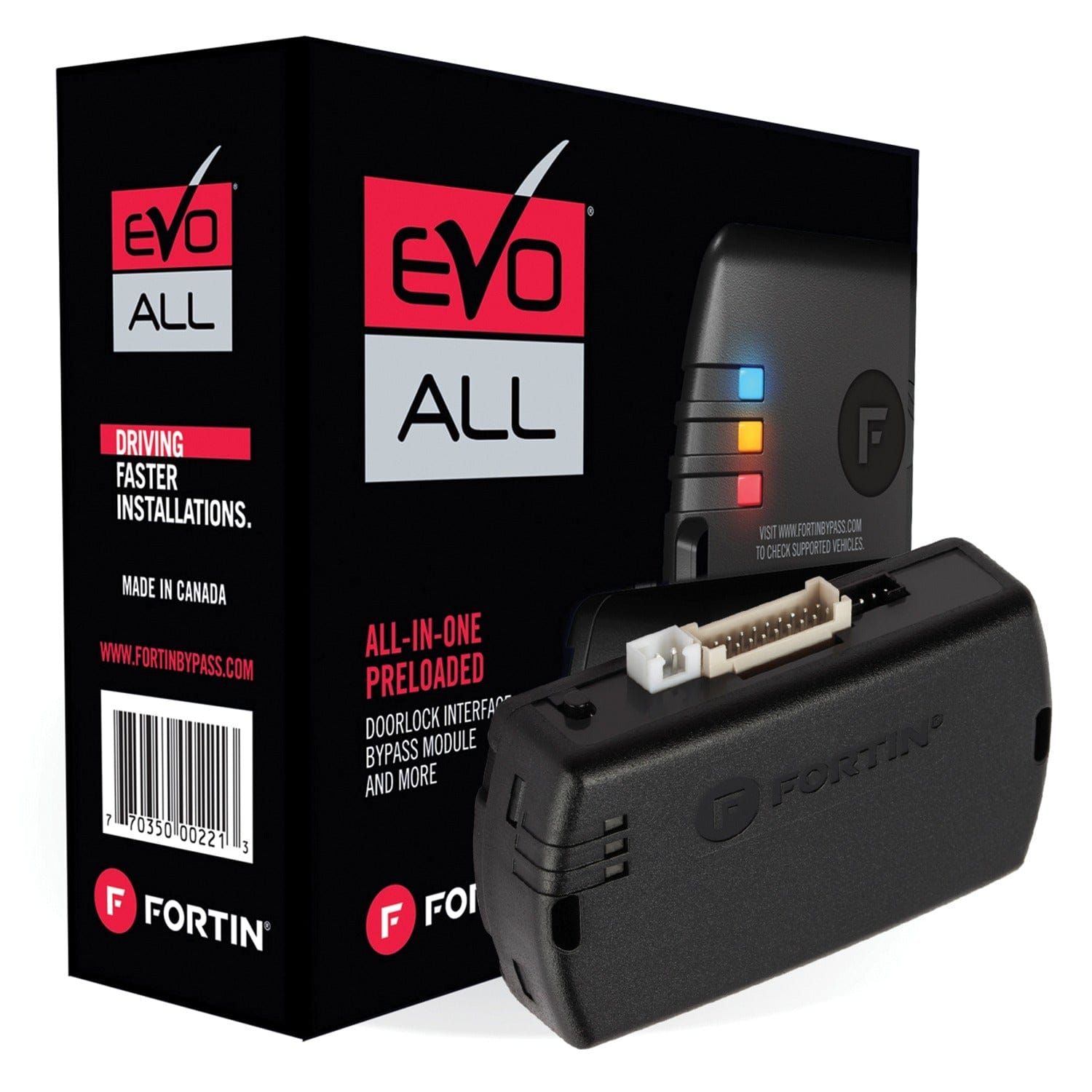

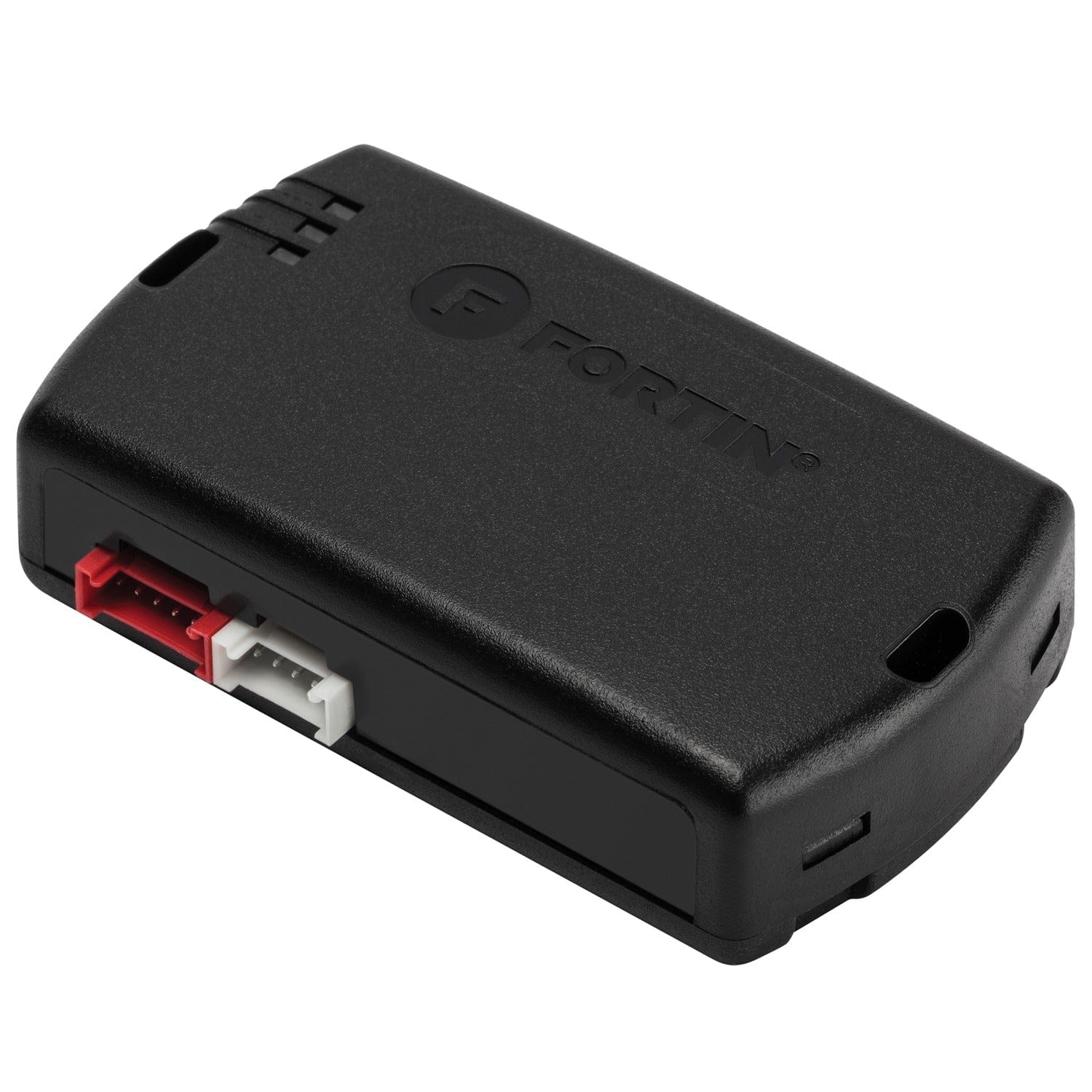

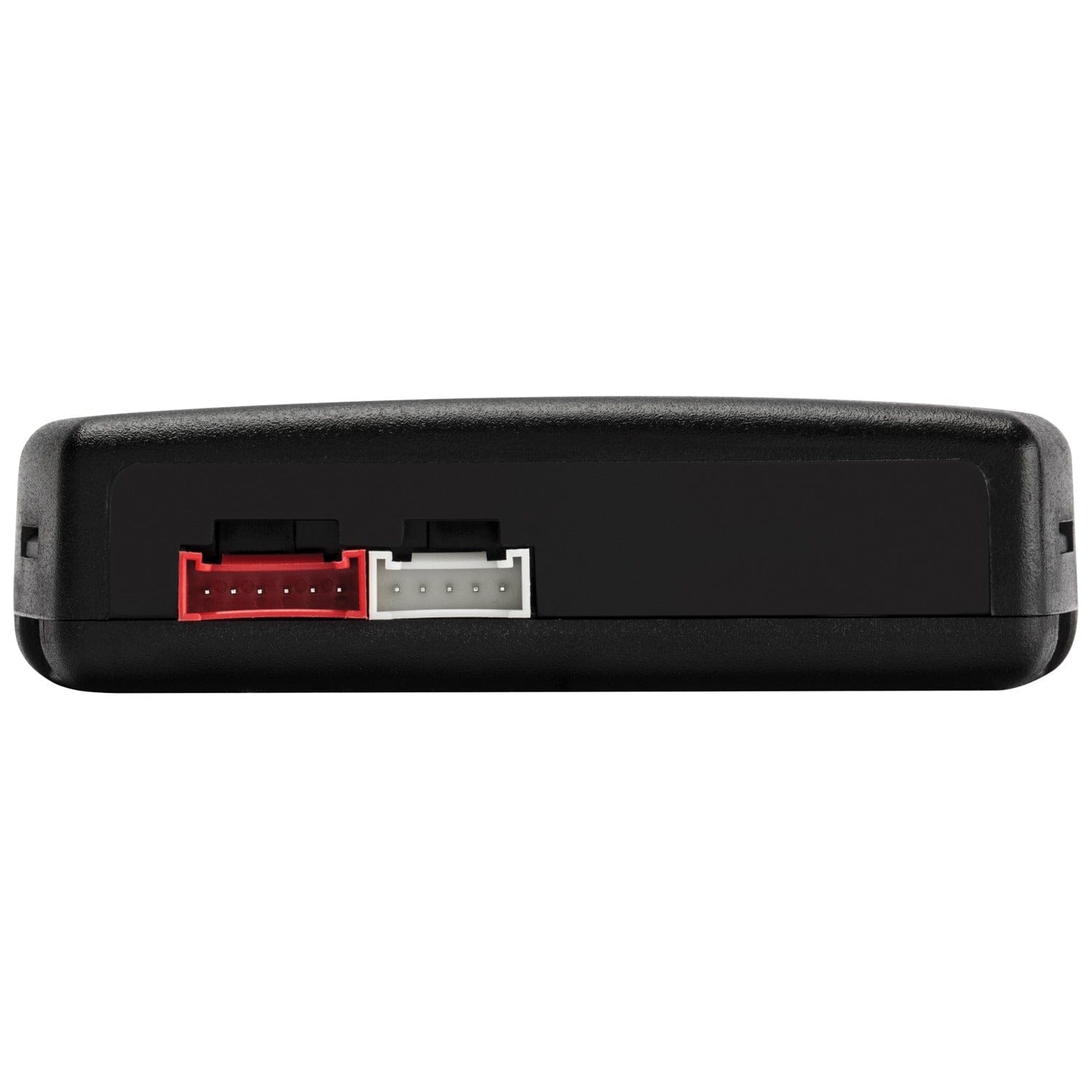

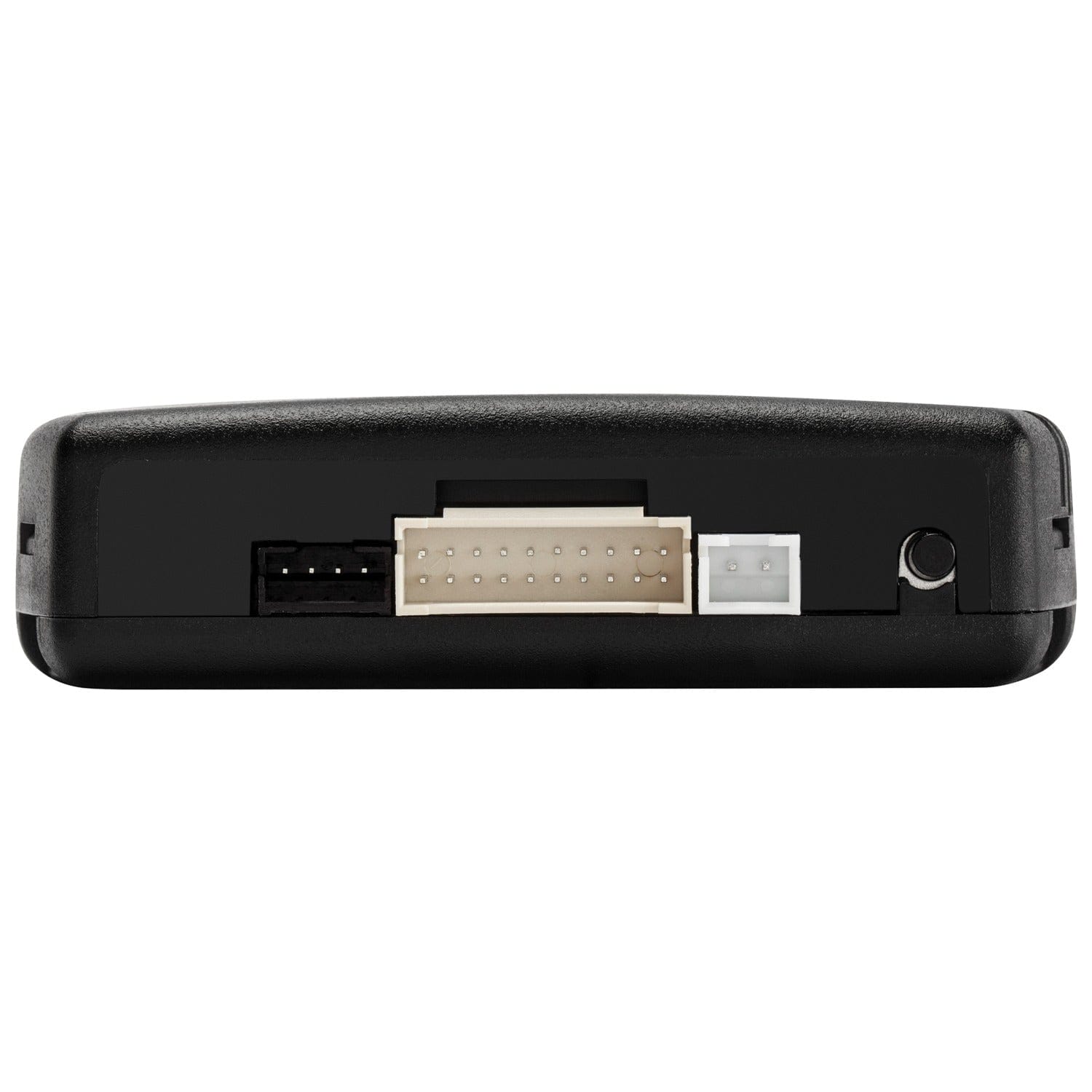

The Fortin EVO-ALL All-in-One Data Bypass and Interface Module from CrimeStopper is the ultimate data immobilizer bypass, keyless entry, convenience, low power remote start, and security interface combo module in the industry. It raises the standard of hassle-free installation to a whole new level. The EVO-ALL is the all-in-one solution for low-current ignition vehicles industry’s leader. Compatible with all Fortin and many third-party remote control mobile and RF solutions as well as with most vehicle OEM remotes, the EVO-ALL allows a whole world of remote control possibilities. The module uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.
Features
- Universal all-in-one data bypass and interface module
- Compatible with low-current ignition vehicles
- 3 onboard LEDs for simple programming and diagnostic
- Preloaded, updateable firmware
- 2-way data port for data-to-data communication to remote start, combination & security systems
- 3 CANbus controllers
- 3 general-purpose controllers - J1850, Class-2, encrypted key, etc.
- 2 onboard relays for easier installation on vehicle - SPDT and DPDT
- 1 analog controller 0 to 12-volt DC at 20-mV steps (Passlock®, MUX)
- 20-wire general purpose plug for wire-to-wire connection to nondatalink-equipped remote-start & security systems
- Self-learning algorithm automatically detects the vehicle during programming & adjusts accordingly
- Includes control module, installation cables, 20-pin general-purpose harness, 6-pin high-power harness, 4-pin Fortin® 2-way datalink harness, and 5-pin CANbus harness
