Description

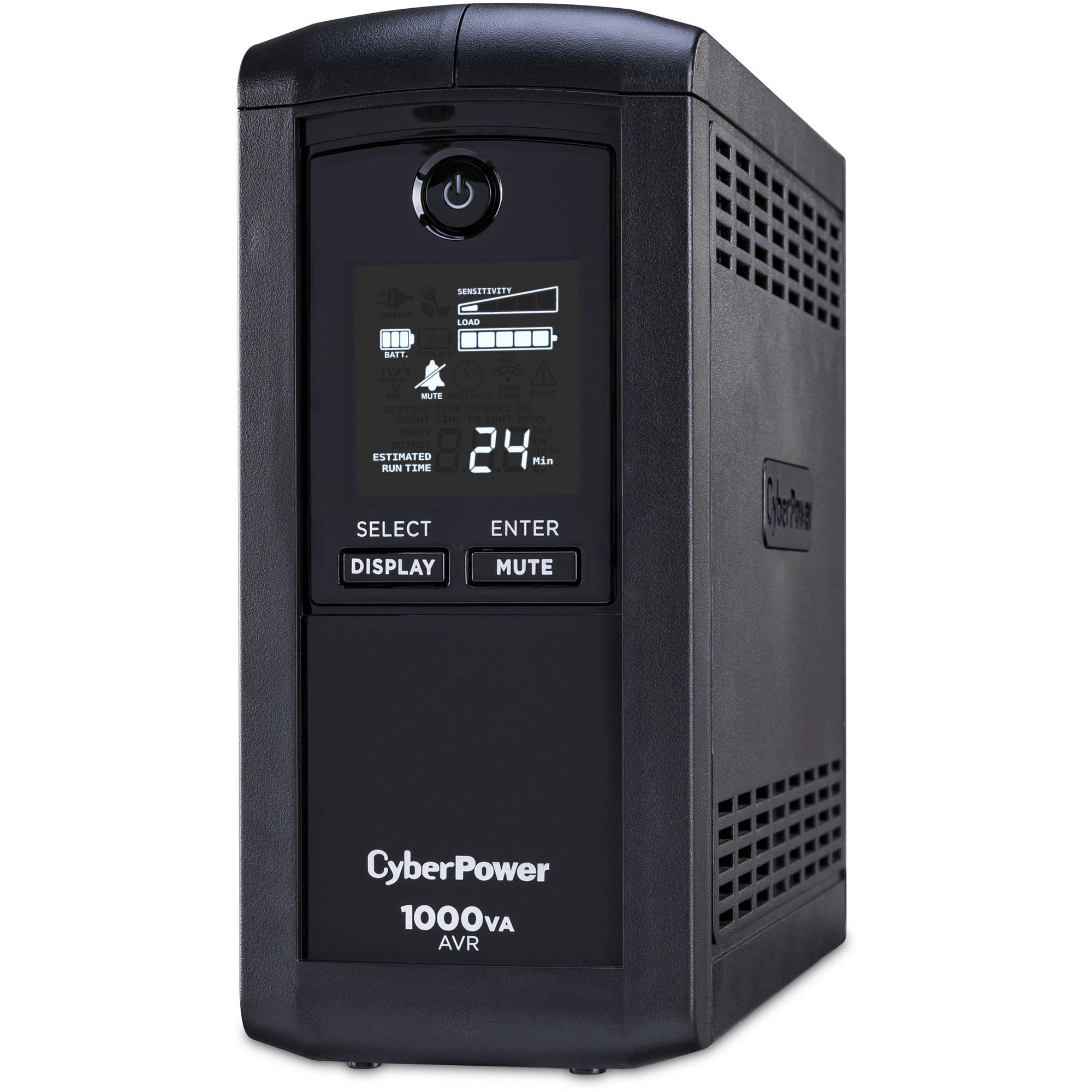

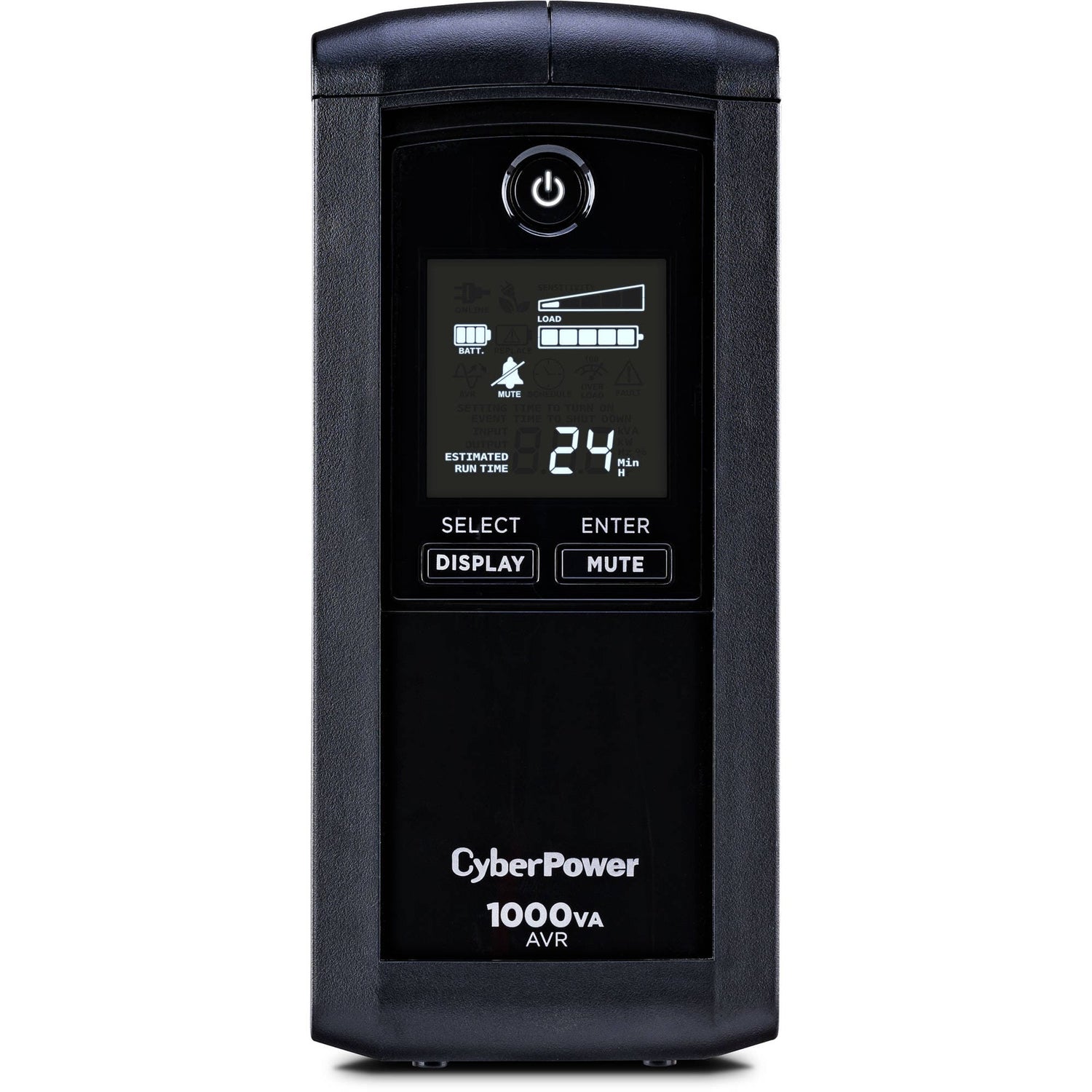

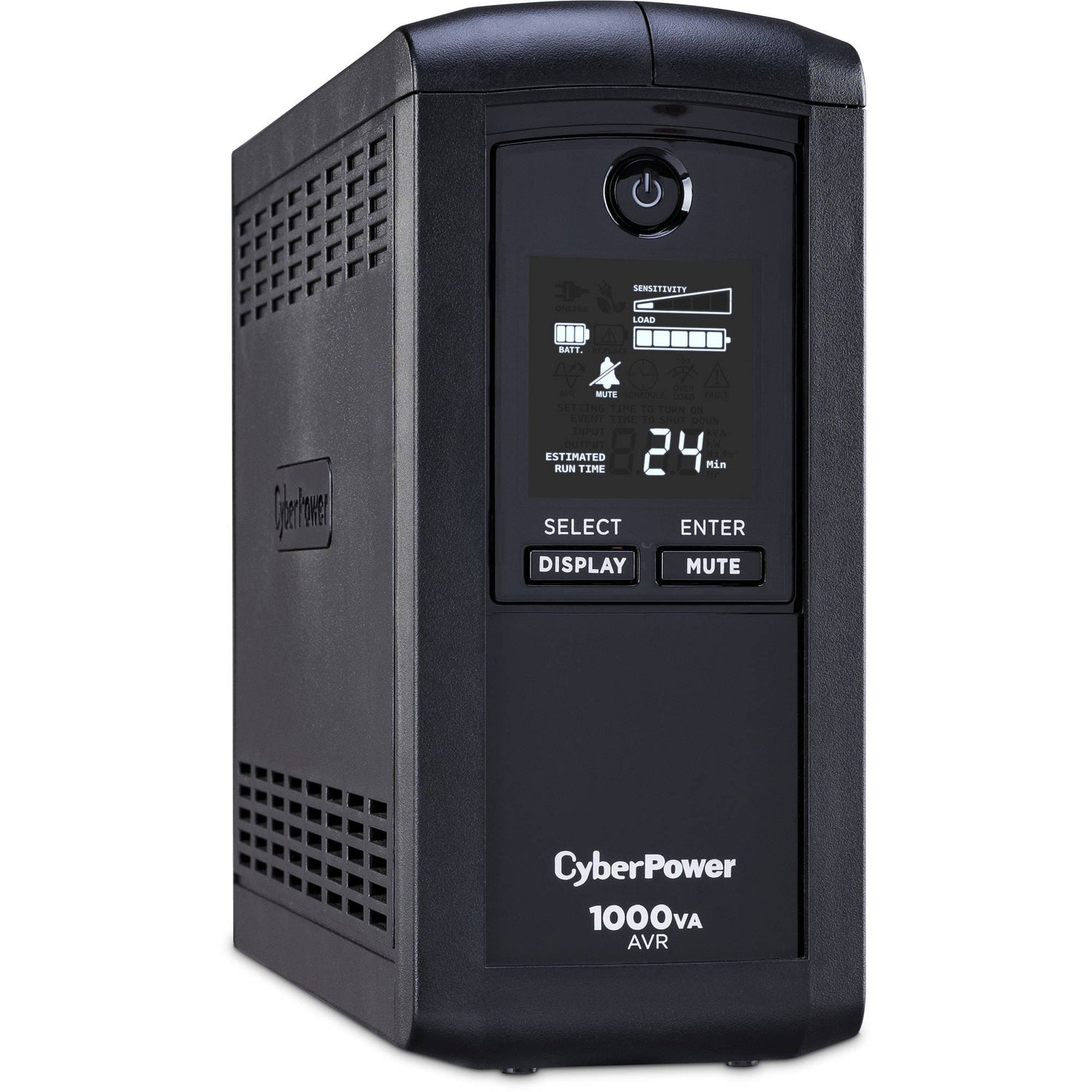

The CP1000AVRLCD Intelligent LCD UPS from CyberPower comes equipped with an output capacity of 1000VA / 600W that delivers power for up to nine electronic devices. This power supply features Automatic Voltage Regulation which provides consistent and clean AC power to all your connected equipment such as desktop computers, workstations, networking devices, home entertainment systems, and more. Furthermore, it has integrated circuitry for EMI/RFI filters. The Intelligent LCD UPS provides an integrated panel for displaying real-time UPS vitals, such as load capacity %, battery charge %, input/output voltage and frequency, estimated runtime, and more. This mini-tower power supply offers nine total outlets that are capable of absorbing up to 1080 joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, five of the NEMA 5-15R outlets are battery and surge protected using internal circuitry limiting and a circuit breaker, while the other four just provide surge protection. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6 ports. This power supply is Energy Star qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Personal Edition UPS management software for Windows systems. This software requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime.
Features

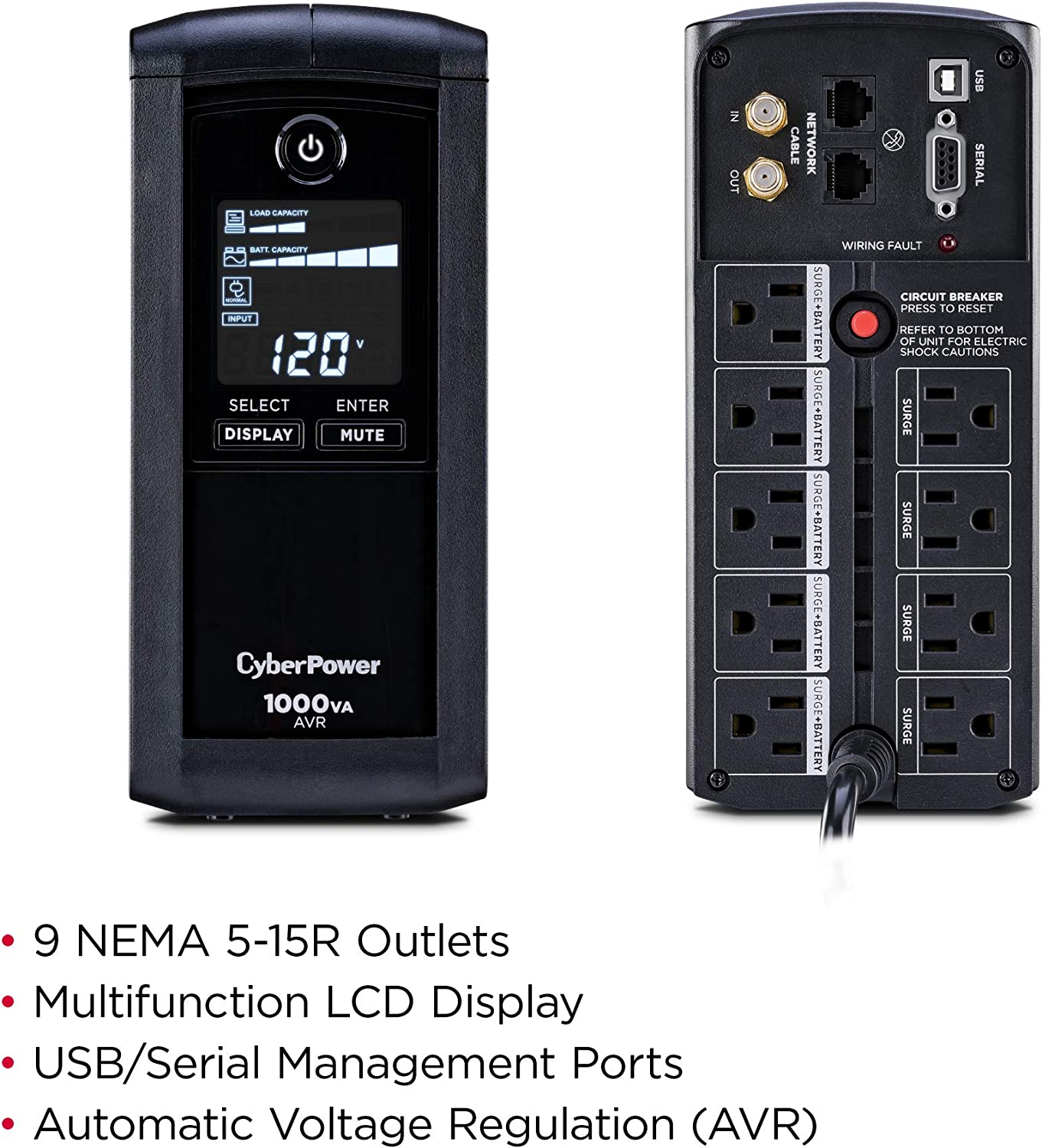

- Output: 1000VA / 600W
- Input: 120V @ 60 Hz ±3 Hz
- 5 x Battery/Surge Protected Outlets
- 9 x Total NEMA 5-15R Outlets
Specifications
|
General
|
|

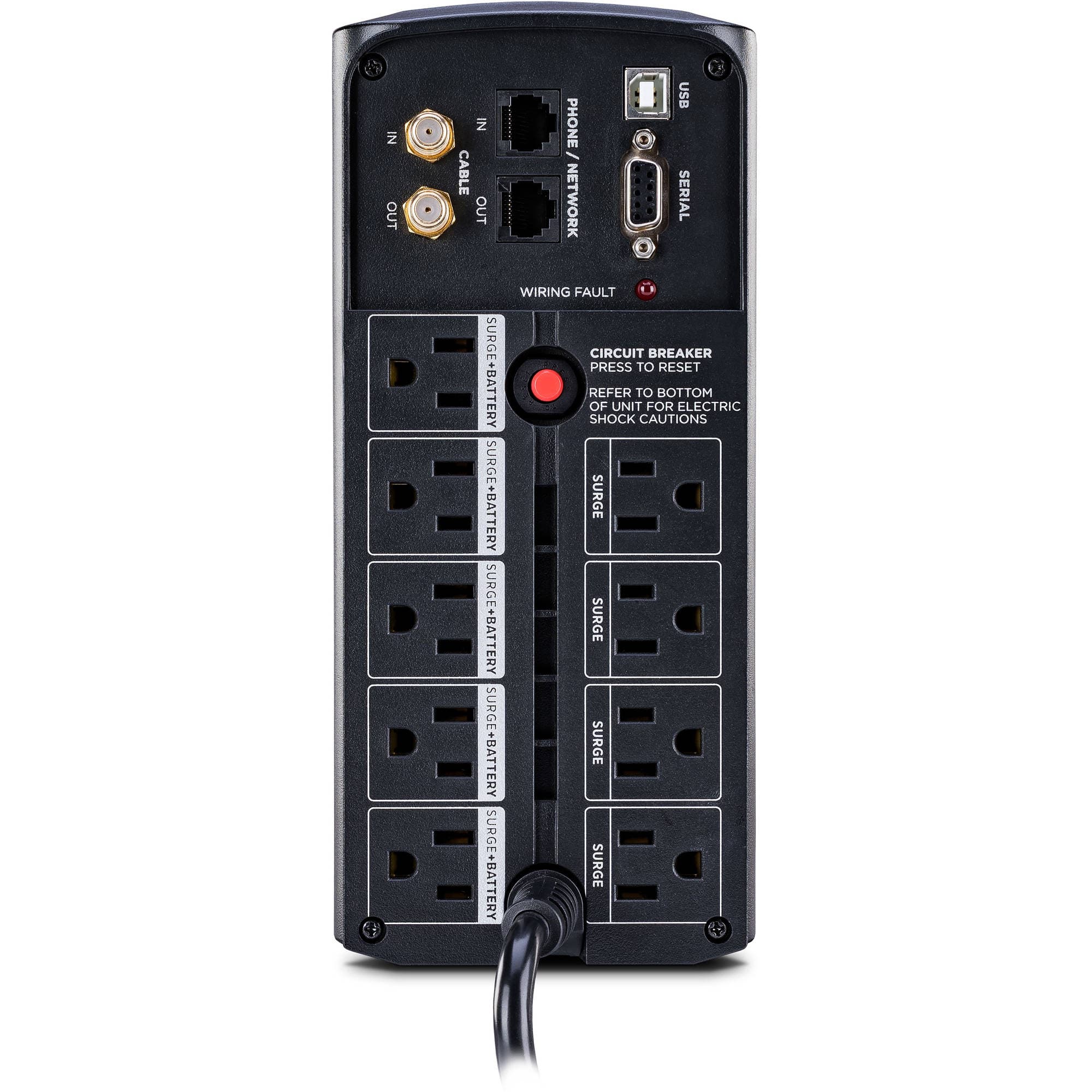

| Total Outlets | 9 x NEMA 5-15R |
| Protected Outlets | 5 x NEMA 5-15R (Battery and Surge) |
| 4 x NEMA 5-15R (Surge Only) | |

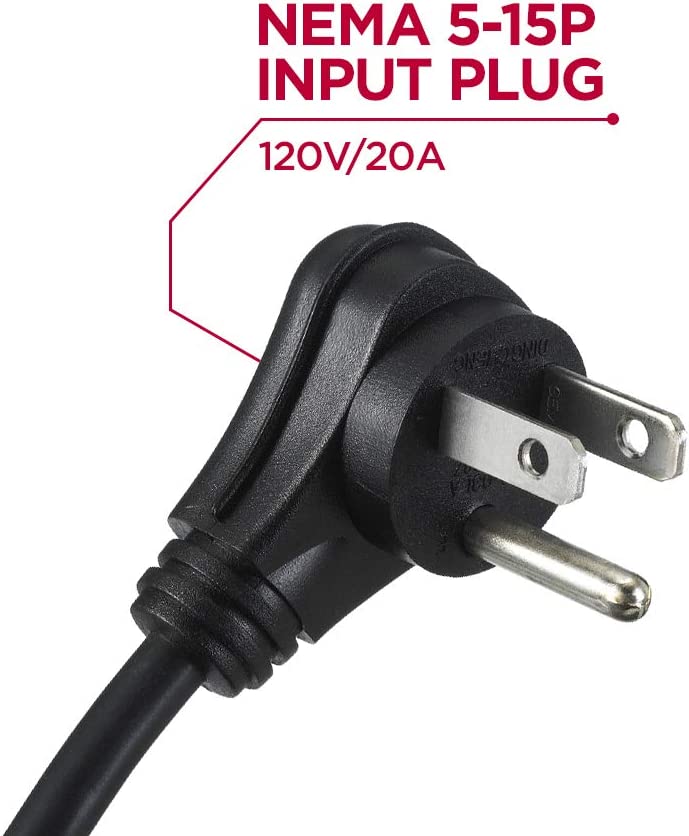

| Plug Type | NEMA 5-15P Offset Right-Angle |
| Coax Protection | 1-In |
| 1-Out | |
| Data Line Protection | RJ11, RJ45 |
| Communications | Serial via DE-9/DB-9 |
| USB via Type-B | |
| Topology | Line Interactive |
| Transfer Time | 4 ms |
|
Power
|
|
| Surge Energy Rating | 1080 Joules |
| Maximum Current | 12 A |
| Maximum Wattage | 600 W |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Adjustable Range | 90 to 142 VAC |
| Input Frequency | 60 Hz ± 3 Hz |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 60 Hz ± 1% |
| Load Capacity | 1000 VA |
| Waveform | Simulated Sine Wave |
|
Battery
|
|
| Cells | 1 |
| Battery Capacity | 108 VAh |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 2 Minutes |
| Half-Load Runtime | 9 Minutes |
| Recharge Time | 8 Hours |
| User Replaceable | Yes |
| Replacement Battery | RB1290 |
| Hot-Swap Support | Yes |
|
Environmental
|
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Storage Humidity | 0 to 95% (Non-Condensing) |
| Operating Altitude | 0 to 10,000' / 0.0 to 3048 m |
| Storage Altitude | 0 to 50,000' / 0.0 to 15,240 m |
| Certifications | FCC, RoHS, cUL |
| *as per Manufacturer | |
|
Physical
|
|
| Cable Length | 6' / 1.8 m |
| Material of Construction | Plastic |
| Rackmount Size | None |

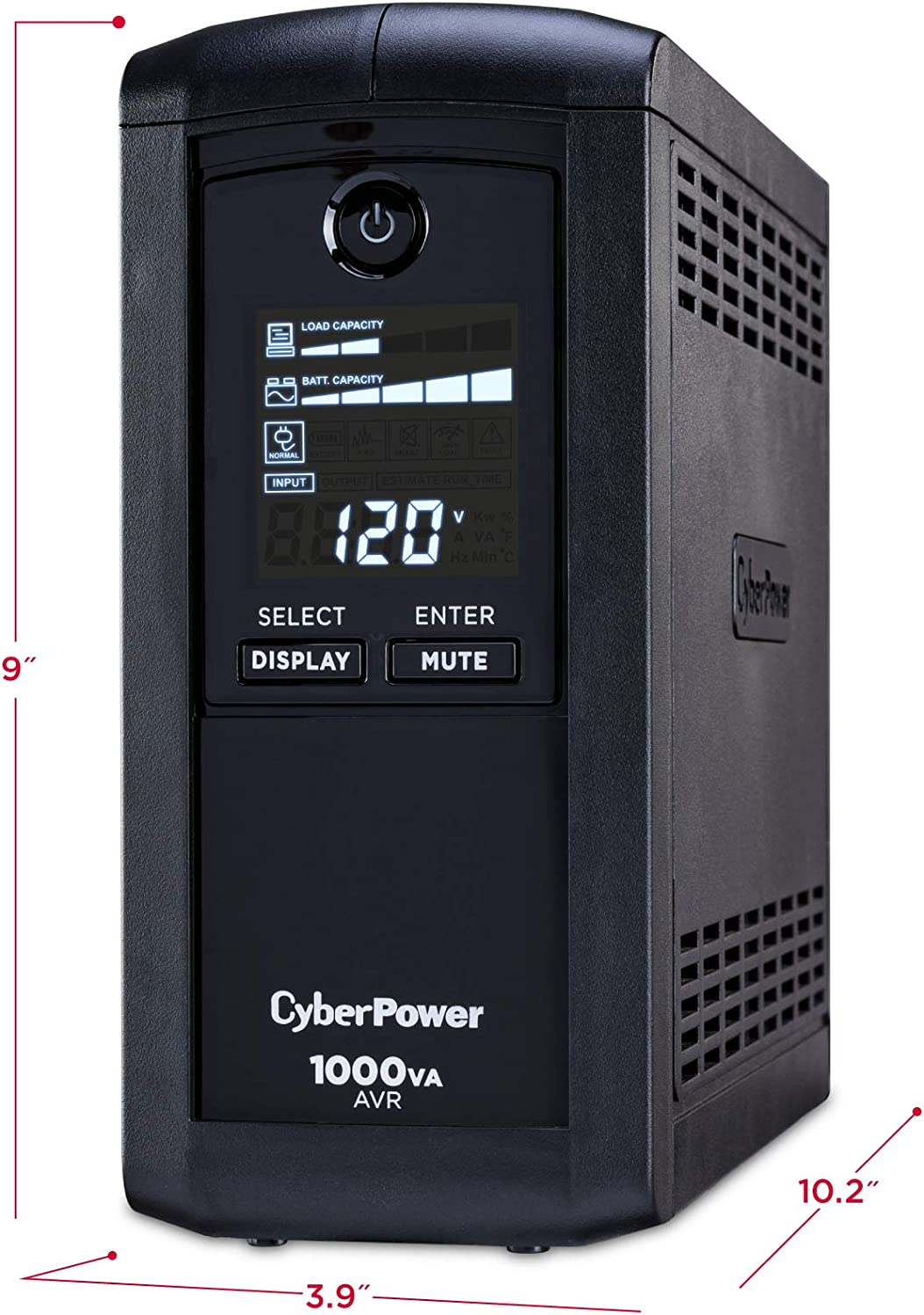

| Dimensions (W x H x D) | 3.9 x 9 x 10.2" / 9.9 x 22.9 x 25.9 cm |
| Weight | 15 lb / 6.8 kg |
