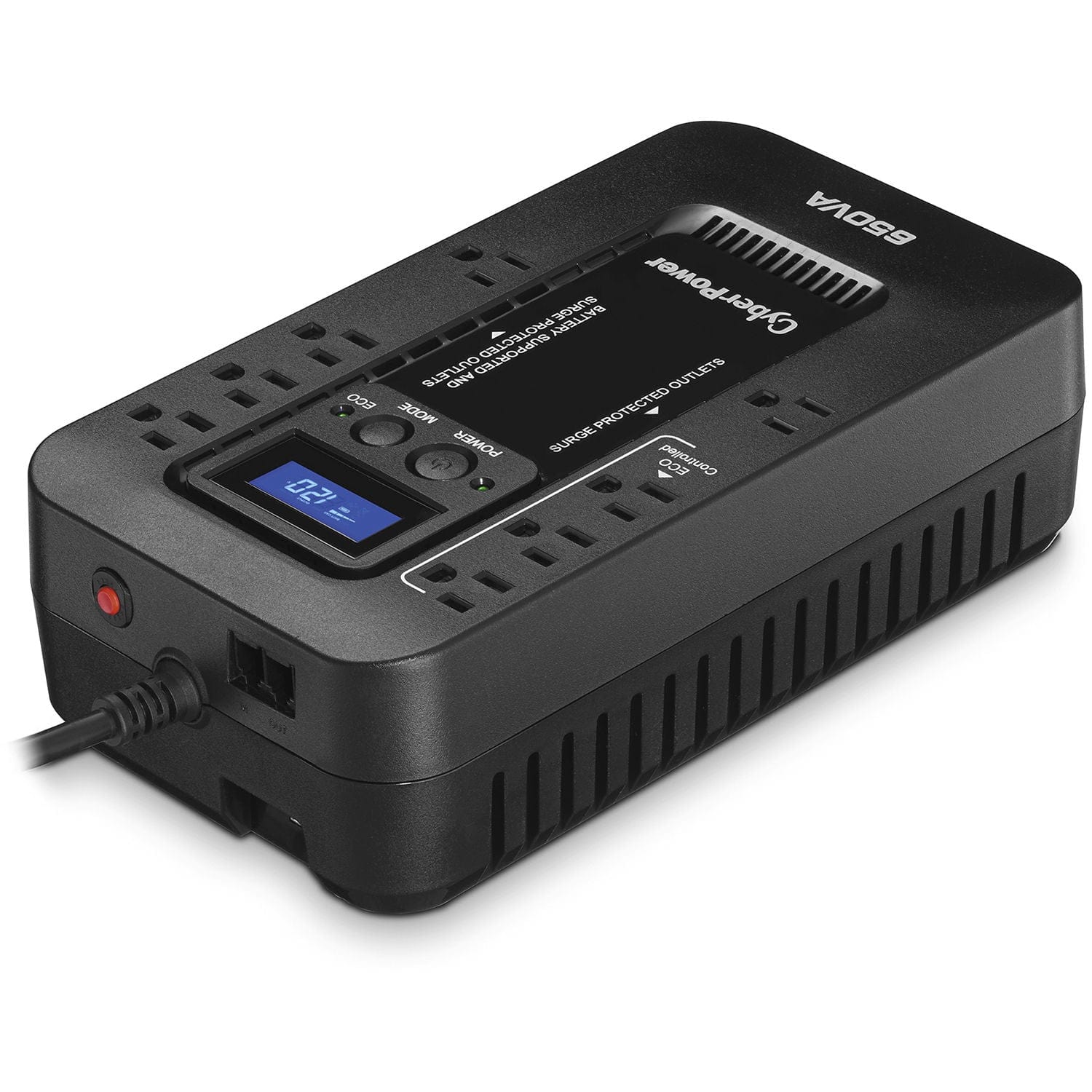

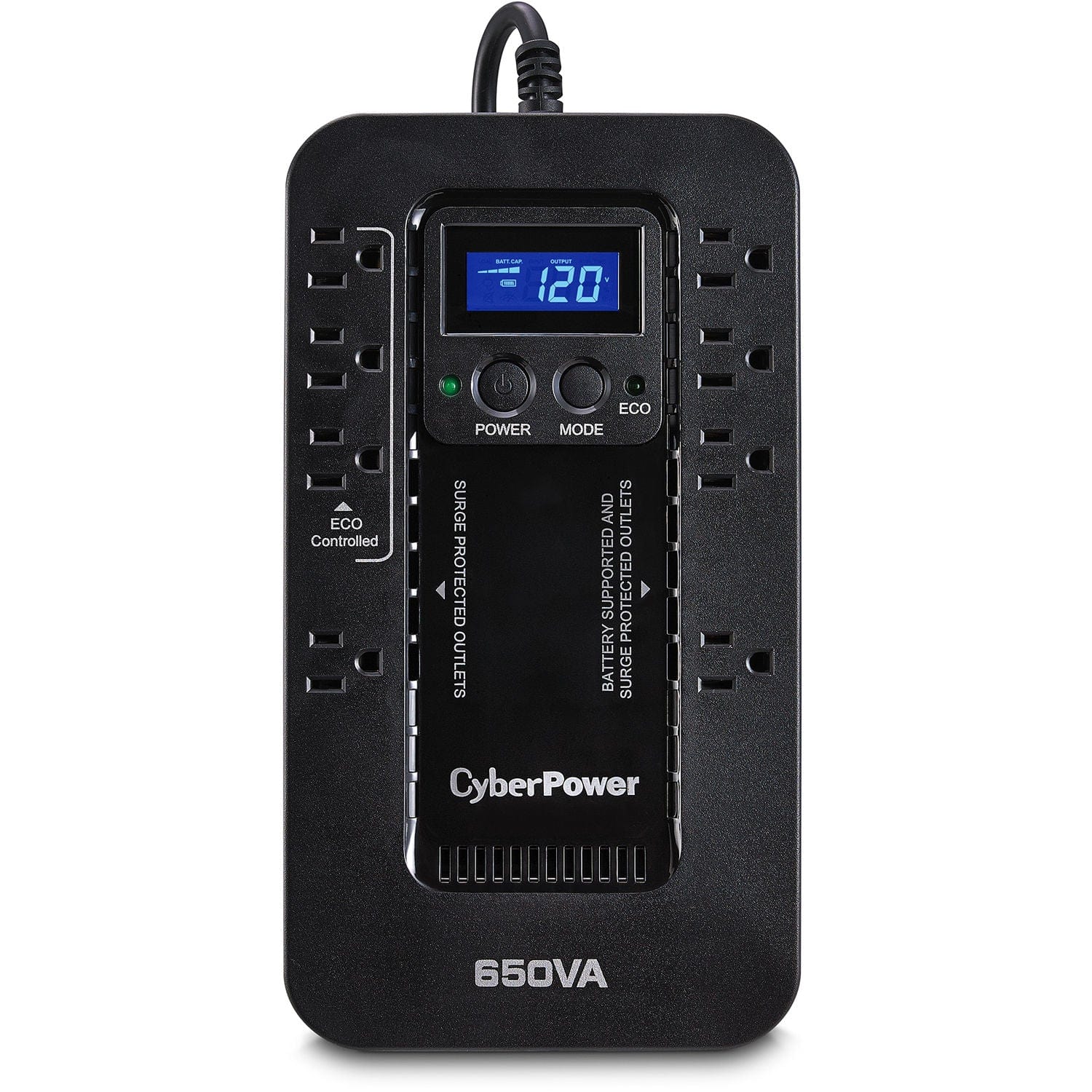

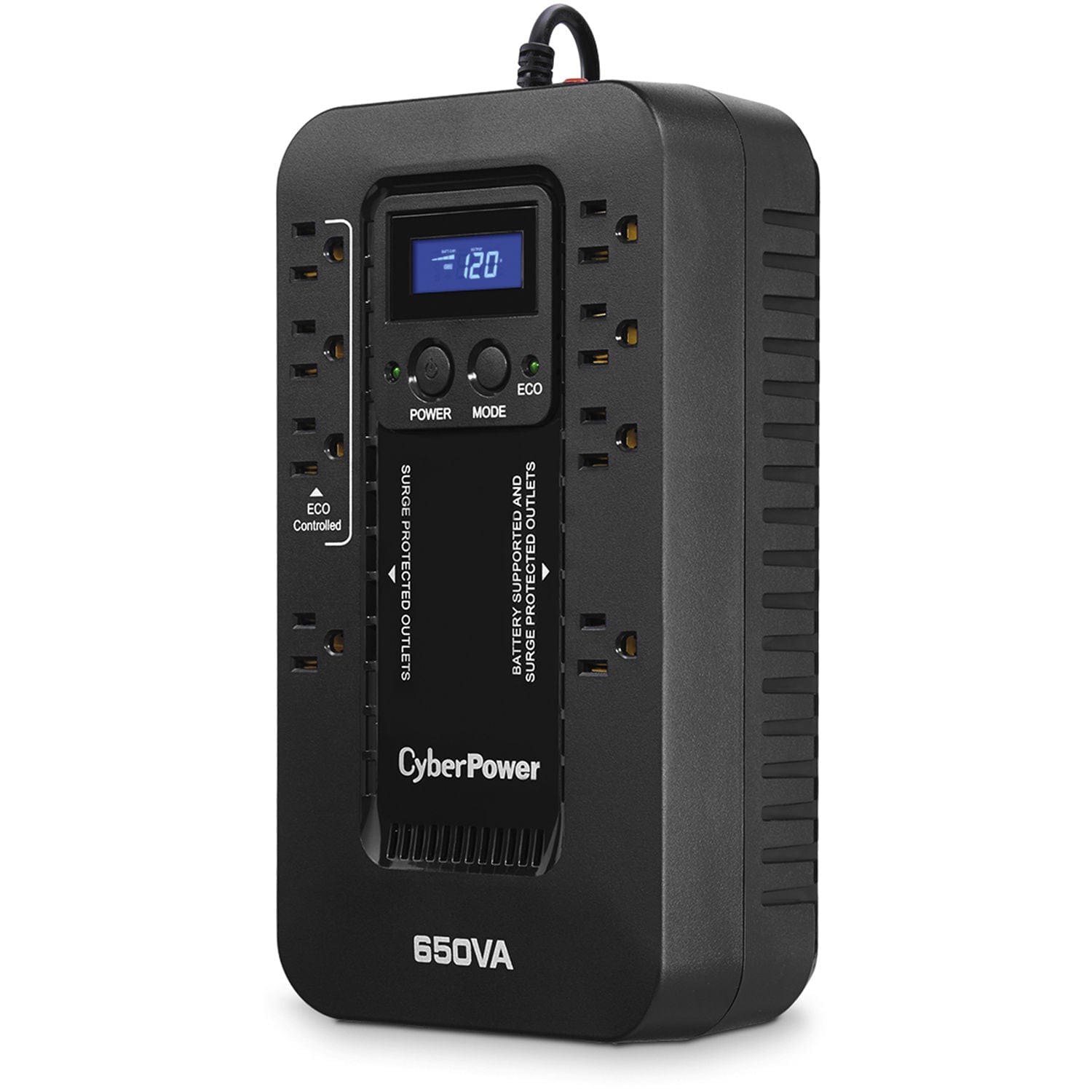

CyberPower 650VA/390W 8 Outlets ECO LCD UPS - New Battery Certified Refurbished

CyberPower EC650LCD-R 650VA/390W 8 Outlets ECO LCD UPS - New Battery Certified Refurbished

Description

The EC650LCD Ecologic Series Uninterruptible Power Supply from CyberPower comes equipped with eight electrical outlets. Three of these outlets are eco controlled outlets designed to conserve energy by cutting power to USB connected peripherals when that computer is in sleep mode. This UPS also comes equipped with four battery- and surge-protected outlets and four surge-only protected outlets, providing both surge protection and battery backup in the case of a power interruption. The integrated LCD display lets you view a variety of characteristics within the UPS, including input and output voltage levels, battery capacity, load capacity, and more. The included sealed lead-acid battery comes with a typical recharge time of 8 hours along with a 10.7 minute run time at 160W and 2.8 minutes at 325W. The integrated surge protected outlets are capable of absorbing up to 526 Joules keeping your attached electrical devices safe from harmful spikes in electrical current. Also included with this UPS is CyberPower's own PowerPanel Personal Edition software. When this software is used with a compatible Windows-based PC, you can instruct the PowerPanel software to save open files, set the machine to hibernate mode, and safely shut down the PC when the backup battery is depleted.

Features

• 650VA/390W Simulated Sine Wave UPS
• 8 Outlets
• Energy-Conserving ECO Technology
• 2 Minutes Full-Load Runtime
• Multifunction Diagnostic LCD
• Standby Topology

ECO Mode

The user selectable ECO mode removes power to computer peripherals connected to the ECO designated outlets when the UPS detects the computer, connected to the UPS via USB, is turned off or in sleep mode. This results in additional cost savings by eliminating the power consumption of idle devices.

Intelligent Multifunction Diagnostic Display

With an integrated front panel display, you can view multiple UPS vitals including input voltage level, output voltage level, battery capacity, runtime estimate, load capacity, normal mode, battery mode, overload, and silent mode.

Energy-Saving Technology

This ENERGY STAR qualified UPS system utilizes CyberPower's own patented GreenPower UPS High Efficiency design to reduce power consumption by increasing power efficiency to greater than 98% to save costs and reduce emissions.

Ultra-Quiet Operation

This uninterruptable power supply comes with reduced sound emissions.

EMI/RFI Filters

Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.

Transformer-Spaced Outlets

Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.

USB Connectivity

The integrated HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS.

Convenient Mounting

Compact size for mounting horizontal or vertical.

LED Indicators

LED status lights indicate Power-On and ECO on/off.

Audible Alarms

Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.

Resettable Circuit Breaker

The user may use this convenient unit reset switch in case of an overload.

PowerPanel Personal Edition

In the event of a power outage, PowerPanel Personal Edition saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screen display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.

Windows Compatibility

The included PowerPanel power management software has been fully tested and is compatib

Specifications

General
Total Outlets	8 (2 Transformer-Sized)
Protected Outlets	4 (Battery and Surge)
	4 (Surge Only)
Plug Type	NEMA 5-15P Offset Right-Angle
Topology	Standby
Transfer Time	4 ms
Power
Surge Energy Rating	526 Joules
Maximum Wattage	390 W
Input Voltage Adjustable Range	96 to 140 VAC
Input Frequency	50/60 Hz ± 3 Hz
Nominal Output Voltage	120 VAC
Output Frequency	50/60 Hz ± 1% (Auto Sensing)
Load Capacity	650 VA
Waveform	Simulated Sine Wave
Battery
Chemistry	Lead-Acid
Full-Load Runtime	2 Minutes
Half-Load Runtime	8 Minutes
Recharge Time	8 Hours
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 90%
Storage Temperature	5 to 113°F / -15 to 45°C
Storage Humidity	0 to 95%
Operating Altitude	10,000' / 3000 m
Storage Altitude	50,000' / 15,000 m
Certifications	RoHS
	*as per Manufacturer
Physical
Cable Length	5' / 1.5 m
Rackmount Size	None
Dimensions (W x H x D)	10.6 x 3.1 x 5.9" / 26.9 x 7.9 x 15 cm
Weight	6.4 lb / 2.9 kg
Packaging Info
Package Weight	7.2 lb
Box Dimensions (LxWxH)	13.5 x 8.25 x 4.4"
