Description
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1350AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1350AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Features
- Battery Backup - Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection - Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Automatic Voltage Regulation (AVR) - AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
- Multifunction, Color LCD - Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Data Line Protection - Prevents power surges that travel through coaxial and ethernet lines from causing damage to electronics.
- Line Interactive Topology - Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Simulated Sine Wave Output - Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
- ENERGY STAR - This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- GreenPower UPS™ Bypass Design - A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Ultra Quiet Design - Minimizes noise during operation for a quieter work environment.
- PowerPanel® Personal Software - Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
Specifications
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Replacement Battery Cartridge | RB1290X2E |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 4 min |
| Runtime at Half Load | 14 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 12 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Surge-Only Protected | 6 |
| Outlets – Total | 12 |
| Output Power Factor | 0.6 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port Type | 1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 20 Watts |
| VA | 1350 VA |
| Watts | 815 W |
| Surge Protection & Filtering | |
| Coax Protection RG6 | 1 in 1 out |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1500 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On Wiring Fault |
| Management Cable | USB Cable |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |

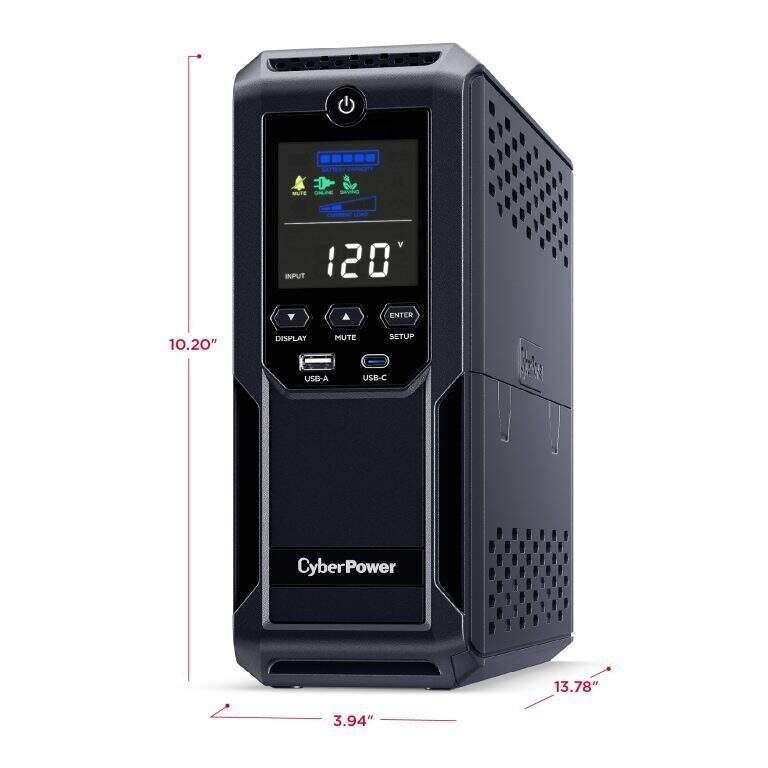

| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 10.01 x 25.91 x 35.0 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.94 x 10.2 x 13.78 (in) |
| Physical Dimensions – (WxHxD) (mm) | 100 x 259 x 350 (mm) |
| Physical Weight (kg) | 10.8 |
| Physical Weight (lb) | 23.8 |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 cUL 107 5th FCC DOC Class B |
