Description
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Features
- 500VA/300W Smart App LCD Uninterruptible Power Supply (UPS): Uses simulated sine wave output to provide battery backup power to protect department and workgroup servers, network devices, and telecom installations without Active PFC power supplies

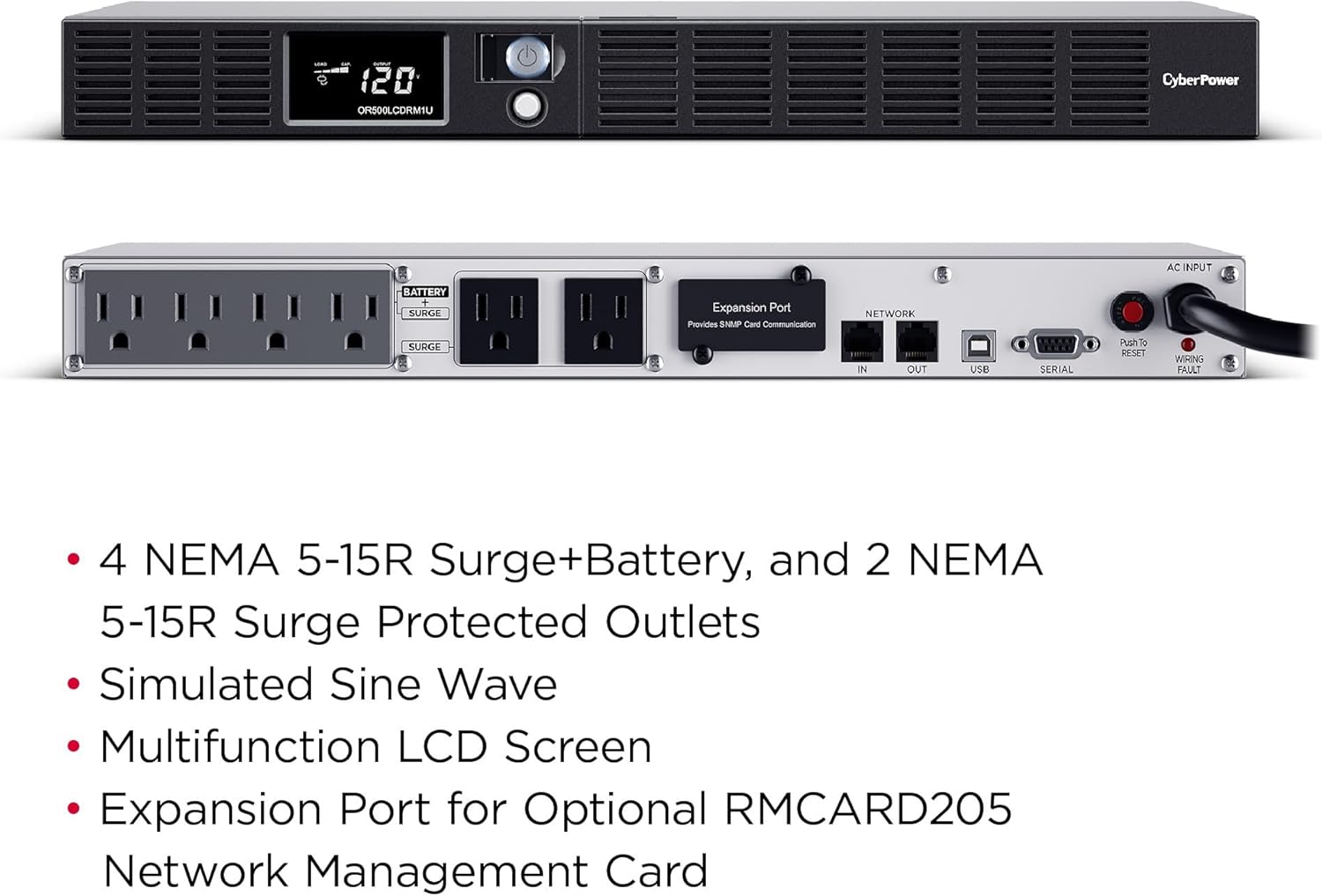

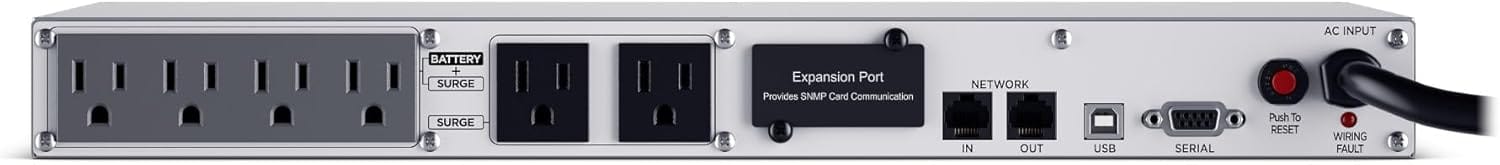

- SIX NEMA 5-15R OUTLETS: Four battery backup and surge protected outlets; Two Surge protected outlets
- INPUT: 15A, NEMA 5-15P straight plug with 10 foot power cord

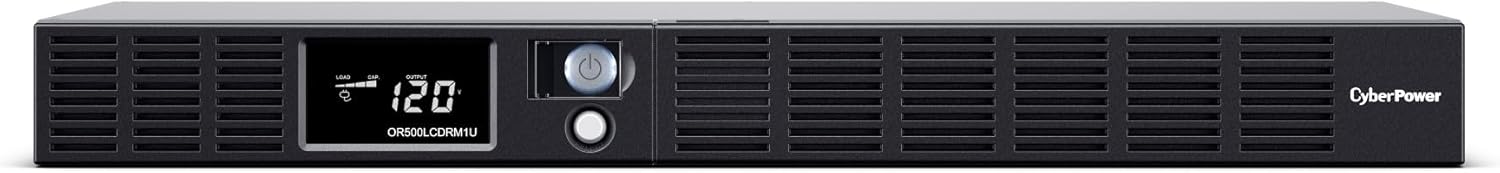

- MULTIFUNCTION LCD PANEL: Provides runtime in minutes, battery status, power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime
- REMOTE MANAGEMENT: Requires optional RMCARD205 management card
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power
- UL SAFETY CERTIFIED: Product has been tested in a UL certified lab and listed with UL as meeting or exceeding safety standards
Specifications
| Brand | CyberPower |
| Color | Black |
| Enclosure Material | Metal |
| Voltage | 120 Volts |
| Amperage | 15 Amps |
| Battery Charge Time | 8 Hours |
| Form Factor | Rack |
| Input Voltage | 120 Volts |
| Maximum Power | 300 Watts |
| Surge Protection Rating | 1150 Joules |
| Output Current | 2.5 Amps |
| Output Voltage | 50 Volts |
| Power Plug Type | No Plug |
| Connector Type | NEMA |
| Number of Outlets | 6 |
| Battery Average Life | 3 years |
| Output Wattage | 300 Watts |
| Wattage | 300 Watts |
| Frequency Range | 57 Hz – 63 Hz |
| Runtime | 3 minutes |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| Specification Met | UL Certified |

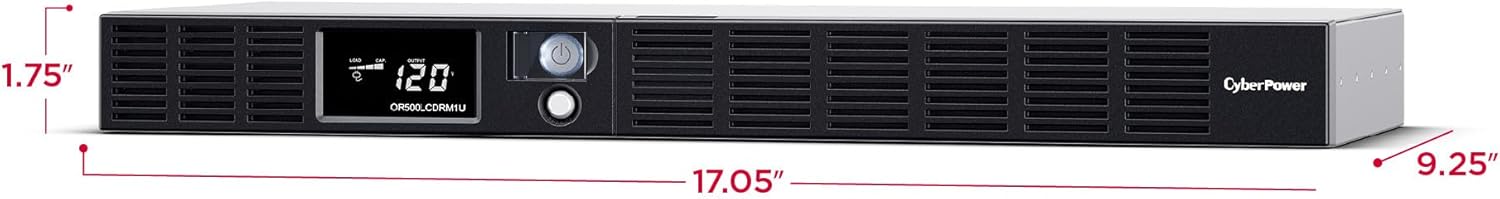

| Product Dimensions | 9.25"D x 17.05"W x 1.75"H |
| Item Weight | 18 Pounds |
