Description

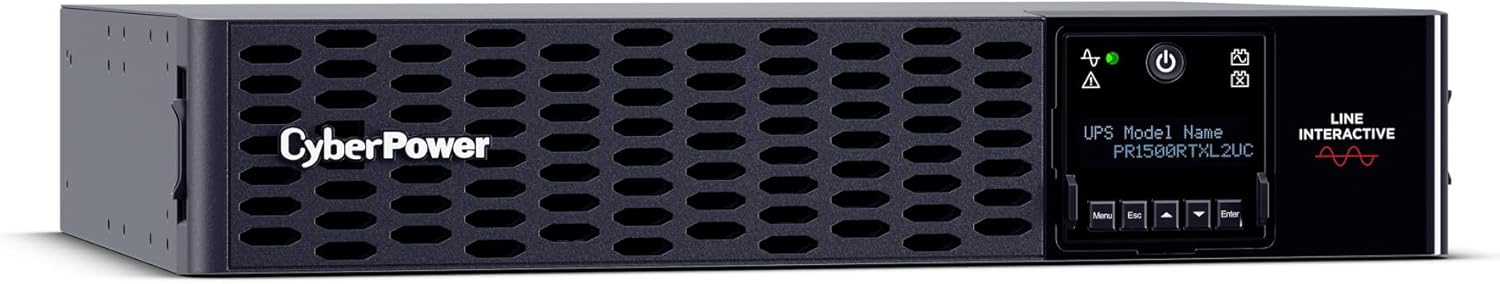

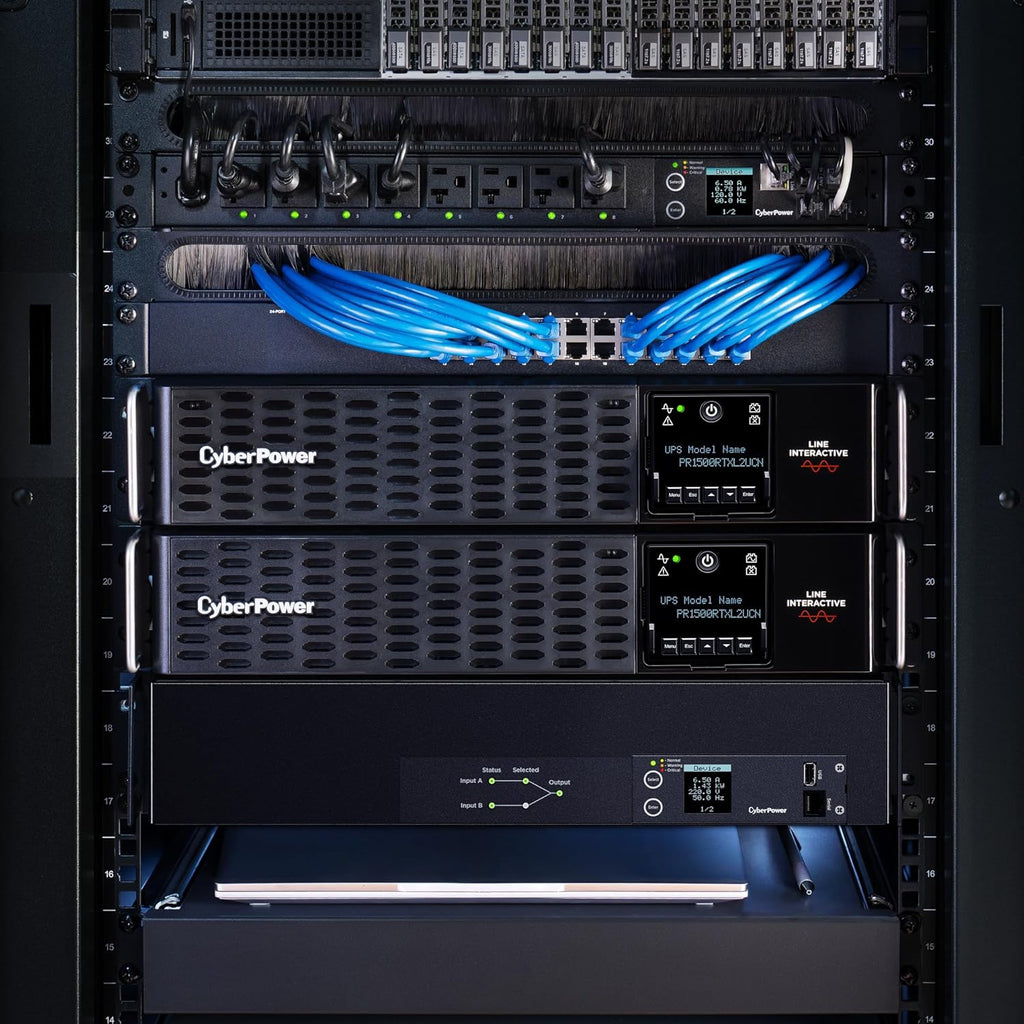

The PR1500RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns. The Smart App Sinewave PR1500RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Built-in cloud monitoring.
Features
- 1500VA/1500W Smart App Sinewave Uninterruptible Power Supply (UPS): Uses sine wave output to provide battery backup power for Active PFC & conventional power supplies
- REMOTE MANAGEMENT: Requires optional RMCARD205 management card (sold separately)

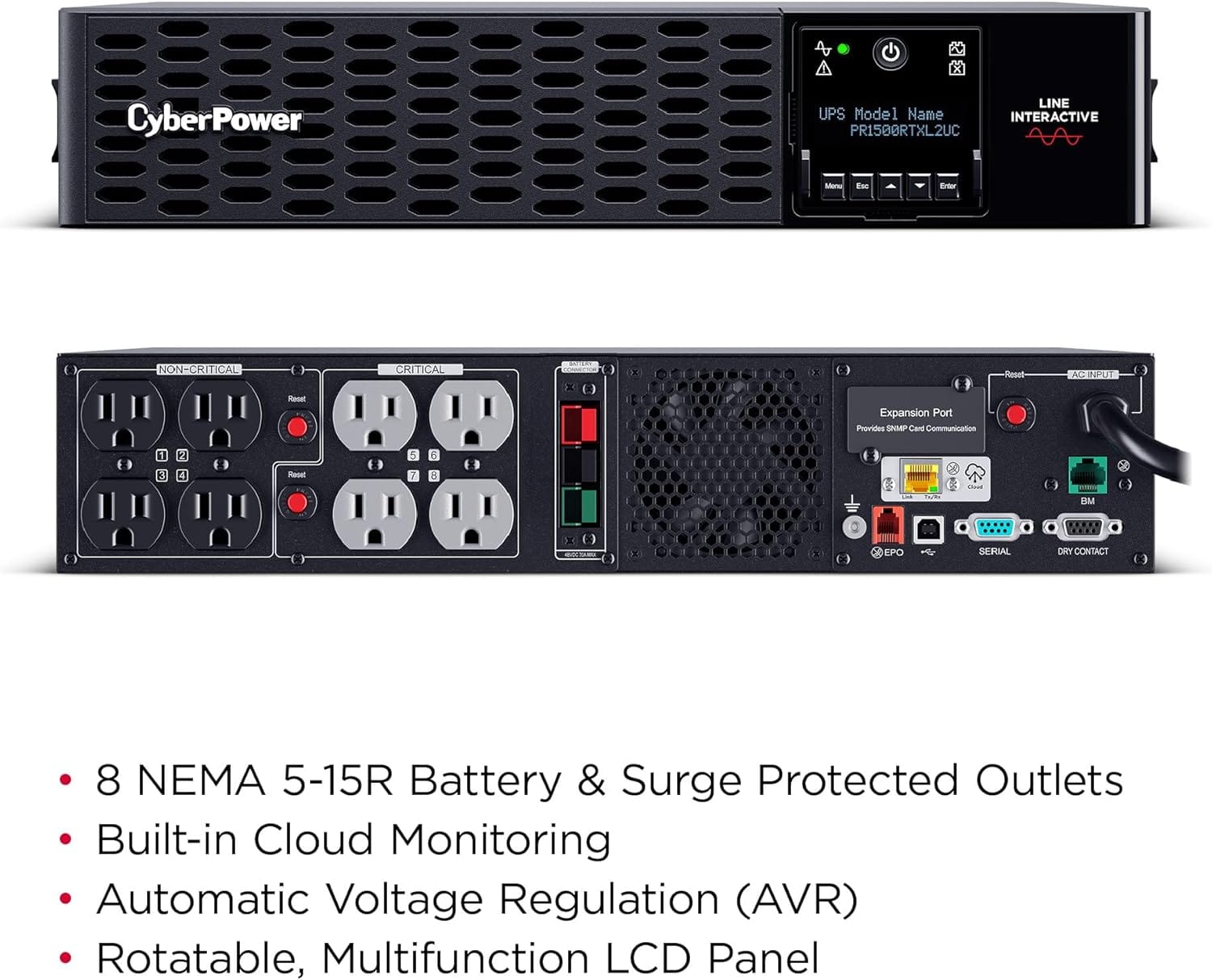

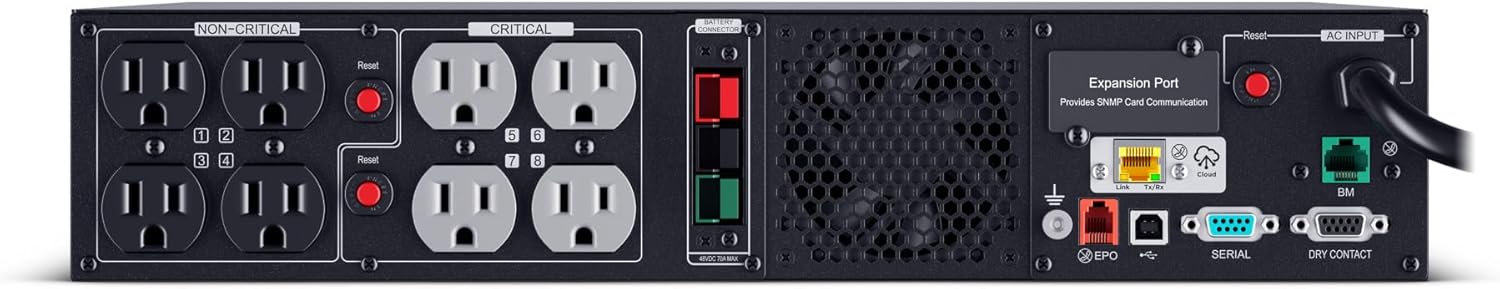

- EIGHT NEMA 5-15R OUTLETS: Provide battery backup and surge protection to safeguard corporate and network servers, telecom installations, and VoIP systems
- INPUT: NEMA 5-15P right angle, 45 degree offset plug with 10 foot power cord

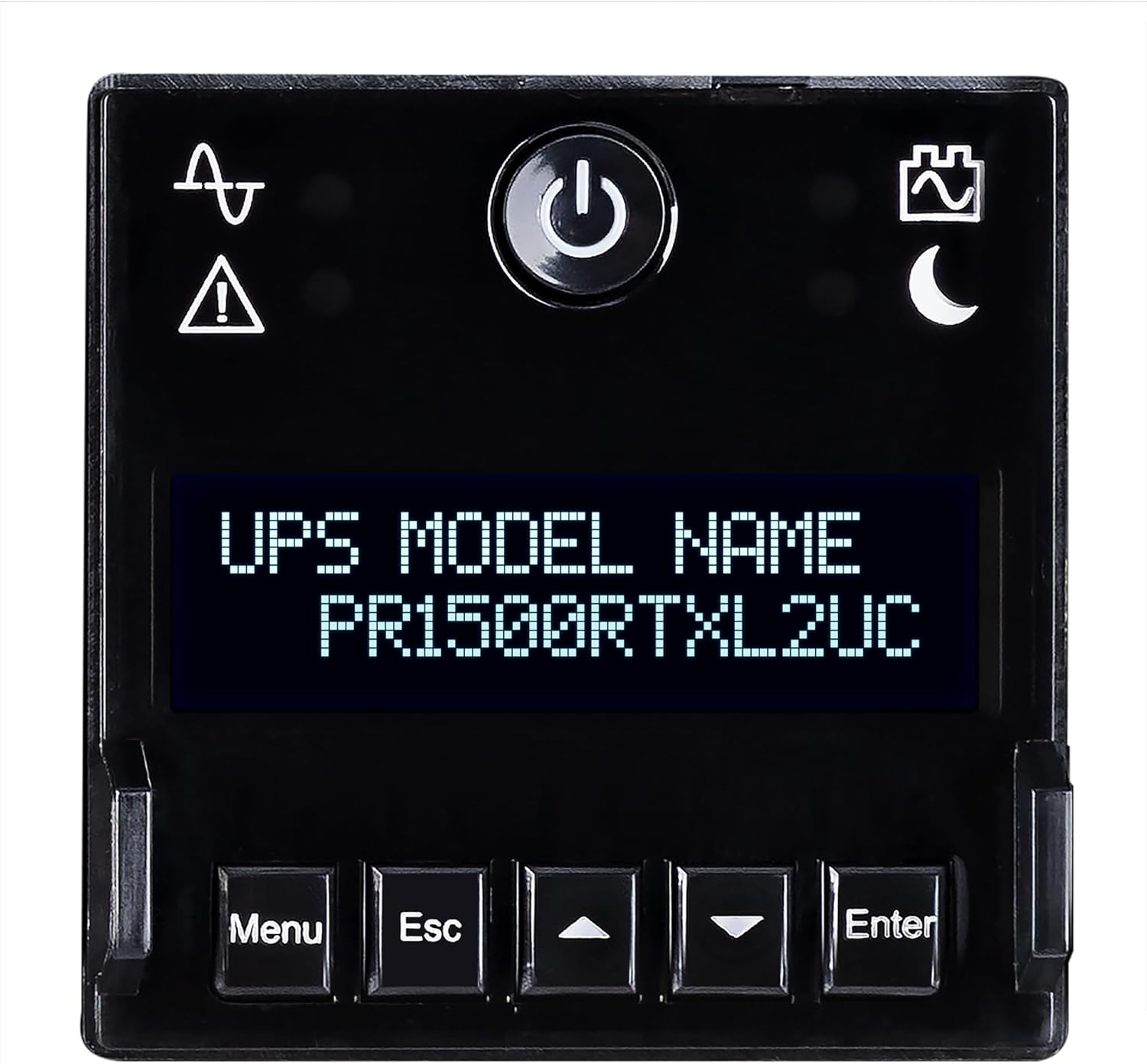

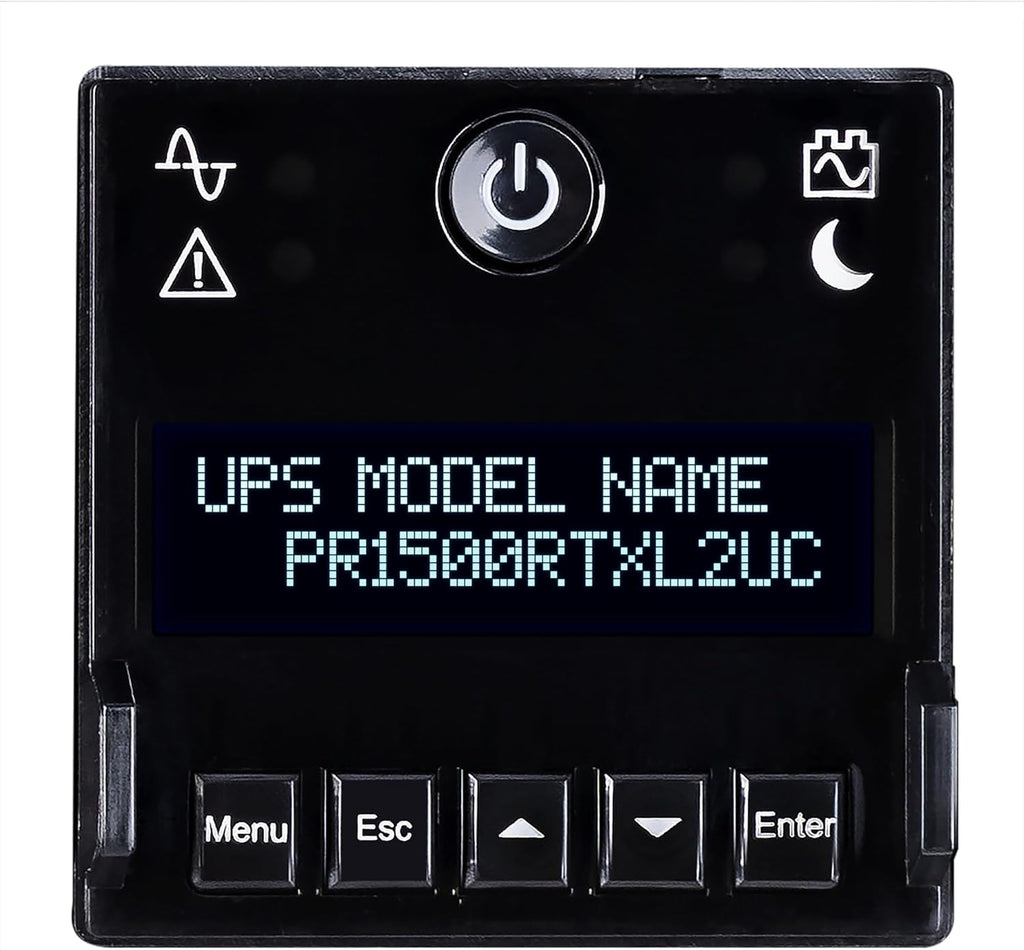

- TILTABLE, ROTATABLE MULTIFUNCTION LCD PANEL: Provides UPS status, setup, control management, etc.

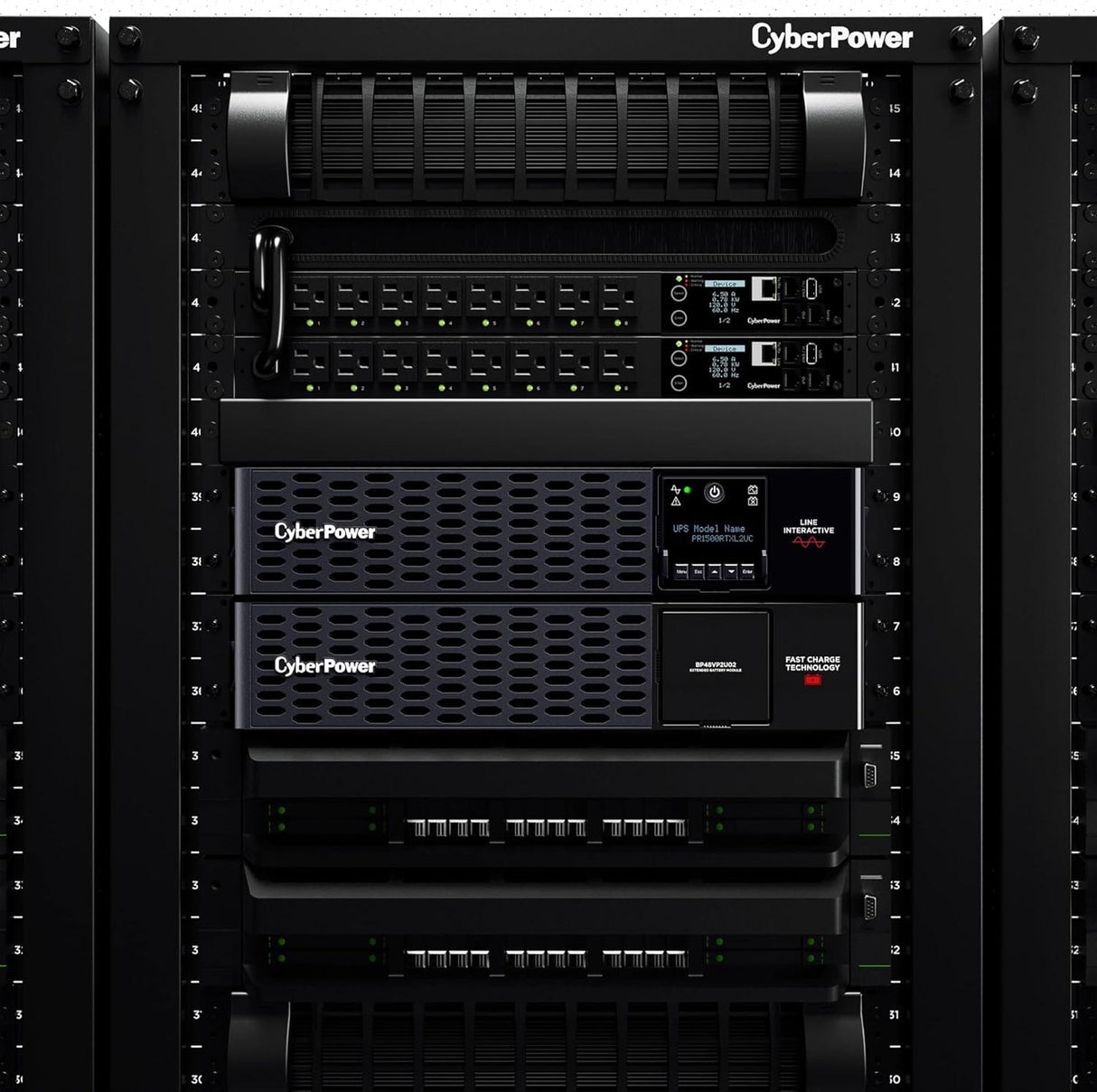

- EBM OPTION: Extended Battery Module BP48VP2U02 can be added for expanded runtimes
- BUILT-IN CLOUD MONITORING: Allows remote monitoring of the UPS
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power
- UL SAFETY CERTIFIED: Product has been tested in a UL certified lab and listed with UL as meeting or exceeding safety standards
Specifications
| Brand | CyberPower |
| Color | Black |
| Enclosure Material | Metal |
| Battery Cell Type | Sealed Lead Acid |
| Voltage | 120 Volts |
| Amperage | 15 Amps |
| Form Factor | Rack / Tower |
| Input Voltage | 120 Volts |
| Maximum Power | 1500 Watts |
| Surge Protection Rating | 2430 Joules |
| Output Current | 12.5 Amps |
| Output Voltage | 120 Volts |
| Power Plug Type | Type A - 2 pin (North American) |
| Connector Type | NEMA |
| Number of Outlets | 8 |
| Output Wattage | 1500 Watts |
| Wattage | 1500 Watts |
| Frequency Range | 47 Hz – 63 Hz |
| Runtime | 6 minutes |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| Specification Met | UL 508 |

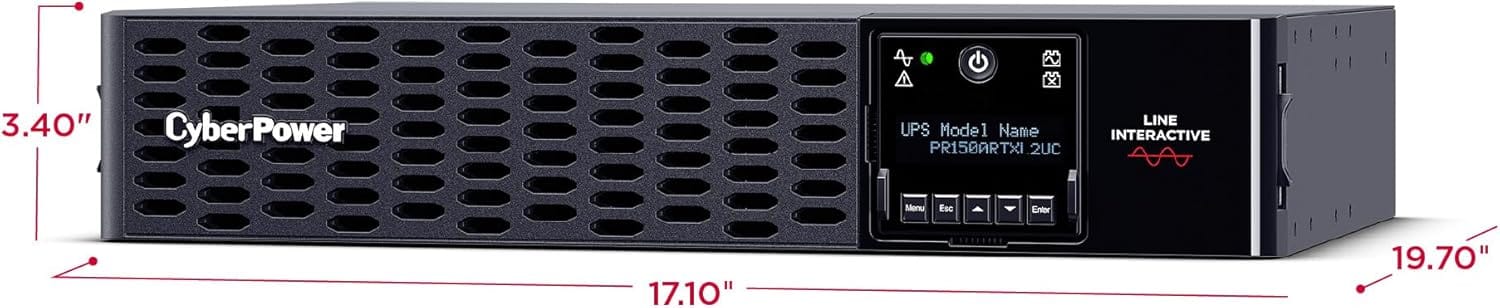

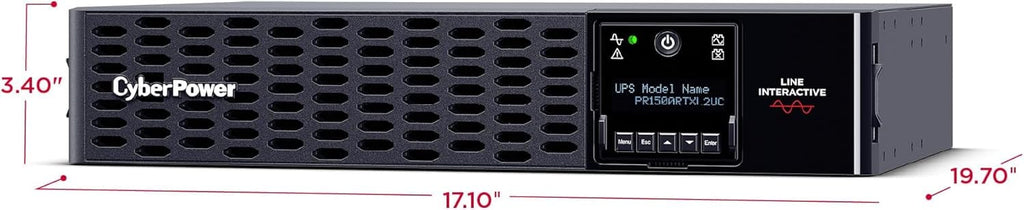

| Product Dimensions | 19.7"D x 17.1"W x 3.4"H |
| Item Weight | 67.7 Pounds |
