Description

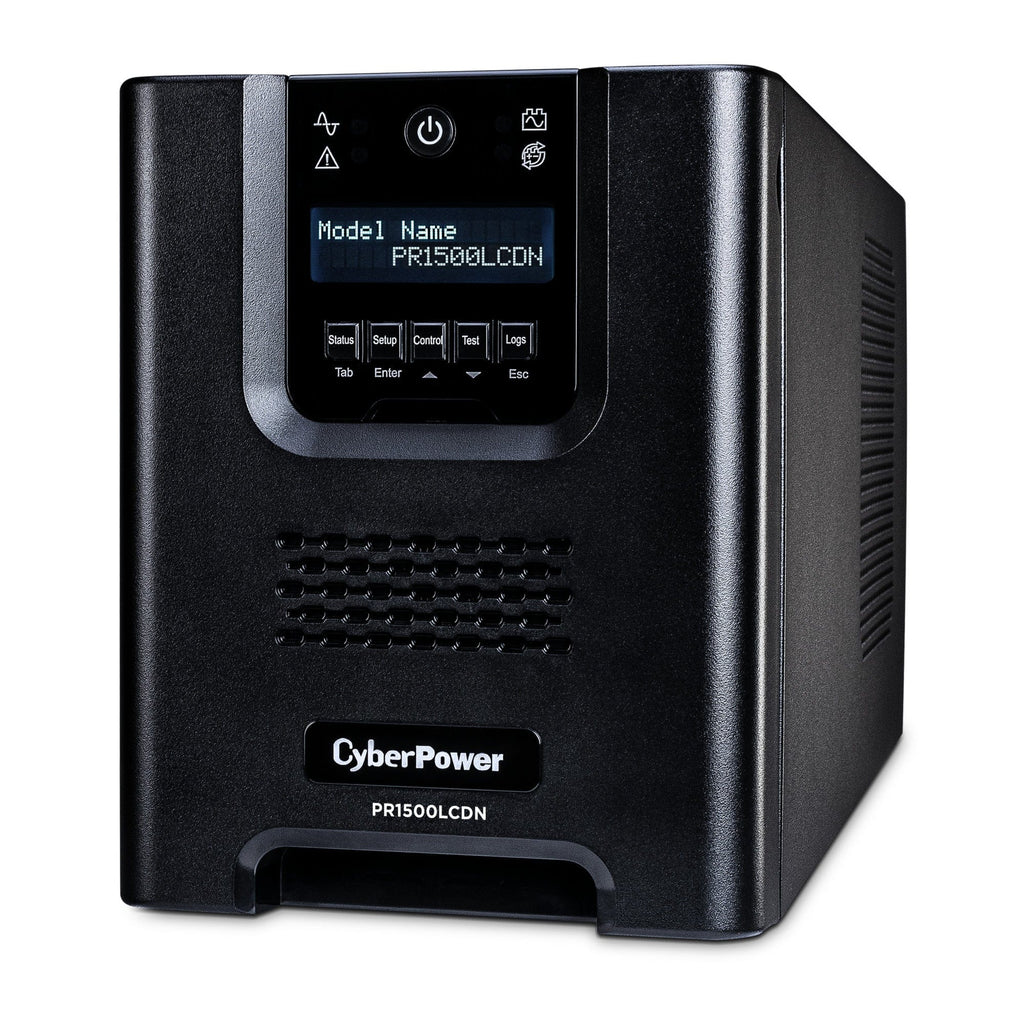

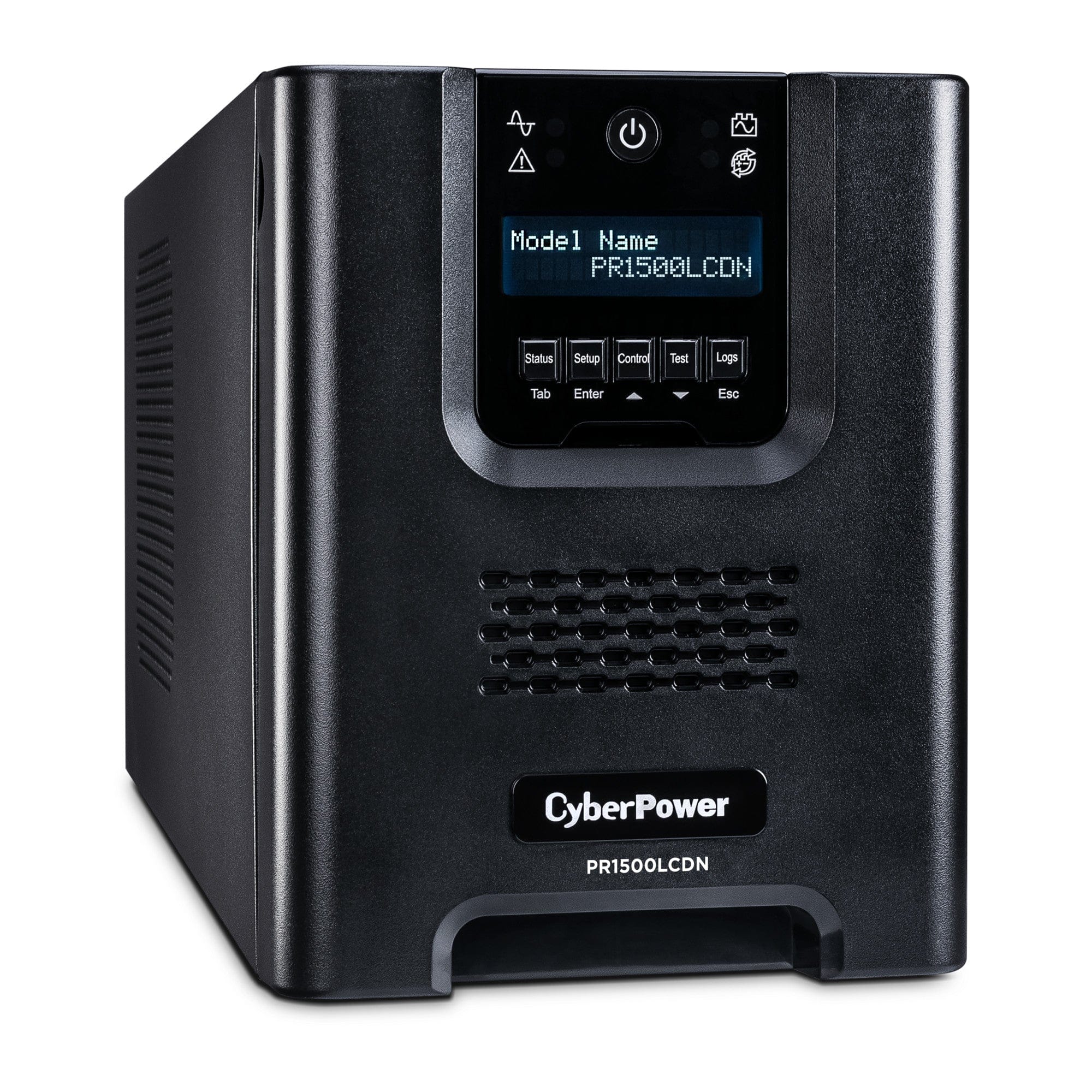

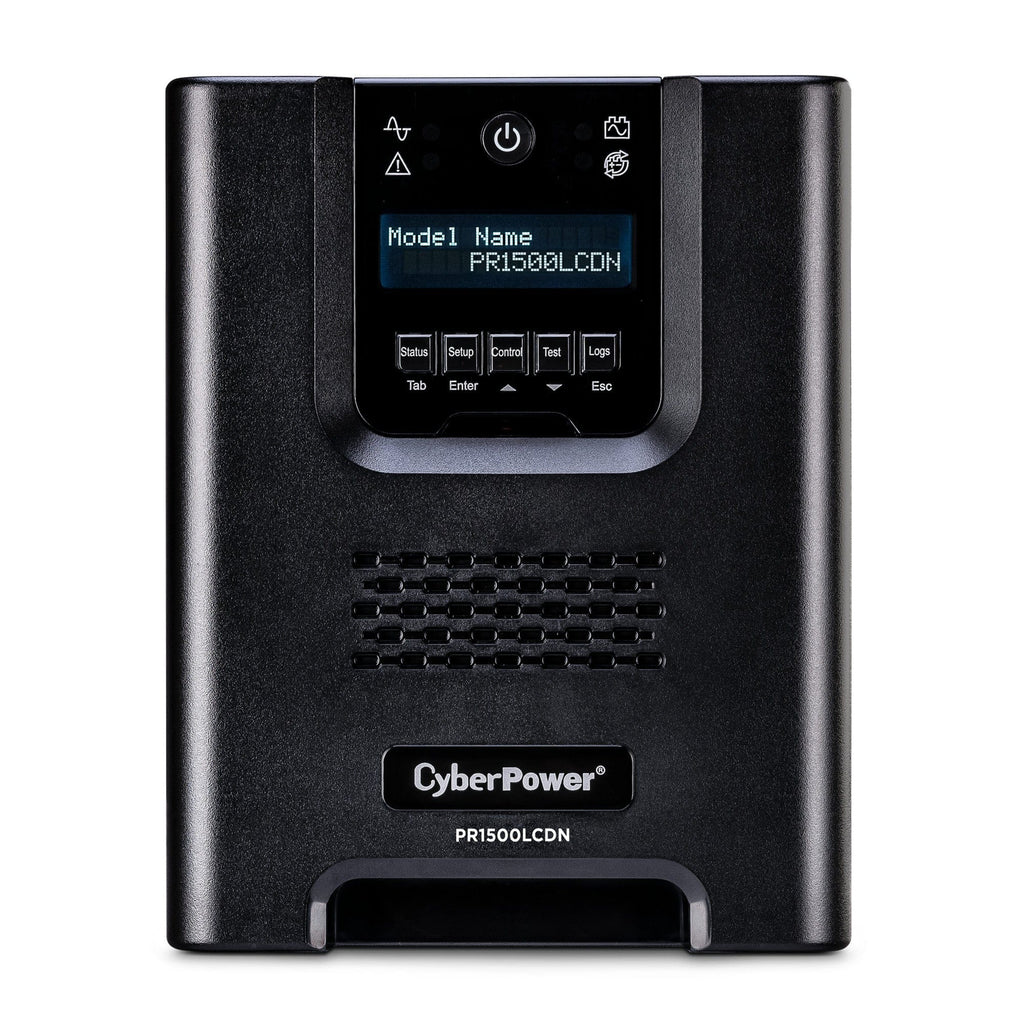

A mini-tower UPS with line interactive topology and a pre-installed SNMP card, the CyberPower Smart App Sinewave PR1500LCDN provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCDN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed.
Features
- Battery Backup - Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection - Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Line Interactive Topology - Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR) - Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Sine Wave Output - Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
- GreenPower UPS Bypass Design - Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

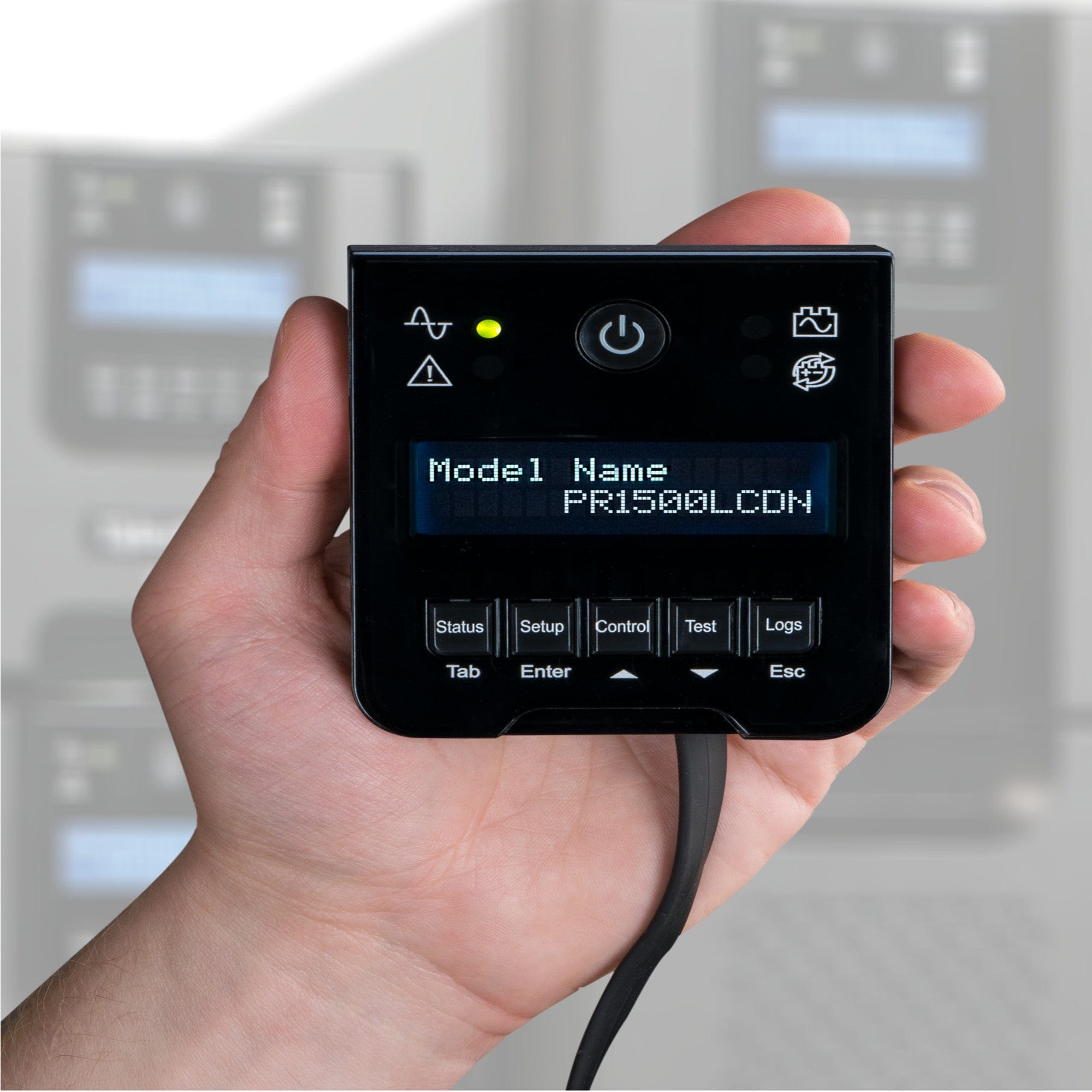

- Extendable LCD Control Panel - Can be removed and relocated for easy viewing using the attached 4.5 ft. cable. This feature provides easy access to view status or change settings on the UPS when it’s installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor.
- PowerPanel® Business Edition Software - Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
- Cisco Compatible - This CyberPower UPS system is a Cisco EnergyWise compliant end device.
Specifications
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 17 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB12170X2A |
| Replacement Battery Cartridge Quantity | 1 |

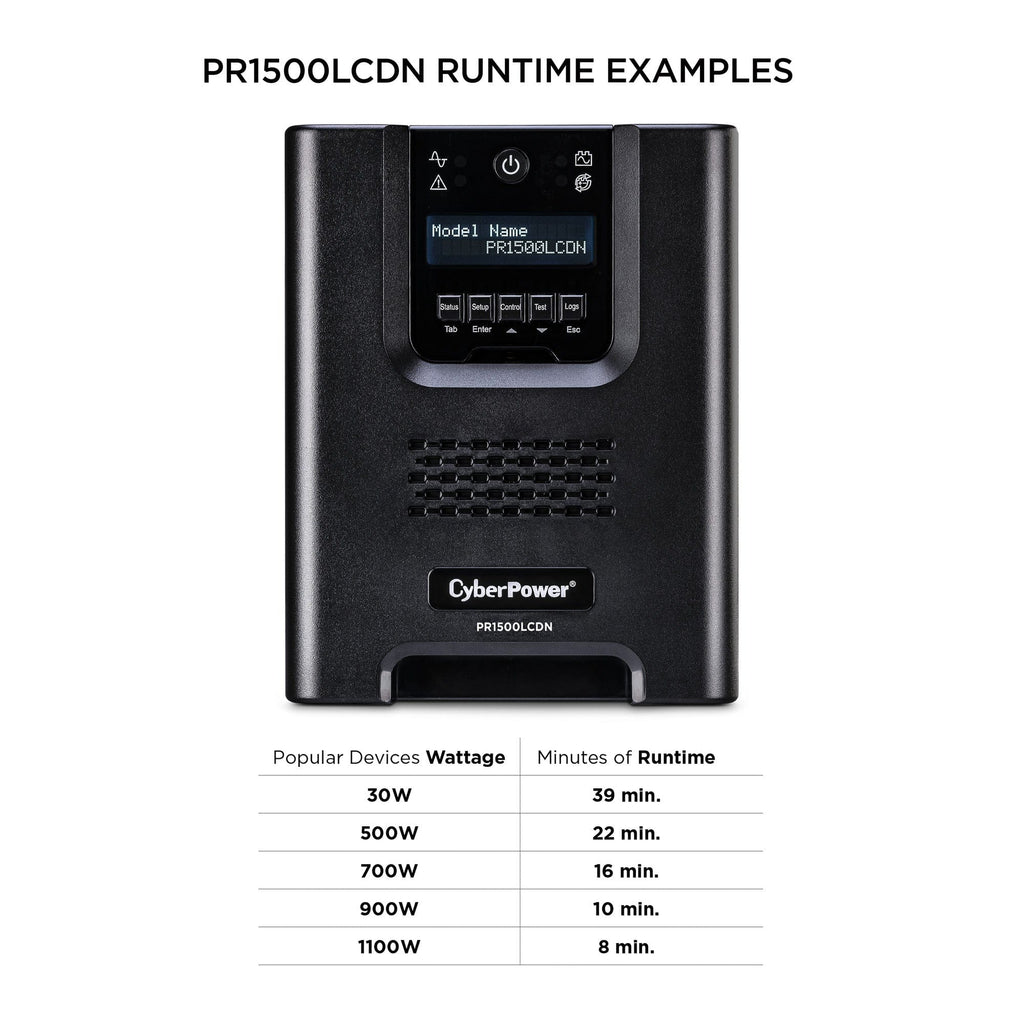

| Runtime at Full Load | 4.7 min |
| Runtime at Half Load | 15.1 min |
| Typical Recharge Time | 3 hours – Quick Charge Mode 8 hours – Eco Mode |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 75 – 154 VAC |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 47 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 78 VAC – 149 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Straight |
| Output | |
| Automatic Voltage Regulation | Double Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.1Hz |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Sine Wave |

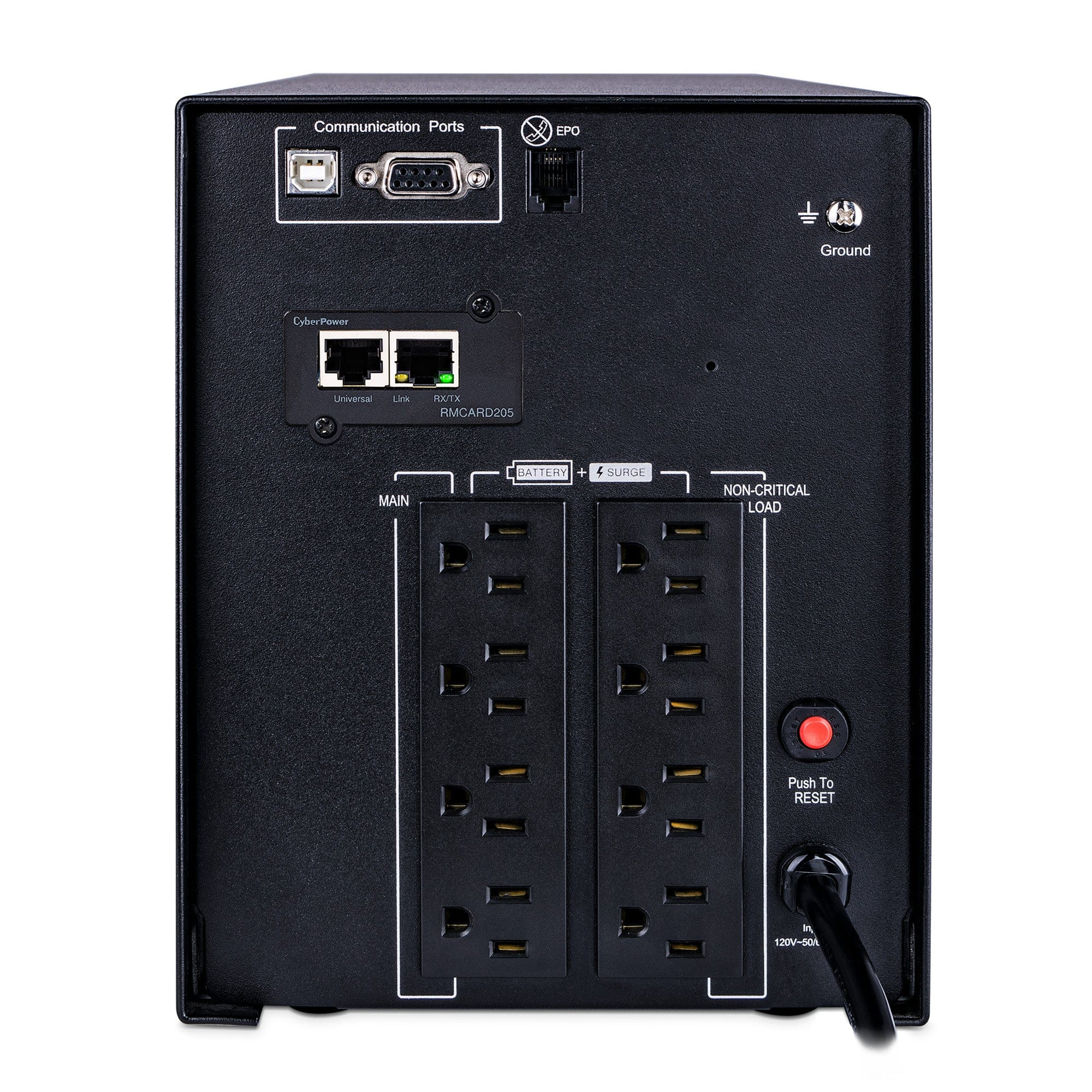

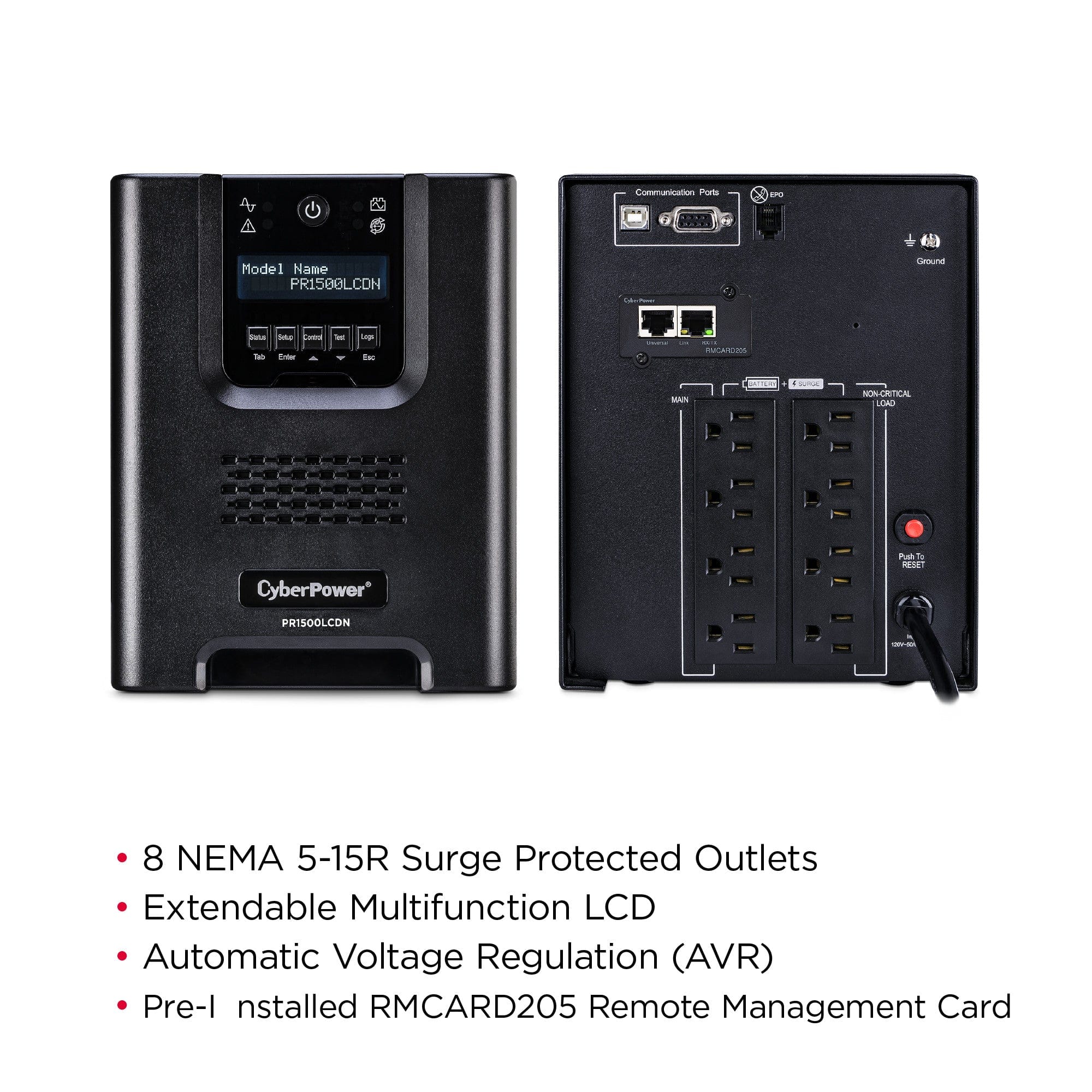

| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 8 |
| Outlets – Critical Load | 4 |
| Outlets – Total | 8 |
| Output Power Factor | 1 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 1500 VA |
| Watts | 1500 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 1030 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload UPS Fault Replace Battery |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On On-Line Battery Mode Wiring Fault Replace Battery |
| Management Cable | USB Cable Serial Cable EPO Cable |
| Removable LCD Control Panel Option | Yes – Standard with 4.5 ft Cable |
| SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Material of Construction | Metal |

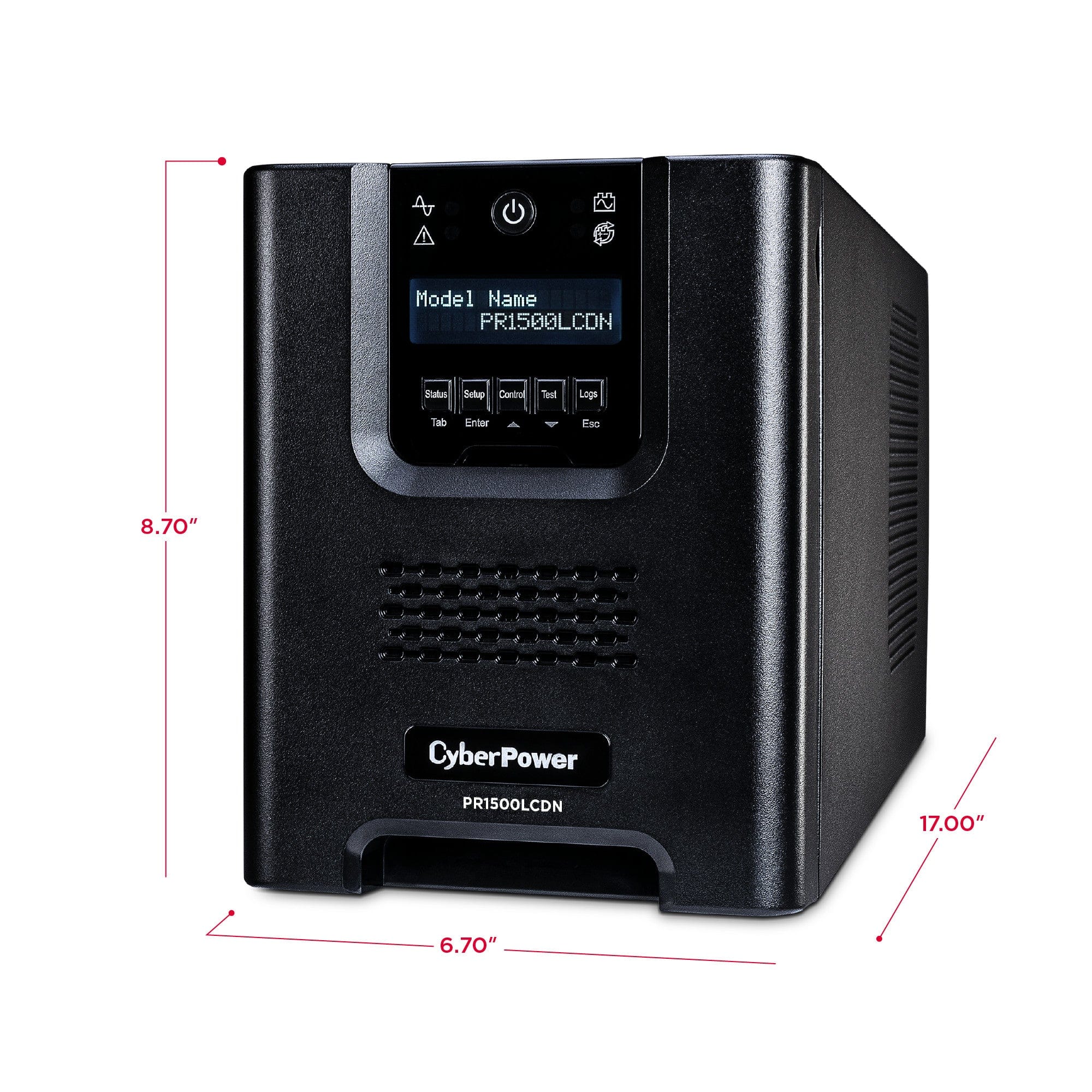

| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 17.02 x 22.1 x 43.18 (cm) |
| Physical Dimensions – (WxHxD) (in) | 6.7 x 8.7 x 17 (in) |
| Physical Dimensions – (WxHxD) (mm) | 170 x 221 x 432 (mm) |
| Physical Weight (kg) | 24.49 |
| Physical Weight (lb) | 54 |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 cUL 107.3 FCC DOC Class A |
