Description

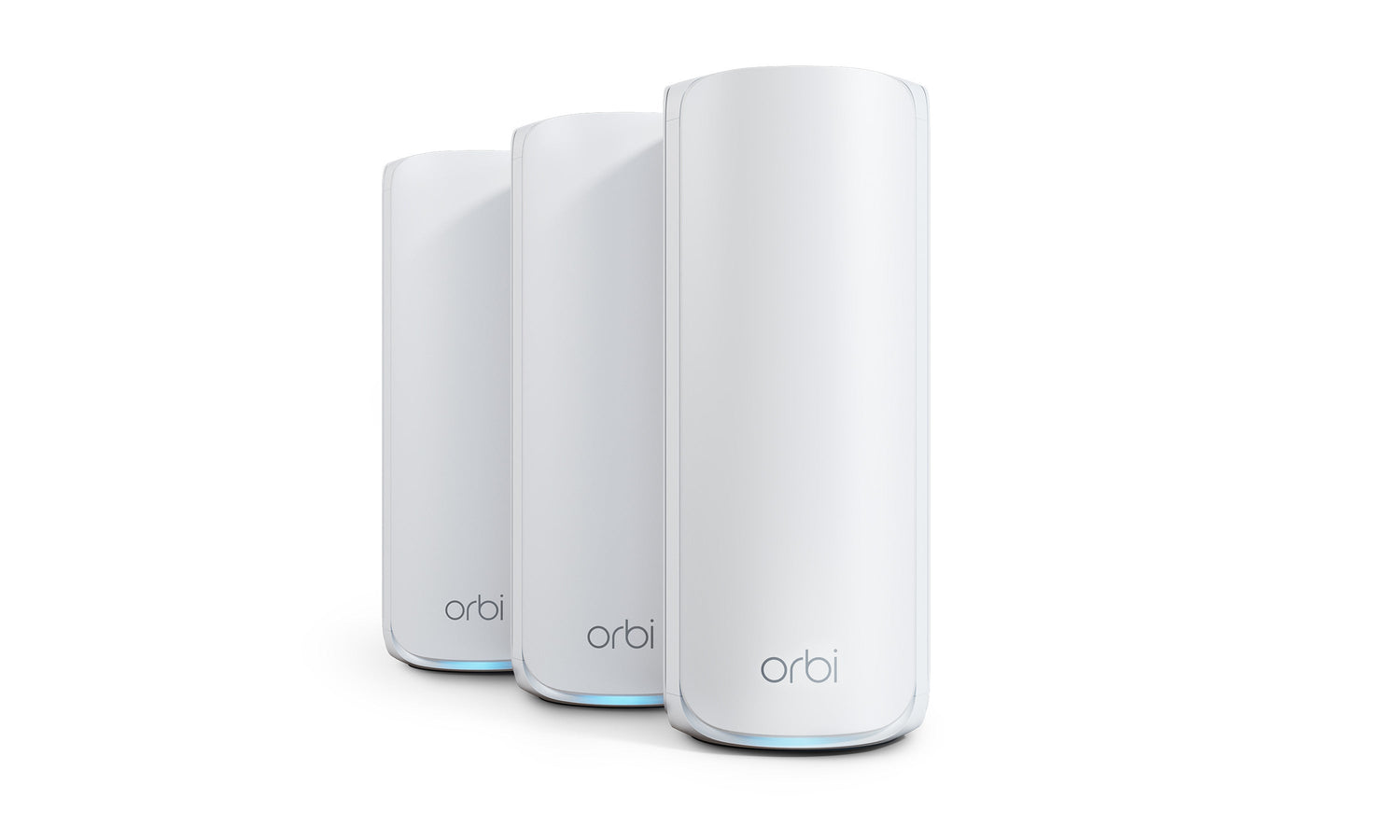

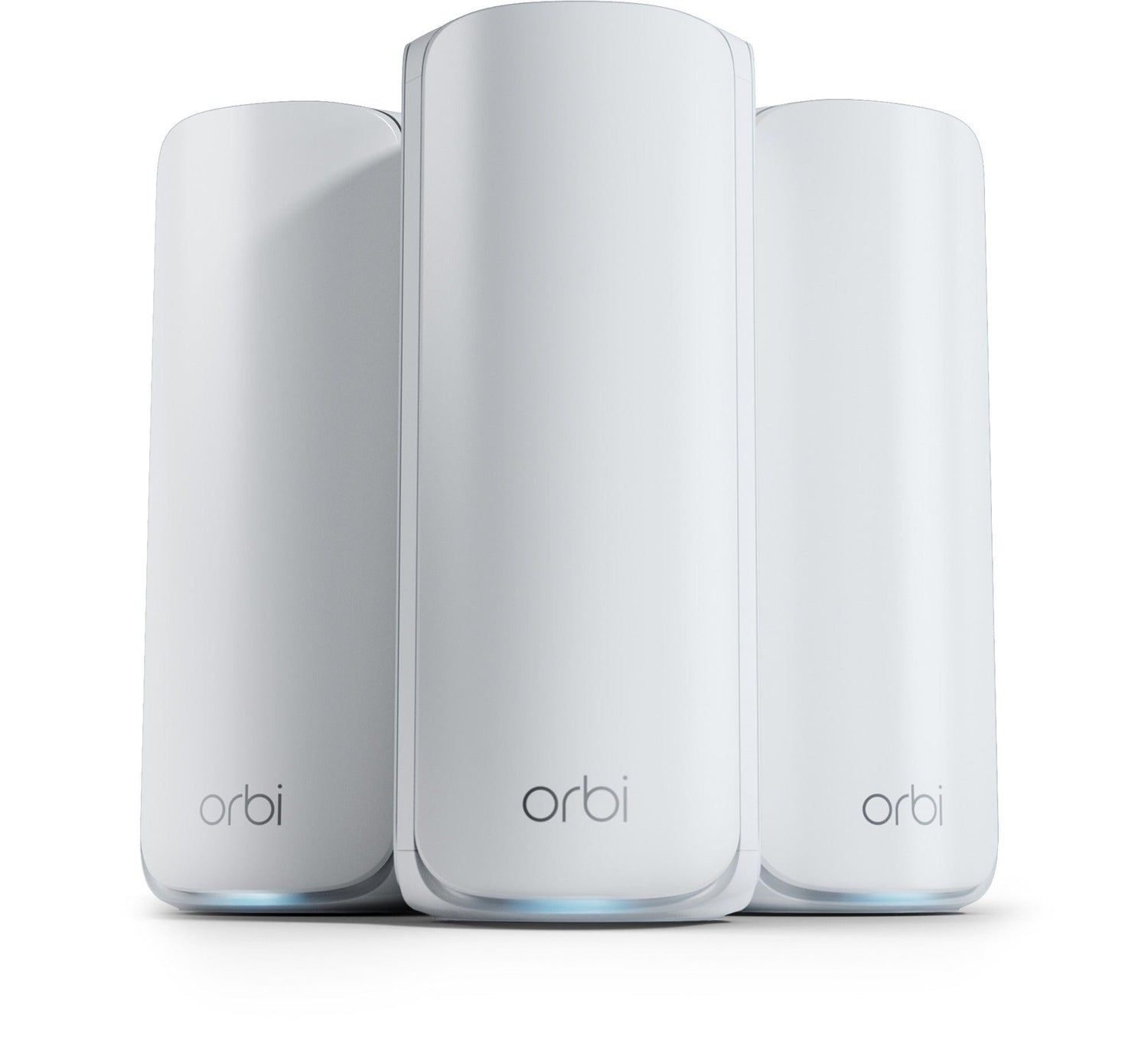

Orbi WiFi 7 is in a class of its own, designed for a new era of entertainment, hybrid work, and smart home convenience. The Orbi 770 Series unlocks the power of WiFi 7 with speeds up to 11Gbps, 2.4x faster than WiFi 6. In addition, the Orbi 770 brings exceptional 360° WiFi coverage across every corner of your home, regardless of the layout, from the front door to the backyard.
Features
- 2.4x Faster than WiFi 6—Unlock incredible speeds up to 11Gbps on the only mesh system designed to ensure WiFi stays fast on your devices simultaneously.
- Unleash Incredible Speed—Whether Multi-Gig cable or fiber, get the fastest speeds available today and tomorrow with a 2.5 Gig internet port.
- Designed for a Flawless Experience—From 4K/8K streaming to video conferencing, gaming, AR/VR and more, Orbi ensures your family can accomplish it all at once.
- Enhanced Backhaul—Multi-link operation ensures maximum speeds across your devices.
- Resilient WiFi—Preamble puncturing blocks interference for stronger WiFi connections.

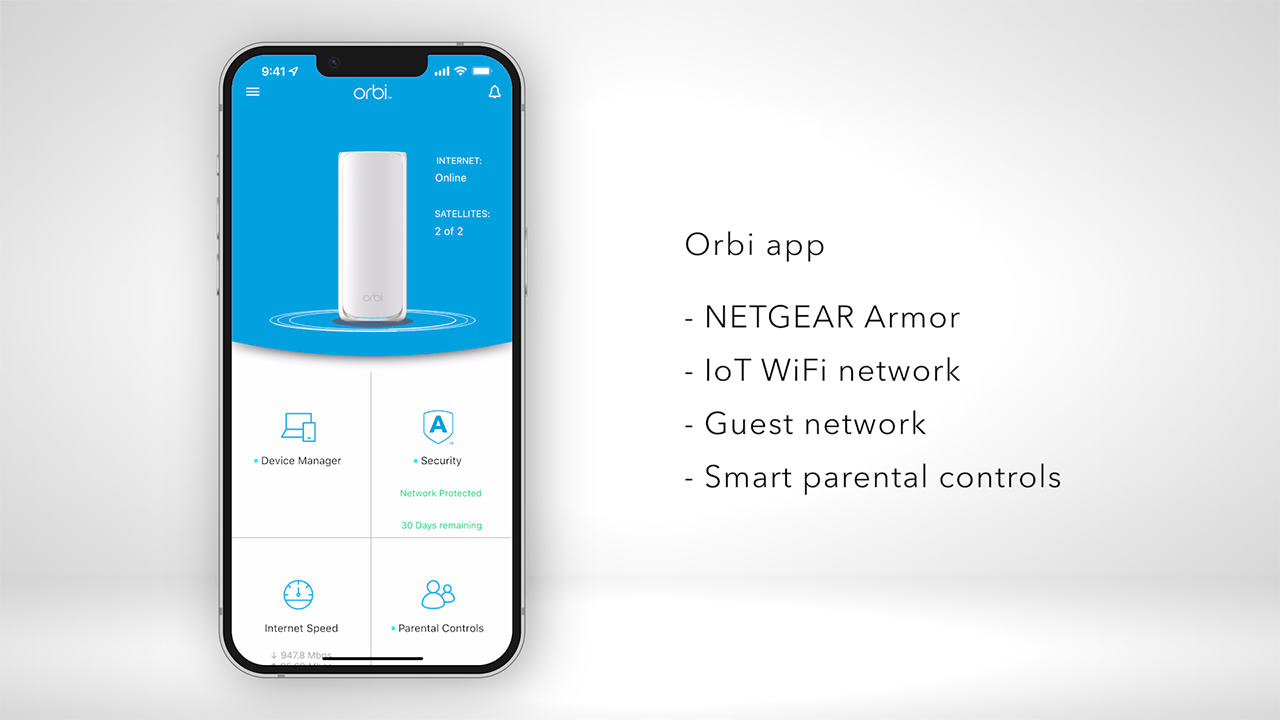

- Easy Setup and Management—Orbi works with any internet service provider. The Orbi app makes it a breeze to set up and manage your WiFi.
Technical Specifications
- Combined WiFi speeds of up to 11Gbps on Orbi Router and Satellites
- Tri-band with 6 streams of WiFi
- 6GHz3(2x2/320MHz, 4K-QAM): 5,760Mbps
- 5GHz (2x2/240MHz, 4K-QAM): 4,320Mbps
- 2.4GHz (2x2/40MHz, 1K-QAM): 688Mbps

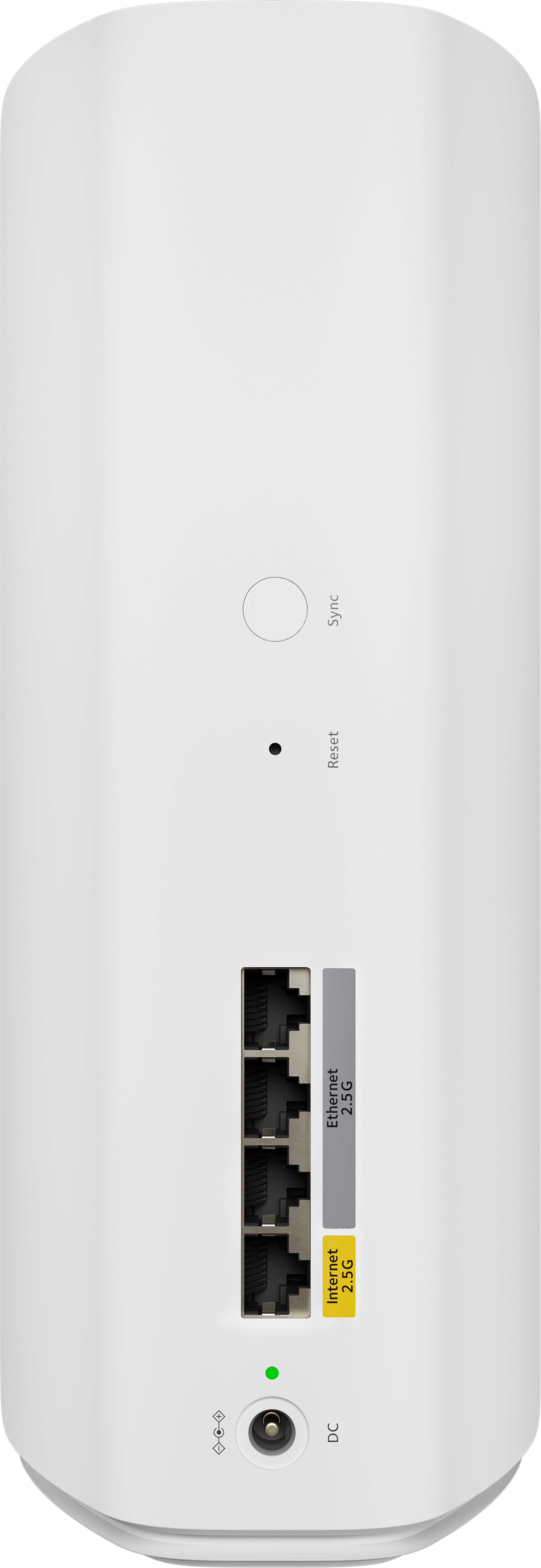

- Multi-Gig Ethernet ports - Orbi Router
- Three (3) 10/100/1000/2500Mbps Multi Gig Ethernet LAN ports
- One (1) 10/100/1000/2500Mbps Multi-Gig Ethernet WAN port

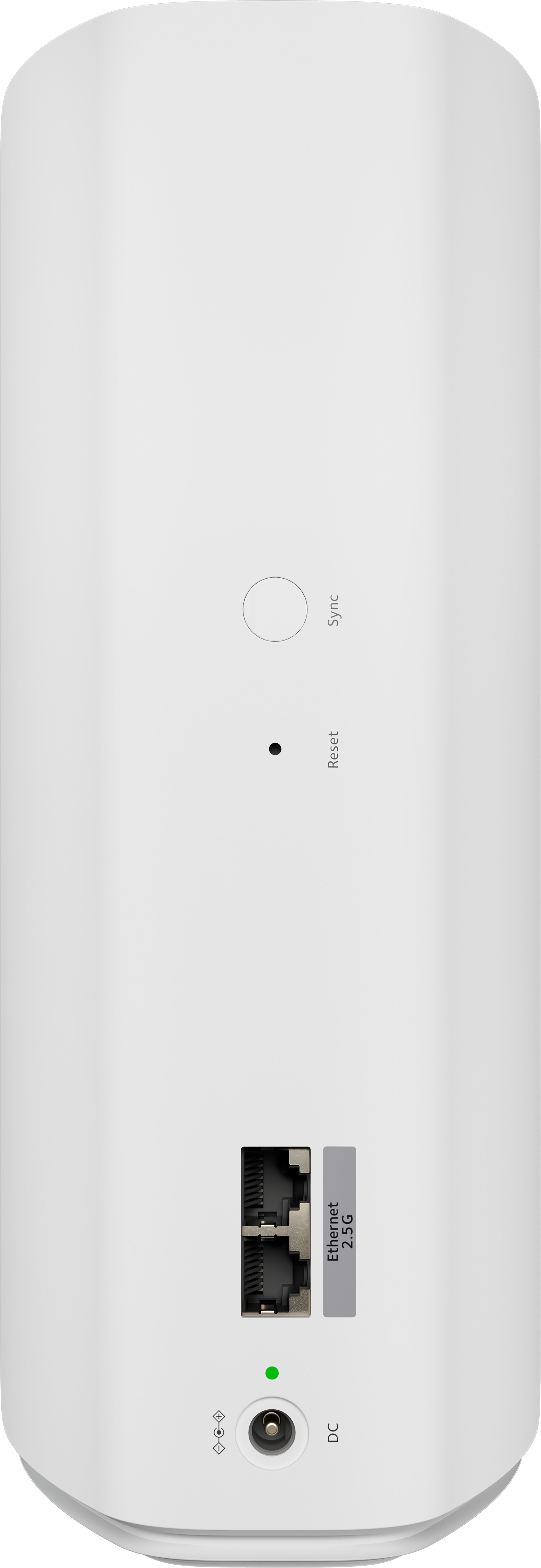

- Multi-Gig Ethernet ports - Orbi Satellites
- Two (2) 10/100/1000/2500Mbps Multi-Gig Ethernet LAN ports (each)
- Multi-link Operation: Combines two WiFi bands
- Backhaul: shared 5GHz & 6GHz
- Fronthaul: 5GHz & 6GHz
- Processor - Router
- Powerful quad-core 1.5GHz processor
- Memory - Router
- 4GB flash and 2GB RAM
Specifications
| Height | 9.88 inches (251.2mm) |
| Width | 5.28 inches (134.2mm) |
| Depth | 3.95 inches (100.4mm) |
| Weight | 2.02 lbs (0.916kg) |
| Overall WiFi Coverage | Up to 8,000 sq. ft. |
| Speed | Up to 11 Gbps |
| Technology | WiFi 7 Tri-Band |
| Devices | Up to 100 |
| Requirements | High-speed Internet connection to existing modem or gateway |
| ROUTER | |
| WiFi Coverage | Up to 2,500 sq. ft. |
| Speed | BE11000 (5,760 + 4,320 + 688Mbps) |
| Simultaneous Tri-Band WiFi with enhanced backhaul |
|
| Processor | Quad-core 1.5GHz processor |
| Memory | 4GB flash and 2GB RAM |
| Ports |
|
| SATELLITE | |
| WiFi Coverage | Up to 2,500 sq. ft. |
| Speed | BE11000 (5,760 + 4,320 + 688Mbps) |
| Simultaneous Tri-Band WiFi with Enhanced Backhaul |
|
| Ports (each) | (2) 10/100/1000/2500Mbps Multi-Gig Ethernet LAN ports |
