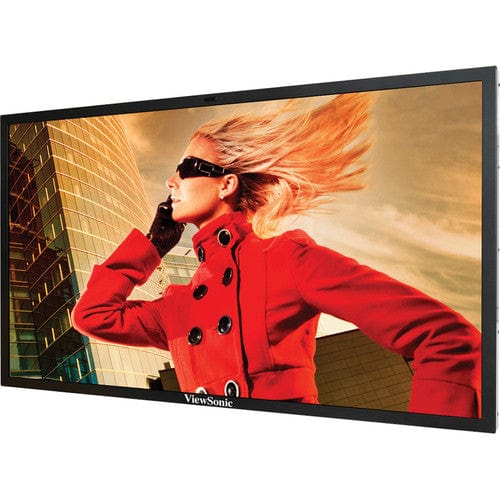

ViewSonic CDP6530-T-S 65" Full HD Commercial Display with 1920x1080p - Certified Refurbished
Description
Viewsonic's CDP6530 65" Commercial LCD Display offers a resolution of 1920 x 1080, brightness of 500 nits, contrast ratio 20,000:1, and an aspect ratio of 16:9. Featuring a 178° (H/V) viewing angle, it provides high-quality images at any height. The monitor is ideal to be used in a digital signage system to display movies, Internet pages, PowerPoint, and Flash files. Equipped with VGA, DVI, HDMI and S-video inputs/outputs, the CDP6530 Commercial LCD Display offers flexible connectivity and control. In addition to 2 built-in 12W speakers, the monitor has a screensaver that prevents image-sticking due to prolonged display of a static image. Lastly, the CDP6530 can be used to make up to a 5 x 5 video wall display for larger visual applications.Features
- 65" Commercial LCD Display
- 1080p Resolution 1920 x 1080
- 5 x 5 Display Video Wall Capability
- Built-in 24W Speakers
- 20,000:1 Dynamic Contrast Ratio
- RS-232 Daisy-Chain Capable
- Designed for 24/7 Operation
- 1080p, 8ms LED panel for vibrant images using up to 35% less power than standard CCFL displays
- 7" (42.3mm) bezel with 5 x 5 display video wall capability
- Versatile inputs include - HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-video and composite video
- Designed for 24/7 operation with 500 nits brightness and a 20,000:1 dynamic contrast ratio
- The unit is RS-232 daisy-chain capable

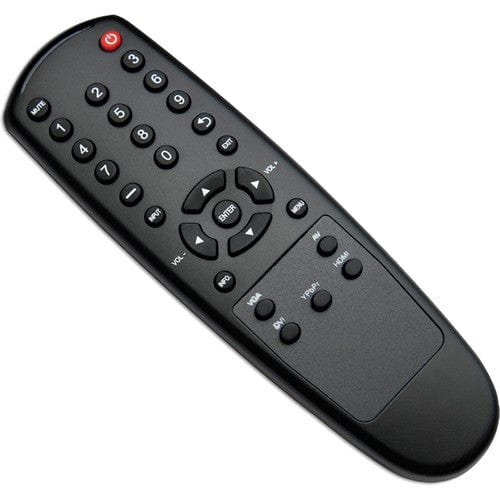

- Remote and panel control lock out
- Built-in 12W x 2 speakers
- Installation options include stand or VESA wall mount
Specifications
Type |
65" color TFT active matrix, wide LCD
|
Display Area |
56.2" (127.5mm) horizontal x 31.6" (802.6mm) vertical; 64.6" (1640.8mm) diagonal
|
Resolution |
1920 x 1080, 23.6" (600mm) dot pitch
|
Contrast Ratio |
20,000:1 (typ)
|
Viewing Angle |
178º horizontal, 178º vertical
|
Response Time |
8ms
|
Light Source |
Long life, 50,000 hrs. (typ)
|
Brightness |
500 nits (typ)
|
Aspect Ratio |
16:09
|
Panel |
Anti-glare, hard coating (3H)
|
Input |
Video Input: HDMI x 1, DVI x 1, component x 1, VGA x 1, , S-video x 1, CVBS (BNC) x 1
|
Video Output: VGA x 1, component x 1, DVI (loop through) x 1 | |
Control: RS-232 x 1 | |
Amplifier |
12W/8 ohm
|
Analog |
15-pin mini D-sub (VGA) x 1
|
Digital |
HDMI x 1, DVI x 1
|
Power |
3-pin plug x 1
|
Voltage |
AC 100-240V (universal), 50/60Hz
|
Consumption |
520W (typ)
|
Input Signal |
TV/video comp. 480i, 480p, 720p, 1080i, 1080p
|
Operating Conditions |
Humidity: 20-90% (non-condensing)
|
Temperature (landscape): 32-104ºF (0-40ºC) | |
Temperature (portrait):41-95ºF (5-35ºC) | |
Resolutions |
640 x 480 @ 60-75Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768 @ 60Hz, 1280 x 1024 @ 60Hz, 1600 x 1200 @ 60Hz, 1920 x 1080 @ 60Hz (recommended resolution) NTSC, SECAM, 4.43 NTSC component: 480i, 480p, 720p, 1080i, 1080p
|
Regulations |
FCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®, RoHS
|

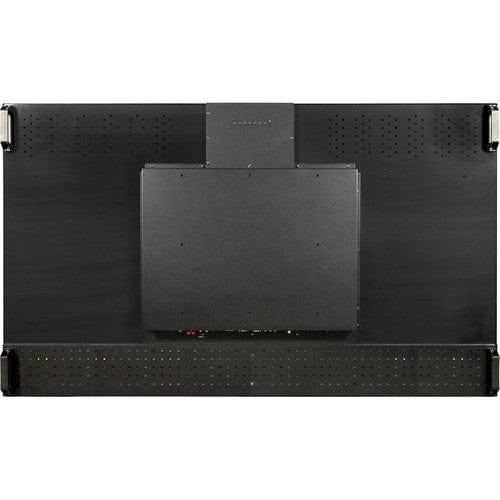

Wall Mount |
VESA 200 x 400mm, 400 x 400mm
|
Dimensions (WxHxD) |
59.3 x 35.4 x 5.3" (1500 x 900 x 136mm)
|
Weight |
154.3 lb. (70kg)
|
Packaging Info
|
|
Box Dimensions (LxWxH) |
64 x 41 x 11.5"
|
