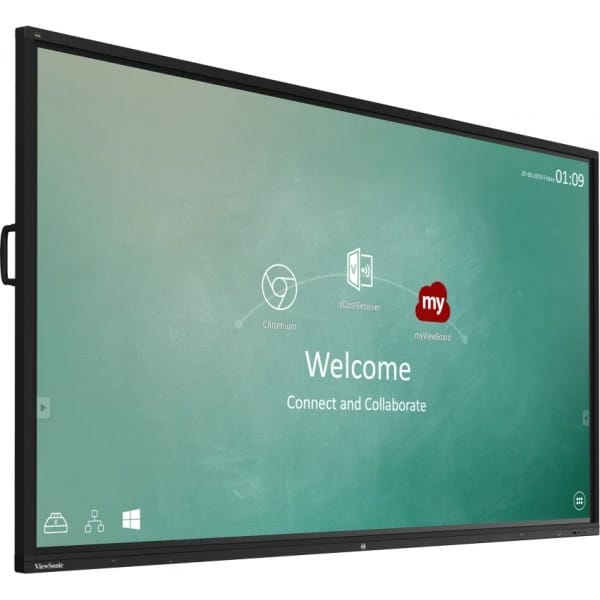

ViewSonic IFP9850-3-S ViewBoard 98" 4K Interactive Display - Certified Refurbished
Description
The ViewBoard® IFP50 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. Smooth, dual-pen writing with our new, slim 2.5mm pens enables groups of teachers and students to work efficiently on any detailed tasks that require the use of accurate, fine tipped pens. The ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience so that even at the edge you can write clearly and confidently. Integrated myViewBoard™ digital whiteboarding software allows users to collaborate on the go, while ViewBoard® Cast provides 4-way, split screen content sharing.UFT Technology
UFT Technology enables precision writing with a 2.5mm diameter pen tip.
Dual-Pen
Automatically detect pen diameter (8mm & 2.5mm) and write simultaneously with different colours and thicknesses.
Full Native Performance on embedded OS
Built-in myViewBoard™ digital whiteboarding software to collaborate on the go.
4-way Split Screen
4-way split screen content sharing with built-in ViewBoard® Cast software.
Shared USB Ports
SmartPort™ shared front USB ports for internal & external PCs.
Stereo Sound
2.0 Stereo sound
Faster Internet
GigaLAN provides a faster, more powerful internet connection.
Remote Control
Built-in RS232 port and vController software for remote control.
Specifications
| Display | |
| Panel Size | 98" |
| Type/Tech | TFT LCD Module with DLED Backlight. |
| Display Area (mm) | 2171.85(H) x 1232.35(V) (97.52”diagonal) |
| Aspect Ratio | 16:9 |
| Native Resolution | UHD 3840x2160(Pixels) |
| Colours | 1.07B colours (10bit) |
| Brightness | 400 nits (typ.) |
| Contrast Ratio | 30000:1 (Dynamic) |
| Response Time | 6ms |
| Viewing Angles | H = 178, V = 178 typ. |
| Backlight Life | 50,000 Hours (Min) |
| Surface Treatment | Anti-Glare |
| Orientation | Landscape |
| Shell Materials | Metal Sell+ Alum Alloy Frame + Toughened Glass |
| Surface | Metal Case with Powder Burning; Tempered Glass |
| Platform | |
| Processor | ARM Cortex A73*2(1.5GHz)+A53*2(1.2GHz) |
| RAM | 3GB DDR4 |
| Storage | 16GB |
| Touch | |
| Type/ Tech | IR Recognition |
| Touch Resolution | 32767 x 32767 |
| Touch Point | 20 points touch, 10 points writing |
| Transparency Ratio | Min>97% |
| INPUT | |
| HDMI | 2.0 x3 (3840x2160 @60Hz) |
| RGB / VGA | x1 |
| Audio | x1 (PC audio in) |
| RS232 | x1 |
| OPS | x1 PC Slot |
| OUTPUT | |
| HDMI | x1 |
| Audio | x1 (Earphone out) |
| SPDIF | 1(optical) |
| RS232 | x1 |
| LAN | |
| RJ45 | x1 |
| USB | |
| Type A | USB 2.0 x3 USB 3.0 x3 |
| Type B | x2, for touch |
| SPEAKERS | |
| SPEAKERS | 12Wx2 |
| Camera plate on top for screw-in webcam installation | |
| Camera plate on top for screw-in webcam installation | Yes |
| COMPATIBILITY | |
| HDMI | 3840x2160 |
| USB SUPPORTED FILE FORMAT | |
| USB SUPPORTED FILE FORMAT | Picture - BMP, JPEG, PNG,GIF Video - Codec: H.263, H.264, MJPEG, MPEG2, MPEG4, RV30/40, VP6, Xvid-ASP Container: 3GP, ASF, ASX, AVI, FLV, M4V, MKV, MOV, MP4, MPG, MPEG, RMVB, TS H.265 Audio - Codec: AAC, ALAC, FLAC, MPEG 3, Vorbis, WAV, WMA Container: AAC, APC, FLAC, M4A, MP3, OGG, WAV, WMA |
| Special Features | |
| All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore) | Front “SmartPort USB” to all channels. |
| Simple LAN sharing between IFP and slot-in device | Yes |
| Power | |
| Voltage | 100-240VAC +/- 10% Wide Range |
| Consumption | 171 (Typ.) < 0.5 W ("Off") |
| ERGONOMICS | |
| Wall Mount (VESA® ) | 800 x 600 |
| OPERATING CONDITIONS | |
| Operating hours | 18hrs / 7 days |
| Temperature (º C) | 0°C to 40°C |
| Humidity | 10% ~ 90% RH non-condensing |
| DIMENSIONS (W x H x D) | |
| Physical (inch / mm) | 88.4 x 52.1 x 3.6 in / 2245 x 1323 x 91 mm |
| WEIGHT | |
| Net (lb / kg) | 223.77 lb / 101.5 kg |
| Gross (lb / kg) | 306 lb / 138.8 kg |
| REGULATIONS | FCC, cTUVus |
| Compatible Slot-in PC | VPC14-WP series VPC10-WP series VPC15-WP series VPC16-WP series VPC17-WP series |
