Description
Everything you need for portable big-screen entertainment is built into the M2W 1700-Lumen WXGA Smart Projector from ViewSonic. Lower the lights and let the bright 1700 lumens create a 1280 x 800 HD image from your content, with rich, lifelike colors thanks to 125% Rec.709 and ViewSonic's Cinema SuperColor+ technology. Content can come from a variety of sources, including HDMI, Wi-Fi mirroring, local storage, and more. When it comes to audio, the M2W can deliver high-quality sound thanks to dual integrated Harman Kardon speakers. Portable and convenient, a stepless stand and an array of automated features help make setup a breeze.
Features
- Brightness of 1700 Lumens
- WXGA 1280 x 800 Native Resolution
- 1.2:1 Throw Ratio
- 1 x HDMI, 1 x USB-C & 1 x USB-A Input
Fast Setup

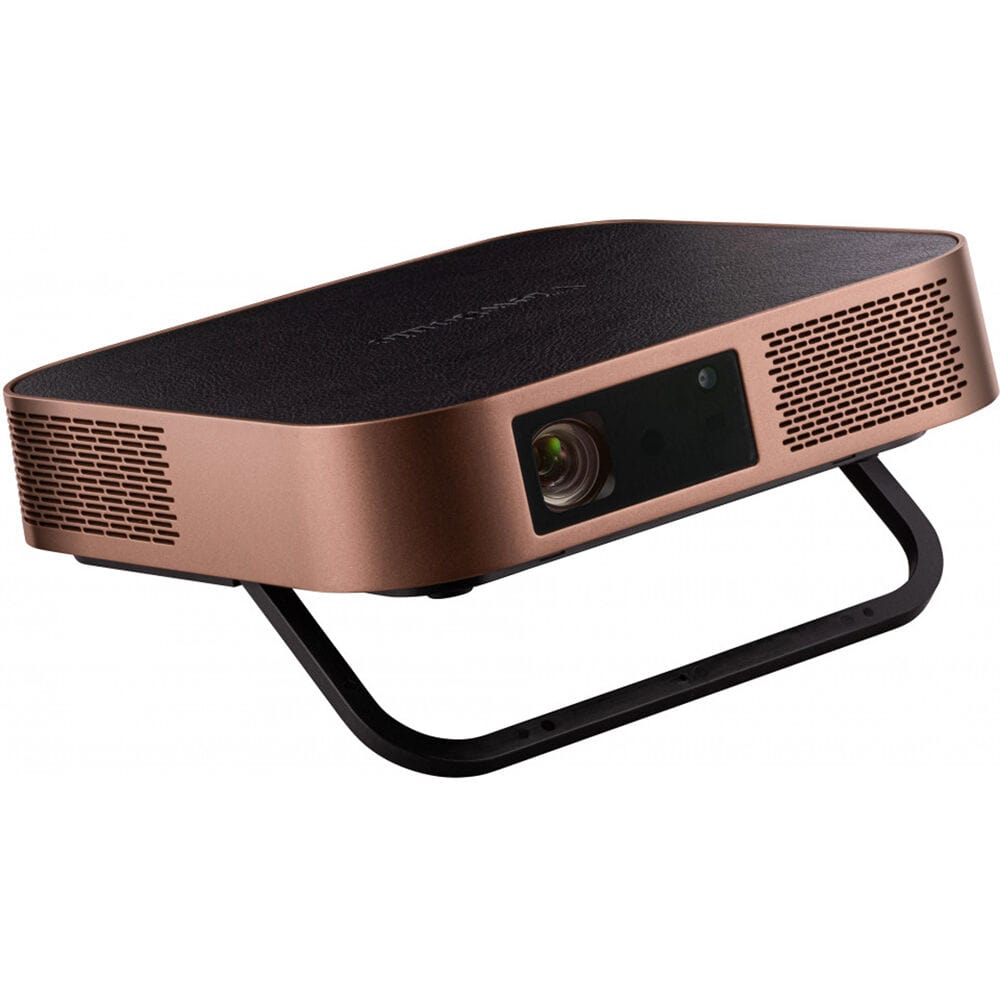

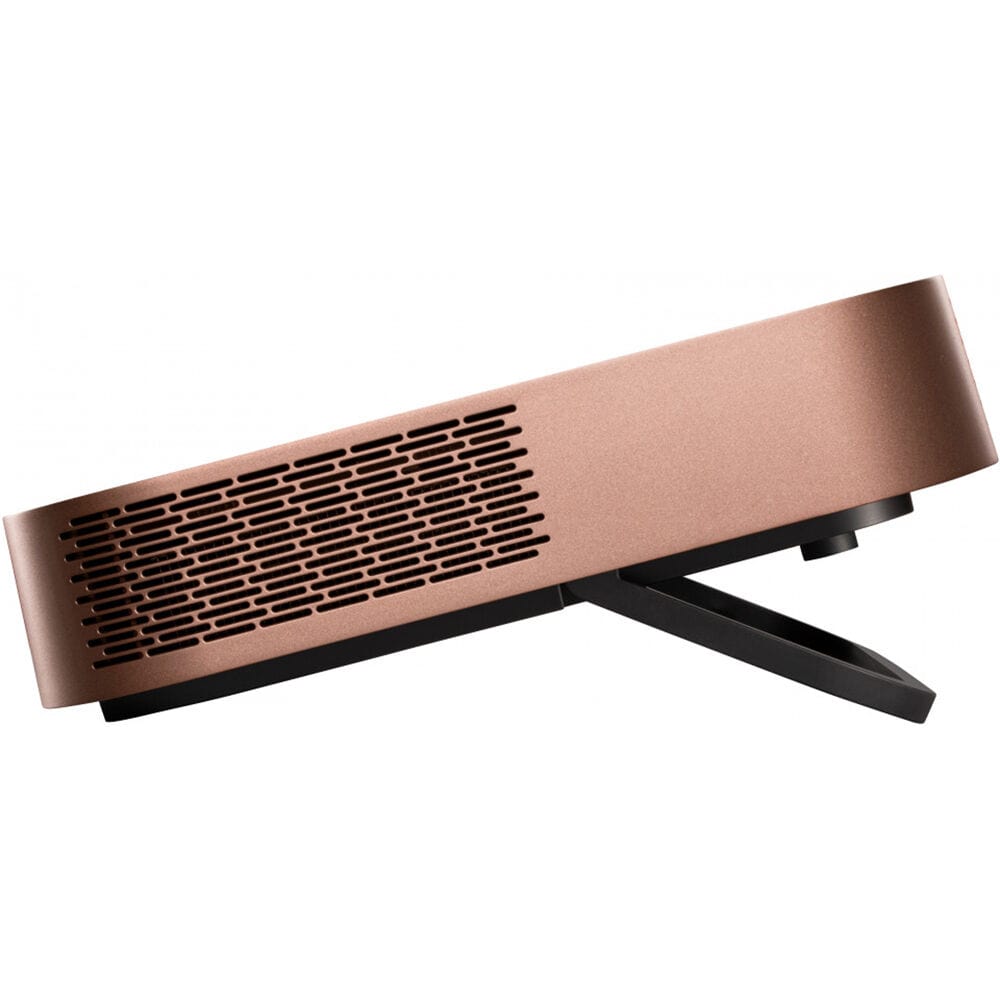

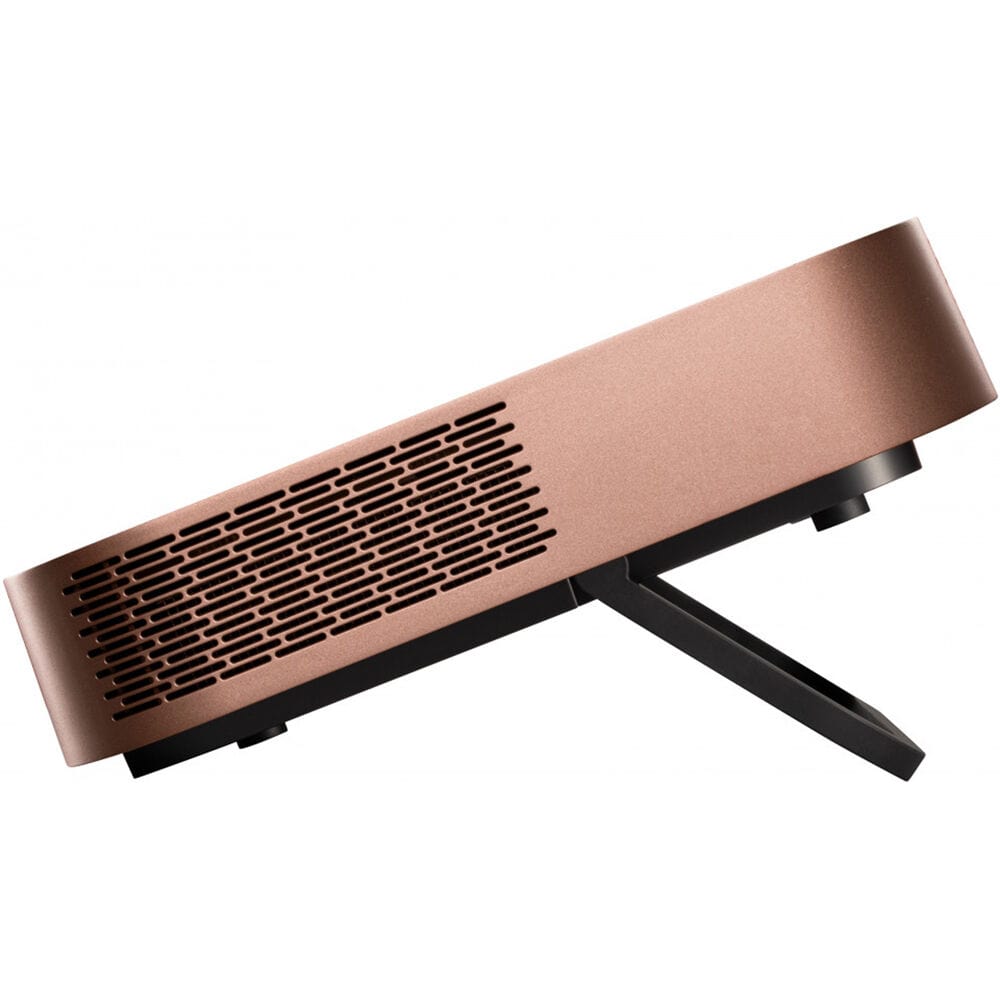

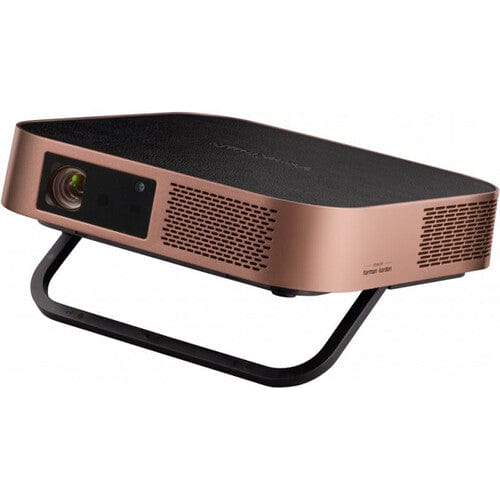

Setting up the M2W projector is meant to be as stress-free as possible. With a built-in stepless stand to precisely adjust the angle of the M2W, you can place it almost anywhere. You also don't have to wait for a lamp to heat up or fiddle with focusing. The M2W turns on instantly and automatically focuses using ToF technology, which accurately measures the distance between the projector and the screen. The M2W also supports side projection, so you're not forced to place the M2W directly in front of the projection surface.
Huge Screen Size
Games, movies, TV, and more can be enjoyed at sizes greater than most TVs with the M2W. From up to 6.9' away, you can achieve an 80" screen; from 8.5' away a 100" screen; and from 10.2' away, you can view content at a huge 120".
Copious Connectivity Options
When it comes to what you can play through the M2W projector, you're spoiled for choice, as it supports a wide array of both wired and wireless options.
With such a wide variety of connectivity choices, you can pack the M2W full of your own files, connect components and drives, or let others share images and videos from their mobile devices.
- 5 GHz Wi-Fi: When on the same network, you can mirror content from a mobile device over Wi-Fi through the projector.
- USB-C: Connect an optional USB-C cable to play content from a variety of mobile devices, such as a tablet or Nintendo Switch. Using USB-C, you can also charge the device as it plays.
- HDMI: Use a traditional HDMI input for wired components, such as a Blu-ray player.
- microSD and USB-A: Display images and play videos from optional memory cards, flash drives, and portable hard drives. For microSD, the M2W supports up to 256GB cards.
- Internal Storage: Load the M2W up with your own files before you leave the house. You get 10GB of available internal storage for images and videos.
- More Setup Flexibility with Digital Zoom
A Perfect Image
A perfectly shaped image is easy to achieve with the M2W, as it provides horizontal and keystone correction, four corner adjustment, and 0.8 to 1.0x digital zoom.
Bidirectional Bluetooth
You can stream audio from a Bluetooth-compatible mobile device and use the Harman Kardon speakers to turn the M2W into a Bluetooth speaker. In the other direction, you can output your source's audio to an optional pair of Bluetooth headphones for a private experience that won't disturb others.
ViewSonic vCastSender App
Download the ViewSonic vCastSender app to transform your smartphone or tablet into a touchscreen remote control for the M2W. It also lets you type more easily and perform simple on-screen annotation.
Additional Features
- Power the projector with an optional power bank via USB-C
- LED light with up to 30,000 hours of life for years of operation
- 2:1 throw ratio and a 1.6 to 12.7' throw distance
- 5mm headphone output
Specifications
|
Image Display
|
|
| Native Chip Resolution |
1280 x 800 (WXGA)
|
| Supported Resolutions |
Minimum: VGA - 640 x 480
|
| Maximum: Full HD 1080p - 1920 x 1080 | |
| Maximum Brightness |
1700 Lumens
|
| Offset |
100% ± 5%
|
| Dynamic Contrast Ratio |
3,000,000:1
|
| Color Depth |
10-Bit (1.07 Billion Colors)
|
| Scan |
Horizontal: 30 to 97 kHz
|
| Vertical: 24 to 85 Hz | |
| Latency |
66 ms
|
|
Lens
|
|
| Includes Lens |
Yes
|
| Focus |
Auto
|
| Aperture |
f/1.7
|
| Focal Length |
11.96mm
|
| Throw Distance |
1.6 - 12.7' / 0.5 - 3.87 m
|
| Throw Ratio |
1.2:1
|
| Projection Size |
24 to 150" / .6 to 3.8 m
|
|
Features
|
|
| Keystone Correction |
Vertical: ± 40°
|
| Horizontal: ± 40° | |
| Supported HDR Input Formats |
None
|
| Digital Zoom |
1.0x
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Ceiling Mountable |
Yes
|
| Built-In Speaker |
Yes (Stereo)
|
| Speaker Power |
6W
|
|
Input/Output Connectors
|
|

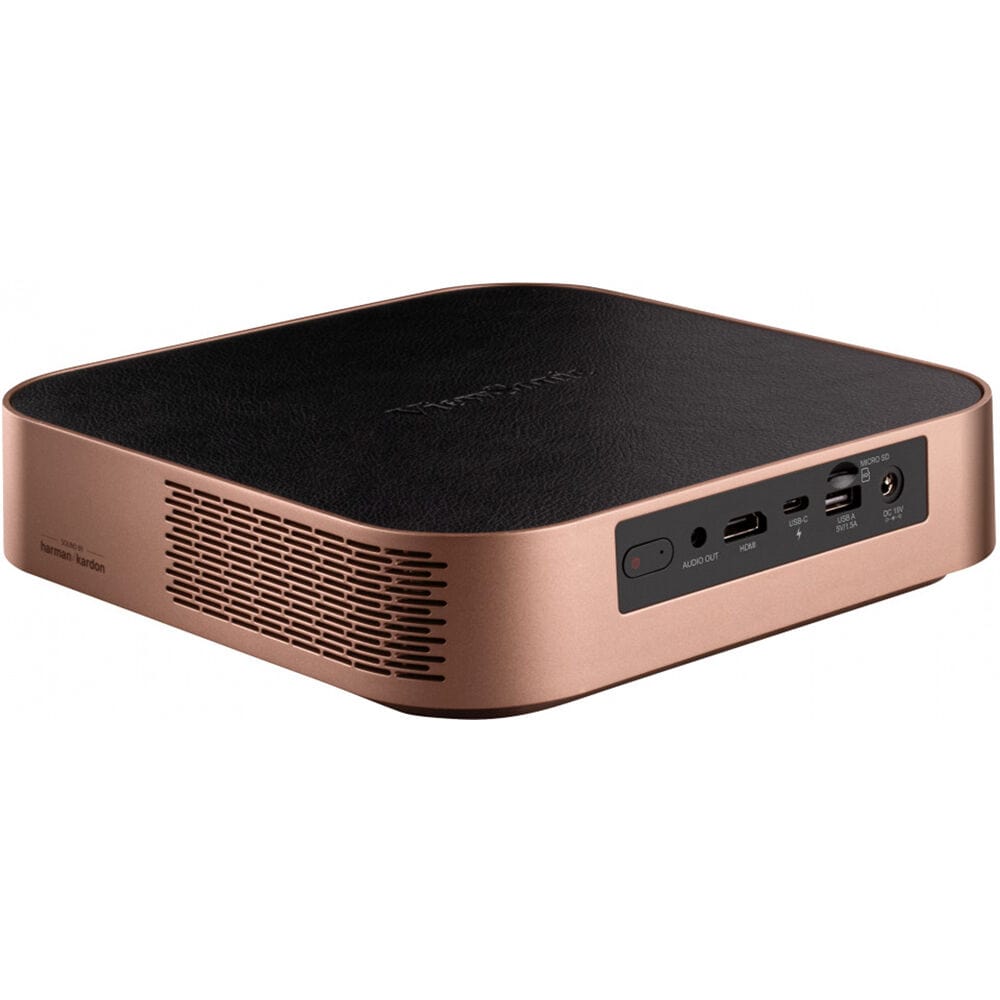

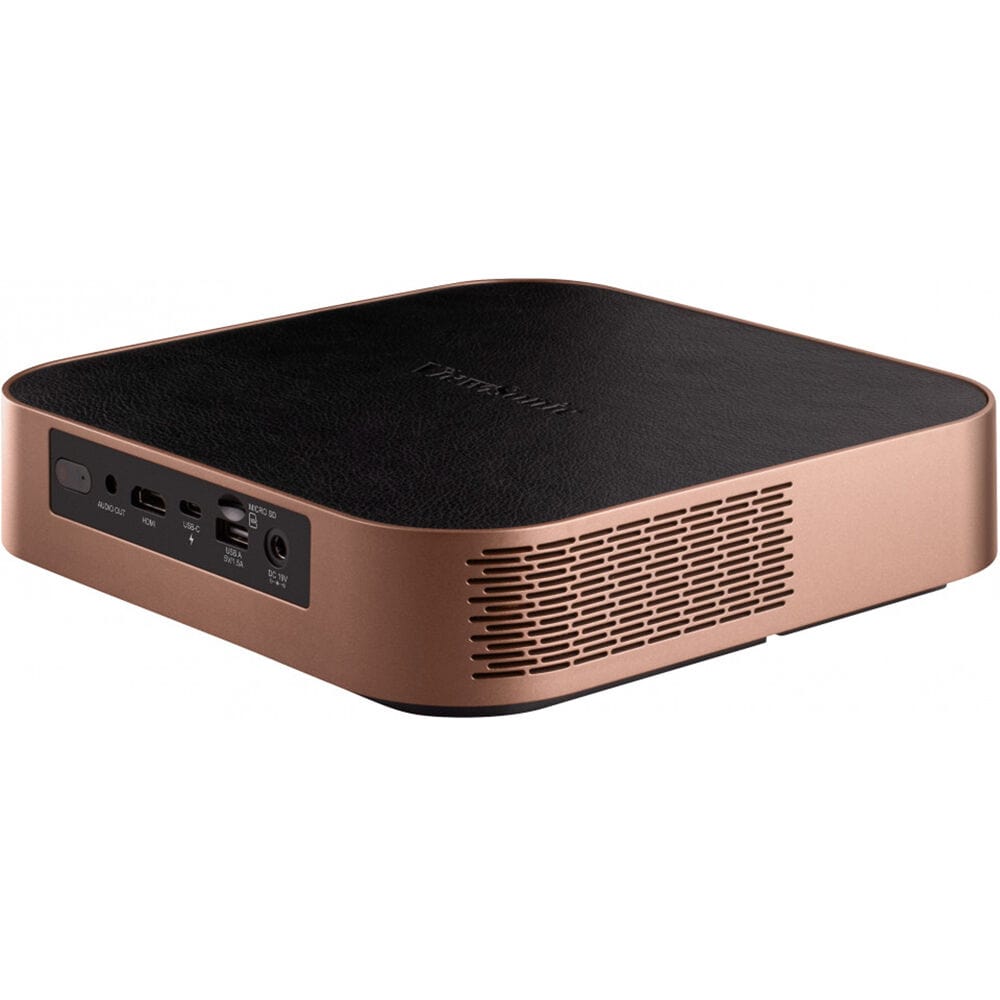

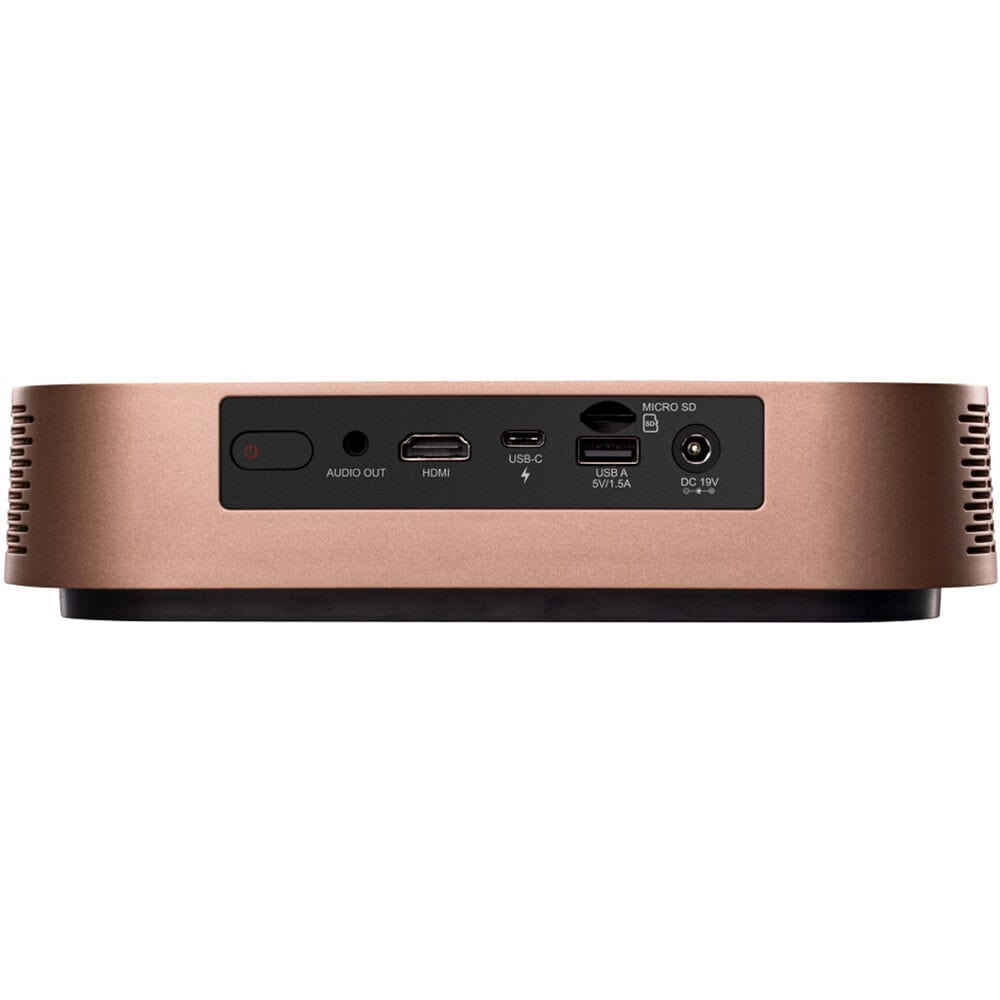

| Inputs/Outputs |
1 x HDMI 1.4 Audio, Video Input
|
| 1 x USB-C Data, Power Input/Output | |
| 1 x USB-A Data, Power Input/Output | |
| 1 x 1/8" / 3.5 mm Mini Audio Output | |
| HDCP Support |
Yes, Version 1.4
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC
|
|
Hardware
|
|
| Mobile App Compatible |
Yes: Android & iOS
|
| App Name: vCastSender | |
| Functionality: Remote Control | |
| *As of December, 2022: Check with manufacturer for the most up-to-date compatibility | |
| Internal Storage |
16 GB
|
| Wireless LAN / Wi-Fi |
Yes, Built-in
|
| Bluetooth |
4.2
|
|
General
|
|
| Light Source |
LED
|
| Expected Lamp Life |
Medium Brightness: 30,000 Hours
|
| Fan Noise |
Medium Brightness: 26 dB
|
| Low Brightness: 26 dB | |
| DC Input Power |
19 VDC
|
| Dimensions (W x H x D) |
8.9 x 8.9 x 2.2" / 225.0 x 225.0 x 57.0 mm
|
|
Packaging Info
|
|
| Package Weight |
6.975 lb
|
| Box Dimensions (LxWxH) |
11.6 x 11.4 x 6.5"
|
