Description

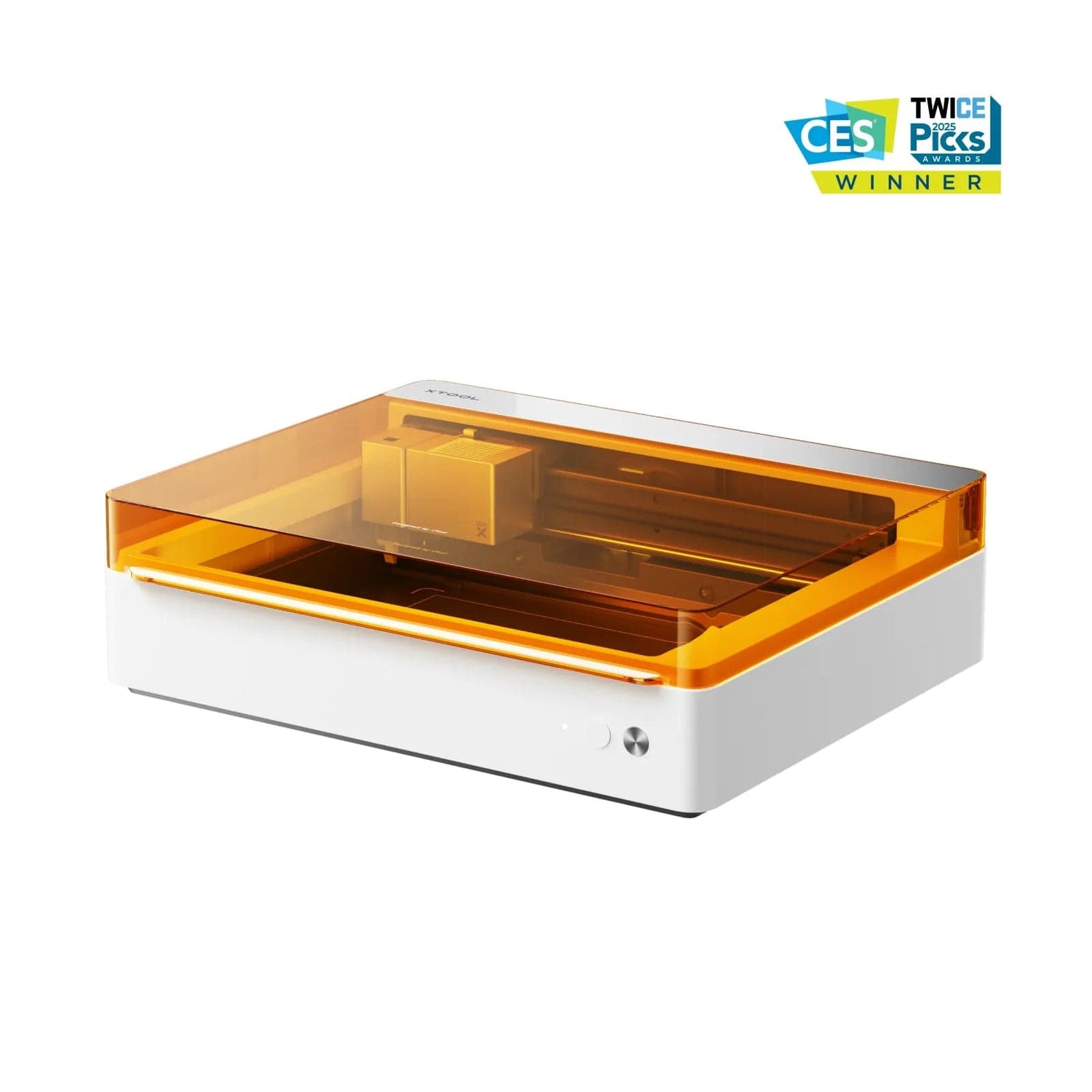

The xTool M1 Ultra 20W is a groundbreaking 4-in-1 desktop craft machine that combines laser engraving and cutting, blade cutting, inkjet printing, and pen drawing into one powerful device, designed for makers, artists, and hobbyists looking to elevate their projects with unmatched precision and ease. The 20W laser cuts through materials like 10mm basswood with remarkable ease — twice as fast as the 10W — and delivers vibrant, colorful engravings on metal with micron-level precision. Supporting 1,000+ materials from soft to hard, thin to thick, and flat to 3D curved surfaces, it's built to meet virtually all everyday crafting needs in one compact, desktop-friendly footprint.
Features
- 4-in-1 Multi-functional: Laser, Inkjet, blade, and pen modules.
- 9 processing methods satisfy your needs on gift making, home decor and more.
- Wide range for processing over 1000 materials.
- Easily multitask with 3-Second Easy Swap™.

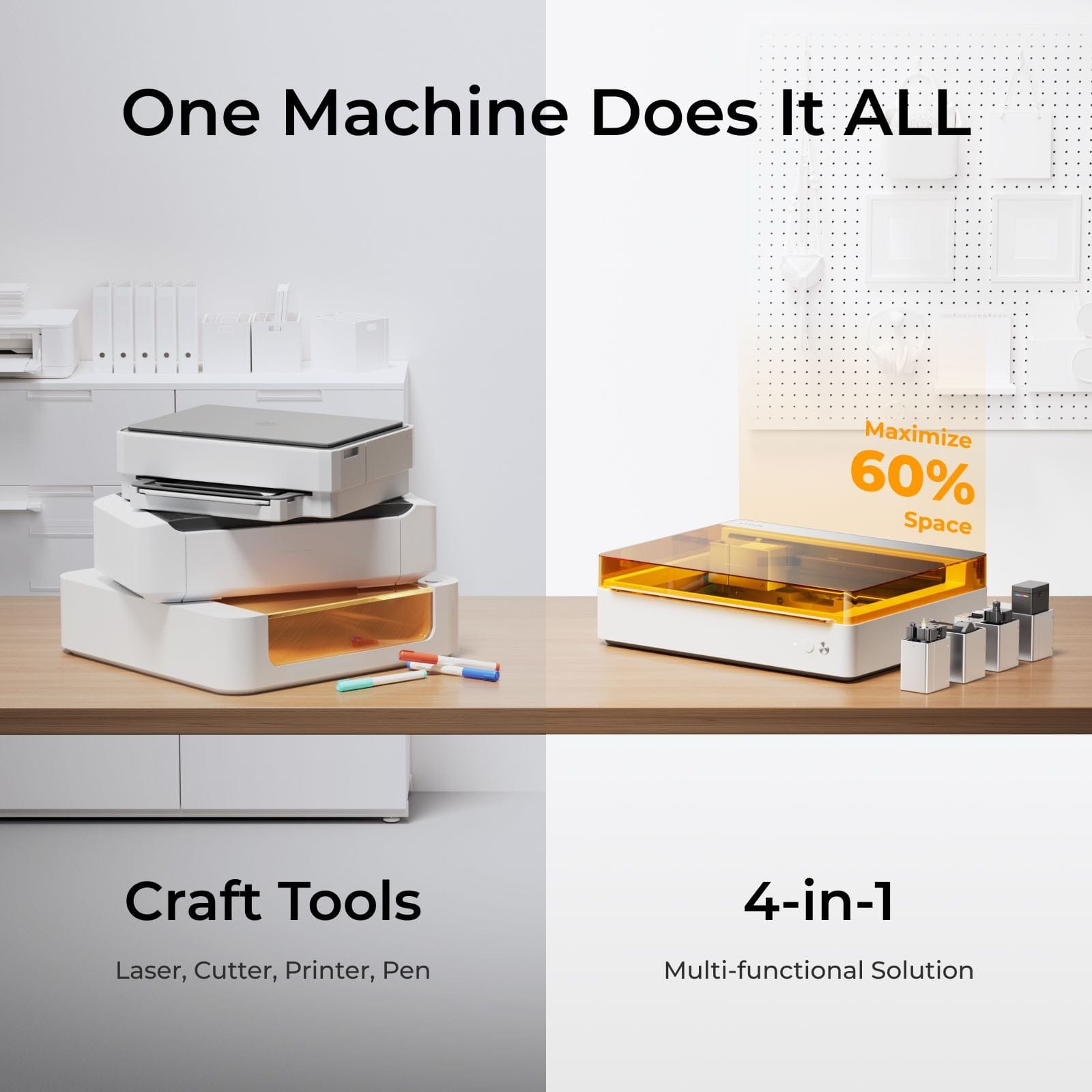

- Efficiency Boost: Maximize your space by 60%.
- What's Included: xTool M1 Ultra 20W basic*1, M1 Ultra Foil Transfer Tip*1, M1 Ultra Rotary Blade*1, M1 Ultra Ink Module*1, Air Assist 2.0*1, M1 Ultra Riser Base*1, Honey Comb*1, RA2 Pro*1
Specifications
| Processing Capacity | |
| Laser Type | 20W Diode Laser |
| Processing Mode |
|
| Supported Materials |
|
| Working Area |
|
| Max. Working Speed | 15.75 ips (400 mm/s) |
| Max. Laser Cutting Capacity (Basswood) | 20W: 0.39" (10 mm) in ONE PASS |
| Max. Laser Cutting Capacity (Acrylic) | 20W: 0.31" (8 mm) in ONE PASS |
| Max. Blade Cutting Capacity |
|
| Max. Processing Height |
|

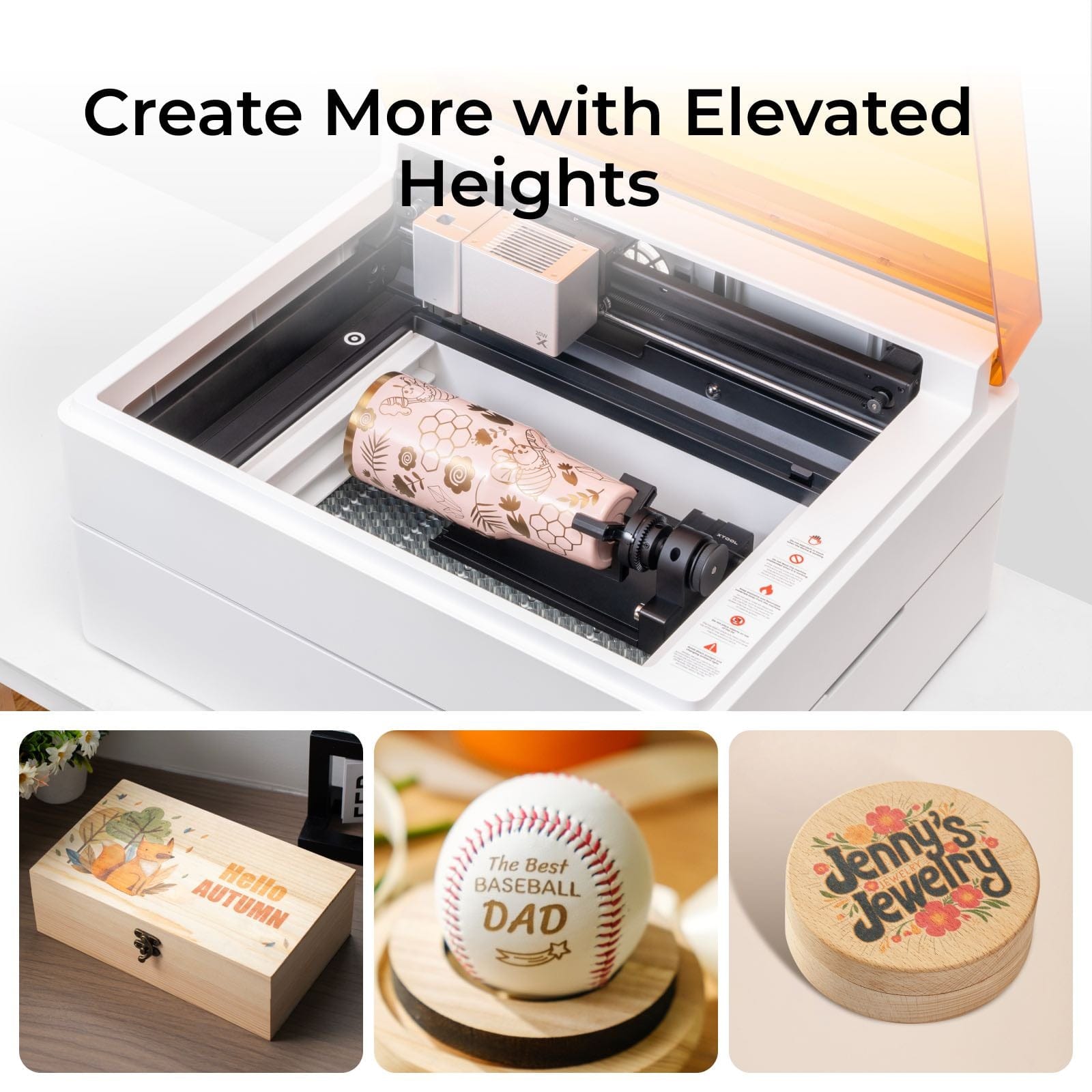

| Max. Rotary Engraving Diameter | With Riser Base: 0 - 3.90" (0-99 mm) |
| Smart Software | |

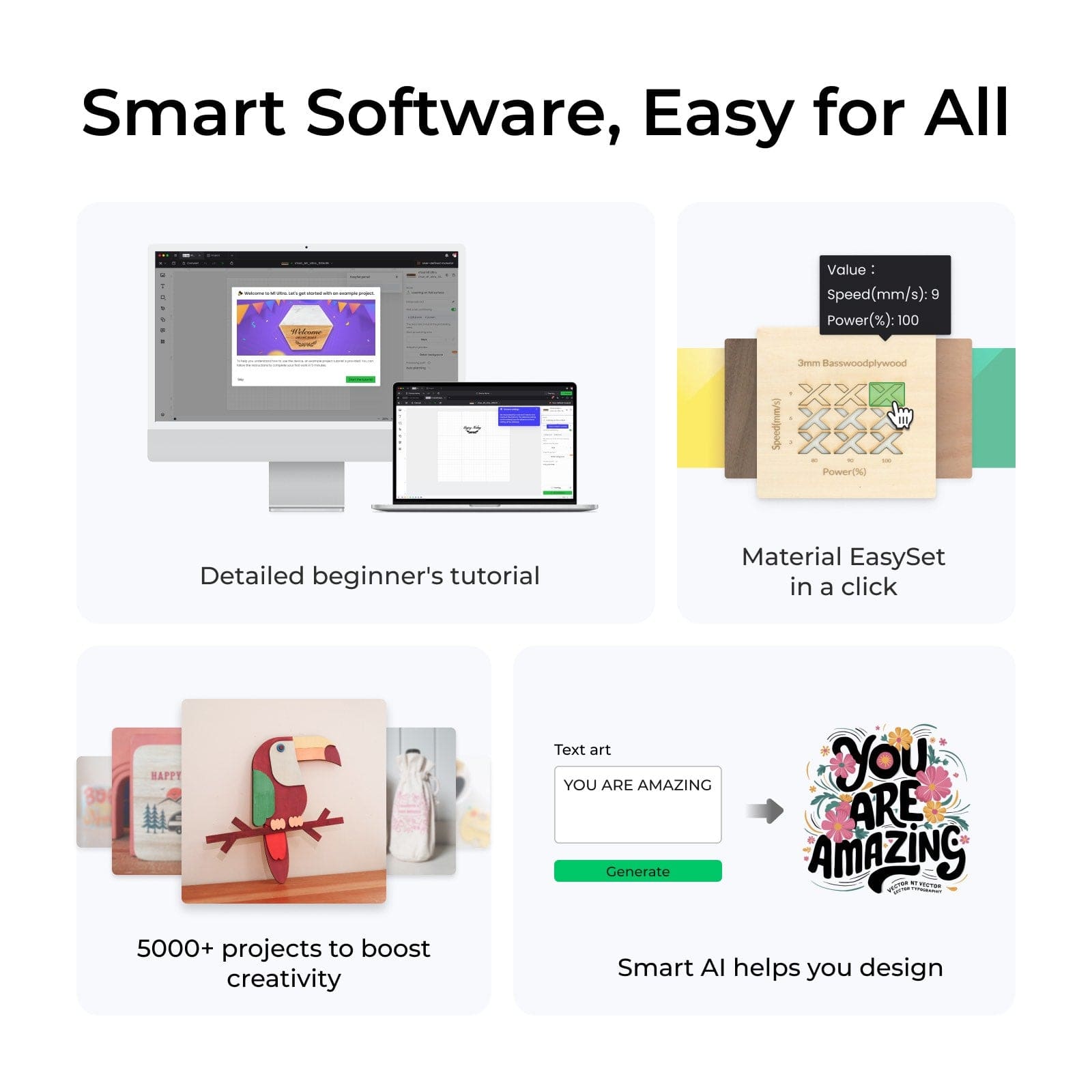

| Supported Software | xTool Studio |
| Operating System | Windows/macOS |
| Connection Method | USB/Wi-Fi/IP |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| AImake Compatibility | Yes |
| Easy Operation | |
| Pre-assembled | Yes |
| Built-in Camera | N/A |
| Positioning Method | Pin-Point™ Positioning |
| Focus Mode | Autofocus |
| Accuracy & Precision | |
| Laser Spot Size | 20W Diode Laser: 0.0024" × 0.0031" (0.06 mm × 0.08 mm) |
| Positioning Precision | 0.0008" (0.02 mm) |
| Ranging Precision | 0.0039" (0.1 mm), Probe |
| Motion Accuracy | 0.0004" (0.01 mm) |
| General Information | |
| Safety Certification | Class 1 Laser Safety (TÜV SÜD Certified) |
| Product Dimensions | 24.41'' x 19.61'' x 7.01''(620 mm x 498 mm x 178 mm) |
| Product Weight | 37.48 lb (17 kg) |
| Max. Machine Input Power | 200 W |
| Power Adapter Input Voltage | 100 V - 240 V ~ AC 50/60 Hz |
